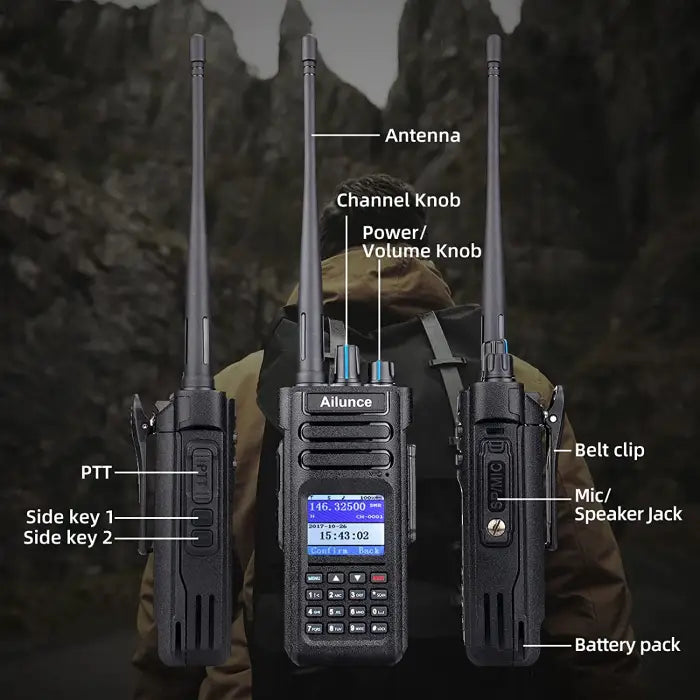

Ailunce HD1 Dual Band IP67 Waterproof Digital DMR Amateur Ham Radio With Programming Cable
Ailunce HD1 Dual Band IP67 Waterproof Digital DMR Amateur Ham Radio With Programming Cable
Promotions
Promotions
Login to your account or create one, to see what QSO Rewards are waiting for you!
Couldn't load pickup availability
Quick Specs
Quick Specs
WP Plug
8W
Scoll down for more information about this item.

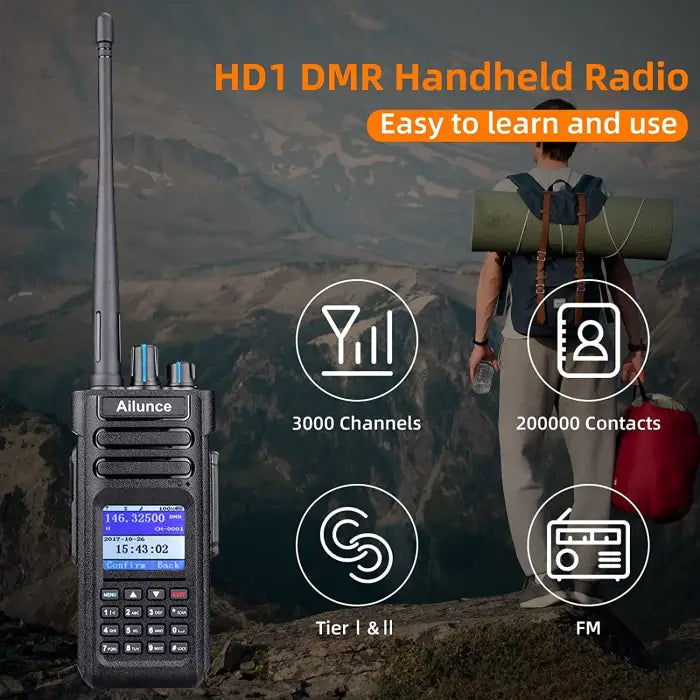

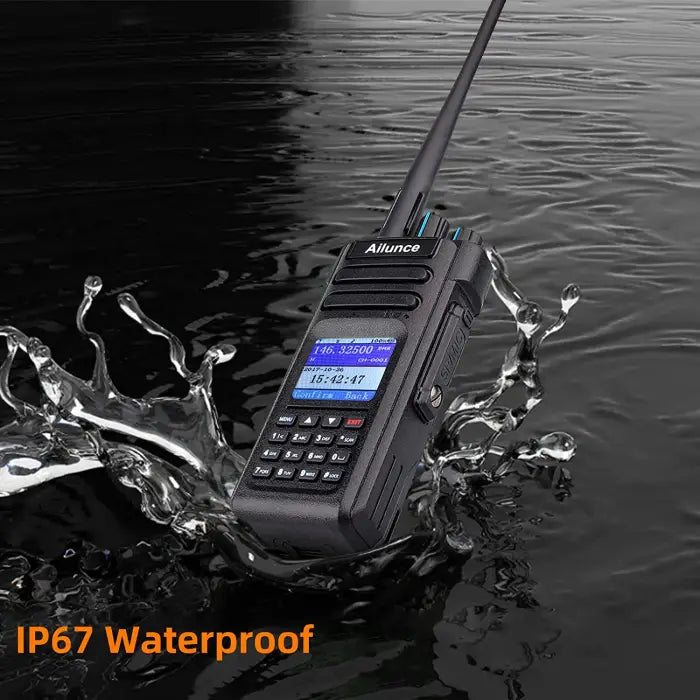

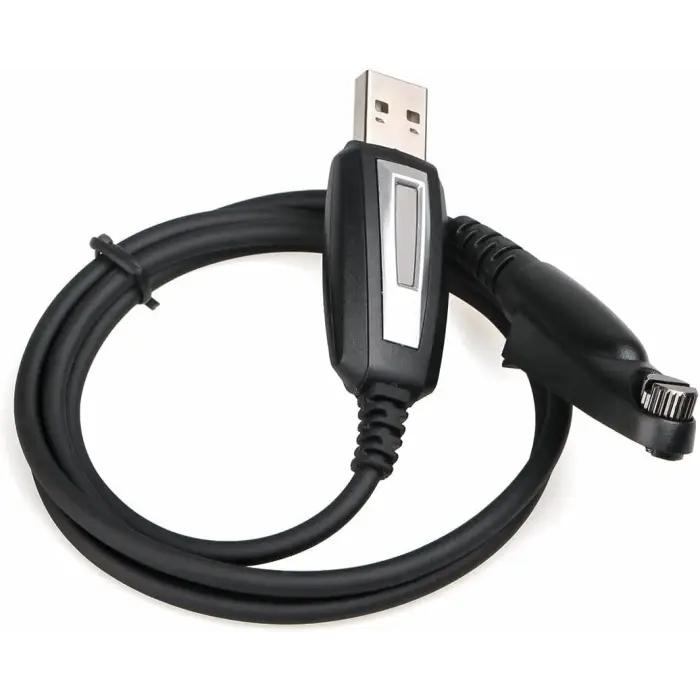

Explore the great outdoors with confidence with the Ailunce HD1 DMR radio dual band! This two-way radio features CTCSS/DCS TONE SQUELCH technology allowing you to connect to standard analog FM repeaters, along with DMR for using the next generation of Amateur worldwide repeater neterworks. Being IP67 waterproof, there is no need to hide from Mother Nature, enabling you to easily communicate with your team in multiple conditions. Plus, the Windows USB programming cable makes setup a breeze. Enjoy worry-free communication - get the Ailunce HD1 DMR radio dual band today!
Technical Specifications
| Frequency | 144-148 / 420-450MHz |
| Channels | 3000 |
| Operating Temperature | -30℃~+60℃ |
| Operating Voltage / Power supplied voltage | 7.4V DC / 12V DC |

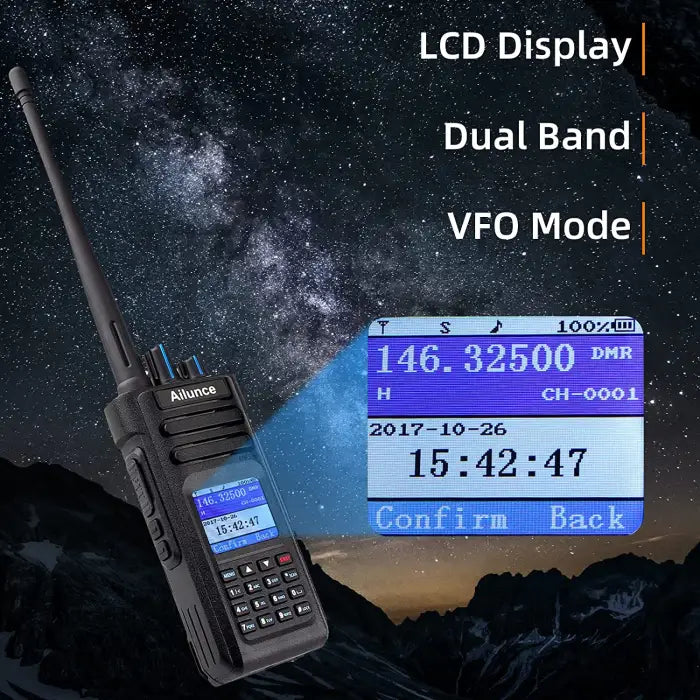

| Dimension / Weight / Display | 150 x 64x 40mm / 360g (with battery ) / LCD Colour |
| Channel Spacing |
Analog 25 / 20 / 12.5KHz Digital 12.5KHz |

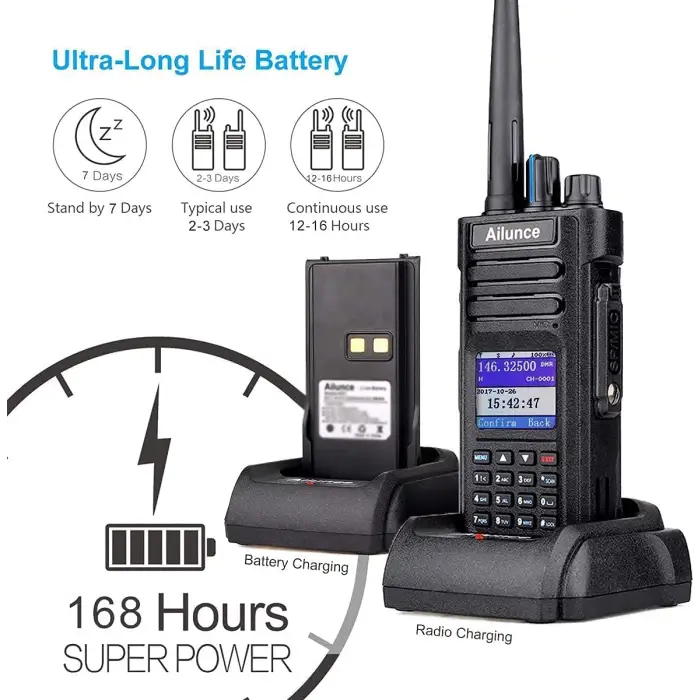

| Battery Type / Battery Capacity | Li-ion / 3200mAh |
| Contacts |
200000 |
| Antenna Impedance | 50 Ω |
| Transmitter | |
| Transmit Power/ Current |
VHF 10W / 5W / 1W UHF 8W / 4W / 1W |
| Frequency Stability | + - 1.0 ppm |
| FM modulation mode |
12.5KHz@11K0F3E 25KHz@16K0F3E |
| 4FSK Digital Mode |
12.5KHz(data only):7K60 FXD 12.5KHz (data and voice):7K60FXW |
| Modulation distortion | ＜5% |
| Vocoder | AMBE+2TM |
| Adjacent channel power | 60dBm@12.5KHz / 70dBm@25KHz |
| Audio Response | +1~ -3dB |
| Digital Protocol | ETSI-TS102 361-1,-2,-3 |
| Receiver | |
| Analog Sensitivity | 0.16 uV (12dB SINAD) |
| Digital Sensitivity | 0.14 uV (5% BER) |
| Inter modulation | 70dB |
| Spurious Response | TIA603C:75dB ETSI:70dB |
| Audio Response | +1~-3dB |
| Rated Audio Distortion | ≤3% (Type) |
| Audio Power | ≥500mW |
