President

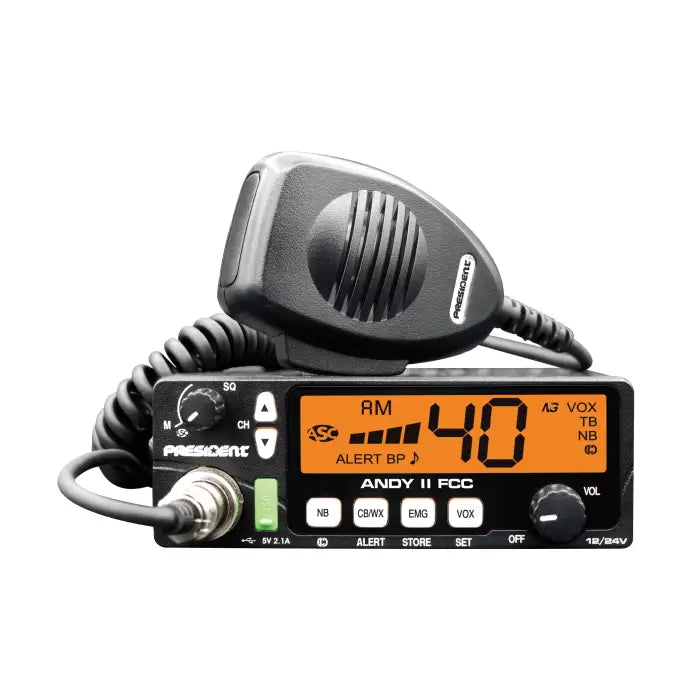

President Andy II FCC 40 Channel AM CB Radio

President Andy II FCC 40 Channel AM CB Radio

This item ships from the Quebec distributor. Please allow 72 Hrs. for processing.
Regular price CHF 98.00
Regular price Sale price CHF 98.00
Sale Sold out
Shipping calculated at checkout.

Promotions

Login to your account or create one, to see what QSO Rewards are waiting for you!

Shopify secure badge

Quick Specs

  • 26.965 - 27.405 MHz
  • UHF / SO239

4W

  • AM

Scoll down for more information about this item.

40 channels AM
12 / 24 V
Up/down channel selector
Volume adjustment and ON/OFF
Manual squelch and ASC
Multi-functions LCD display
S-meter
ANL filter , NB
Compander
Noise Gate
F function key
Beep Function
EMG programmable
Talkback
Public Address
Weather channel with Alert
Front microphone plug
External loudspeaker jack

Supply : 13.8 V / 27.6 V
Number of channels : 40
AM : Yes
Channel selector : up / down
Number of weather channels : 7
Weather alert : Yes
Volume : Volume adjustment and ON/OFF
Squelch : Manual squelch
ASC : Yes
Display : LCD multifunction
S-meter : Digital
Public address : Yes
Talkback : Yes
Vox : Yes
Filter ANL : Yes
Filter NB : Yes
Compander : Yes
Noise Gate : Yes
Scan : Yes
Beep Function : Yes
Roger beep : Yes
Preset channel : EMG
microphone plug : Front (4 pins)
External loudspeaker jack : Yes
Size (W x D x H) : 4.92 (W) x 6.89 (D) x 1.77 (H) inches / 125 (W) x 175 (D) x 45 (H) mm
Weight : ~ 1.98 lbs / 0.9 kg



General
Number of channels : 40
Number of weather channels : 7
Weather alert :
Modulation modes : AM
Frequency ranges : from 26.965 MHz to 27.405 MHz
Weather channels : from 162.400 MHz to 162.550 MHz
Antenna impedance : 50 ohms
Power supply : 13.8 V / 27.6 V
Size (W x D x H) : 4.92 (W) x 6.89 (D) x 1.77 (H) inches / 125 (W) x 175 (D) x 45 (H) mm
Weight : ~ 1.98 lbs / 0.9 kg
Accessories supplied : Ultra light electret microphone with support, mounting cradle, screws
Filter : ANL (Automatic Noise Limiter) built-in



Transmission
Frequency allowance : +/- 200 Hz
Carrier power : 4 W
Transmission interference : inferior to -60 dBc
Audio response : 300 Hz to 3 KHz
Emitted power in the adj. channel : inferior to 20 μW
Microphone sensitivity : 3 mV
Drain : 1.8 A at 13.8 V / 0.9 A at 27.6 V
Modulated signal distortion : 1.8 %



Reception
Maxi. sensitivity at 20 dB sinad : 0.6 μV - 111 dBm
Frequency response : 300 Hz to 3 kHz
Adjacent channel selectivity : > 60 dB
Maximum audio power : 2 W
Squelch sensitivity : minimum 0.2 µV - 120 dBm, maximum 1 mV - 47 dBm
Frequency image rejection rate : 60 dB
Intermediate frequency rej. rate : 70 dB
Drain : 160 ~ 500 mA (13.8 V) / 50 ~ 250 mA (27.6 V)



Owners Manual
