Surecom S-KT980+CA Dual Band High Power Mobile Amateur Ham Radio
Surecom S-KT980+CA Dual Band High Power Mobile Amateur Ham Radio
Promotions
Promotions
Login to your account or create one, to see what QSO Rewards are waiting for you!
Couldn't load pickup availability

Quick Specs
Quick Specs
RJ-45
50W
Scoll down for more information about this item.

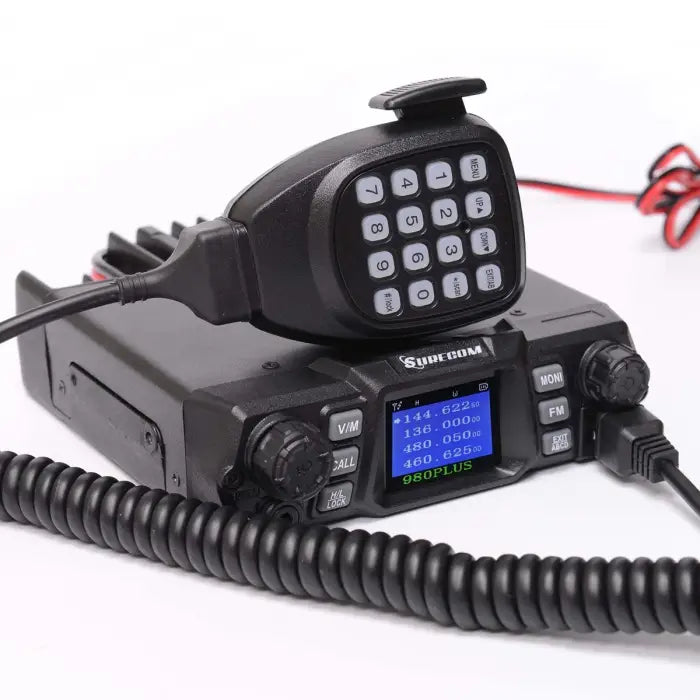

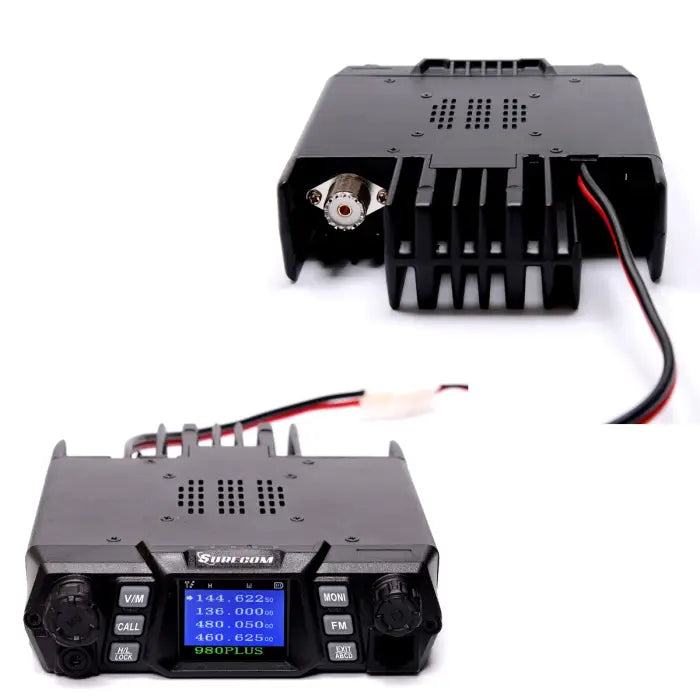

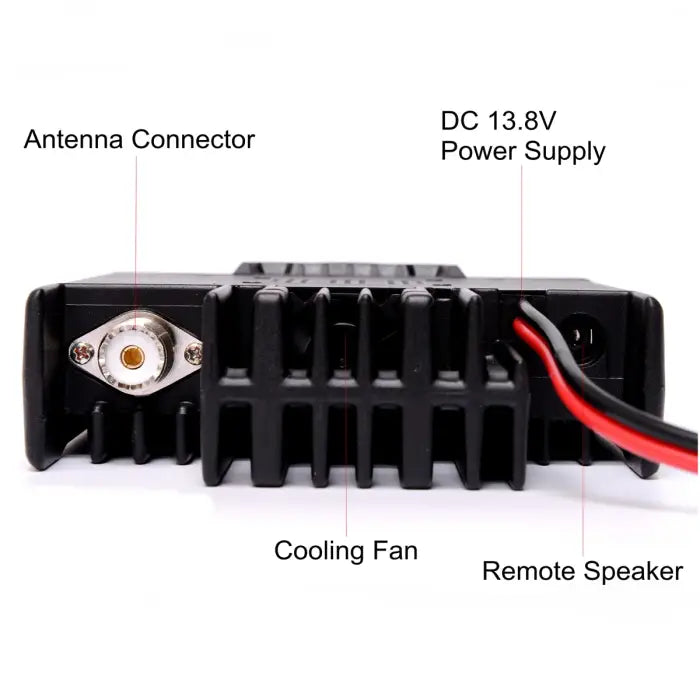

The Surecom S-KT980+CA high power mobile amateur ham radio is ready for the range you need! Work 2M and 70CM with a full ~75W (Max VHF). Use simplex mode to talk to other thrill seekers on the trail, or program tones, frequency offset and direction and use local ham radio repeaters to talk all over town. Save your favourite channels and repeaters to the memory, or work in VFO mode, the choice is yours. The small size will ensure the radio fits into the tightest of spaces (be sure to leave a little room for the radio to breathe!), while the cooling fan will help keep the radio running efficiently during long winded QSOs.

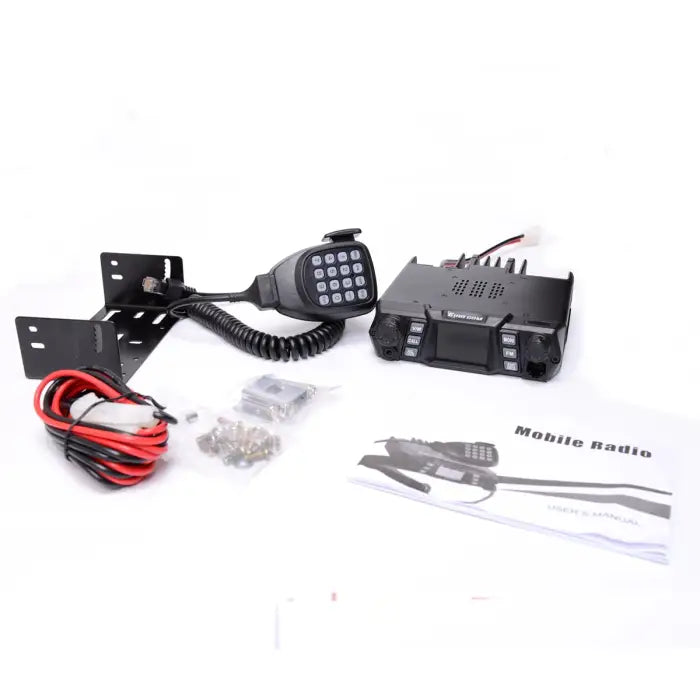

Includes Windows Programming Cable!
Features:
1. Dual Band: 144~148 VHF (2M Only) / 430~450 UHF (70cm Only)

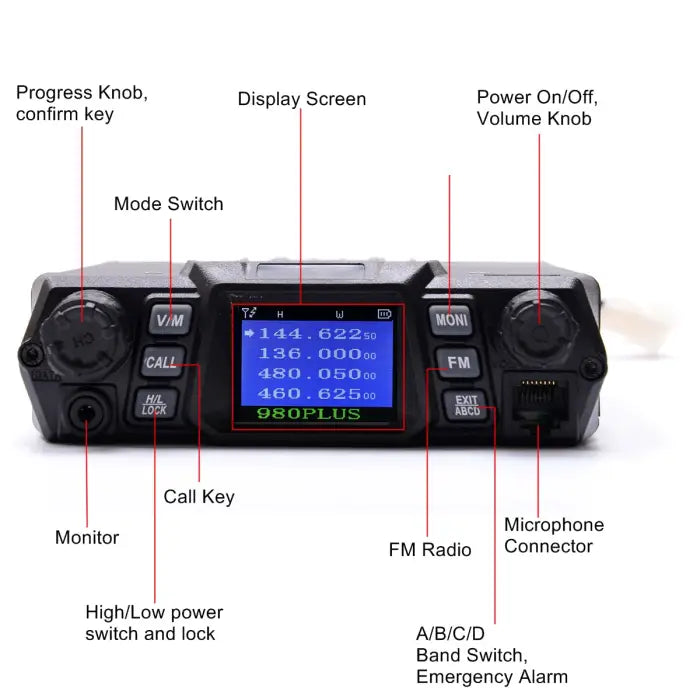

2. Compact and rigid car radio with colour screen
3. 5-Tone 2-Tone ANI DTMF tones
4. Remote Stun, Remote Kill, Remote Revive
5. High power output 75W on VHF and 55W on UHF
6. External speaker / PTT Audio jack
Specification:
1. Frequency Range: 144~148 VHF (2M Only) / 430~450 UHF (70cm Only)
2. Number of Channel: 200
3.Channel Spacing: 25KHz 20K 12.5K
4. Phase lock step: 2.5KHz, 5KHz, 6.25 KHz, 10 KHz ,12.5 KHz, 15 KHz, 25 KHz
5. Working Voltage: 13.8V DC±15%
6. Squelch way: CTCSS/DCS/5Tone/2Tone/DTMF
7. Frequency Stability :±2.5ppm
8. Operating Temperature :-20-+60C
Receiver | ||
Broadband | Wide band | Narrow band |
Sensitivity | < 0.25V | < 0.35V |
Channel choice | >70dB | >60dB |
Intermodulation | >65dB | >60dB |
Spurious Rejection | >70dB | >70dB |
Audio response | +1 – -3dB(0.3-3KHz) | +1 – -3dB(0.3-2.55KHz) |
Signal to noise ratio | >45dB | >40dB |
Audio distortion | <5% | |
Audio output power | >2W 10% | |
Transmitter | ||
Broadband | Wide band | Narrow band |
Output power | ~75W / ~55W (VHF/UHF) | |
Modulation Mode | 16K F3E | 11K F3E |
Channel Power | >70dB | >60B |
Signal to noise ratio | >40dB | >36dB |
Parasitic harmonic | >60dB | >60dB |
Audio response | +1- -3dB(0.3-3KHz) | +1- -3dB(0.3-2.55KHz) |
Audio distortion | <5% |
