VHF Fixed Marine Radio RS-509MG - Class B

VHF Fixed Marine Radio RS-509MG - Class B

Enjoy prompt shipping from the Toronto warehouse.
Prix habituel $179.69 CAD
Prix habituel Prix soldé $179.69 CAD
Vente Épuisé
Frais d'expédition calculés à l'étape de paiement.

Promotions

Login to your account or create one, to see what QSO Rewards are waiting for you!

Shopify secure badge

Quick Specs

Scoll down for more information about this item.

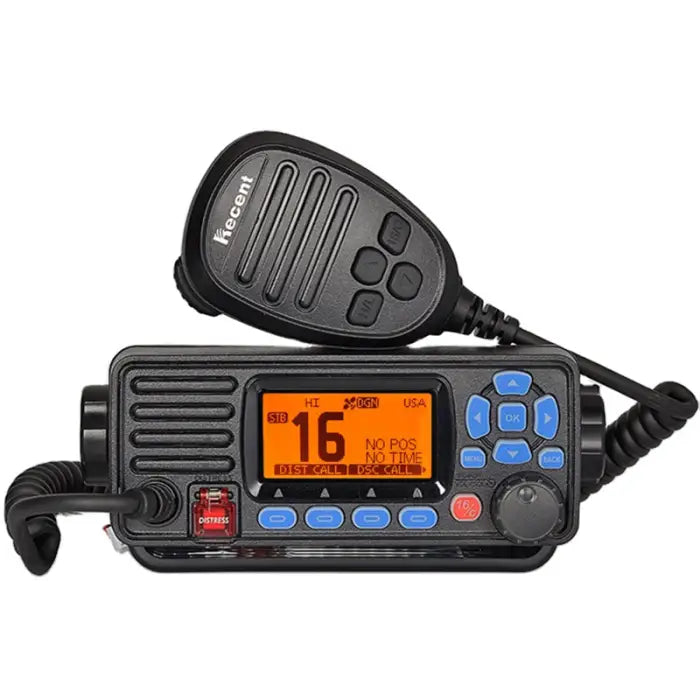

VHF Fixed Marine Radio RS-509MG - Class B

The Recent RS-509MG is a high-performance Class B Fixed Mount VHF Marine Radio designed for marine enthusiasts and professionals who require reliable communication and safety at sea. This radio is packed with advanced features and functions that ensure clear and efficient communication on the water.

One of the key features of the RS-509MG is its rugged and durable construction. It is designed to withstand the harsh marine environment and is waterproof and dustproof, with an IPX7 rating. This means that it can be submerged in up to 1 meter of water for up to 30 minutes without any damage. The radio is also resistant to corrosion, making it ideal for use in saltwater environments.

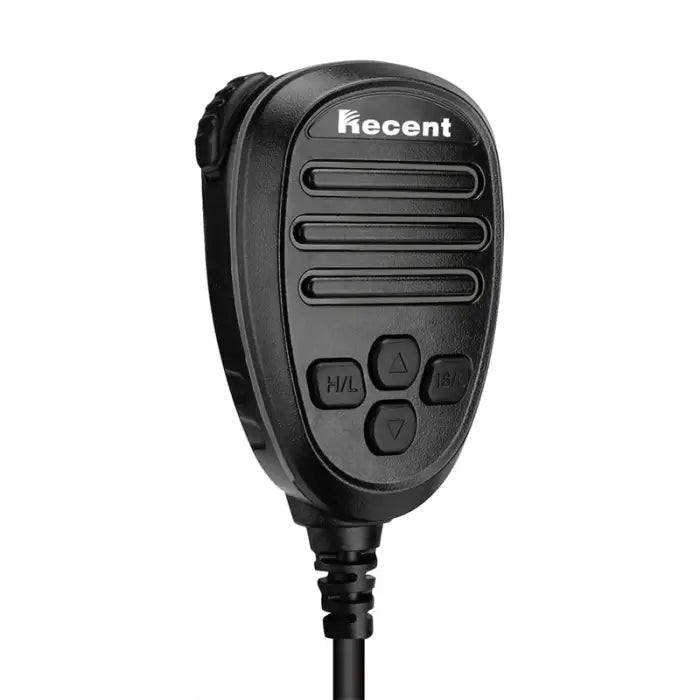

The RS-509MG offers a powerful transmission output of 25 watts, ensuring clear and reliable communication over long distances. It also features a built-in noise-cancelling microphone that helps to reduce background noise and improve the clarity of your voice transmissions.

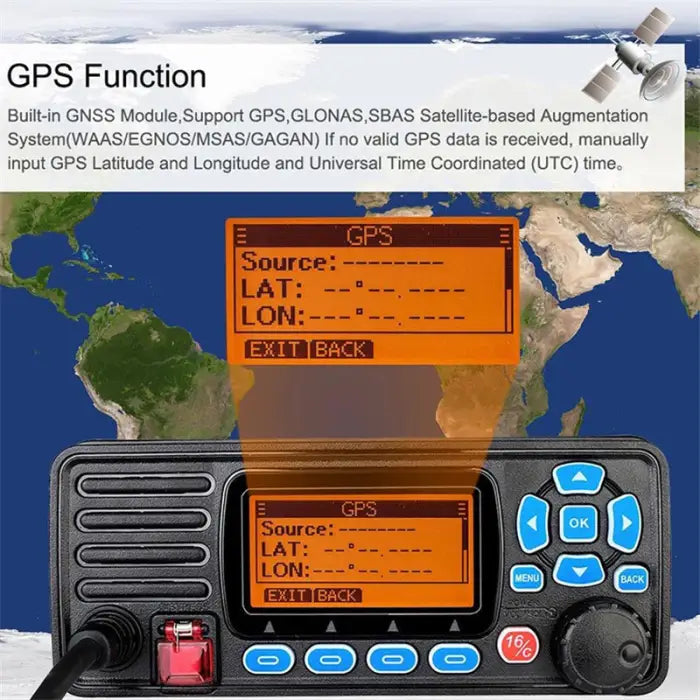

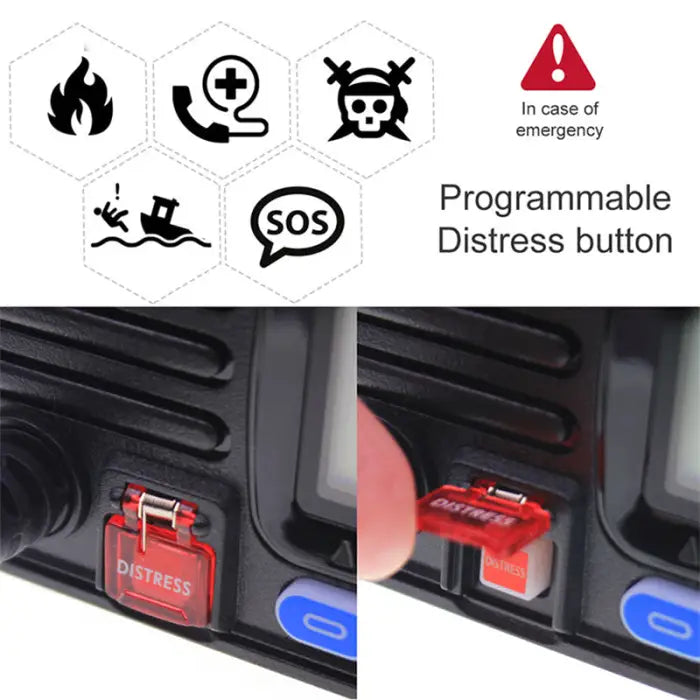

The radio also features advanced digital selective calling (DSC) functionality, which allows you to send and receive distress signals and other important information with the touch of a button. The radio also supports position tracking and group calling, making it easy to communicate with other vessels and coast guard stations.

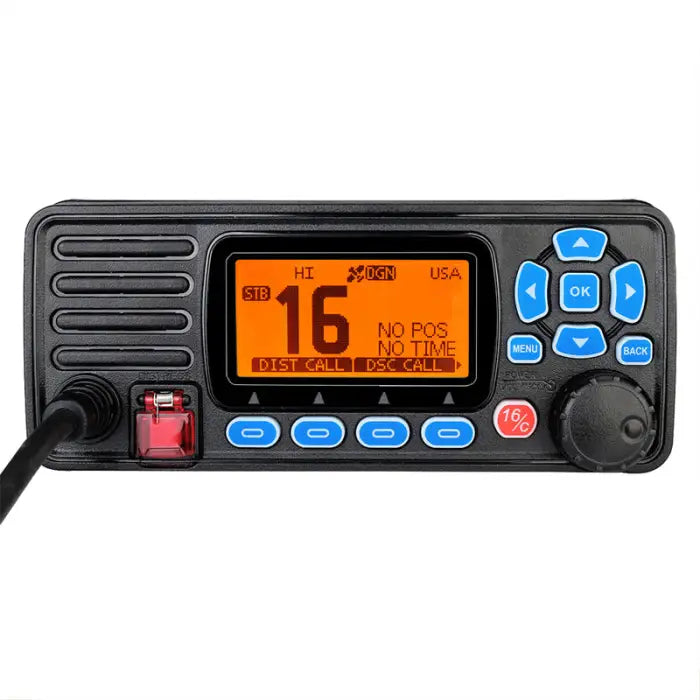

The RS-509MG is equipped with a large, easy-to-read LCD display that provides clear and detailed information about the radio's functions and status. The display also features adjustable brightness, making it easy to read in any lighting condition.

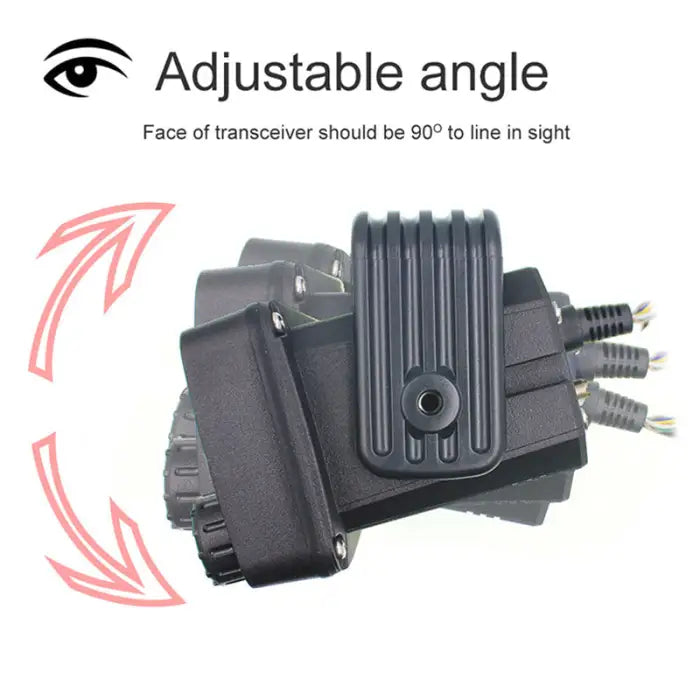

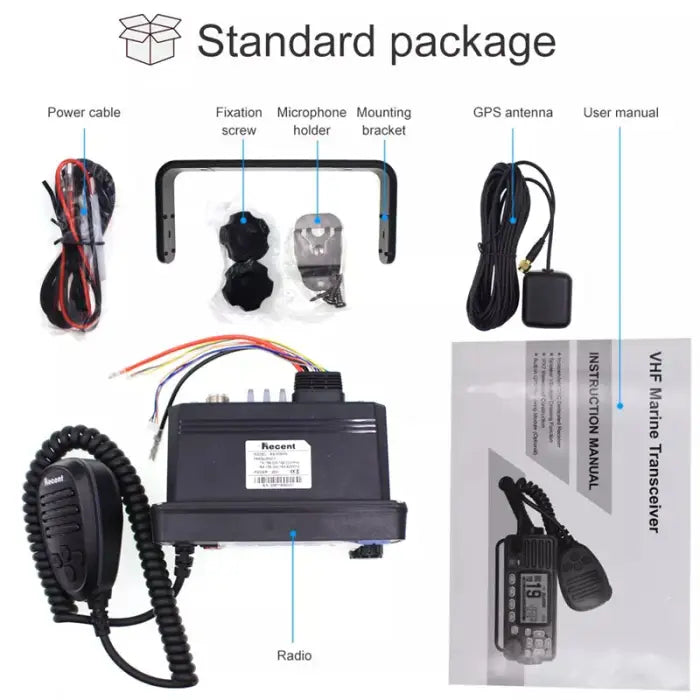

In terms of installation, the RS-509MG is designed to be easy to mount and install. It comes with a flush-mount kit and a quick-release bracket, making it simple to remove and replace the radio if needed.

Overall, the Recent RS-509MG is a versatile and reliable Class B Fixed Mount VHF Marine Radio that is packed with advanced features and functions. Its rugged construction, powerful transmission output, and advanced DSC functionality make it an excellent choice for marine enthusiasts and professionals alike who require reliable communication and safety on the water.

Specifications:

  • Frequency: (Marine Band)
    • TX: 156.000-162.000MHz
    • RX: 156.000-163.425MHz
  • RF Power: 25W / 1W
  • Band Plan: USA / INT / CAN
  • Modulation Mode: 16K0G3E(FM) / 16K0G2B(DSC)
  • Frequency Stability: ±5ppm
  • Power Supply: DC13.8V (±15%)
  • Channel Spacing: 25kHz
  • Operating Temperature: -20℃~+60℃
  • Antenna Impedance: 50Ω
  • Output Impedance (Audio): 4Ω
  • Dimensions (WxHxD): 155×68×86mm
  • Weight: 721g
