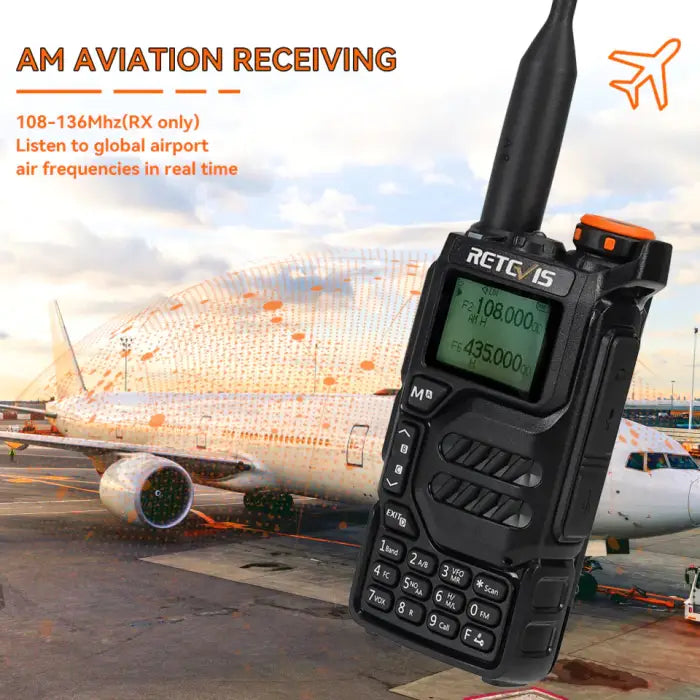

WOW is all we can say about this radio. An alternative to the Quansheng UV-K5, this radio packs almost every feature one would want, with a price to please, and FCC certification. Also known as the Quansheng UV-K6 and UV-K5(8), this radio features Dual Band, check. AM airband (RX), check, USB-C charging, check. You also get NOAA weather channels, and FM broadcast radio reception. Did we mention it's also a scanner, allowing one to tune in 50Mhz, 220Mhz, and up to 600Mhz on the UHF band! Enjoy clear audio from the upgraded speaker and a first in a ham radio, a VHF / UHF frequency counter! We dare you to find a radio with this many features for even twice the price of this unit.
And on top of all this, its also a dual band, VHF / UHF, Amateur Ham Radio with all the usual features of a ham radio including memory channels, frequency shift and offset for working repeaters, DTMF tones, CTCSS tones, and much more!

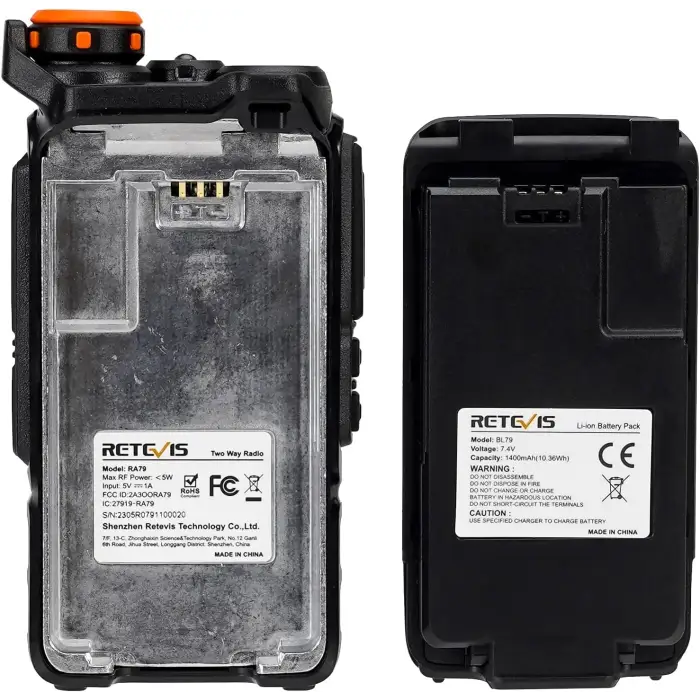

FCC ID: 2A3OORA79
GENERAL SPECIFICATIONS | |
Number of channels |
200 |
Number of FM Presets |
16 |
Frequency stability |
±1ppm |
Size |
115mmX60mmX37.5mm |
Weight |
234g |
Working temperature |
-20℃+60℃ |
Antenna impedance |
50Ω |
Modulation mode |
FM:11KOF3E(12.5KHz),16K0F3E(25KHz) |
Number of NOAA channels |
10 |
Battery capacity |
1600mAh |
RECEIVE | |
Reference Sensitivity |

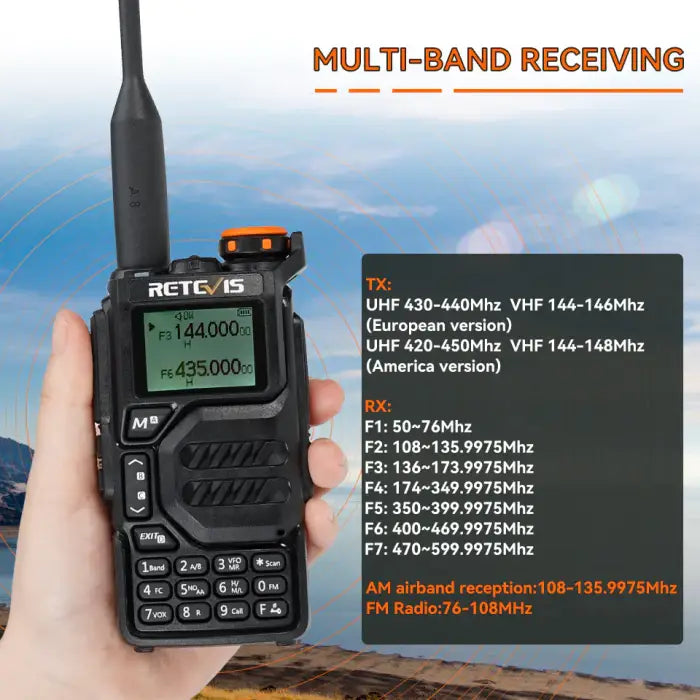

FM(12dB SINAD) F1(50∽76) -121dBm F2(108∽135.9975) -121dBm F3(136∽173.9975) -123dBm F4(174∽349.9975) -123dBm F5(350∽399.9975) -123dBm F6(400∽469.9975) -123dBm F6(470∽599.9975) -121dBm WFM(20dB SINAD) WFM(76∽108) -110dBm AM(10dB S/N) F2(108∽135.9975) -113dBm |
Audio Power |
≥0.5W |
Audio Distortion |
≤10% |
Transmit |
|
Frequency Band |
144∽148MHz 420∽450MHz |
Transmitting Power |
≤5W |
Emission Current |
≤1.5A |
Maximum Frequency Deviation |
≤5KHz(25KHz), ≤2.5KHz(12.5KHz) |
Modulation Distortion |
≤5% |
Stray Power |
≤7.5uW |
Adjacent Channel Power |
70dB(25KHz), 60dB(12.5KHz) |
Residual Modulation |
40dB |

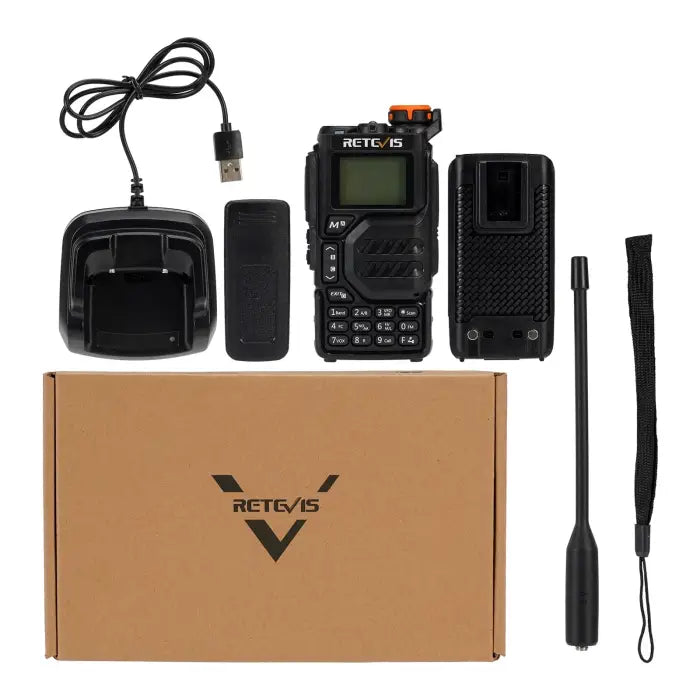

Package Contents:
-

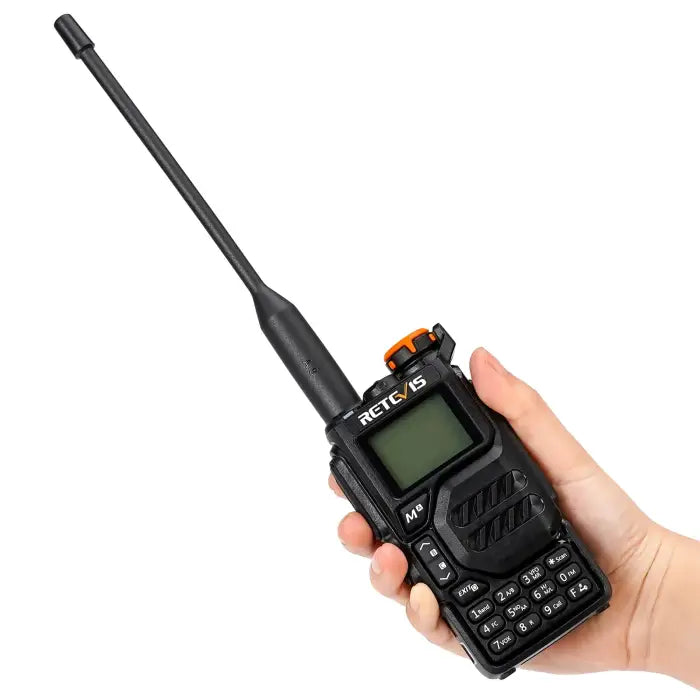

1 x RA79 Ham Radio
-
1 x USB Desktop Charger
-

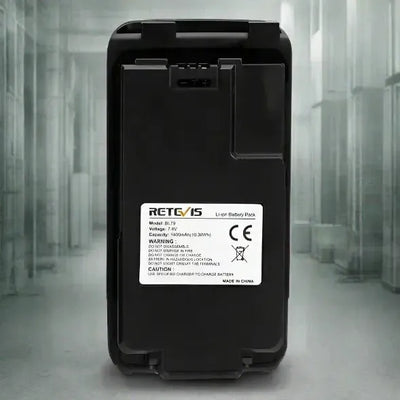

1 x 1400mAh Battery
-
1 x User Manual
-
1 x Belt Clip
-
1 x Antenna
-
1 x Lanyard
