Alfatronix Powerverter 24VDC - 12VDC Voltage Converter
24VDC TO 12VDC VOLTAGE CONVERTERS
These products offer a convenient way to operate mass produced 12Vdc equipment such as cell phones, in car entertainment, professional communications, telematics equipment, refrigerators, televisions etc. from the 24Vdc mobile electrical systems found on diesel engined vehicles and vessels.
A COMPREHENSIVE RANGE
Fleetwood Digital has 5 models available in the range from 3A to 24A in isolated or common earth configurations. They have been optimised for high volume 24Vdc to 12Vdc applications such as on heavy goods vehicles, coaches, buses, forestry and agricultural, commercial as well as leisure marine vehicles.
These units are IP53, so there are no ventilation holes to permit stray objects, dust or water droplets to enter the case, there are no external fuses to be tampered with. Fuses will only blow if there is a fault so there is no need to make them accessible.
Many PowerVerters and DD Series products can be configured with alternative output voltages etc. for specialist applications. Please call our sales team to discuss your requirements.
All the units consume an off load current of less than 15mA, which is probably less than the self discharge current of the vehicle’s battery. In most cases this can be ignored, speeding the installation by removing the need to fit a remote switch. All products fit onto a “Click ‘n’ Fit” mounting clip which is fixed in three points allowing it to be mounted on uneven surfaces. It is easy to fit the clip into awkward places and then simply click the unit into position. A fixing kit for din rail installation is also available. A green LED indicates when there is output from the converter. This gives reassurance to the installation engineer and speeds fault finding.
|Part Number||Cont/Int Power||Nominal Voltage||Dimensions (mm)||Weight|

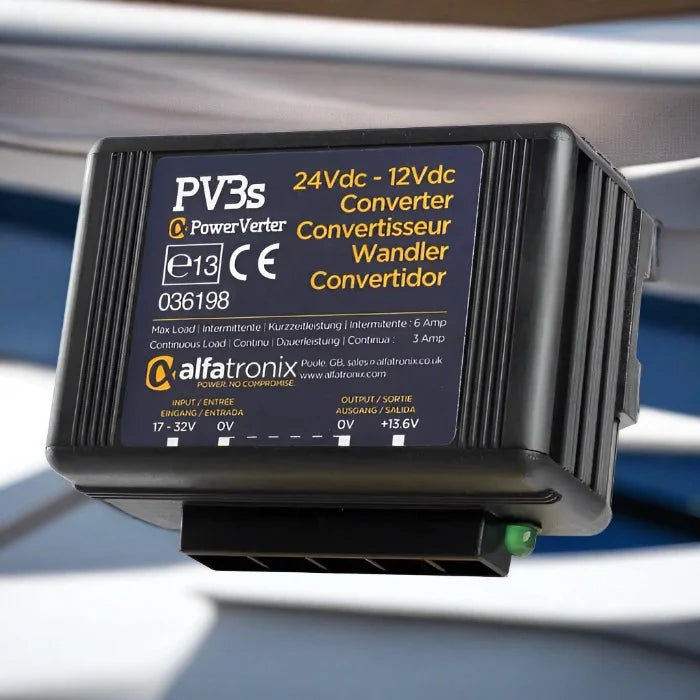

|PV3s||3A/6A non-isolated||24Vdc input, 12Vdc output||67x87x50||200g|

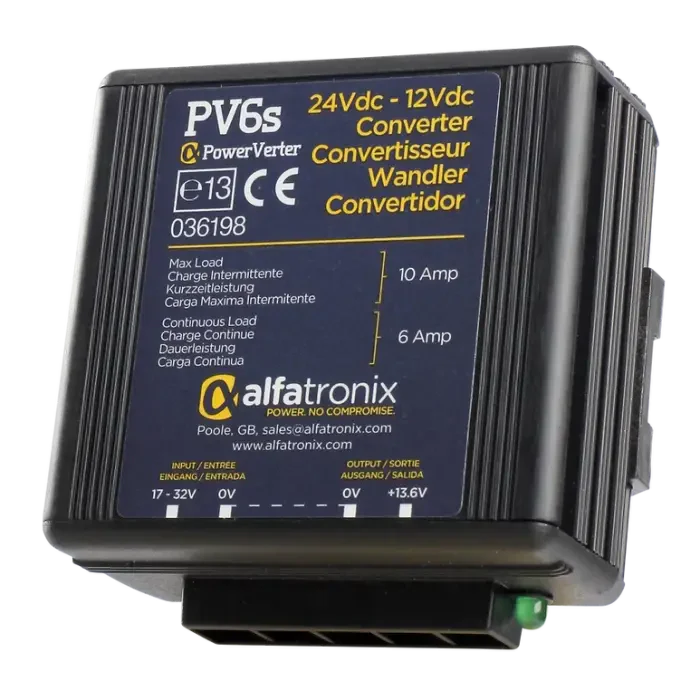

|PV6s||6A/10A non-isolated||24Vdc input, 12Vdc output||89x87x50||250g|

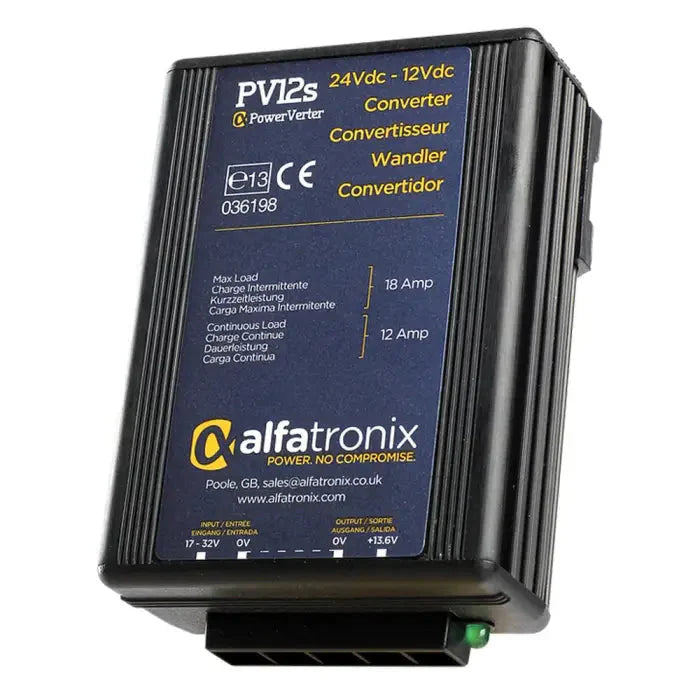

|PV12s||12A/18A non-isolated||24Vdc input, 12Vdc output||127x87x50||405g|

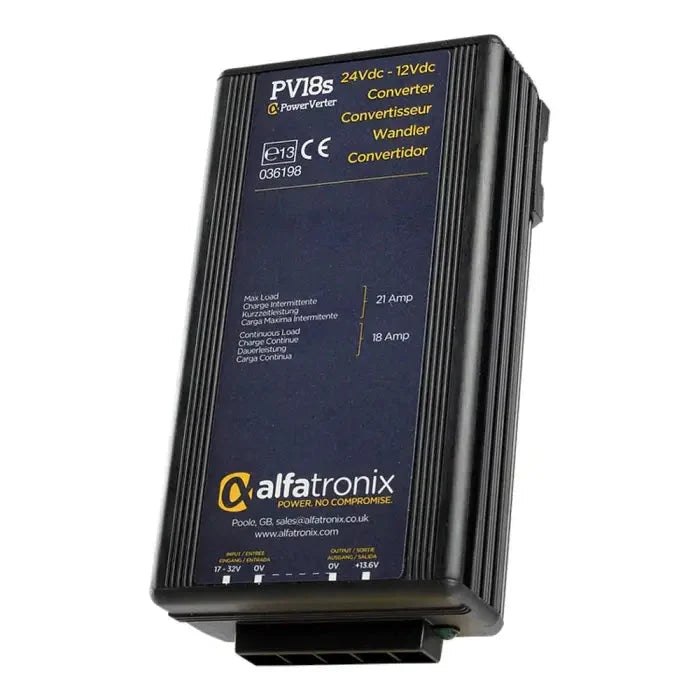

|PV18s||18A/22A non-isolated||24Vdc input, 12Vdc output||167x87x50||605g|

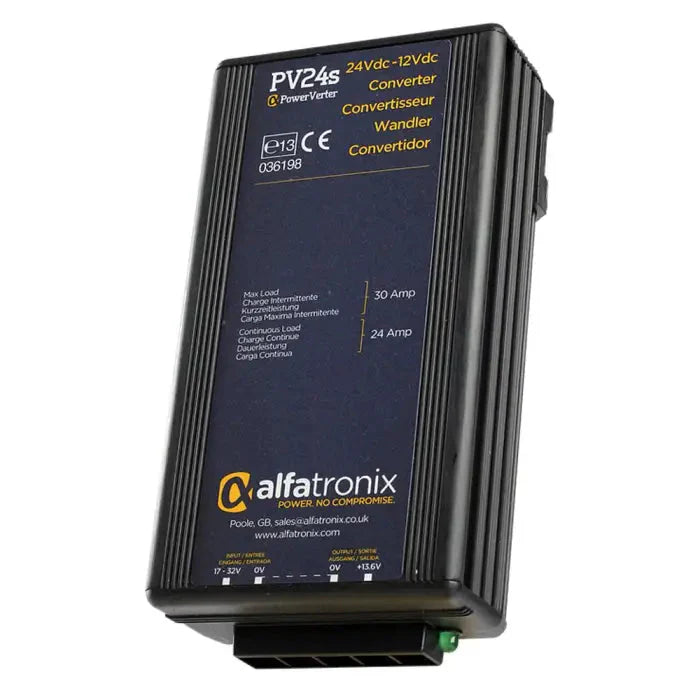

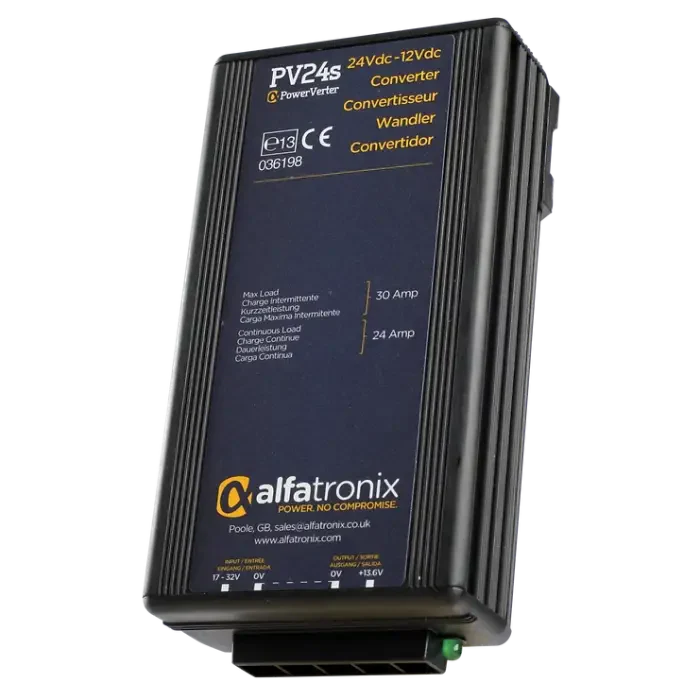

|PV24s||24A/30A non-isolated||24Vdc input, 12Vdc output||167x87x50||620g|
|Input voltage range||17-32Vdc|
|Output||13.6Vdc +15% -20% at extremes of temperature, load, input tolerance, etc.|
|Intermittent output power||As stated, taken for a maximum of 2 minutes followed by 8 minutes rest.|
|Transient voltage protection||Meets ISO7637-2 International standard for 24Vdc commercial vehicles|
|Electrostatic voltage protection||Meets ISO10605, ISO14892, >8kV contact, 15kV discharge|
|Output noise||<50mV pk-pk at continuous load. Meets CISPR25|
|Off load current (quiescent current)||<15mA|
|Power conversion efficiency||Typically: 90% for non-isolated units, 85% for isolated units, *95%|
|Isolation||>400Vrms between input, output and case, on isolated products only|
|Operating temperature||-25ºC to +30ºC to meet this specification table
+30ºC to +80ºC de rate linearly to 0A
|Storage temperature||-25ºC to +100ºC|
|Operating humidity||95% max., non-condensing|
|Casework||Anodised aluminium, glass filled polycarbonate, dust water and impact resistance to IP533|
|Connections||Four 6.3mm push-on flat blade connectors, *5 way Phoenix connector including enable on/off terminal and mating half|
|Output indicator||Green LED adjacent to output terminals|
|Mounting method||‘Click ‘n’ fit mounting clip, fitted separately using three hole fixture, *4 hole cradle|
|Safe area protection:
Limited by current sensing circuit
|Over heat||Limited by temperature sensing circuit|
|Transients||Protected by filters and rugged component selection|
|Catastrophic failure||Protected by internal input and output fuses|
|Approvals||2014/30/EU The general EMC directive
Regulation 10 The automotive directive
93/68/EEC The CE marking directive
|Designed to||EN50498, ISO 7637-2, ISO 11452-1, ISO 14982, EN12895, EN60945, EN55022, FCC15B|
|Markings||CE and E (automotive) marked|
