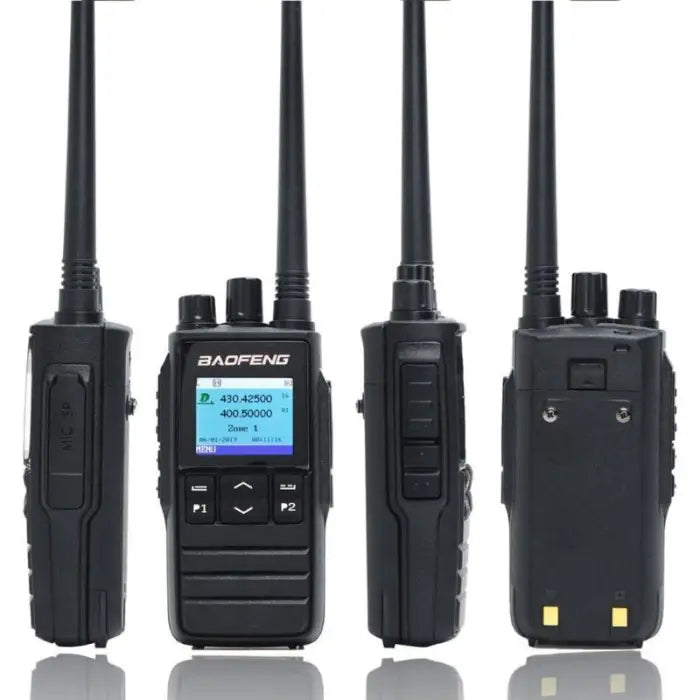

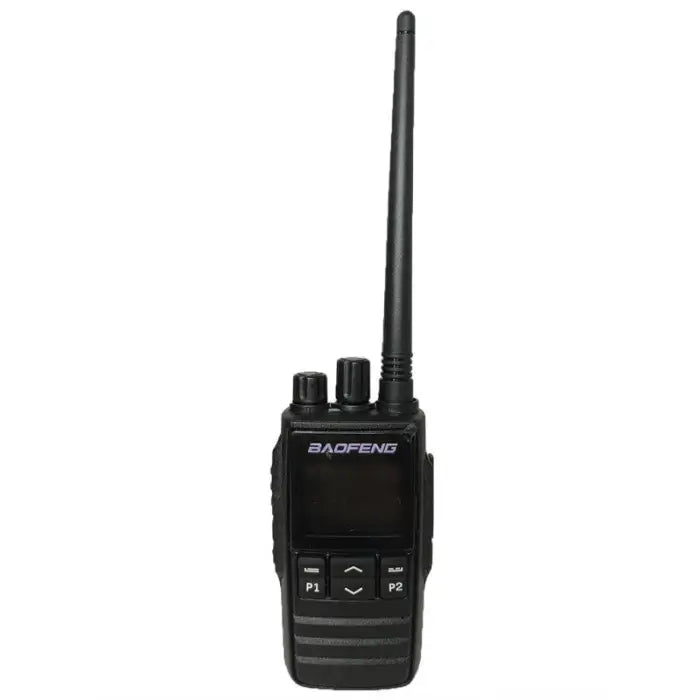

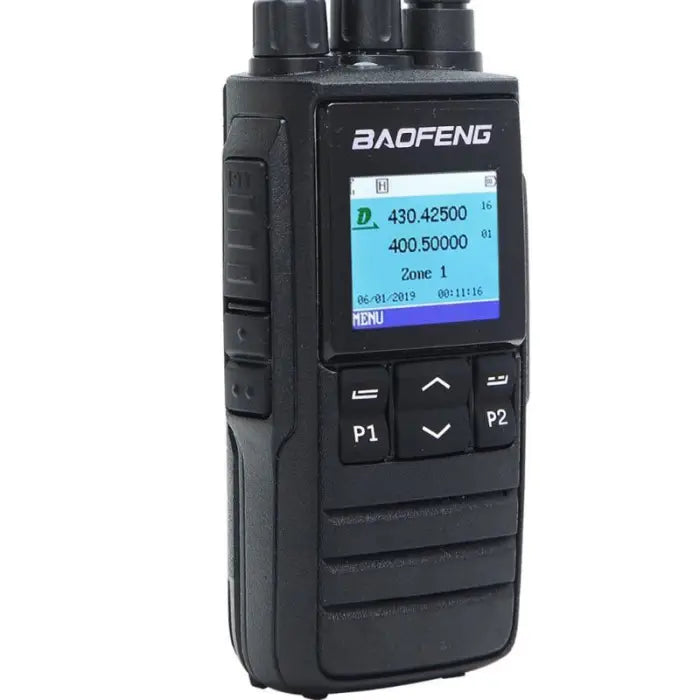

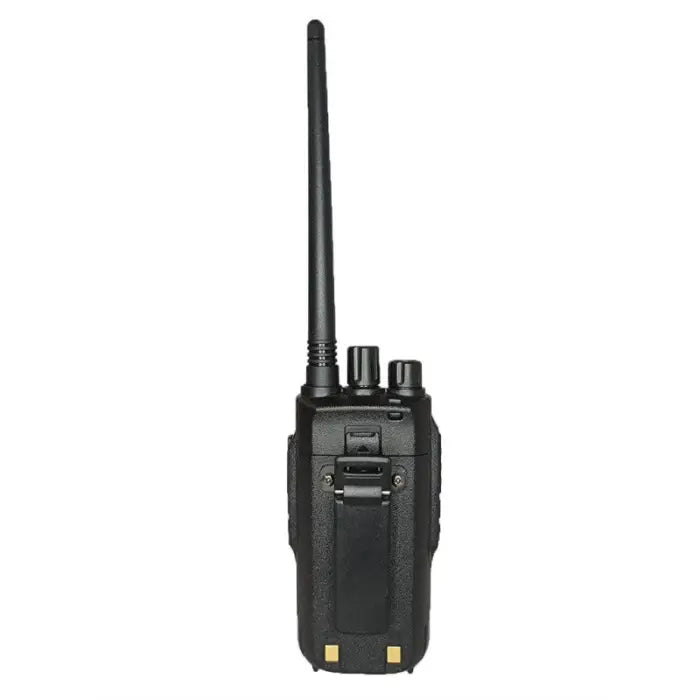

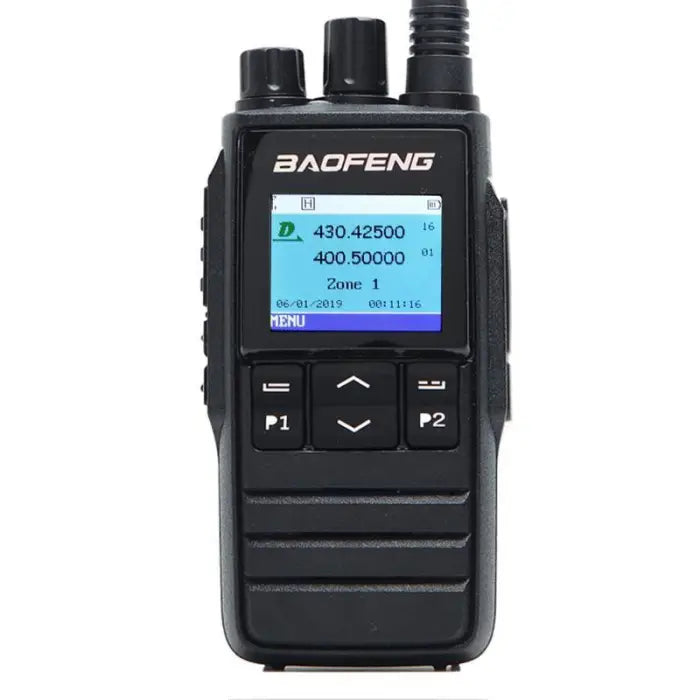

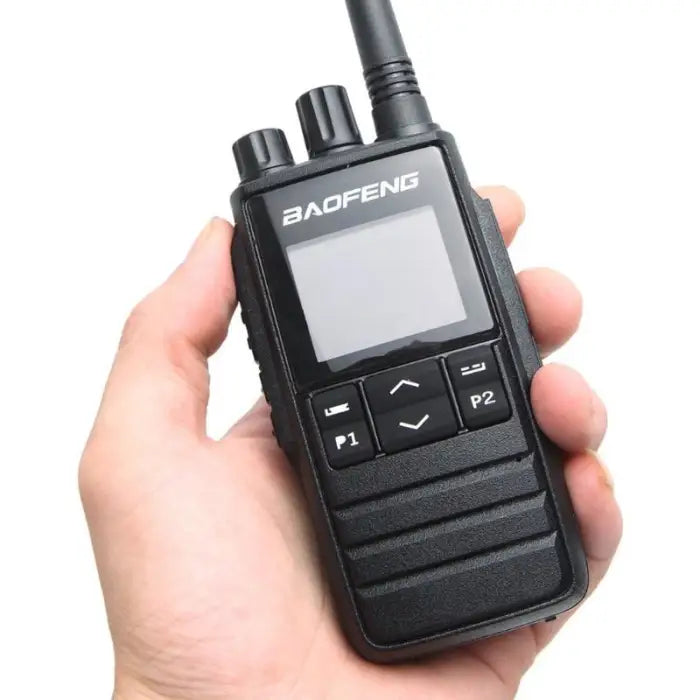

BF-TECH CA Baofeng DM-1703 Dual Band DMR Tier II Digital / Analog Amateur Ham Radio

BF-TECH CA Baofeng DM-1703 Dual Band DMR Tier II Digital / Analog Amateur Ham Radio

This item ships from the Ontario distributor. Please allow 72 Hrs. for processing.
Prix habituel $125.99 CAD
Prix habituel Prix soldé $125.99 CAD
Vente Épuisé
Frais d'expédition calculés à l'étape de paiement.


Login to your account or create one, to see what QSO Rewards are waiting for you!

Shopify secure badge

Quick Specs

Scoll down for more information about this item.


1. Compatible with MOTOTRBO Hytera Tier II Radio Network
2. Dual Band VHF 144-148MHz & UHF 430-450MHz
3. Dual Knob: Power / Volume Knob, Channel Knob
4. Analogue FM & Digital DMR Mode
5. 1024 Storage Channel
6. Dual Time Slot, Tier I & II
7. Group Call / Private call
8. Dual Display
9. VOX Function
10. Frequency Step:2.5 / 5 / 6.25 / 10 / 12.5 / 20 / 25KHz
11. Scan
12. 16 groups color code seletable
13. 2200mAh 7.4V 16.28Wh High Capacity Li-ion battery Pack
14. DMR Text Message
15. Support manually programming and PC programming
16. High / Medium / Low Power selectable
17. Frequency / Channel Mode Selectable


Frequency Range VHF:144-148MHz, UHF:430-450MHz (Dual Band)
Memory Channel 1024
Operating Voltage DC 7.4V
Frequency stability ±1.0ppm

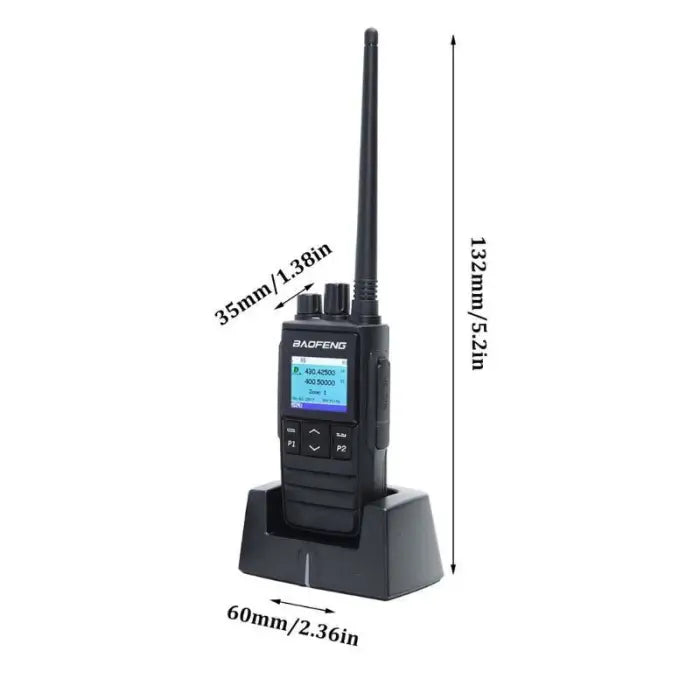

Demission 132*63*36mm (not including antenna)
Operating environment -30℃-+60℃
Weight Approx. 250g (including the battery and antenna)
Output power High:5W Low:1W
Adjacent channel power ≤65dB ≤60dB
Output consumption Analog≤1.6A Digital≤0.9A
Audio response +1~3dB
Standby current consumption ≤0.18A
Digital Protocol ETSI-TS102 361-1,-2,-3
Modulation distortion ≤5%
Vocoder type AMBE+2 TM
FM/FM modulation: 16K¢F3E,25KHz 141K¢F3E,20KHz 11K¢F3E,12.5KHz
4FSK/4FSK digital modulation 12.5KHz for data:7K60FXD 12.5KHz for data and voice:7K60FXE
Signal-to-noise(wide/narrow) ≥45dB,25KHz  ≥40dB,12.5KHz
Antenna Port Spurious 9KHz-1GHz  ≤-36dBm  1GHz-12.75GHz:  ≤-30dBm
Analog receive sensitivity -122dBm (12dB SINAD)
Digital receive sensitivity -122dBm (BER≤5%)
Audio power 1W
Audio distortion <10%
Signal imitation ≥70dB
Audio response +1~3dB
Receive current ≤380mA
Intermediation(wide/narrow) ≥62dB/≥58dB
Adjacent channel selectivity ≥65dB/≥60dB
PM noise ≥45dB,25KHz / ≥40dB,12.5KHz

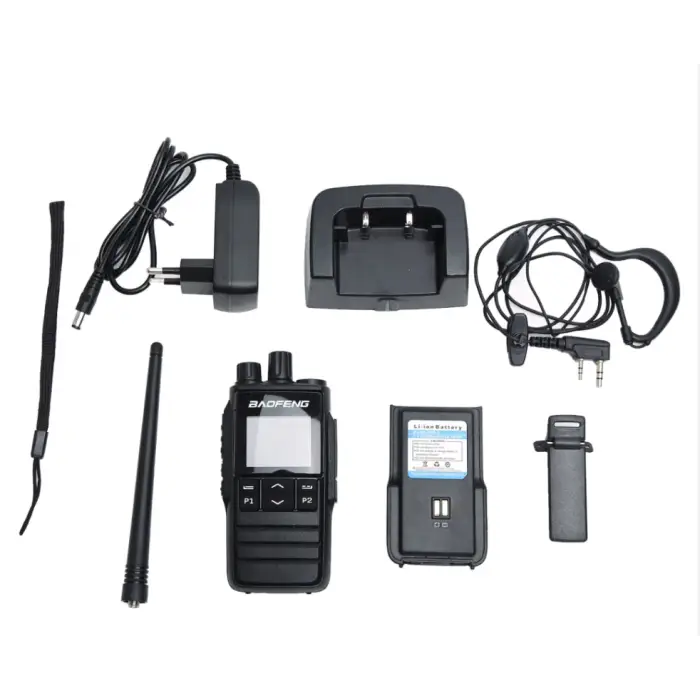

Package Contain:

  • DM1703 Baofeng Dual Band DMR Radio
  • 2200mAh Li-ion Battery Pack
  • Charger Unit with AC Adapter
  • DMR programming cable
  • Antenna
  • Hand Strap
  • Belt Clip
  • Earpiece
