Enjoy reliable communication with the Baofeng UV-5R 5W VHF/UHF dual band radio transceiver. Engineered with its original chipset, it guarantees superior performance while its classic design provides comfortable use. With a wide range of compatible accessories and the ability to be computer programmed, it makes staying connected a breeze. Get yours and experience quality communication today!
Main Features:
-
Dual-band handheld transceiver with display function menu on the display "LCD"
-
DTMF encoded
-
Incorporates 105 codes "DCS" and 50 privacy codes "CTCSS" programmable
-
Function "VOX" (voice operated transmission).
-
Alarm function
-
Up to 128 memory channels
-
Broadband (Wide) / Narrowband (Narrow), selectable
-
High power / low (5 W/1 W) selectable
-
Display illumination and programmable keyboard
-
Function "beep" on the keyboard
-
Dual Watch/dual reception
-
Function "OFFSET" (frequency offset for repeater access)
-
Battery saving function "SAVE"
-
Timer transmission "TOT" programmable
-
Selecting the Scan Mode.
-
Function Busy Channel Lock "BCLO"
-
Built-in RX CTCSS/DCS scan
-

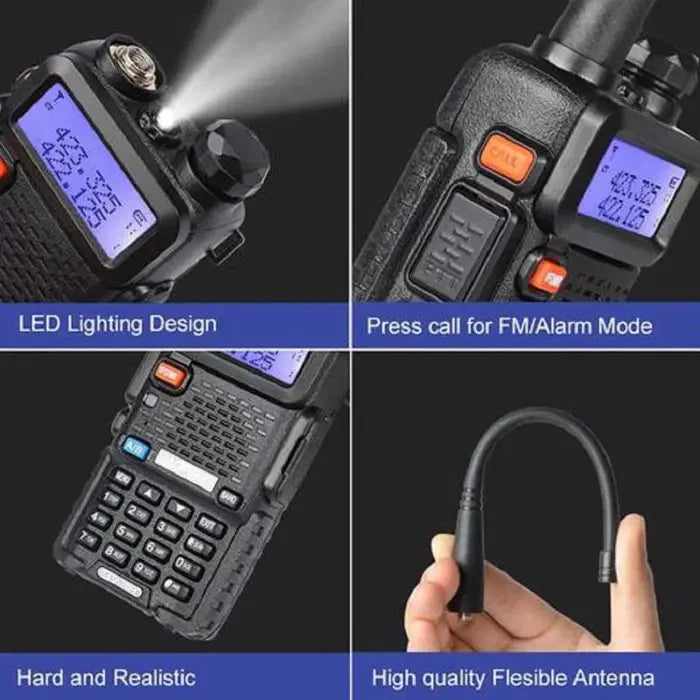

Built-in LED flashlight
-
Programmable by PC
-
Level Threshold "Squelch" adjustable from 0 to 9
-
Crossband reception/transmission
-
one end of transmission
-
Built-in key lock
GENERAL:
-
VHF:144MHz-148MHz (Rx/Tx)
-
UHF:420MHz-450MHz (Rx/Tx)
-
Memory channels Up to 128 channels
-
Frequency stability 2.5ppm.
-
Antenna impedance 50Ω
-
Operating temperature -20 ℃to +60℃
-
Supply voltage Rechargeable Lithium-Ion mAh 7.4V/1800
-
Consumption in reception 380mA
-
Consumption in transmission ≤1.4 A
-
Mode of operation Simplex or semi-duplex
-
Duty cycle 03/03/54 min. (Rx / Tx / Standby)
-

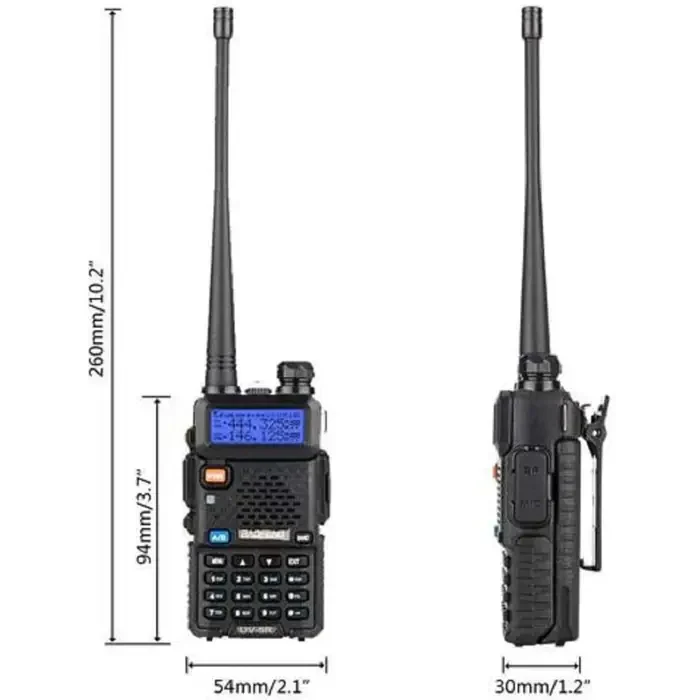

Dimensions 58mm x 110mm x 32mm
-
Weight 130 g (approximate)
TRANSMITTER:
-
RF power 4W/1W
-
Emission class 16KΦF3E/11KΦF3E (W/N)
-
Maximum deviation ≤±5 kHz/≤±2.5 kHz (W/N)
-
Spurious emissions <-60 dB
RECEIVER:
-
Receiver sensitivity 0.2 μV(at 12 dB SINAD)
-
Intermodulation 60 dB

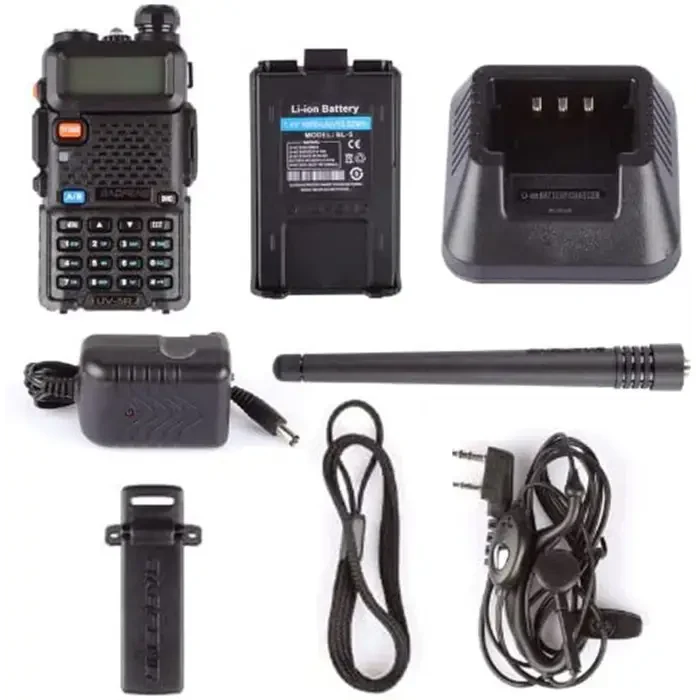

Standard Package Content:
-
Walkie talkie
-
Li-Ion battery
-
Antenna
-
Belt Clip
-
User's Manual
-
Charger
