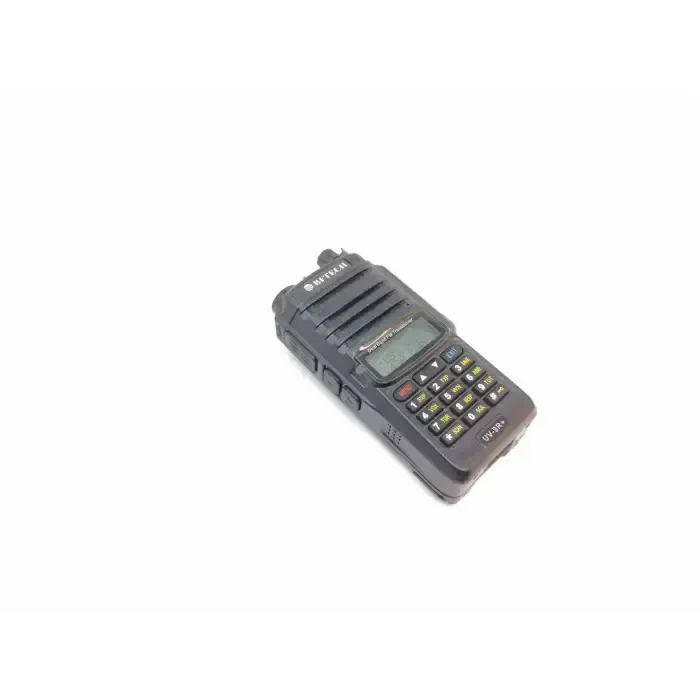

BF-TECH CA Baofeng UV-9R+ High Power Dual Band IP57 Weatherproof Amateur Ham Radio
BF-TECH CA Baofeng UV-9R+ High Power Dual Band IP57 Weatherproof Amateur Ham Radio
Promotions
Promotions
Login to your account or create one, to see what QSO Rewards are waiting for you!
Impossible de charger la disponibilité du service de retrait
Quick Specs
Quick Specs
WP Plug
8W
Scoll down for more information about this item.
Features:
-
Output : 8W(H) / 4W(M) / 1W(L)
-
Frequency Range: 144-148 MHz / 430-450 MHz
-
IP57 waterproof and dustproof (Not diving)
-
Battery Saver
-
VOX Function
-
Wide / Narrow Band Selection
-
Auto-Back Light
-
Dual Band Standby
-
Time-out Timer (TOT)
-
50 CTCSS and 104 DCS Codes
-
Voice Prompt
-
ANI Code
-
PC or Manual Program
-
DTMF Code
-
PTT-ID
-
ATUO Keypad Lock
-
Busy Channel Lock Function
-
Dual Band, Dual Display and Dual Standby
-
Emergency Alarm
-
Priory Scanning Function
-
EU Repeater Tone (1750 Hz)
-
Low Battery Warning
-
U / V Cross Band Dual Watch
General:
|
Frequency Range: |
65MHz – 108MHz(Only commercial FM radio reception) VHF: 144-148MHz (Rx/Tx 2M VHF) UHF: 430MHz-450MHz(Rx/Tx 70cm UHF) |
|
Memory Channel |
Up to 128 channels |
|
Frequency Stability |
2.5ppm |
|
Frequency step |
2.5kHz / 5kHz / 6.25Khz / 10 Khz / 12.5 Khz / 20 Khz / 25 Khz |
|
Antenna Impedance |
50 Ω |
|
Operating Temperature |
-20 ℃ to +60℃ |
|
Supply voltage |
Rechargeable Lithium mAh 7.4V 2200 |
|
Combination in standby |
380mA |
|
Combination in transmission |
≤1.4A |
|
Mode of operation |
Simplex or Repeater |
|
Duty cycle |
03/03/54 (Rx/Tx/Standby) |
|
Dimension |
58mm x 110mm x 32mm |
|
Weight |
130g (approximate) |
Transmit:
|
RF Power |
8W / 1W |
|
Type of modulation |
FM |
|
Emission class |
16KΦF3E / 11KΦF3E (W/N) |
|
Maximum deviation |
≤±5KHz / ≤2.5KHz (W/N) |
|
Spurious emissions |
<-60 dB. |
Receive:
|
Receiver Sensitivity |
＜0.2 µ V (at 12dB SINAD) |
|
Intermodulation |
60 dB. |
|
Audio output |
1 W |
|
Maximum deviation |
≤±5KHz / ≤2.5KHz (W/N) |
|
Spurious Radiation |
<-60 dB. |
Description
Features:
-
Output : 8W(H) / 4W(M) / 1W(L)
-
Frequency Range: 144-148 MHz / 430-450 MHz
-
IP57 waterproof and dustproof (Not diving)
-
Battery Saver
-
VOX Function
-
Wide / Narrow Band Selection
-
Auto-Back Light
-
Dual Band Standby
-
Time-out Timer (TOT)
-
50 CTCSS and 104 DCS Codes
-
Voice Prompt
-
ANI Code
-
PC or Manual Program
-
DTMF Code
-
PTT-ID
-
ATUO Keypad Lock
-
Busy Channel Lock Function
-
Dual Band, Dual Display and Dual Standby
-
Emergency Alarm
-
Priory Scanning Function
-
EU Repeater Tone (1750 Hz)
-
Low Battery Warning
-
U / V Cross Band Dual Watch
General:
|
Frequency Range: |
65MHz – 108MHz(Only commercial FM radio reception) VHF: 144-148MHz (Rx/Tx 2M VHF) UHF: 430MHz-450MHz(Rx/Tx 70cm UHF) |
|
Memory Channel |
Up to 128 channels |
|
Frequency Stability |
2.5ppm |
|
Frequency step |
2.5kHz / 5kHz / 6.25Khz / 10 Khz / 12.5 Khz / 20 Khz / 25 Khz |
|
Antenna Impedance |
50 Ω |
|
Operating Temperature |
-20 ℃ to +60℃ |
|
Supply voltage |
Rechargeable Lithium mAh 7.4V 2200 |
|
Combination in standby |
380mA |
|
Combination in transmission |
≤1.4A |
|
Mode of operation |
Simplex or Repeater |
|
Duty cycle |
03/03/54 (Rx/Tx/Standby) |
|
Dimension |
58mm x 110mm x 32mm |
|
Weight |
130g (approximate) |
Transmit:
|
RF Power |
8W / 1W |
|
Type of modulation |
FM |
|
Emission class |
16KΦF3E / 11KΦF3E (W/N) |
|
Maximum deviation |
≤±5KHz / ≤2.5KHz (W/N) |
|
Spurious emissions |
<-60 dB. |
Receive:
|
Receiver Sensitivity |
＜0.2 µ V (at 12dB SINAD) |
|
Intermodulation |
60 dB. |
|
Audio output |
1 W |
|
Maximum deviation |
≤±5KHz / ≤2.5KHz (W/N) |
|
Spurious Radiation |
<-60 dB. |
