Pyramid PS3KX 2.5A / 3A Peak Linear Power Supply
Pyramid PS3KX 2.5A / 3A Peak Linear Power Supply
Impossible de charger la disponibilité du service de retrait
Why Buy?
Why Buy?
Not quite sure if this is right for you? Contact Us for expert advice!
Quick Specs
Quick Specs
Scoll down for more information about this item.

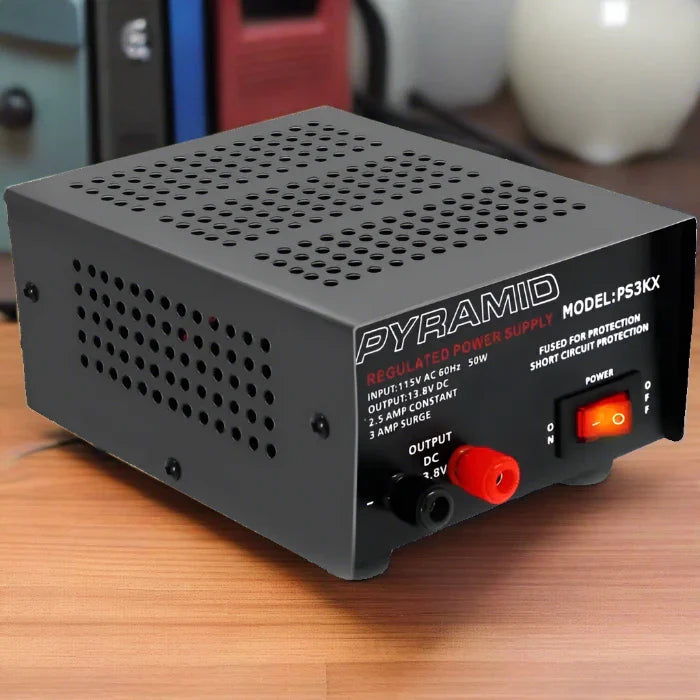

The Pyramid PS3KX is a compact, affordable Linear power supply designed for low-power applications. It converts 110V AC home power into a stable 13.8V DC, and its linear design helps provide RF-quiet power for sensitive radio receivers.
This unit provides 2.5 amps of continuous power (3A peak), making it a suitable choice for powering desktop radio scanners, handheld radio chargers, and other low-draw 12V accessories.
⚠️ CRITICAL: For Scanners & Low-Power Accessories ONLY
This is a 2.5 Amp continuous power supply. It is NOT designed for any two-way radio (CB, GMRS, Ham, or Business).
Attempting to transmit with *any* radio will draw more than 2.5 amps, which will cause this power supply to shut down. This unit is only for receive-only devices (like scanners) or accessories that draw less than 2.5A.
-
📻
RF-Quiet Linear Design: Provides clean and stable 13.8V DC power, ideal for sensitive receivers and scanners.
-
⚡️
2.5 Amp Continuous Power: Delivers a reliable 2.5A continuous and 3A peak (surge) current for your desktop equipment.
-
🔌

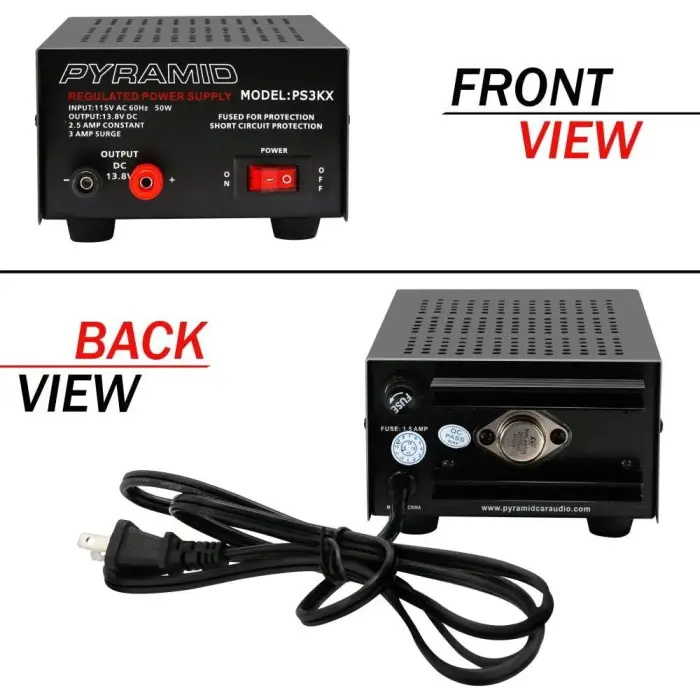

Simple & Secure Output: Features standard red/black rear binding posts for a secure connection.
-
🛡️
Fully Protected: Features short-circuit and thermal protection, plus a front-panel illuminated power switch.
Technical Specifications
| Specification | Detail |
|---|---|
| PS3KX | |
| Linear, Regulated | |
| 110-120 VAC, 60 Hz | |
| 13.8 VDC (Fixed) | |
| 2.5 Amps | |
| 3 Amps | |
| Built-in Cooling Fan | |
| Rear Binding Posts | |
| Short Circuit, Thermal | |
| ~1.4 kg (3.1 lbs) | |
| 19.1 x 12.4 x 7.6 cm (7.5" x 4.9" x 3") |
Description
The Pyramid PS3KX is a compact, affordable Linear power supply designed for low-power applications. It converts 110V AC home power into a stable 13.8V DC, and its linear design helps provide RF-quiet power for sensitive radio receivers.
This unit provides 2.5 amps of continuous power (3A peak), making it a suitable choice for powering desktop radio scanners, handheld radio chargers, and other low-draw 12V accessories.
⚠️ CRITICAL: For Scanners & Low-Power Accessories ONLY
This is a 2.5 Amp continuous power supply. It is NOT designed for any two-way radio (CB, GMRS, Ham, or Business).
Attempting to transmit with *any* radio will draw more than 2.5 amps, which will cause this power supply to shut down. This unit is only for receive-only devices (like scanners) or accessories that draw less than 2.5A.
-
📻
RF-Quiet Linear Design: Provides clean and stable 13.8V DC power, ideal for sensitive receivers and scanners.
-
⚡️
2.5 Amp Continuous Power: Delivers a reliable 2.5A continuous and 3A peak (surge) current for your desktop equipment.
-
🔌
Simple & Secure Output: Features standard red/black rear binding posts for a secure connection.
-
🛡️
Fully Protected: Features short-circuit and thermal protection, plus a front-panel illuminated power switch.
Technical Specifications
| Specification | Detail |
|---|---|
| PS3KX | |
| Linear, Regulated | |
| 110-120 VAC, 60 Hz | |
| 13.8 VDC (Fixed) | |
| 2.5 Amps | |
| 3 Amps | |
| Built-in Cooling Fan | |
| Rear Binding Posts | |
| Short Circuit, Thermal | |
| ~1.4 kg (3.1 lbs) | |
| 19.1 x 12.4 x 7.6 cm (7.5" x 4.9" x 3") |
