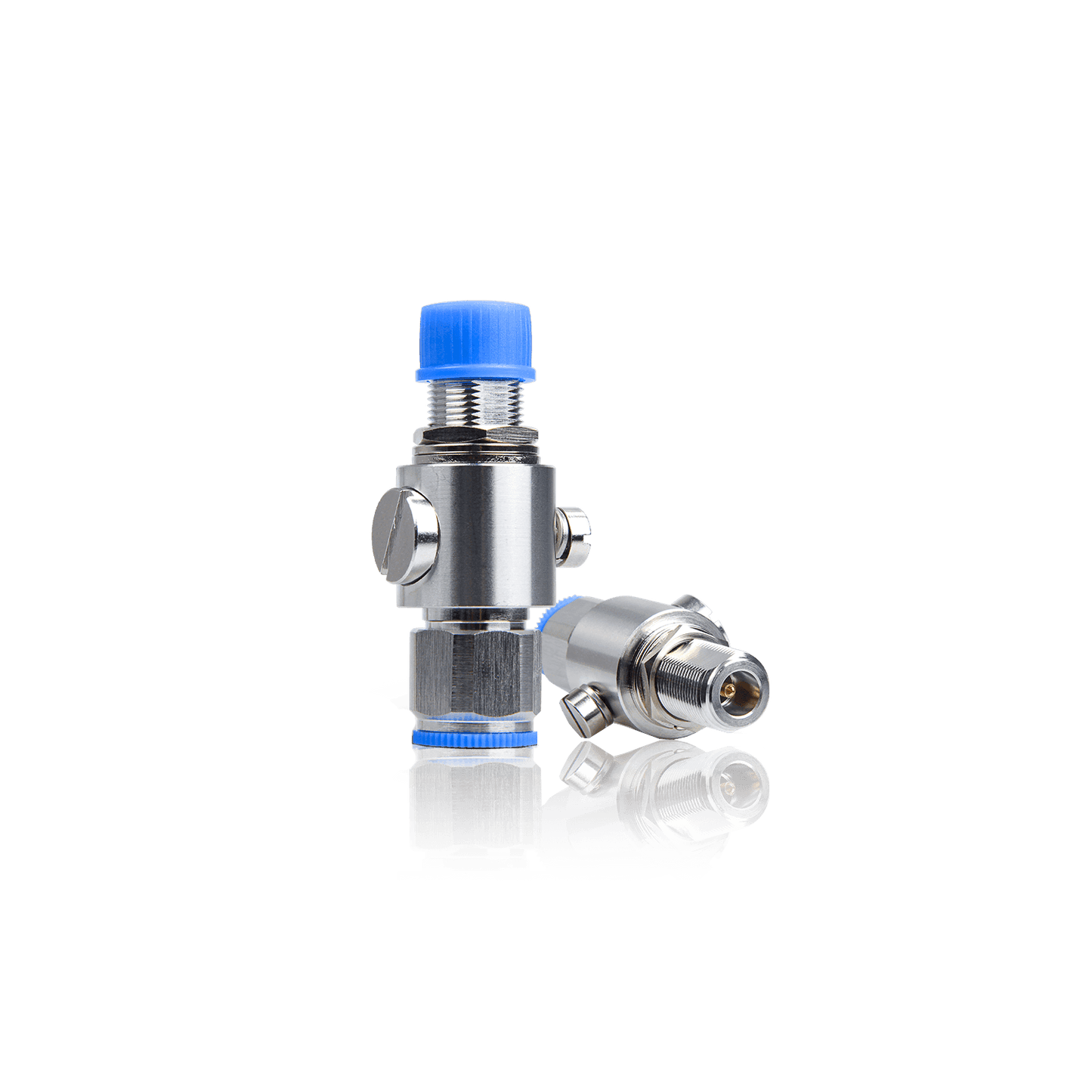

• A chrome-plated water valve with blue caps.
  • A chrome-plated water flow regulator with push-fit connectors and a blue cap.
1 2

Mapping Network

RAKWireless Lightning Arrestor

RAKWireless Lightning Arrestor

Thank you for choosing a family run Canadian small business!

🚚Shipping Quotes🚚are available in the cart.


$29.99 CAD
$59.99 CAD $29.99 CAD
Vente Épuisé
Frais d'expédition calculés à l'étape de paiement.
Expédition neutre en carbone pour toutes les commandes
Shopify secure badge

Why Buy?

Not quite sure if this is right for you? Contact Us for expert advice!

Quick Specs

Scoll down for more information about this item.

This is a surge protective device for securing transceivers against over-voltage and surge current induced by bolts of lightning.

For the purpose of protecting the indoor equipment and circuitry connected to the LoRa gateway, you need to install an Ethernet Port Surge Protection Device (SPD).

RAKwireless recommends installing a lightning arrestor on all N-type antenna terminals including LoRa, LTE, and 2.4G Wi-Fi antennas. Please refer to the technical manual for wire type and gauge recommendations.
  • Connector Type: N-type male to N-type female
  • Impedance: 50 Ω

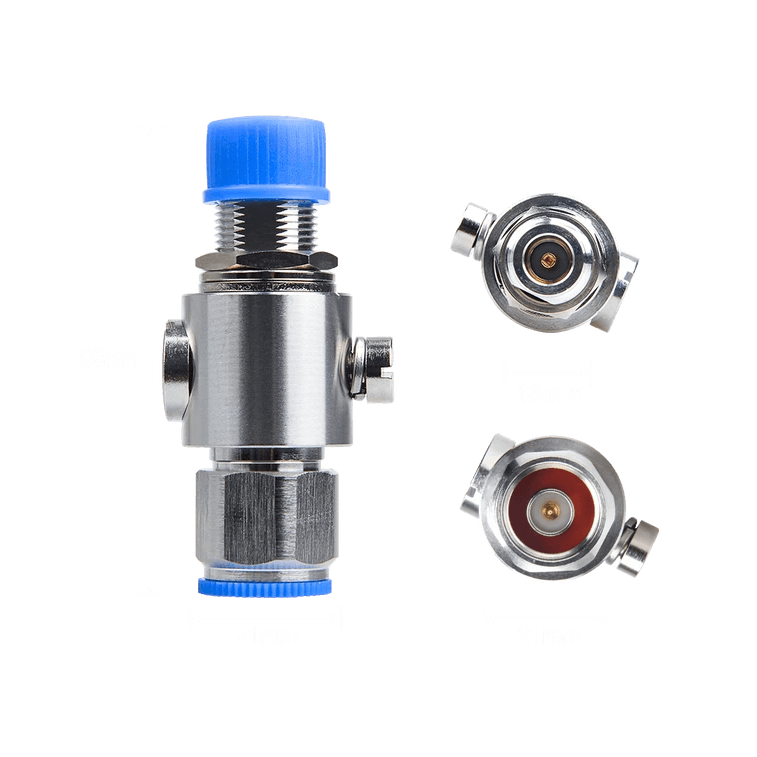

  • Size: Height 68mm Width 21mm
  • Frequency range: 0-2700 MHz
  • Power loss 0-2000 MHz: ≤ 0.2 dB
  • Ingress protection: IP67
  • Nominal discharge current In: 10 kA
  • Maximum discharge current Imax: 20 kA
  • Voltage protection Level Up: ≤ 1200 V
  • SKU: 910033
Afficher tous les détails

Description

This is a surge protective device for securing transceivers against over-voltage and surge current induced by bolts of lightning.

For the purpose of protecting the indoor equipment and circuitry connected to the LoRa gateway, you need to install an Ethernet Port Surge Protection Device (SPD).

RAKwireless recommends installing a lightning arrestor on all N-type antenna terminals including LoRa, LTE, and 2.4G Wi-Fi antennas. Please refer to the technical manual for wire type and gauge recommendations.
  • Connector Type: N-type male to N-type female
  • Impedance: 50 Ω
  • Size: Height 68mm Width 21mm
  • Frequency range: 0-2700 MHz
  • Power loss 0-2000 MHz: ≤ 0.2 dB
  • Ingress protection: IP67
  • Nominal discharge current In: 10 kA
  • Maximum discharge current Imax: 20 kA
  • Voltage protection Level Up: ≤ 1200 V
  • SKU: 910033
