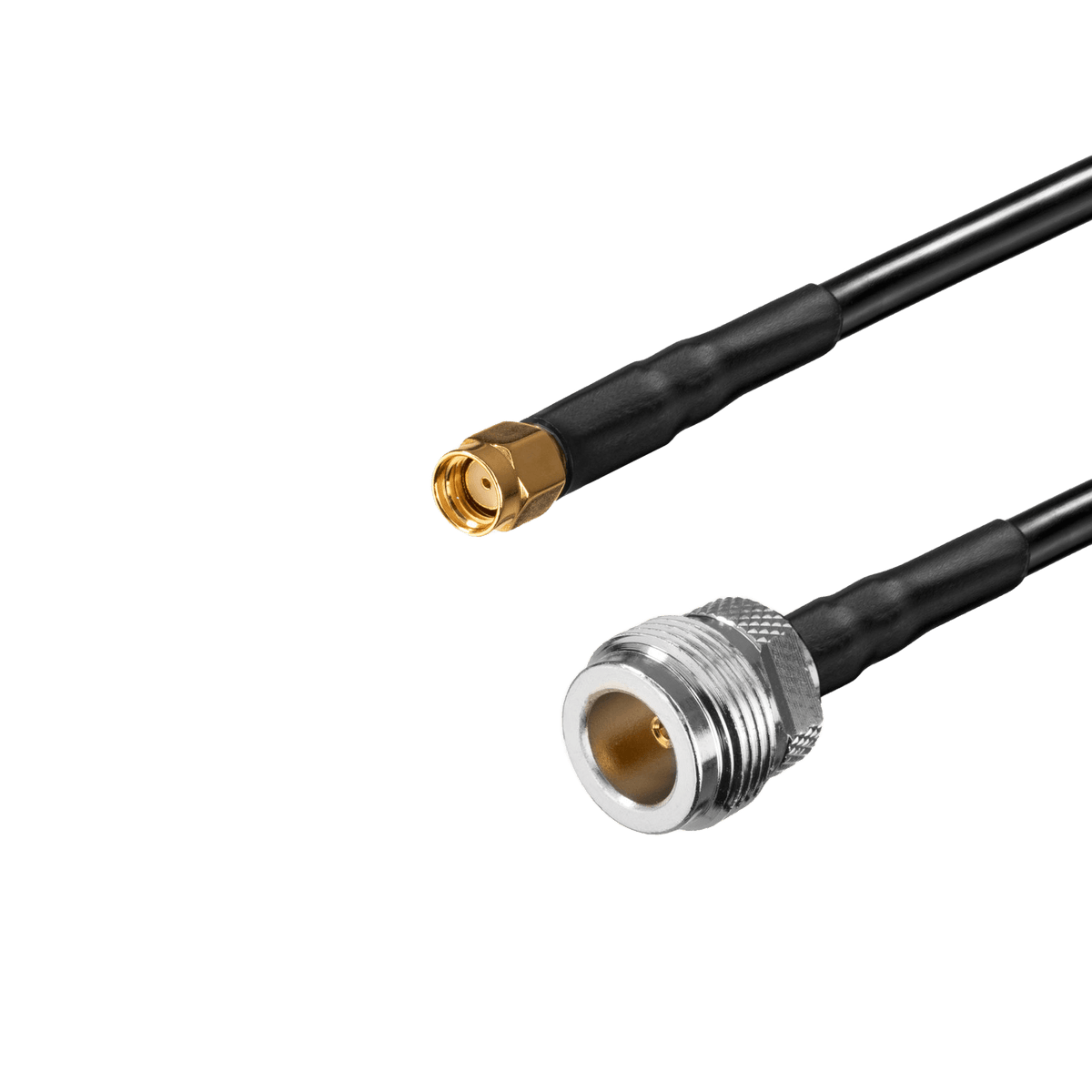

RBT LMR 200-Series Coaxial Cable - N Female - RP-SMA Male
RBT LMR 200-Series Coaxial Cable - N Female - RP-SMA Male
Calculating delivery...
This is an estimate. Actual delivery times may vary.
Prix habituel
$39.99 CAD
Prix habituel
$89.99 CAD
Prix soldé
$39.99 CAD
Prix unitaire
par
Frais d'expédition calculés à l'étape de paiement.
Impossible de charger la disponibilité du service de retrait
Why Buy?
Why Buy?
Not quite sure if this is right for you? Contact Us for expert advice!
Quick Specs
Quick Specs
Scoll down for more information about this item.
Low Loss 200-Series Cable - "Comparable to LMR-200"
This high-quality, fully tested Low Loss 200 Cable features high performance, 200-Series coax cable. It is perfect for extending the distance between any indoor Helium Network Gateway and LoRaWAN antenna, enhancing your network's performance and reach.
Electrical Specifications:
Afficher tous les détails
This high-quality, fully tested Low Loss 200 Cable features high performance, 200-Series coax cable. It is perfect for extending the distance between any indoor Helium Network Gateway and LoRaWAN antenna, enhancing your network's performance and reach.
Electrical Specifications:
- Impedance: 50 Ohm
- Capacitance (pFm): 80.4
- Velocity of Propagation: 85%
- Shielding Effectiveness (dB): >90
Material and Dimensions:
- Jacket: Black PE, Diameter: 4.95±0.20 mm
- Outer Conductor: Tinned Copper Braided, Aluminum Foil, Nominal Diameter: 3.66 mm
- Dielectric: Foam PE, Diameter: 2.95±0.10 mm
- Inner Conductor: Copper Clad Aluminum, Diameter: 1.12±0.02 mm
Mechanical Specifications:
- Bend Radius (Installation): 12.7 mm
- Bend Radius (Repeated): 25.4 mm
Environment Specifications:
- Operating Temperature: -40°C to +85°C
- Installation Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +85°C
- RoHS Compliant
Description
Low Loss 200-Series Cable - "Comparable to LMR-200"
This high-quality, fully tested Low Loss 200 Cable features high performance, 200-Series coax cable. It is perfect for extending the distance between any indoor Helium Network Gateway and LoRaWAN antenna, enhancing your network's performance and reach.
Electrical Specifications:
This high-quality, fully tested Low Loss 200 Cable features high performance, 200-Series coax cable. It is perfect for extending the distance between any indoor Helium Network Gateway and LoRaWAN antenna, enhancing your network's performance and reach.
Electrical Specifications:
- Impedance: 50 Ohm
- Capacitance (pFm): 80.4
- Velocity of Propagation: 85%
- Shielding Effectiveness (dB): >90
Material and Dimensions:
- Jacket: Black PE, Diameter: 4.95±0.20 mm
- Outer Conductor: Tinned Copper Braided, Aluminum Foil, Nominal Diameter: 3.66 mm
- Dielectric: Foam PE, Diameter: 2.95±0.10 mm
- Inner Conductor: Copper Clad Aluminum, Diameter: 1.12±0.02 mm
Mechanical Specifications:
- Bend Radius (Installation): 12.7 mm
- Bend Radius (Repeated): 25.4 mm
Environment Specifications:
- Operating Temperature: -40°C to +85°C
- Installation Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +85°C
- RoHS Compliant
