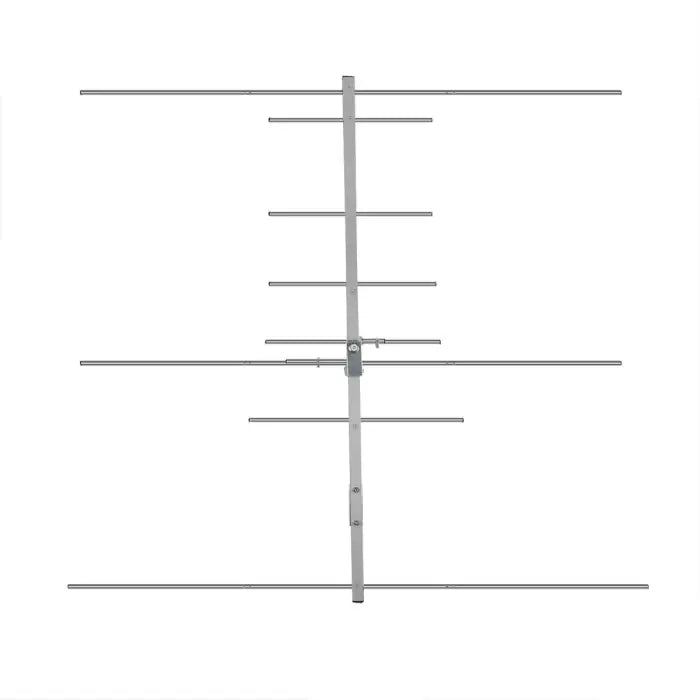

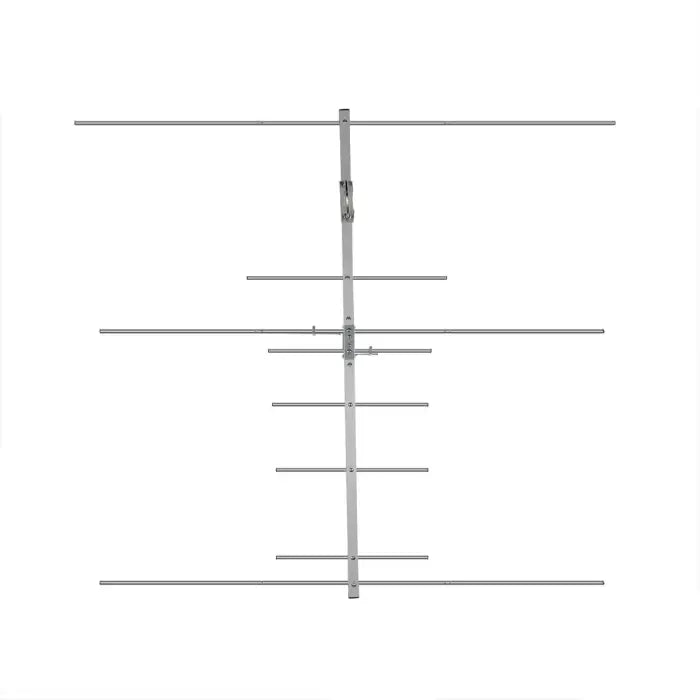

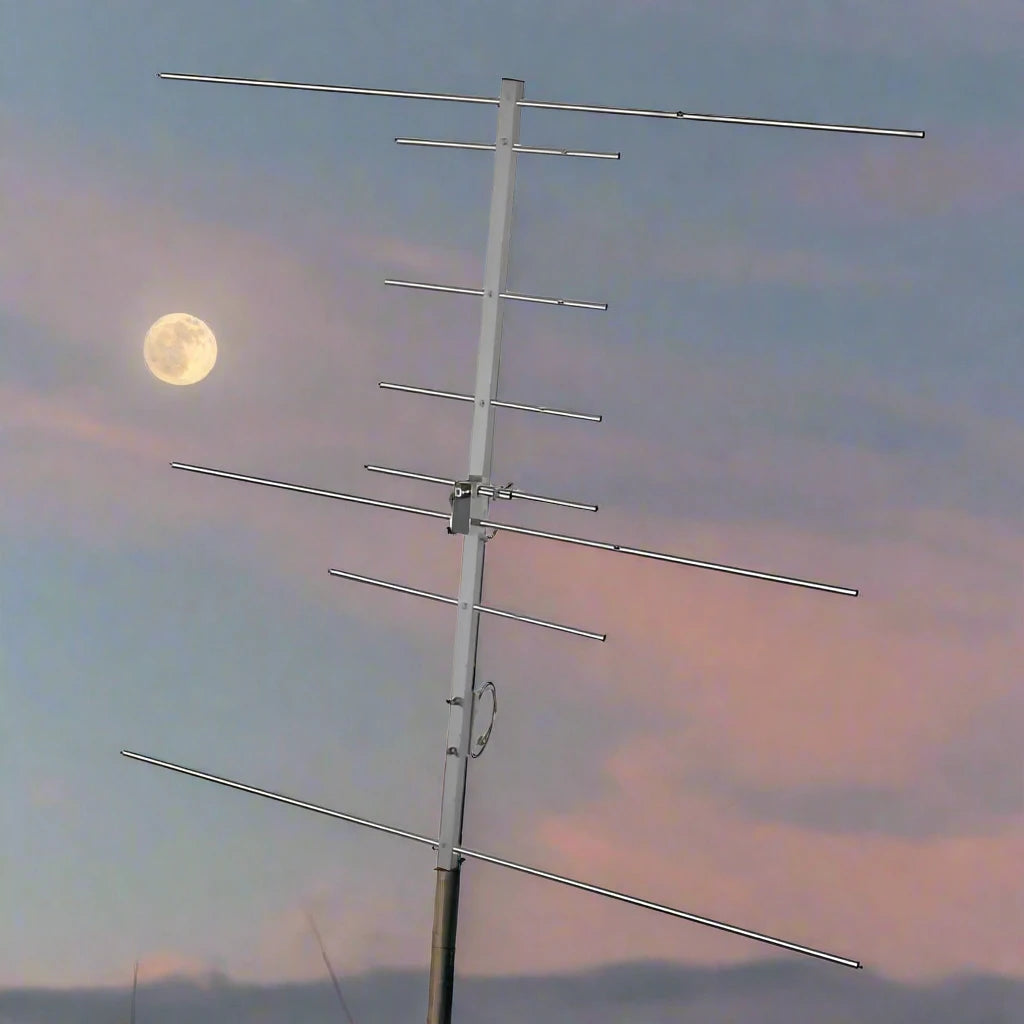

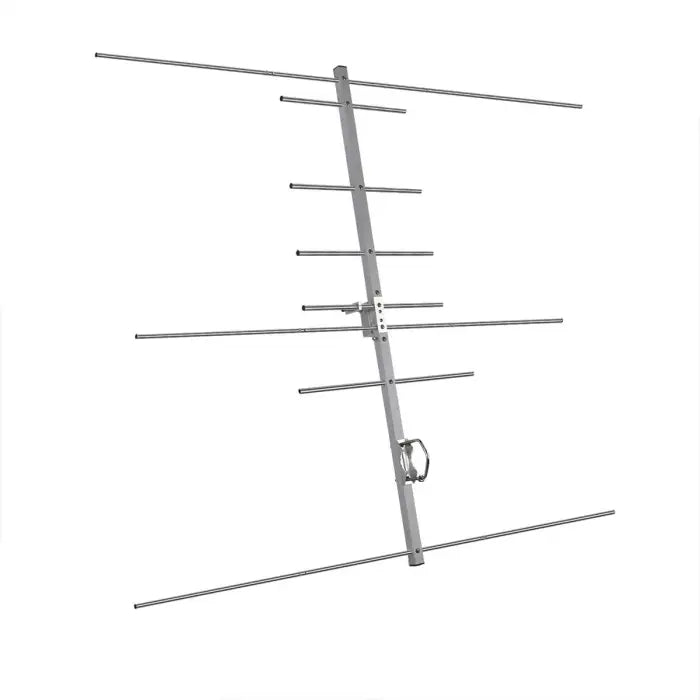

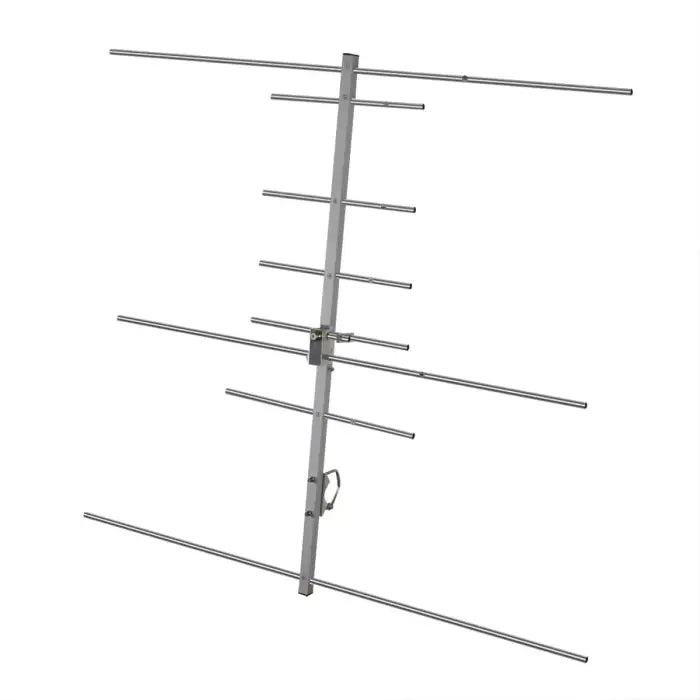

Retevis AY04 High Gain Dual Band Directional Yagi Amateur Ham Radio Base Station Antenna

Retevis AY04 High Gain Dual Band Directional Yagi Amateur Ham Radio Base Station Antenna

Thank you for choosing a family run Canadian small business!
Prix habituel $99.99 CAD
Prix habituel Prix soldé $99.99 CAD
Vente Épuisé
Frais d'expédition calculés à l'étape de paiement.
Warehouse
Expédition neutre en carbone avec Shopify Planet
Expédition neutre en carbone pour toutes les commandes
Shopify secure badge

Why Buy?

Not quite sure if this is right for you? Contact Us for expert advice!

Quick Specs

  • UHF / SO239

  • 100W

Scoll down for more information about this item.

Designed for amateur ham radio base stations, the Retevis AY04 High Gain Dual Band Directional Yagi Antenna offers enhanced signal strength, with a high gain performance of up to 11.5 dBi. The directional design allows for precise aiming, delivering improved transmission and reception. Increase your reach and improve your communication with this expertly crafted antenna.

Electrical Specifications
Frequency Range 144 / 430 MHz
Impedance 50Ω
VSWR <1.5
Gain 9.5 dBi / 11.5 dBi
Horizontal Beam Width 53°/ 45°
Vertical Beam Width 48°/ 40°
Polarization Horizontal orVertical
Front To Back Ratio >12 dB
Maximum Power Input-watts 100W
Lighting Protection Direct Ground

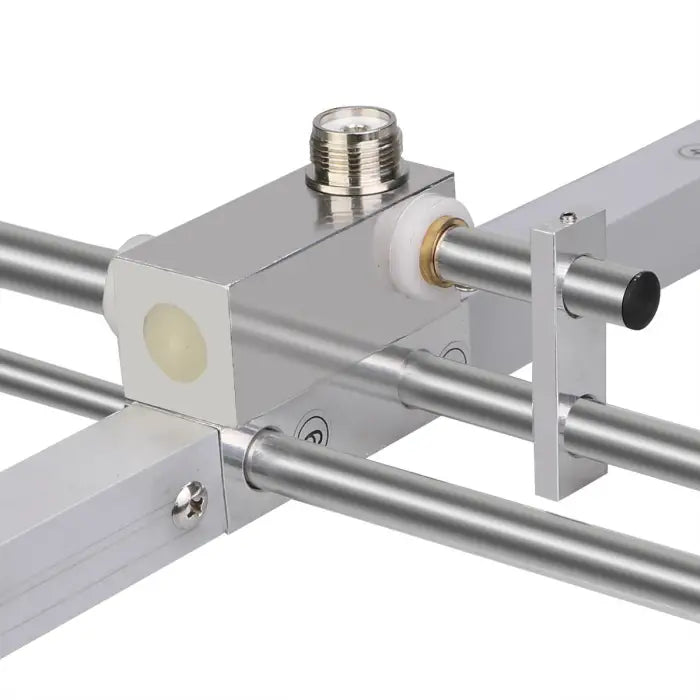

Connector SL16.K (SO239)





Mechanical Specifications
Size 925×1045×60 mm

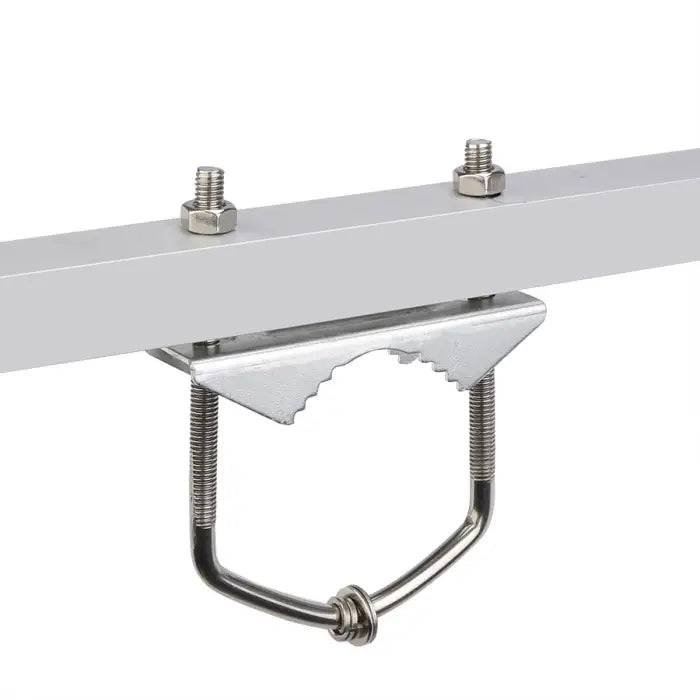

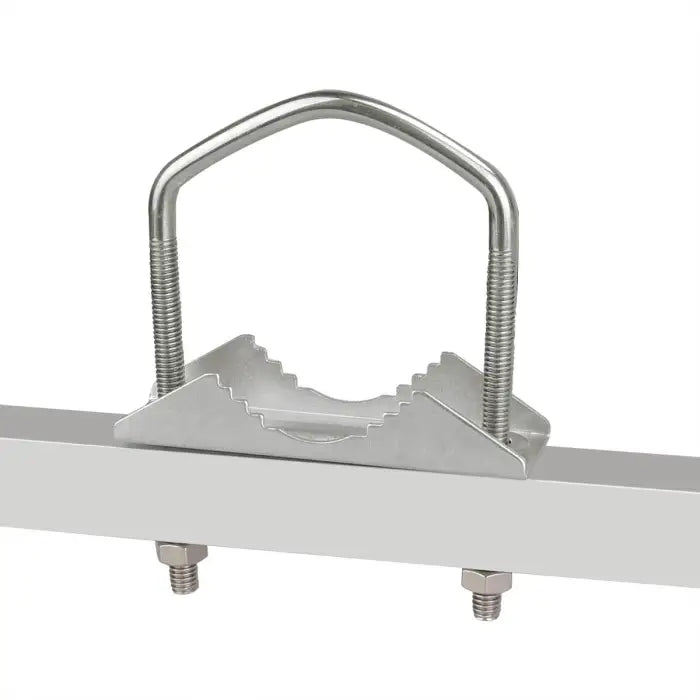

Mounting hardware Ø30-Ø60 mm
Rated Wind Velocity 60 m/s
Weight 0.85Kg





Afficher tous les détails

Description

Designed for amateur ham radio base stations, the Retevis AY04 High Gain Dual Band Directional Yagi Antenna offers enhanced signal strength, with a high gain performance of up to 11.5 dBi. The directional design allows for precise aiming, delivering improved transmission and reception. Increase your reach and improve your communication with this expertly crafted antenna.

Electrical Specifications
Frequency Range 144 / 430 MHz
Impedance 50Ω
VSWR <1.5
Gain 9.5 dBi / 11.5 dBi
Horizontal Beam Width 53°/ 45°
Vertical Beam Width 48°/ 40°
Polarization Horizontal orVertical
Front To Back Ratio >12 dB
Maximum Power Input-watts 100W
Lighting Protection Direct Ground
Connector SL16.K (SO239)





Mechanical Specifications
Size 925×1045×60 mm
Mounting hardware Ø30-Ø60 mm
Rated Wind Velocity 60 m/s
Weight 0.85Kg
