Retevis RHD-701 Flexible Dual Band Replacement Antenna (SMA-Female)
Retevis RHD-701 Flexible Dual Band Replacement Antenna (SMA-Female)
Impossible de charger la disponibilité du service de retrait
Why Buy?
Why Buy?
Not quite sure if this is right for you? Contact Us for expert advice!
Quick Specs
Quick Specs
Scoll down for more information about this item.
Need to replace a broken, bent, or lost antenna? The Retevis RHD-701 is the perfect high-quality replacement for your stock handheld radio antenna. It matches the original factory specifications for range and clarity but adds a superior, flexible design that resists breaking.

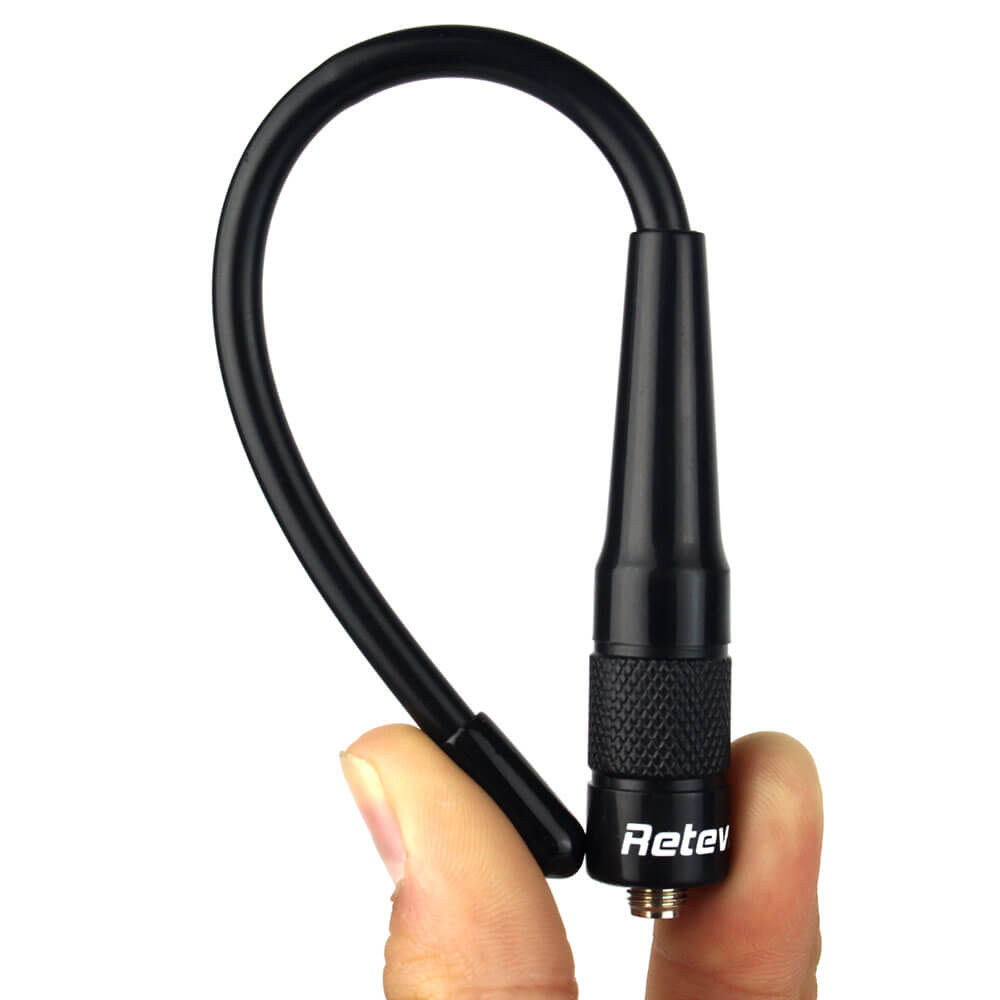

Constructed from a soft, durable material, the RHD-701 can withstand bending and rough handling in your pocket or pack without snapping. It features a standard SMA-Female connector, making it a universal fit for most Baofeng and many Retevis handheld radios.
-
🔄
Ideal Factory Replacement: Designed to match the performance of your original antenna, restoring your radio to full working order.
-
💪
Flexible & Durable: The soft, flexible whip design absorbs impacts and resists snapping, unlike rigid stock antennas.
-
📡
Dual Band Optimized: Tuned for the 2-Meter (144MHz) and 70cm (430MHz) amateur bands, ensuring reliable transmission and reception.
-
🔗
SMA-Female Connector: Fits the most common handheld radios on the market, including the Baofeng UV-5R series and Retevis models listed below.
✅ Compatibility Check (SMA-Female)

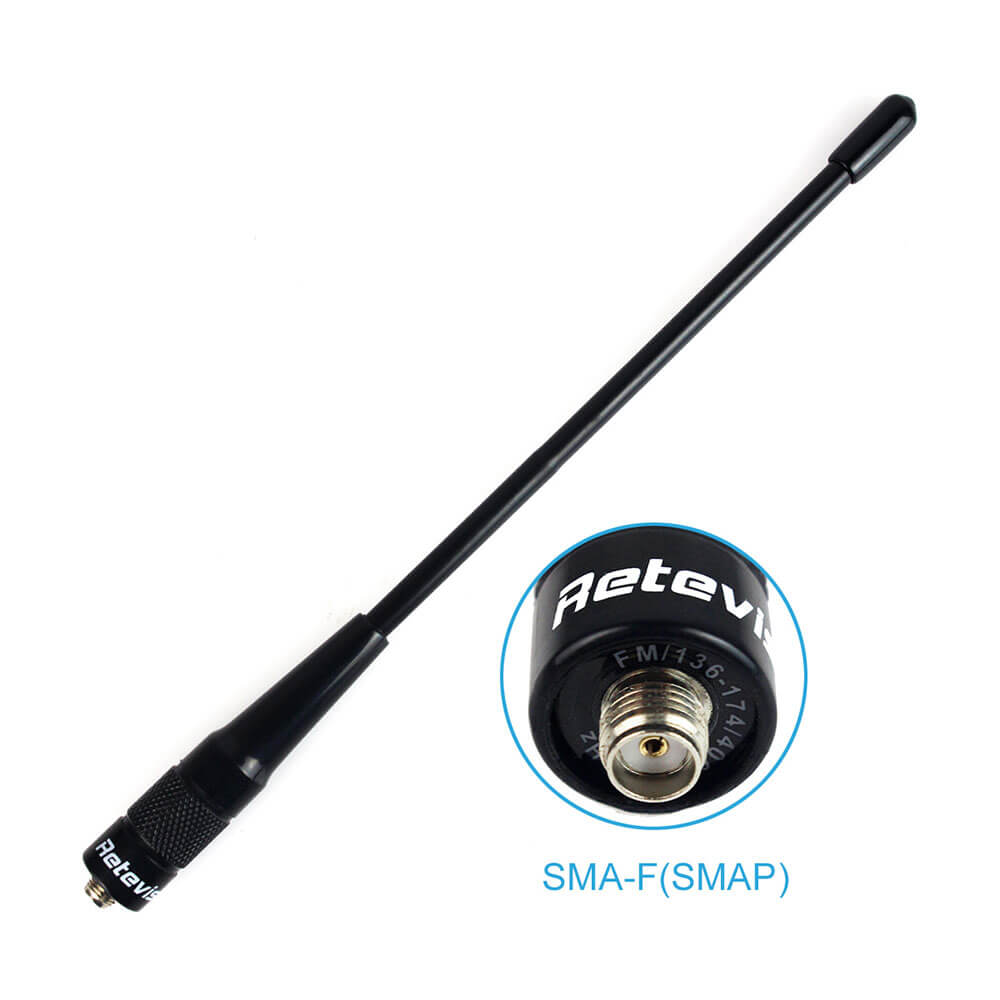

This antenna has an SMA-Female connector (hole in the center). It is compatible with:
- Baofeng: UV-5R, UV-82, BF-F8HP, UV-5RE
- Retevis: RT5R, RT29, H-777, RT86, RA79
- Ailunce: HD1, HD2, HA2
- Radioddity: GA-510, GD-77
⚠️ Incompatibility Warning
This antenna will NOT fit the following radios (they require an SMA-Male antenna):
- ❌ Retevis: RT85, RA89
- ❌ Kenwood (Most Models)
- ❌ Yaesu (e.g., FT-60R, VX-6R)
- ❌ Icom (Most Handhelds)
Technical Specifications
| Specification | Detail |
|---|---|
| Model | Retevis RHD-701 |
| Connector Type | SMA-Female |
| Frequency Bands | VHF (144MHz) / UHF (430MHz) |
| Gain | 2.15 dBi (Standard Replacement) |
| Max Power | 20 Watts |
| VSWR | Less than 1.5 |
| Impedance | 50 Ohm |

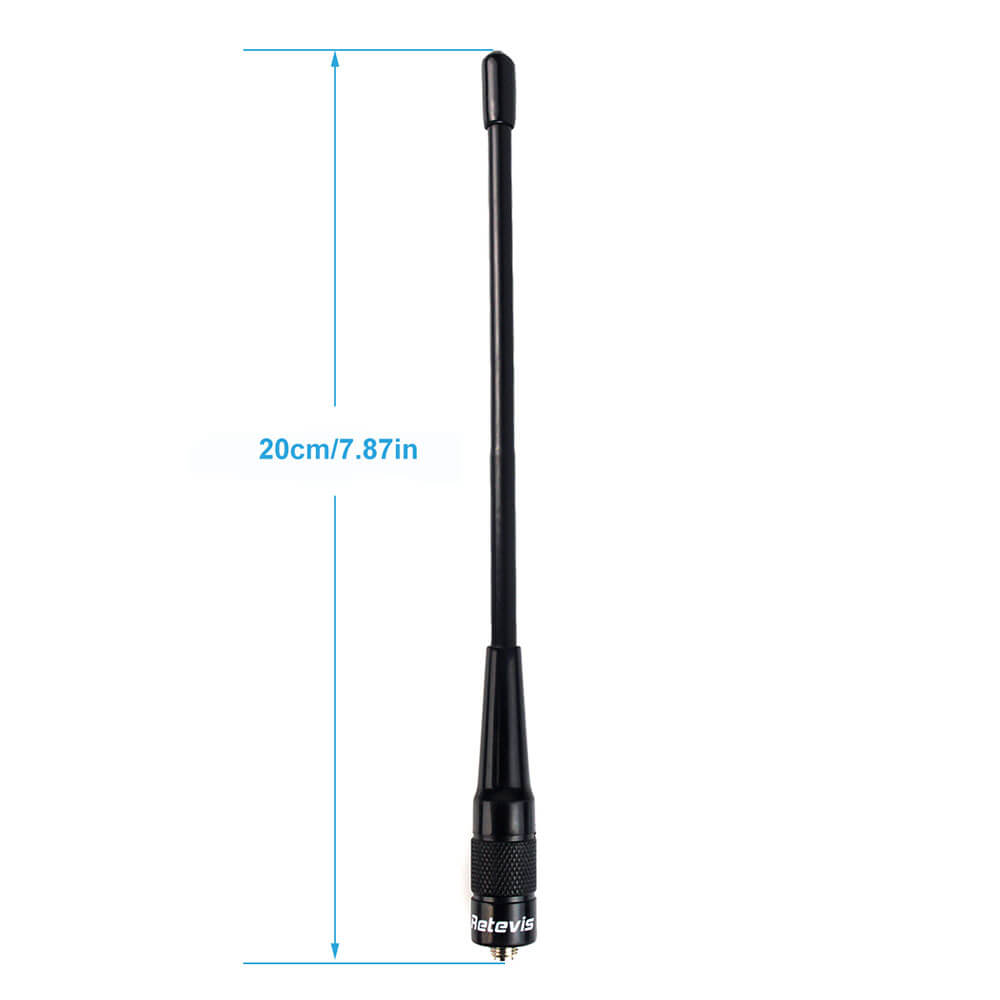

| Length | Approx. 20cm (8 inches) |
| Weight | 30g |
Description
Need to replace a broken, bent, or lost antenna? The Retevis RHD-701 is the perfect high-quality replacement for your stock handheld radio antenna. It matches the original factory specifications for range and clarity but adds a superior, flexible design that resists breaking.
Constructed from a soft, durable material, the RHD-701 can withstand bending and rough handling in your pocket or pack without snapping. It features a standard SMA-Female connector, making it a universal fit for most Baofeng and many Retevis handheld radios.
-
🔄
Ideal Factory Replacement: Designed to match the performance of your original antenna, restoring your radio to full working order.
-
💪
Flexible & Durable: The soft, flexible whip design absorbs impacts and resists snapping, unlike rigid stock antennas.
-
📡
Dual Band Optimized: Tuned for the 2-Meter (144MHz) and 70cm (430MHz) amateur bands, ensuring reliable transmission and reception.
-
🔗
SMA-Female Connector: Fits the most common handheld radios on the market, including the Baofeng UV-5R series and Retevis models listed below.
✅ Compatibility Check (SMA-Female)
This antenna has an SMA-Female connector (hole in the center). It is compatible with:
- Baofeng: UV-5R, UV-82, BF-F8HP, UV-5RE
- Retevis: RT5R, RT29, H-777, RT86, RA79
- Ailunce: HD1, HD2, HA2
- Radioddity: GA-510, GD-77
⚠️ Incompatibility Warning
This antenna will NOT fit the following radios (they require an SMA-Male antenna):
- ❌ Retevis: RT85, RA89
- ❌ Kenwood (Most Models)
- ❌ Yaesu (e.g., FT-60R, VX-6R)
- ❌ Icom (Most Handhelds)
Technical Specifications
| Specification | Detail |
|---|---|
| Model | Retevis RHD-701 |
| Connector Type | SMA-Female |
| Frequency Bands | VHF (144MHz) / UHF (430MHz) |
| Gain | 2.15 dBi (Standard Replacement) |
| Max Power | 20 Watts |
| VSWR | Less than 1.5 |
| Impedance | 50 Ohm |
| Length | Approx. 20cm (8 inches) |
| Weight | 30g |
