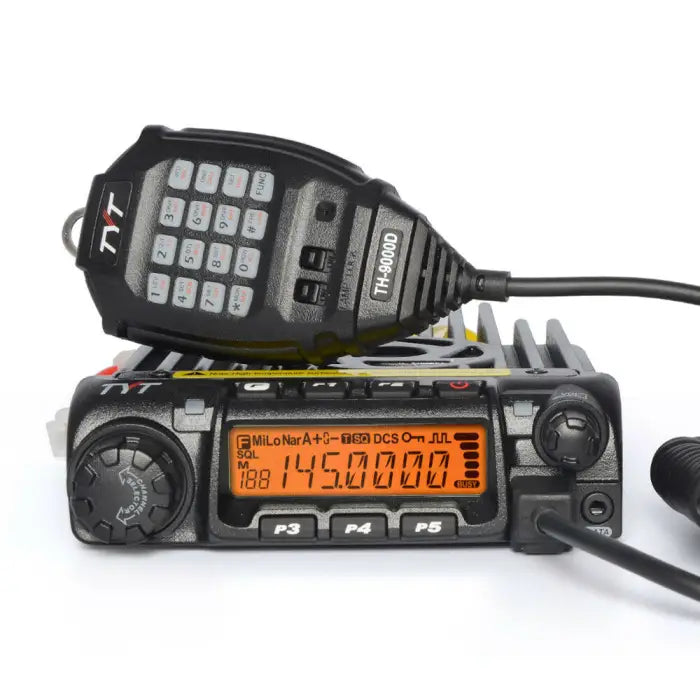

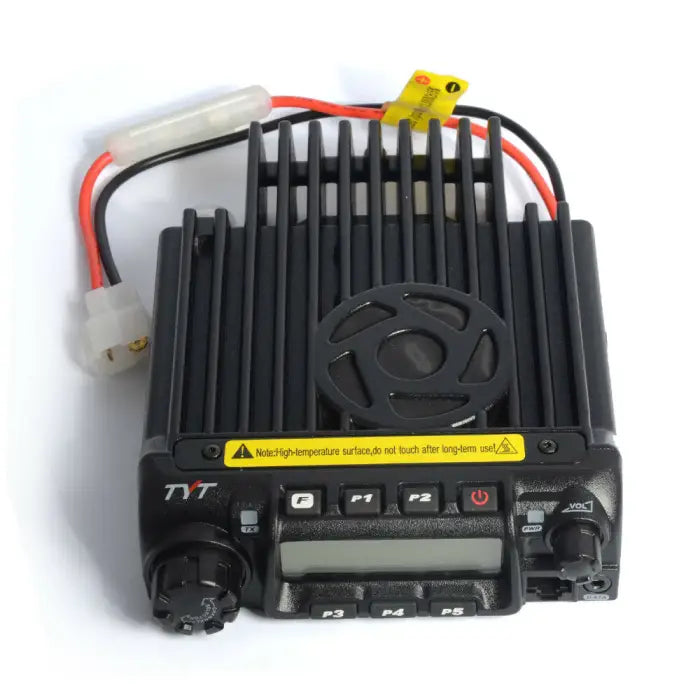

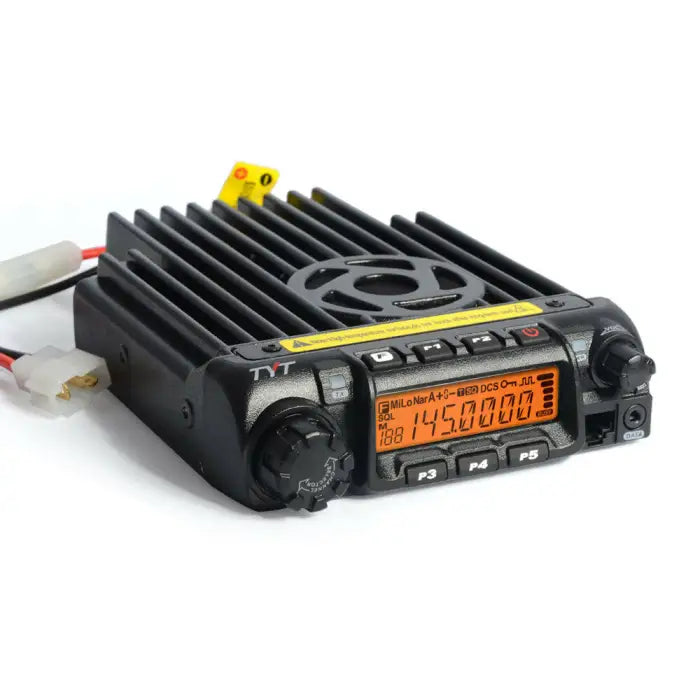

TYT TH-9000D Plus VHF 2M 144-148 MHz Mobile Amateur Ham Radio

TYT TH-9000D Plus VHF 2M 144-148 MHz Mobile Amateur Ham Radio

This item ships from the Ontario distributor. Please allow 72 Hrs. for processing.
$215.99 CAD
$215.99 CAD
Vente Épuisé
Frais d'expédition calculés à l'étape de paiement.

Promotions

Login to your account or create one, to see what QSO Rewards are waiting for you!
Shopify secure badge

Quick Specs

  • 144-148
  • UHF / SO239

RJ-45

50W

  • FM

Scoll down for more information about this item.

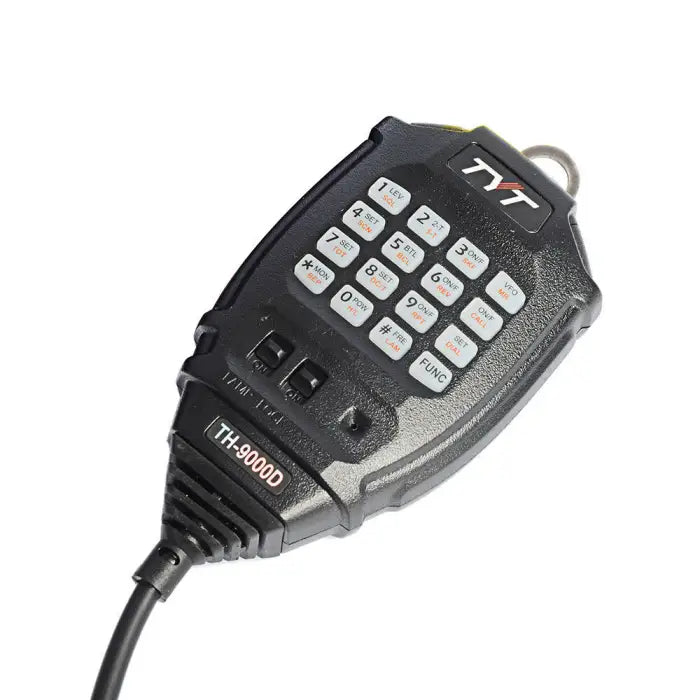

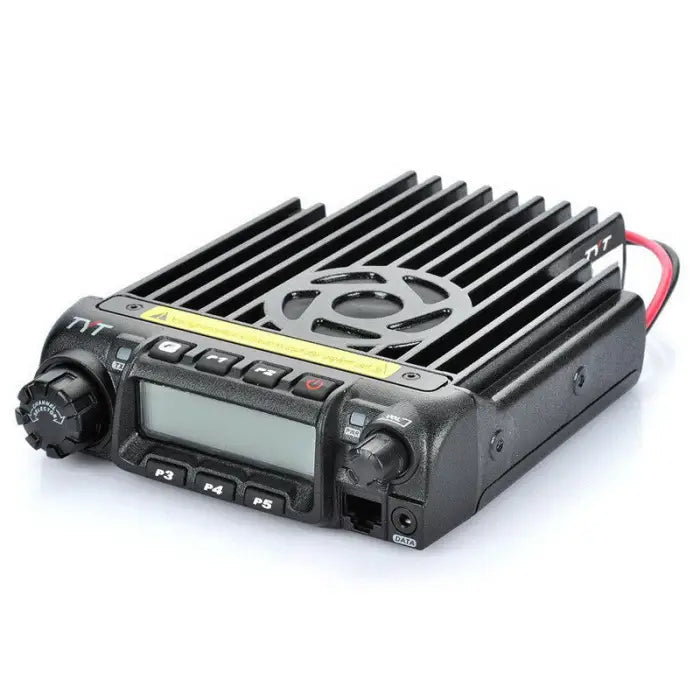

The entry 2M (VHF VFO 144-148) that is sure to please both the ham and his or her wallet. Packed with an impressive max RF of 60W and constructed of die cast metal this radio is ready for the road. With all the features an amateur needs in a mobile such as frequency offset, shift, and CTCSS tones this radio is repeater ready. 3 power levels allow one to operate for the conditions, and for those who like memories there are 200 in this rig that can be alpha named. Did we mention it also comes with a full featured DTMF microphone, so what are you waiting for!

IC: 10337A-TH-9000DV

Amateur Frequency:

  • VHF: 144-148MHz (2M)


Please note this radio ships by default set with Amateur Ham Radio band limits. 144-148MHz.




■ VFO Frequency Range:   2M Ham Band Only VHF: 144-148 MHz

■ Output Power:        VHF: 10W/25W/60W

■ 8 groups is is is of scrambler

■  CTCSS/DCS setting & scanning

■ 1750Hz Tone

■  Frequency/Channel scanning

■  0-9 SQL grade setting

■  Voice compander

■  High/Mid/Low power selectable

■  Keypad lock function

■  Repeater offset shift

■  Battery voltage display

■  Contact book

■  ANI ID

■  DTMF/2 tone/5 tone

■  Emergenvy alarm

■  Remote kill/ stun/ activate/ revive

■  TX inhibit

■  Wide/Narrow band setting

■  Channel name editing

■  Busy Channel Lock-Out

■  Talk around

■  Reverse frequency

■  Voice prompt

■  Scrambler(Optional)

■  Time-out Timer

■  Auto Power off

■  VFO step setting:5/6.25/10/12.5/20/25/50kHz

Item Number

                                    TH-9000

                                                                         General

VFO Frequency Range

144-148 MHz (2M Ham Band Only)

Channel Capacity

200

Channel Spacing

5/6.25/8.33/10/12.5/15/20/25/30/50KHz

Freruency Stability

2.5ppm

Operating Temperature

-20℃ ~ + 60℃

Operating Voltage

13.8V DC ± 15%

Dimension(HxWxD)

 145mm x190mm x47mm

Weight(with bracket)

1200g

                                                                           Receiver

Reference Sensitivity

0.2μV @ 12dB SINAD

Operating Bandwidth

60dB@12.5KHz /70dB@25KHz

Adjacent Channel Selectivity

60dB@12.5KHz 70dB@25KHz

Inter-modulation Rejection

≥60dB/ ≥65dB

Spurious Response Rejection

≥70dB

Rated Audio Response

+1-+3dB

Rated Audio Distortion

<5%

FM Hum&Noise

≥40dB@25KHz /≥45KHz @12.5KHz

                                                                             Transmitter

RF Power

50W / 25W / 10W

Frequency Modulation

11kΦF3E / 16kΦF3E

Modulation Distortion

<5%

FM Noise

≥36dB@25KHz /≥40KHz @12.5KHz

Adjacent Channel Power

≥60dB@12.5KHz /≥70KHz @25KHz

Audio Response

+1-+3dB

Audio Distortion

<5%
