Set the frequency offset, direction, and CTCSS tone and work through the many Amateur Ham Radio repeaters in your community, or direct radio to radio via Simplex. All the modern features of a great starter radio at a price your wallet will welcome. With the traditional "Japanese" style antenna connector you have the flexibility of upgrading the antenna from a wide selection of antennas that will fit without the use of adapters.
Packed with a standard dual band rubber duck antenna, a Lithium Ion battery pack, and North America 110V desktop charger, this radio is complete right out of the box. Programming is a breeze with the included quick start guide, written by Fleetwood Digital, and numerous accessories are available to complete your purchase and be ready for your adventures.
Amateur Frequency:
- VHF: 144-148MHz (2M)
- UHF: 430-450MHz (70CM)
Amateur Features:
- 200 Memory Channels
- 2M VHF
- 70CM UHF
- Simplex or Repeater Work Modes
- CTCSS/DCS Repeater Tones
- 5W RF Output Power (4W UHF)
- User Selectable Repeater Offset & Direction
- 1400MAh Li-ion Rechargeable Battery
- 110V Desktop Charger
- VOX
- LED Status Light
- Dot Matrix LCD Display
- Backlit DTMF Keypad
- Hi / Low Power Selectable
- Battery Saver
- Programmable Multifunction Keys
- PC Programmable (Optional Software and Cable Required)
- Keypad Lock (All / PTT)
- K Plug Speaker / Mic Jack
- One Year Manufacturer Warranty
Specifications:
General:
- Channel: 128
- Operating Voltage: 7.4VDC
- Operating Temperature (Radio Body): -10 -> +50 C
- Weight (Radio Body): 106g

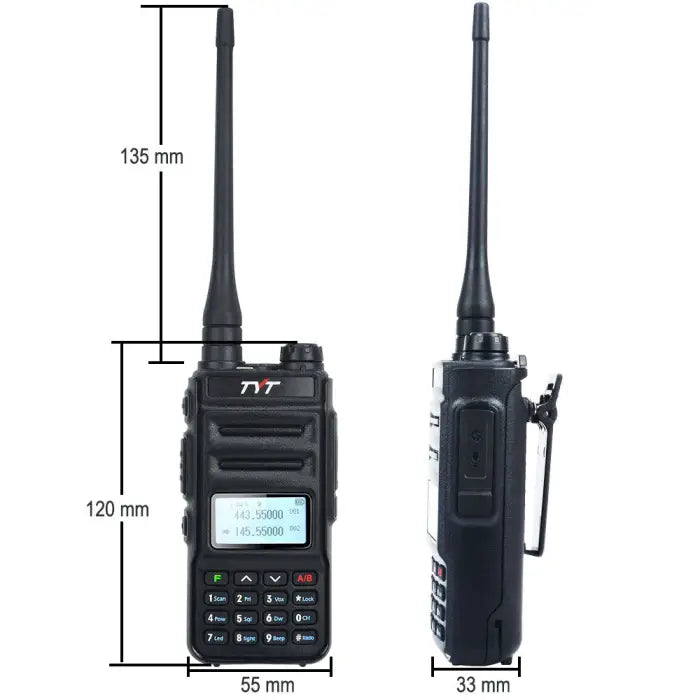

- Dimensions (Ex Antenna): 116 x 53 x 36mm
Receiver:
- Frequency: 144-148MHz / 430-450MHz
- Sensitivity: <0.2 uV
- Occupied Bandwidth: <16KHz
- Audio Power: >500mW
- Audio Distortion: <10%
- Frequency Stability: 5ppm
- Current Draw: 60mA -> 250mA
- Audio Response (300-3400Hz): +7~-12.5dB
Transmitter:
- Frequency: 144-148MHz / 430-450MHz
- RF Power: 5W (4W UHF)
- Modulation: FM
- Spurious Power: <=15dB
- Modulation Noise: <-40dB
- Modulation Distortion: <5%
- Frequency Stability: 5ppm
- Maximum Frequency Deviation: <+/- 5KHz
- Current Draw: <1600mAh
- Audio Response (300-3400Hz): +6.5~-14dB
- Adjacent Channel Power: <65dB
Box Contents:
- TH-UV88 Radio (144-148MHz / 430-450MHz)
- Dual Band Antenna
- Lithium Ion Battery
- Desktop Charger
- Belt Clip
- Instructions
Description
Set the frequency offset, direction, and CTCSS tone and work through the many Amateur Ham Radio repeaters in your community, or direct radio to radio via Simplex. All the modern features of a great starter radio at a price your wallet will welcome. With the traditional "Japanese" style antenna connector you have the flexibility of upgrading the antenna from a wide selection of antennas that will fit without the use of adapters.
Packed with a standard dual band rubber duck antenna, a Lithium Ion battery pack, and North America 110V desktop charger, this radio is complete right out of the box. Programming is a breeze with the included quick start guide, written by Fleetwood Digital, and numerous accessories are available to complete your purchase and be ready for your adventures.
Amateur Frequency:
- VHF: 144-148MHz (2M)
- UHF: 430-450MHz (70CM)
Amateur Features:
- 200 Memory Channels
- 2M VHF
- 70CM UHF
- Simplex or Repeater Work Modes
- CTCSS/DCS Repeater Tones
- 5W RF Output Power (4W UHF)
- User Selectable Repeater Offset & Direction
- 1400MAh Li-ion Rechargeable Battery
- 110V Desktop Charger
- VOX
- LED Status Light
- Dot Matrix LCD Display
- Backlit DTMF Keypad
- Hi / Low Power Selectable
- Battery Saver
- Programmable Multifunction Keys
- PC Programmable (Optional Software and Cable Required)
- Keypad Lock (All / PTT)
- K Plug Speaker / Mic Jack
- One Year Manufacturer Warranty
Specifications:
General:
- Channel: 128
- Operating Voltage: 7.4VDC
- Operating Temperature (Radio Body): -10 -> +50 C
- Weight (Radio Body): 106g
- Dimensions (Ex Antenna): 116 x 53 x 36mm
Receiver:
- Frequency: 144-148MHz / 430-450MHz
- Sensitivity: <0.2 uV
- Occupied Bandwidth: <16KHz
- Audio Power: >500mW
- Audio Distortion: <10%
- Frequency Stability: 5ppm
- Current Draw: 60mA -> 250mA
- Audio Response (300-3400Hz): +7~-12.5dB
Transmitter:
- Frequency: 144-148MHz / 430-450MHz
- RF Power: 5W (4W UHF)
- Modulation: FM
- Spurious Power: <=15dB
- Modulation Noise: <-40dB
- Modulation Distortion: <5%
- Frequency Stability: 5ppm
- Maximum Frequency Deviation: <+/- 5KHz
- Current Draw: <1600mAh
- Audio Response (300-3400Hz): +6.5~-14dB
- Adjacent Channel Power: <65dB
Box Contents:
- TH-UV88 Radio (144-148MHz / 430-450MHz)
- Dual Band Antenna
- Lithium Ion Battery
- Desktop Charger
- Belt Clip
- Instructions
