1 7

President

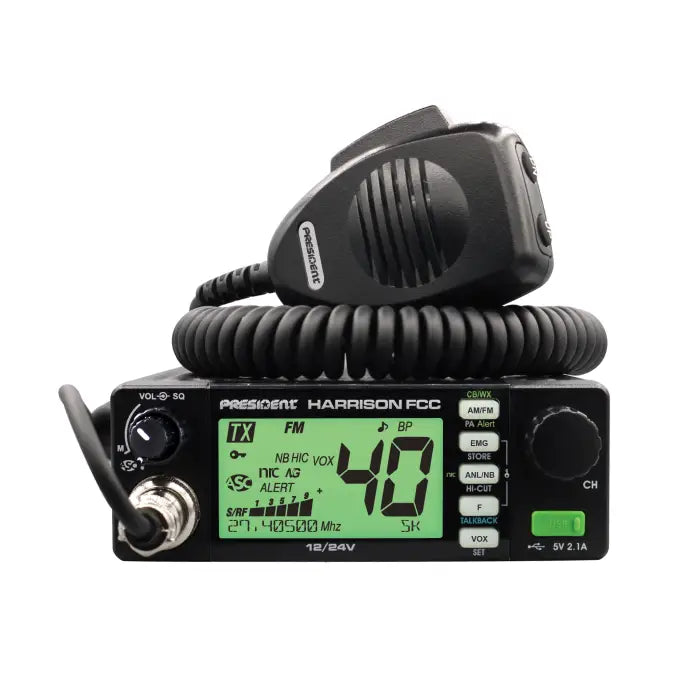

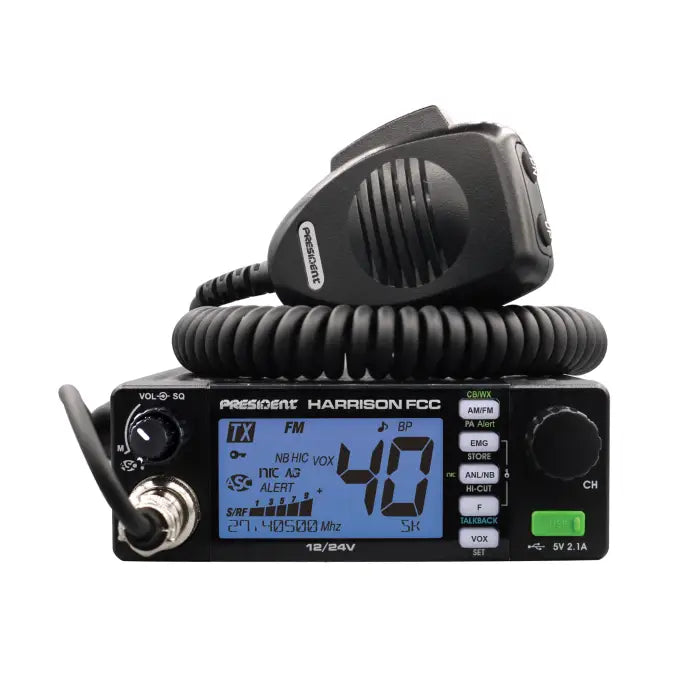

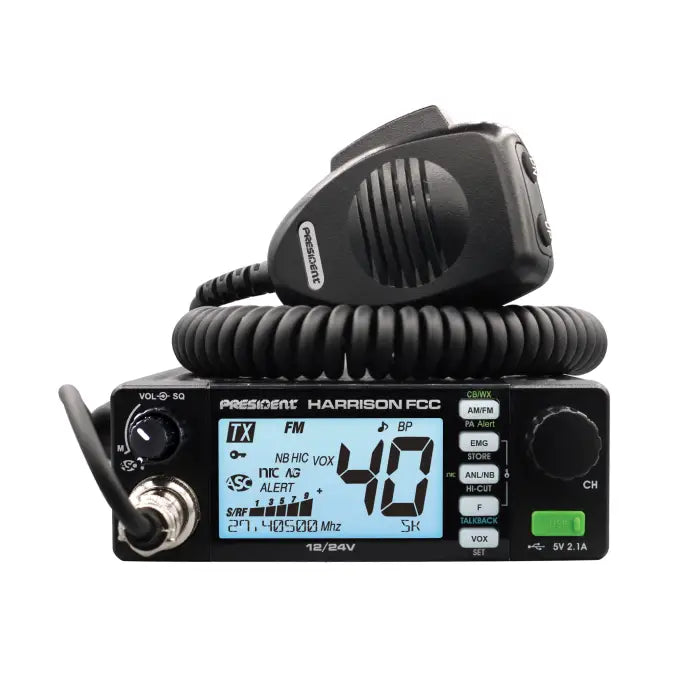

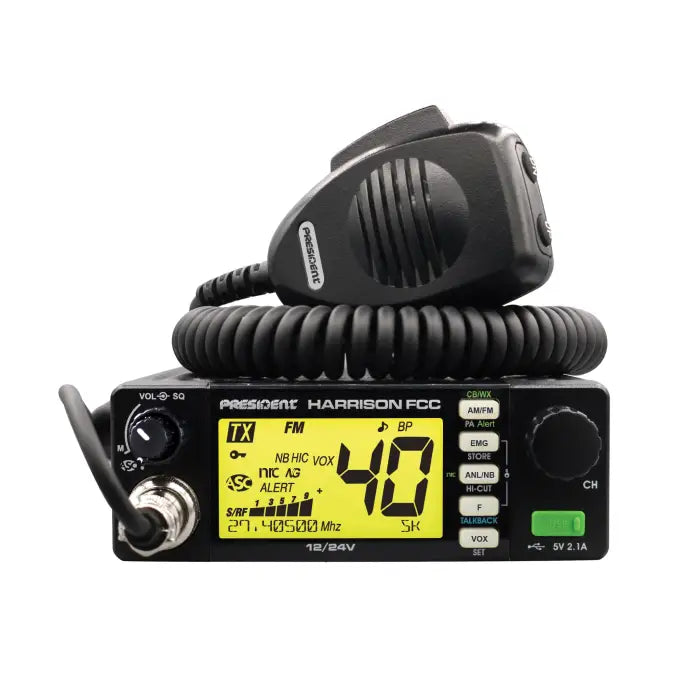

President Harrison FCC 40 Channel AM / FM CB Radio With CTCSS / DCS Tones

President Harrison FCC 40 Channel AM / FM CB Radio With CTCSS / DCS Tones

This product is elligible for Ship to Fleetwood Digital for pick-up, or Canada wide shipping! Proudly processed by our Quebec warehouse.
$249.99 CAD
$249.99 CAD $249.99 CAD
Sale Sold out
Shipping calculated at checkout.

Promotions

Login to your account or create one, to see what QSO Rewards are waiting for you!
Shopify secure badge

Quick Specs

  • 26.965 - 27.405 MHz
  • UHF / SO239

6 Pin

4W

  • AM
  • FM

Scoll down for more information about this item.





40 channels AM / FM
12 / 24 V
Channel rotary switch
Volume adjustment and ON/OFF
Manual squelch and ASC
Multi-functions LCD display
S-meter
Vox function (Hands free)
ANL filter, NB and HI-CUT
NRC
Noise Gate
CTCSS/DCS
Scan
Scan Skip
Preset emergency (EMG 1/2)
F function key
Beep Function
Roger Beep
Mode switch AM / FM
Talkback
Tone
Micro Type (Electret / Dynamic)
Public Address
SWR Automatic
Key locking
Front microphone plug
External loudspeaker jack
USB 5V 2.1A

Specifications:

Supply : 13.8 V / 27.6 V
Number of channels : 40
AM : YES
FM : YES
Channel selector : rotary
Number of weather channels : 7
Weather alert : YES
Volume : Volume adjustment and ON/OFF
Squelch : Manual squelch
ASC : YES
Display : LCD multifunction
Frequencies display : YES
S-meter : Digital
Public address : YES
Talkback : YES
Vox : YES
Automatic SWR meter : YES
Tone : YES
Filter ANL : YES
Filter NB : YES
Filter HI-CUT : YES
Noise Gate : YES
Scan + Scan Skip : YES
Dimmer : YES
F / Menu function key : YES
Beep Function : YES
Roger beep : YES
Key locking : YES
SWR (Power Reading /SWR) : YES
Preset channel : EMG (personalizable)
CTCSS : YES
DSC : YES
microphone plug : front (6 pins)
External Vox microphone jack : YES
External loudspeaker jack : YES
Size (W x D x H) : 4.92 x 6.49 x 1.77 inches 125 x 165 x 45 mm
Weight : 1.65 lbs / 0.75 kg



General
Number of channels : 40
Number of weather channels : 7
Weather alert : YES
Modulation modes : AM / FM
Frequency ranges : from 26.965 MHz to 27.405 MHz
Weather channels : from 162.400 MHz to 162.550 MHz
Antenna impedance : 50 ohms
Power supply : 13.8 V / 27.6 V
Size (W x D x H) : 4.92 x 6.49 x 1.77 inches 125 x 165 x 45 mm
Weight : 1.65 lbs / 0.75 kg
Accessories supplied : Ultra light electret microphone with support, mounting cradle, screws
Transmission
Frequency allowance : +/- 200Hz
Carrier power : 4 W AM / 4 W FM
Transmission interference : inferior to 4 nW (- 54 dBm)
Audio response : 300 Hz to 3 KHz in AM/FM
Emitted power in the adj. channel : inferior to 20 μW
Microphone sensitivity : 3.0 mV
Drain : < 2 A max. with modulation (13.8 V) < 1 A max. with modulation (27.6 V)
Modulated signal distortion : 2 %
Reception
Maxi. sensitivity at 20 dB sinad : 0.5 μV - 113 dBm (AM) 0.35 μV - 116 dBm (FM)
Frequency response : 300 Hz to 3 kHz in AM/FM
Adjacent channel selectivity : 60 dB
Maximum audio power : 3 W
Squelch sensitivity : min. 0,2 μV - 120 dBm / max. 1 mV - 47 dBm
Frequency image rejection rate : 60 dB
Intermediate frequency rej. rate : 70 dB
Drain : 180 ~ 800 mA maximum (13.6 V) 90 ~ 400 mA maximum (27.8 V)
CTCSS Tone List
N° Freq. (Hz) N° Freq. (Hz) N° Freq. (Hz)
00 - oF OFF 13 103.5 26 162.2
1 67.0 14 107.2 27 167.9
2 71.9 15 110.9 28 173.8
3 74.4 16 114.8 29 179.9
4 77.0 17 118.8 30 186.2
5 79.7 18 123.0 31 192.8
6 82.5 19 127.3 32 203.5
7 85.4 20 131.8 33 210.7
8 88.5 21 136.5 34 218.1
9 91.5 22 141.3 35 225.7
10 94.8 23 146.2 36 233.6
11 97.4 24 151.4 37 241.8
12 100.0 25 156.7 38 250.3
DCS Code List
N° DCS (Octal) N° DCS (Octal) N° DCS (Octal) N° DCS (Octal)
1 23 27 152 53 311 79 466
2 25 28 155 54 315 80 503
3 26 29 156 55 325 81 506
4 31 30 162 56 331 82 516
5 32 31 165 57 332 83 523
6 36 32 172 58 343 84 526
7 43 33 174 59 346 85 532
8 47 34 205 60 351 86 546
9 51 35 212 61 356 87 565
10 53 36 223 62 364 88 606
11 54 37 225 63 365 89 612
12 65 38 226 64 371 90 624
13 71 39 243 65 411 91 627
14 72 40 244 66 412 92 631
15 73 41 245 67 413 93 632
16 74 42 246 68 423 94 654
17 114 43 251 69 431 95 662
18 115 44 252 70 432 96 664
19 116 45 255 71 445 97 703
20 122 46 261 72 446 98 712
21 125 47 263 73 452 99 723
22 131 48 265 74 454 100 731
23 132 49 266 75 455 101 732
24 134 50 271 76 462 102 734
25 143 51 274 77 464 103 743
26 145 52 306 78 465 104 754
