Xiegu X6100 HF / 50Mhz Multiband Portable SDR Amateur Ham Radio

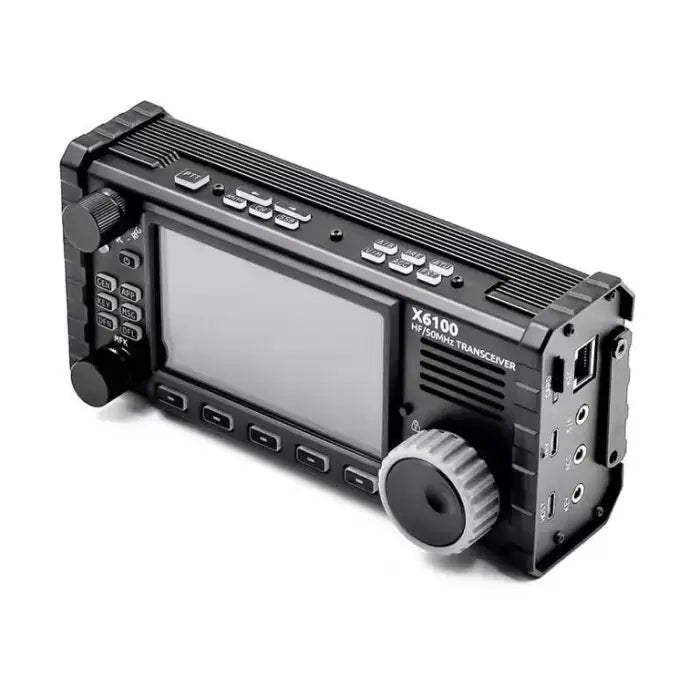

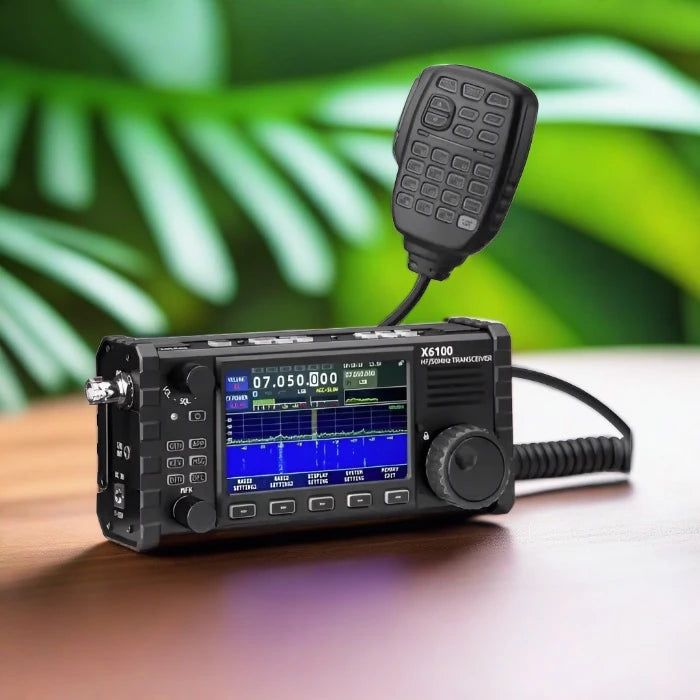

XIEGU X6100 is an ultra-portable shortwave transceiver, and adopts the SDR software radio platform architecture of excellent performance, which carries powerful baseband and RF unit, and integrates rich and diversified operating functions, bringing you a brand-new recognition and experience on amateur radio. With its compact structure and tiny appearance, you can immediately set forth on a journey with it, get close to nature, and enjoy the fun of outdoor communication.

Xiegu radios are backed by a 1 year factory warranty, with service in Asia. Warranty is void if the radio is tampered with, finals are damaged, or firmware is changed.

HF/50MHZ full mode (supporting data communication)
Transmitting power: external power supply: 10W, battery: 5W
High-resolution color screen (800*480)
Built-in large capacity lithium battery pack (3000mAh, 12V)
Built-in efficient automatic antenna tuner
Integrated standing wave scanner and voice pager
Integrated modem, preset message, CW automatic call
Built-in Bluetooth/WLAN function, which can realize wireless audio, keyboard and mouse operation

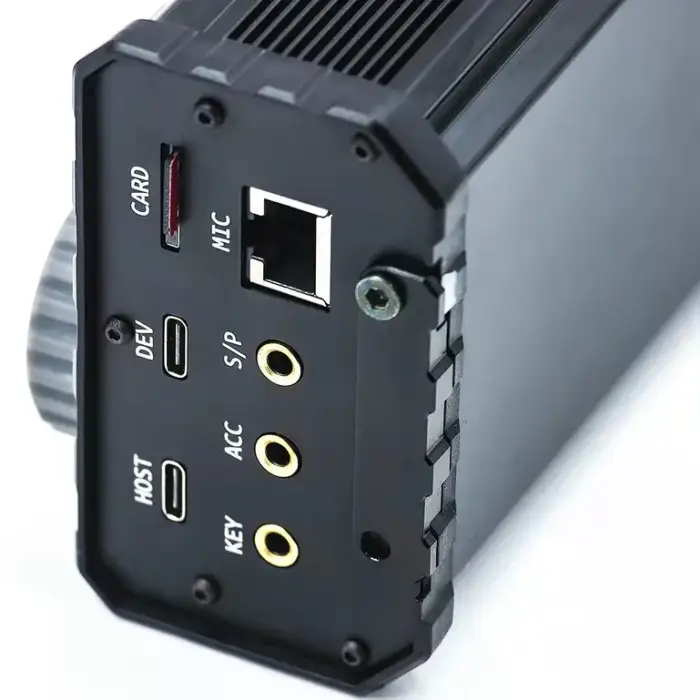

Integrated USB line control/transmission, supporting USBHOST.
Standard high-stability TCX0 internal clock source

Frequency Range: Receiving: 0.5MHz~30MHz

Transmitting:

• 1.8~2.0MHz

• 3.5~4.0MHz

• 7.0~7.3MHz

• 10.1~10.15MHz

• 14.0~14.35MHz

• 18.068~18.168MHz

• 21.0~21.45MHz

• 24.89~24.99MHz

• 28.0~29.7MHz

• 50.00~54.00MHz


Working mode: CW, AM, SSB, FM
Minimum stepping: 10Hz
Antenna impedance: 50D
Working temperature range: 0°C~+55°C
Frequency stability: ±1.5ppm within 0~30min after startup @25°C: 1ppm/hour

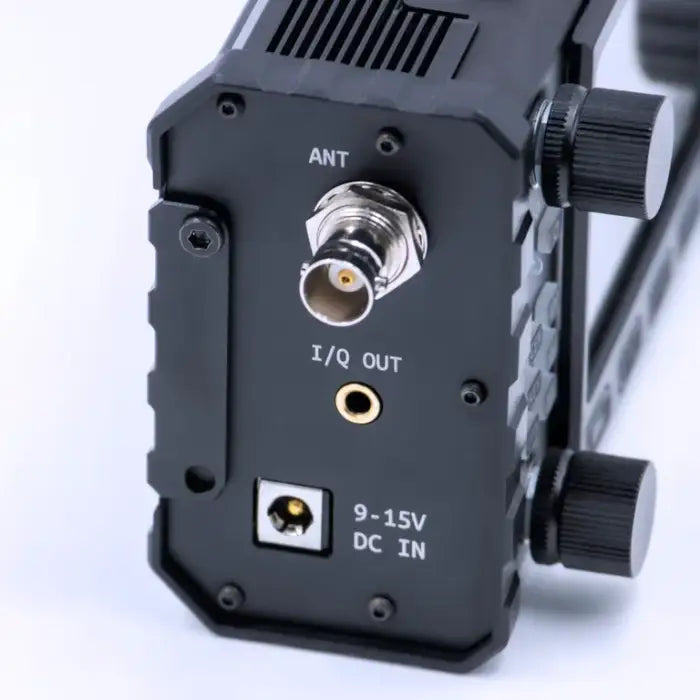

Supply voltage: 9.0~15.0VDC, negative electrode grounding Current consumption: receiving: 330mA@Max
Transmitting: 3A@Max

Dimensions: 180*86*49mm (L*W*H) (not including protrusions) Weight: about 875g (host only)

Transmitter Parameters:
RF output power:

• 10W (SSB/CW/FM) @13.8VDC

• 2.5W (AM carrier wave) @13.8VDC

• 5W (SSB/CW/FM) @ battery

• 1.5W (AM carrier wave) @ battery


Spurious suppression: 1.8~29.6MHz: ≥50dB 5(T54MHz:≥60dB
Carrier suppression: ≥50dB
Microphone impedance: 200~10k (600Ω in general) Receiver parameters
Circuit type: ZIF
Sideband suppression: Ω50dB
MDS:-138dB
