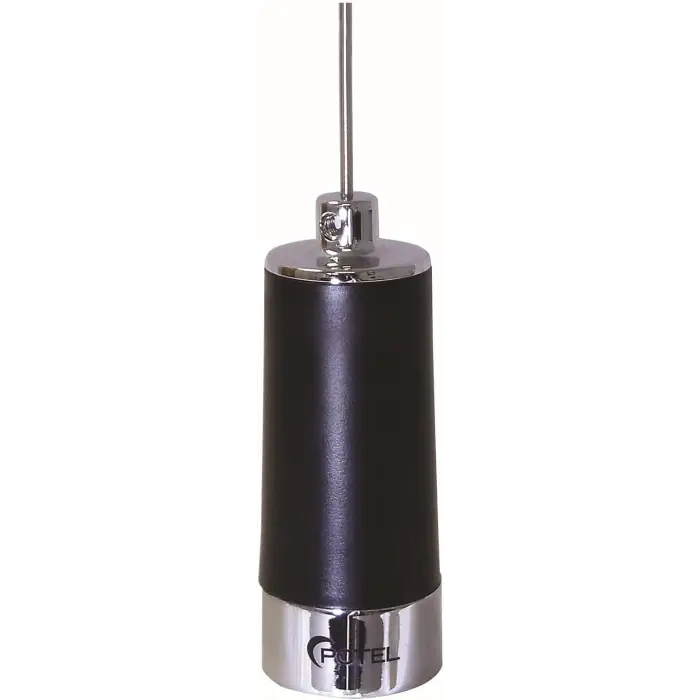

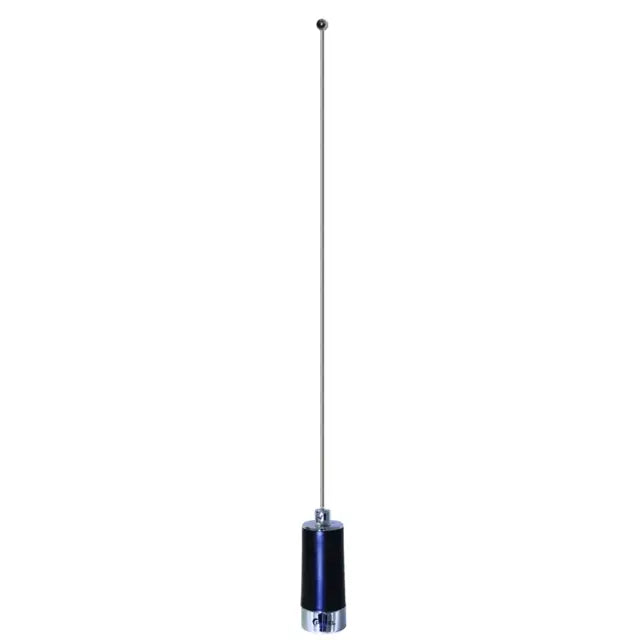

PCTel High Performance 52 Inch Lowband Field Tuneable Quarter Wave CB Radio Antenna

PCTEL’s MLB lowband antennas are a popular choice for State Patrol, Land Management and serious CB applications. They provide superior performance for a variety of lowband applications.

Features

• The matching coil is supported by a low-loss coil form to withstand the heaviest shocks

• Durable, attractive housings designed to deter moisture ingress for long lasting,

• RoHS COMPLIANT reliable operation

• Mates with all NMO Style 1-1/8”-18 thread mounts, including 3/4” NMO mounts

• Field tunable within specified frequency range

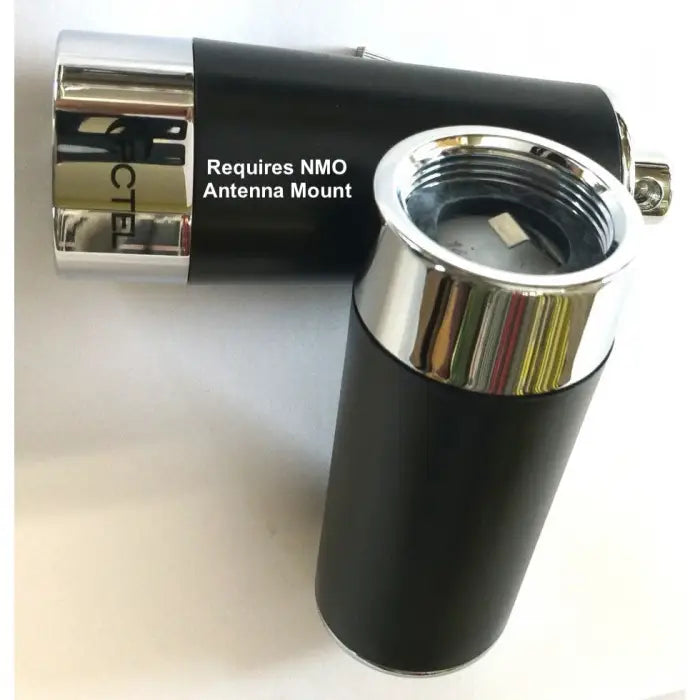

• Choose a suitable NMO style mount (Not 3/8 x 24 CB)


Specifications:

• Frequency Range: 27-31 MHz

• Length: 52"
• Radiator: 17-7 PH SS
• Gain: Unity

• VSWR: <1.5:1

• Average Power: 200W

• Nominal Impedance: 50 Ohm

• Temperature Rating: -40°C to +85°C
• Antenna Type: Base Loaded 1/4 Wave
