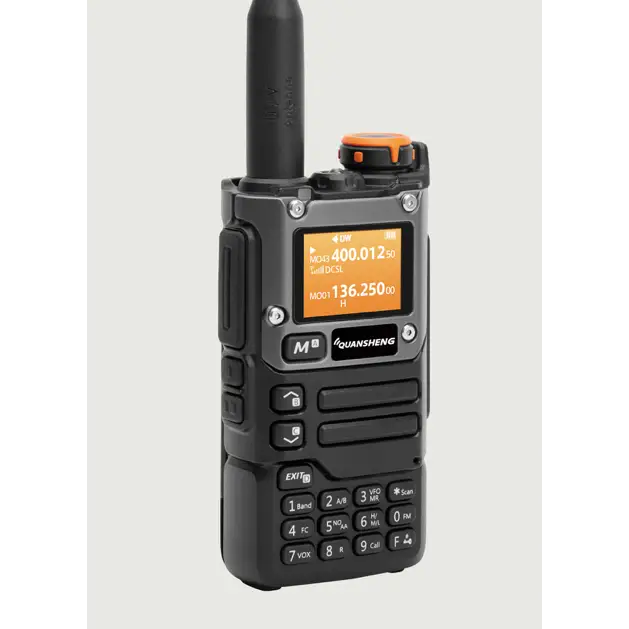

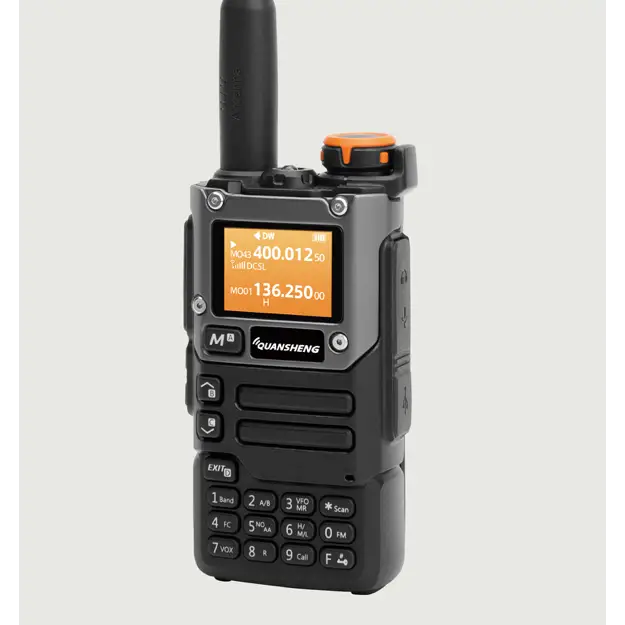

Quansheng UV-K5(8) Upgrade Version Portable Handheld Multiband Amateur Ham Radio Transceiver Scanner Frequency Counter UV-K6

Quansheng UV-K5(8) Upgrade Version Portable Handheld Multiband Amateur Ham Radio Transceiver Scanner Frequency Counter UV-K6

Prompt processing from our Vancouver warehouse. Easy returns and exchanges via our self serve portal.
Regular price CHF 54.00
Regular price Sale price CHF 54.00
Sale Sold out
Shipping calculated at checkout.

Promotions

Login to your account or create one, to see what QSO Rewards are waiting for you!

Multipack
Shopify secure badge

Quick Specs

  • 144-148
  • 430-450
  • SMA Female (Chinese Style)

K Plug

5W

  • FM

Scoll down for more information about this item.



WOW is all we can say about this radio. An upgrade to the original Quansheng UV-K5 including a more robust case, easier to read display, and superior audio, this radio packs almost every feature one would want, with a price to please, and FCC / IC certification. Also known as the Quansheng UV-K6, this radio features Dual Band, check. AM airband (RX), check, USB-C charging, check. You also get NOAA weather channels, and FM broadcast radio reception. Did we mention it's also a scanner, allowing one to tune in 50Mhz, 220Mhz, and up to 600Mhz on the UHF band! Enjoy clear audio from the upgraded speaker and a first in a ham radio, a VHF / UHF frequency counter! We dare you to find a radio with this many features for even twice the price of this unit.

And on top of all this, its also a dual band, VHF / UHF, Amateur Ham Radio with all the usual features of a ham radio including memory channels, frequency shift and offset for working repeaters, DTMF tones, CTCSS tones, and much more!

IC / ISED: 30518-UVK5

GENERAL SPECIFICATIONS
Number of channels

200

Number of FM Presets

16

Frequency stability

±1ppm

Size

115mmX60mmX37.5mm

Weight

234g

Working temperature

-20℃+60℃

Antenna impedance

50Ω

Modulation mode

FM:11KOF3E(12.5KHz),16K0F3E(25KHz)

Number of NOAA channels

10

Battery capacity

1600mAh



RECEIVE
Reference Sensitivity

FM(12dB SINAD) F1(50∽76) -121dBm F2(108∽135.9975) -121dBm F3(136∽173.9975) -123dBm F4(174∽349.9975) -123dBm F5(350∽399.9975) -123dBm F6(400∽469.9975) -123dBm F6(470∽599.9975) -121dBm

WFM(20dB SINAD) WFM(76∽108) -110dBm

AM(10dB S/N) F2(108∽135.9975) -113dBm

Audio Power

≥0.5W

Audio Distortion

≤10%

Transmit
Frequency Band

144∽148MHz

430∽450MHz

Transmitting Power

≤5W

Emission Current

≤1.5A

Maximum Frequency Deviation

≤5KHz(25KHz), ≤2.5KHz(12.5KHz)

Modulation Distortion

≤5%

Stray Power

≤7.5uW

Adjacent Channel Power

70dB(25KHz), 60dB(12.5KHz)

Residual Modulation

40dB



Box Contents:

  • UV-K5(8) Radio
  • Dual Band FM antenna
  • Battery
  • 110V AC Charger (Fixed Cord)

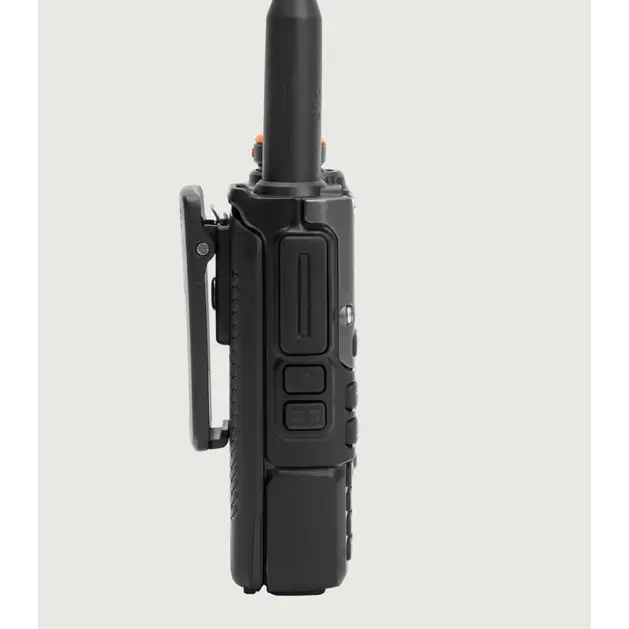

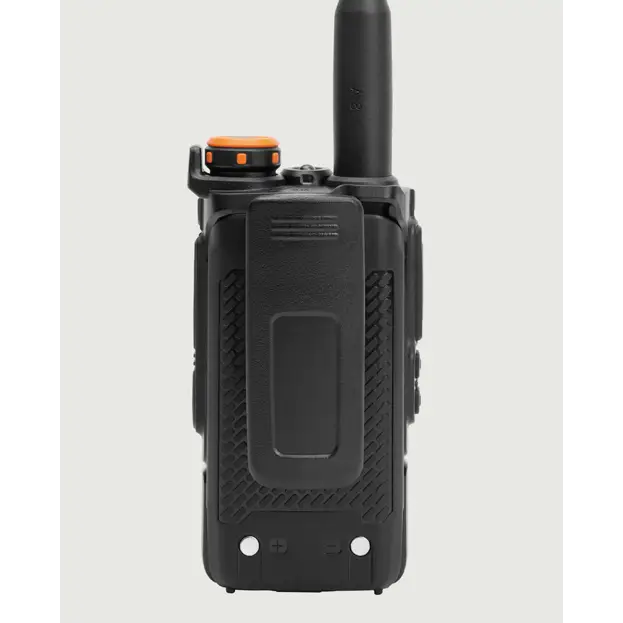

  • Belt Clip
  • Wrist Strap

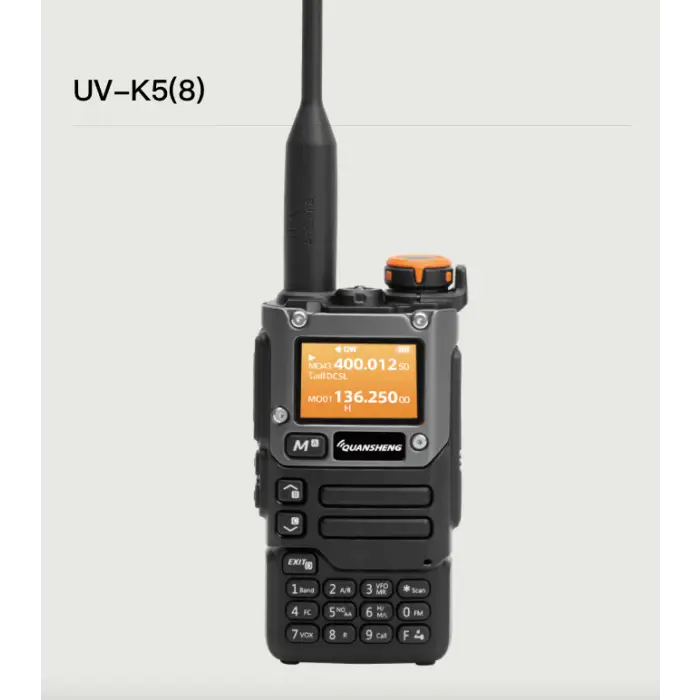

Quansheng UV-K5(8) Portable Multiband Amateur Ham Radio
Quansheng UV-K5(8) Portable Multiband Amateur Ham Radio



PLEASE NOTE: This radio does not have Cross Band Repeater capabilities. The translation to Cross Band Intercomm indicates if a signal comes in on Band A and you are on Band B, the radio will switch to Band A for your next transmission.
