Retevis

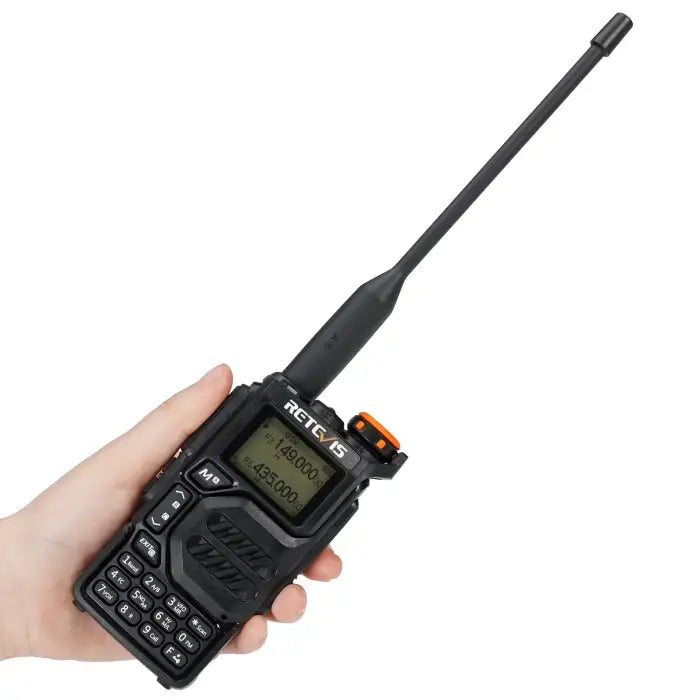

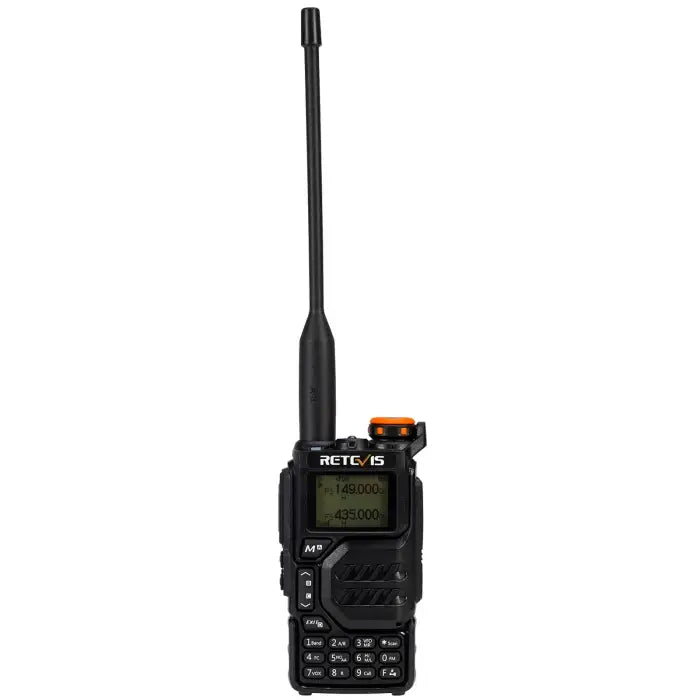

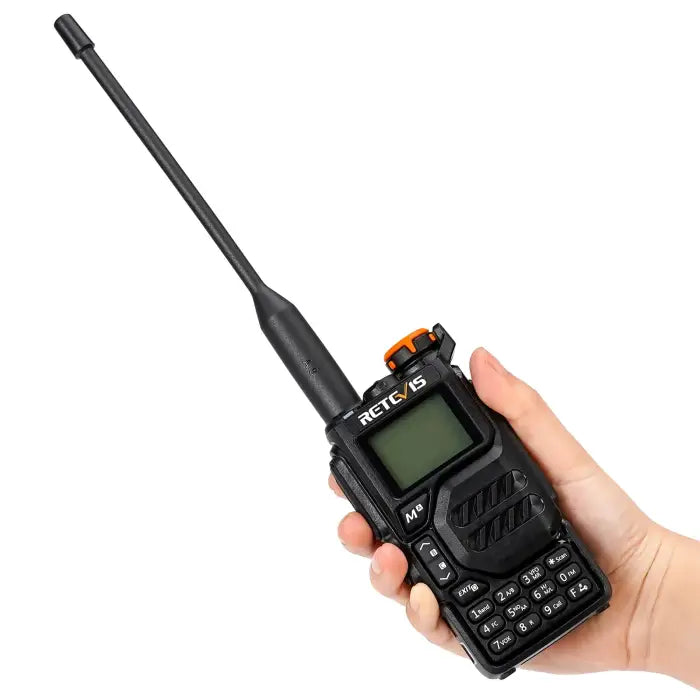

Retevis RA79 (UV-K5) Portable Handheld Multiband Amateur Ham Radio Transceiver Scanner Frequency Counter

Retevis RA79 (UV-K5) Portable Handheld Multiband Amateur Ham Radio Transceiver Scanner Frequency Counter

This item will ship Air Courier from the factory. Kindly allow ~10-15 business days.
Regular price $71.24 CAD
Regular price $74.99 CAD Sale price $71.24 CAD
Sale Sold out
Shipping calculated at checkout.

Promotions

Login to your account or create one, to see what QSO Rewards are waiting for you!

Shopify secure badge

Quick Specs

  • 144-148
  • 430-450
  • SMA Female (Chinese Style)

K Plug

5W

  • FM

Scoll down for more information about this item.

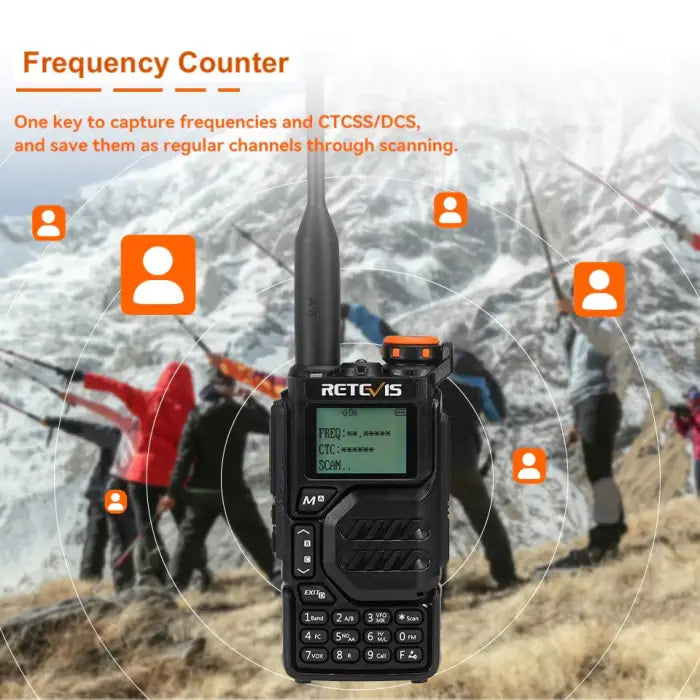

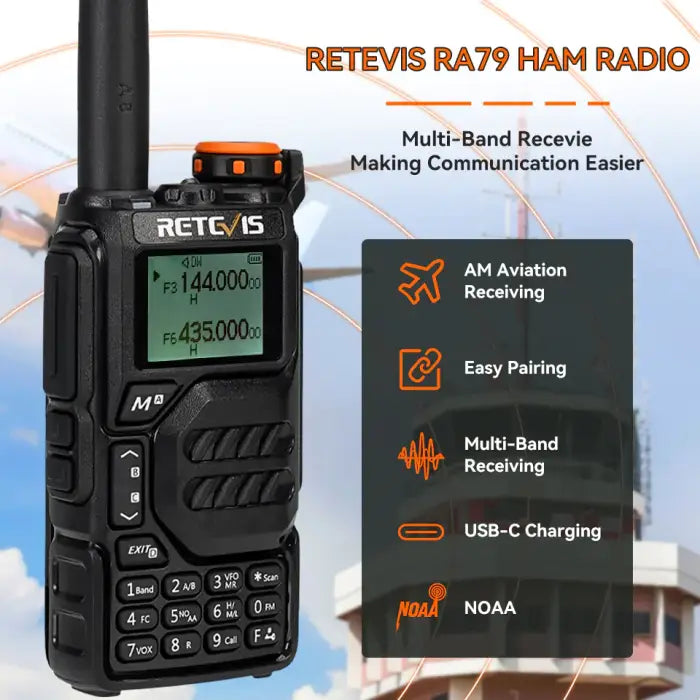

WOW is all we can say about this radio. An alternative to the Quansheng UV-K5, this radio packs almost every feature one would want, with a price to please, and FCC certification. Also known as the Quansheng UV-K6 and UV-K5(8), this radio features Dual Band, check. AM airband (RX), check, USB-C charging, check. You also get NOAA weather channels, and FM broadcast radio reception. Did we mention it's also a scanner, allowing one to tune in 50Mhz, 220Mhz, and up to 600Mhz on the UHF band! Enjoy clear audio from the upgraded speaker and a first in a ham radio, a VHF / UHF frequency counter! We dare you to find a radio with this many features for even twice the price of this unit.

And on top of all this, its also a dual band, VHF / UHF, Amateur Ham Radio with all the usual features of a ham radio including memory channels, frequency shift and offset for working repeaters, DTMF tones, CTCSS tones, and much more!

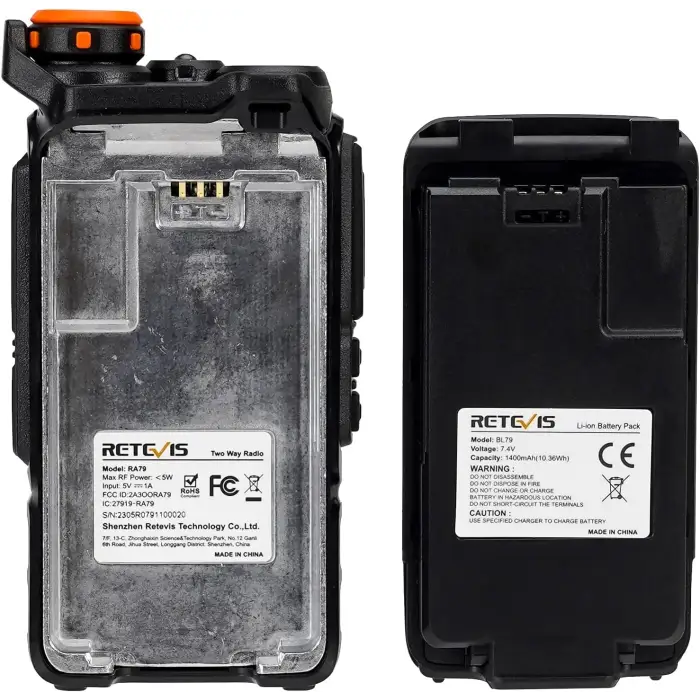

FCC ID: 2A3OORA79

GENERAL SPECIFICATIONS
Number of channels

200

Number of FM Presets

16

Frequency stability

±1ppm

Size

115mmX60mmX37.5mm

Weight

234g

Working temperature

-20℃+60℃

Antenna impedance

50Ω

Modulation mode

FM:11KOF3E(12.5KHz),16K0F3E(25KHz)

Number of NOAA channels

10

Battery capacity

1600mAh


RECEIVE
Reference Sensitivity

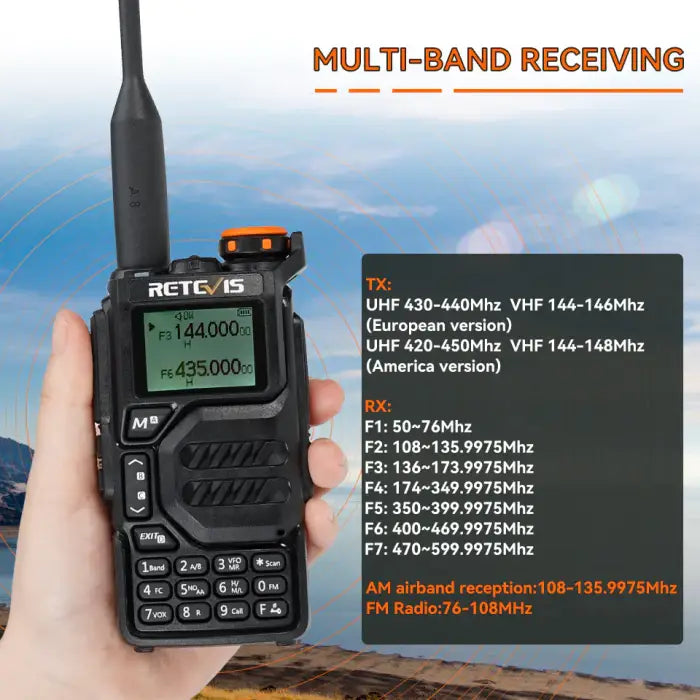

FM(12dB SINAD) F1(50∽76) -121dBm F2(108∽135.9975) -121dBm F3(136∽173.9975) -123dBm F4(174∽349.9975) -123dBm F5(350∽399.9975) -123dBm F6(400∽469.9975) -123dBm F6(470∽599.9975) -121dBm

WFM(20dB SINAD) WFM(76∽108) -110dBm

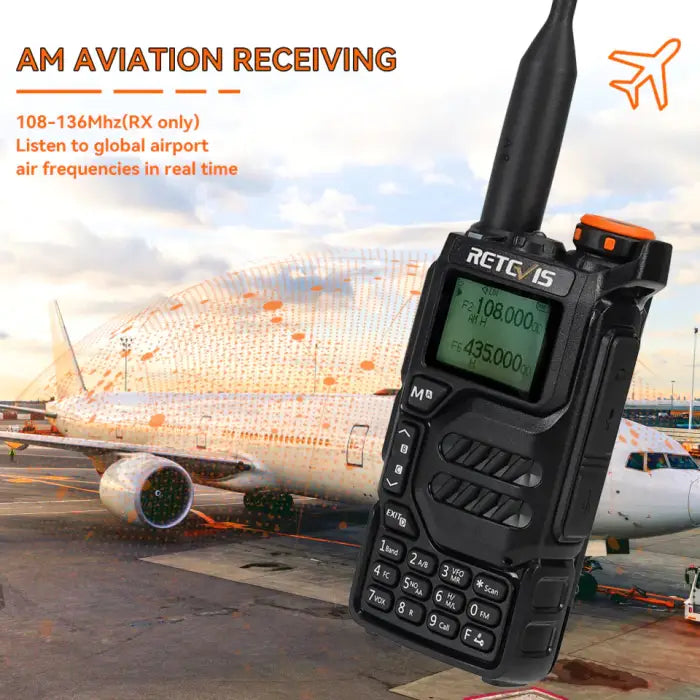

AM(10dB S/N) F2(108∽135.9975) -113dBm

Audio Power

≥0.5W

Audio Distortion

≤10%

Transmit
Frequency Band

144∽148MHz

420∽450MHz

Transmitting Power

≤5W

Emission Current

≤1.5A

Maximum Frequency Deviation

≤5KHz(25KHz), ≤2.5KHz(12.5KHz)

Modulation Distortion

≤5%

Stray Power

≤7.5uW

Adjacent Channel Power

70dB(25KHz), 60dB(12.5KHz)

Residual Modulation

40dB

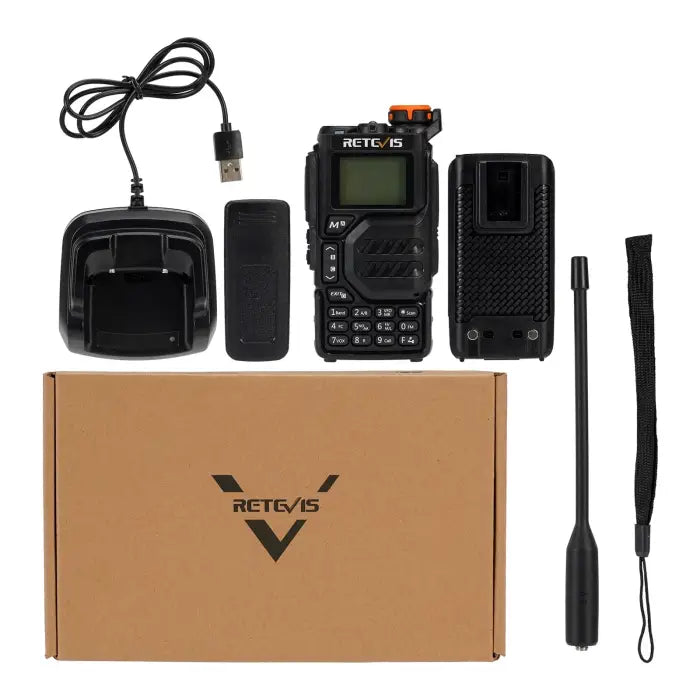

Package Contents:

  • 1 x RA79 Ham Radio
  • 1 x USB Desktop Charger

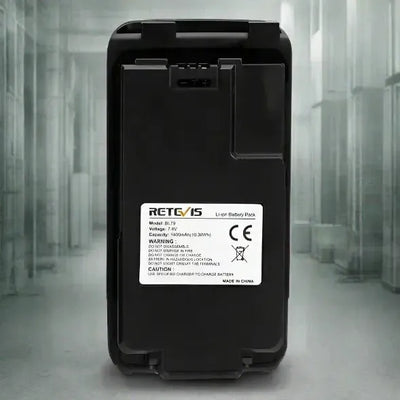

  • 1 x 1400mAh Battery
  • 1 x User Manual
  • 1 x Belt Clip
  • 1 x Antenna
  • 1 x Lanyard
