Xiegu

Xiegu G90 20W SDR HF Amateur Ham Radio Transceiver

Xiegu G90 20W SDR HF Amateur Ham Radio Transceiver

This item will ship Air Courier from the factory. Kindly allow ~10-15 business days.
Regular price CHF 522.00
Regular price Sale price CHF 522.00
Sale Sold out
Shipping calculated at checkout.

Promotions

Login to your account or create one, to see what QSO Rewards are waiting for you!

Optional Antenna
Shopify secure badge

Quick Specs

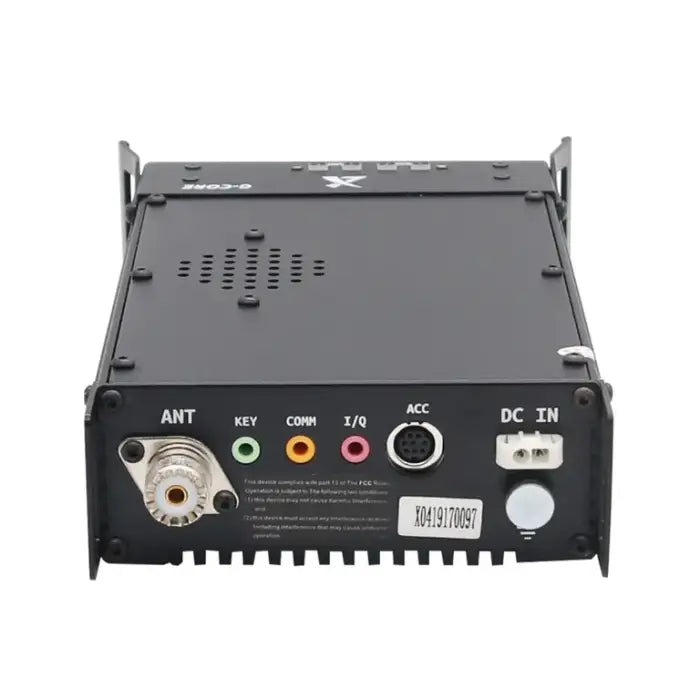

  • UHF / SO239

RJ-45

20W

  • SSB
  • CW
  • AM
  • FM

Scoll down for more information about this item.



The G90S is an amateur radio short-wave transceiver with a portable 20W in the SDR architecture. It is a new member of the Xiegu product family and the first portable SDR model in the G series.


Based on 24bit-C0DEC sampling, the G90S brings superior transceiver performance and a highly configurable feature experience; the separate head design allows you to flexibly position your radio, while the built-in high-performance ATU (Antenna Tuner), you can be up and running with low SWR based on antenna placement and surroundings.

Xiegu radios are backed by a 1 year factory warranty, with service in Asia. Warranty is void if the radio is tampered with, finals are damaged, or firmware is changed.

Features:

  • High-performance RF front end
  • SSB/CW/AM/NFM three working modes
  • 1.8-inch high-brightness color TFT LCD
  • ±24k bandwidth spectrum display, waterfall display
  • Software-defined narrow-band filter (CW mode can be as narrow as 50Hz), built-in CW decoder
  • Separable head design
  • Built-in standing-wave scanner

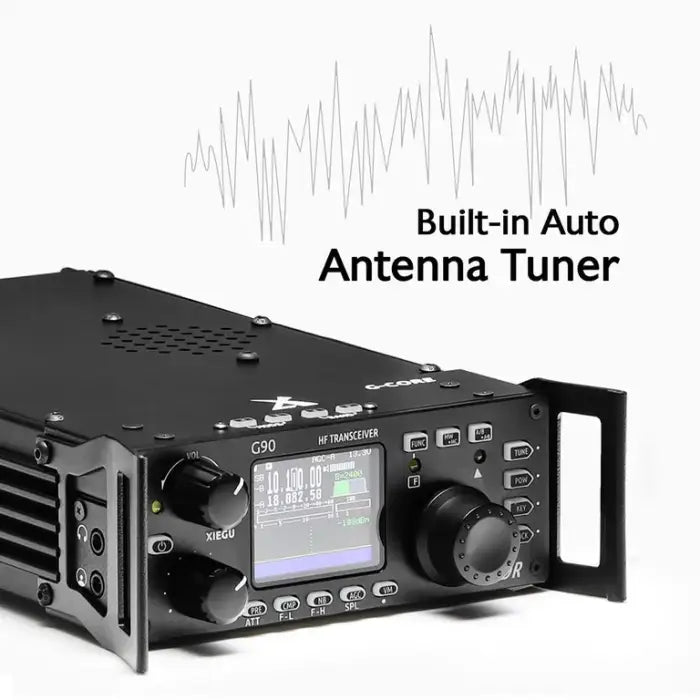

  • Built-in efficient automatic antenna tuner

Technical Specifications: (Full Manual At Very Bottom of Page!)

Frequency range:

Receiving: 0.5MHz~30MHz

Transmitting:

  • 1.8~2.0MHz
  • 3.5~3.9MHZ
  • 7.0~7.2MHz
  • 10.1~10.15MHz
  • 14.0~14.35MHz
  • 18.068~18.168MHz
  • 21.0 ~21.45MHz
  • 24.89~24.99MHz
  • 28.0~29.7MHz


Working mode: CW, AM, SSB
Minimum stepping: 10Hz
Antenna impedance: 50 Ω
Working temperature range: 0°C ~ +50°C
Frequency stability: ±1.5ppm within 10~60min after startup @25°C: 1ppm/hour

Supply voltage: 10.5~16.5VDC, negative electrode grounding

Current consumption:

  • Receiving: 700mA@Max
  • Transmitting: 6A@Max

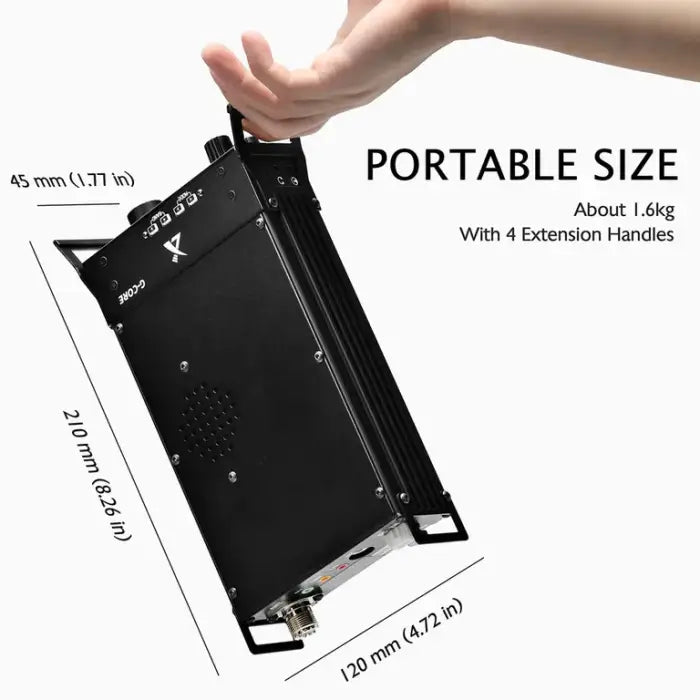

Dimensions: 120*45*210mm (W*H*L) (not including protrusions) Weight: about 1.63 kg (host only)

Transmitter Parameters:
RF output power: 20W (SSB/CW)
5W (AM carrier wave) @13.8VDC
Spurious suppression: ≥50dB
Carrier suppression: ≥40dB
Microphone impedance: 200~10k (600Ω in general)



OPTIONAL ANTENNAS

KB2 730V (7 / 14 /21 / 28MHZ)

OWNERS MANUAL

Xiegu G90 20W SDR HF Amateur Ham Radio Transceiver
VG4 Multiband Vertical (7 / 14 /21 / 28MHZ)
Xiegu G90 20W SDR HF Amateur Ham Radio Transceiver



Owners Manual
