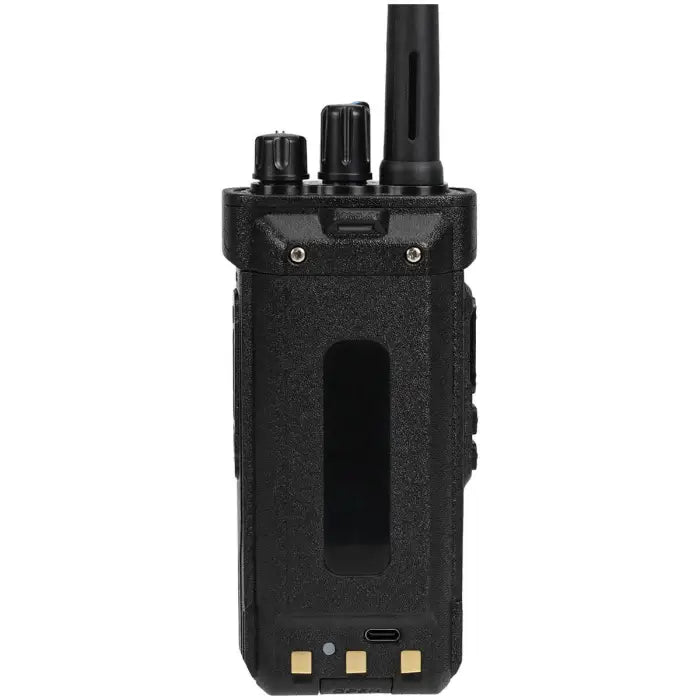

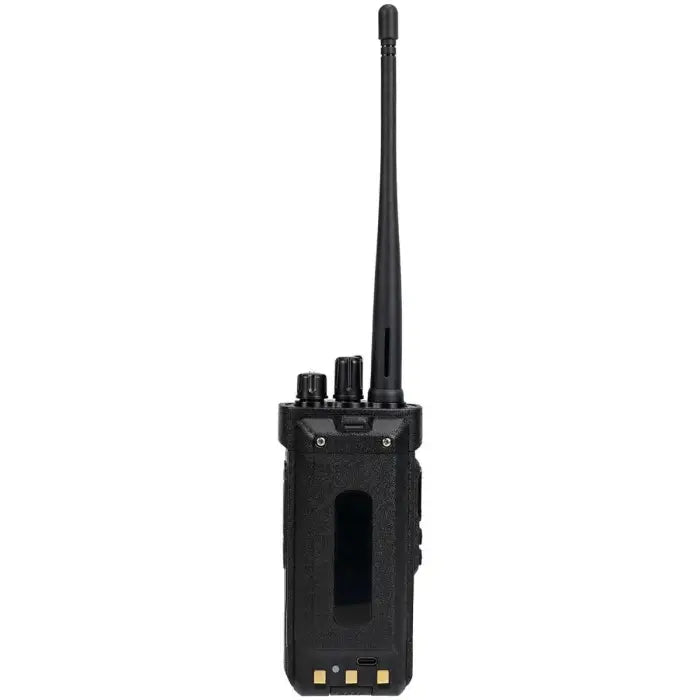

Retevis Ailunce HD1 IP67 Dual Band Dual Time Slot GPS DMR Amateur Ham Radio

Retevis Ailunce HD1 IP67 Dual Band Dual Time Slot GPS DMR Amateur Ham Radio

This item is a Special Order item. Fleetwood Digital will source from the distributor promptly following your order. Kindly allow ~7-12 days for shipping.
Prix habituel $219.99 CAD
Prix habituel Prix soldé $219.99 CAD
Vente Épuisé
Frais d'expédition calculés à l'étape de paiement.

Promotions

Login to your account or create one, to see what QSO Rewards are waiting for you!

Shopify secure badge

Quick Specs

  • 144-148
  • 430-450
  • SMA Female (Chinese Style)

WP Plug

8W

  • FM
  • DMR

Scoll down for more information about this item.



The Retevis Ailunce HD1 IP67 Dual Band DMR Ham Radio is perfect for all you amateur radio lovers out there! With its tough exterior and dual band capabilities, this radio can withstand dusty and watery situations (take that, Mother Nature!). You'll have no problem hearing your fellow radio enthusiasts with its loud and clear sound, and its numerous features make it suitable for all types of ham radio activities. Plus, with its super strong 8W power, long-distance communication is a breeze! And let's not forget the 3200 mAh battery and type-c charging support - no more worrying about losing power while on the go. With 3000 channels and 200,000 contacts, this Retevis HD1 Ham Radio will have you covered for all your DMR needs.

General specifications
Frequency

FM: 76-107.95MHz (RX)

VHF: 144-148 MHz

UHF: 420-450 MHz

Channels 3000
Operating Temperature -30℃~+60℃
Operating Voltage 7.4V DC
Dimension 150 x 64x 40mm
Weight 360g (with battery)
Battery Type Li-ion
Battery Capacity 3200 mAh
Antenna Impedance 50 Ohm
Transmitter
Transmit current

Analog: 1.6A

Digital: 0.9A

Frequency Stability 1.0ppm
FM modulation mode

12.5KHz @ 11K0F3E

25KHz @ 16K0F3E

4FSK digital mode

12.5KHz(data only): 7K60FXD

12.5KHz(data and voice): 7K60FXW

Modulation distortion <5%
Vocoder AMBE+2TM
Adjacent channel power

60dBm@12.5KHz

65dBm@25KHz

Audio Response +1~-3dB
Digital Protocol ETSI-TS102 361-1,-2,-3
Receiver
Analog Sensitivity

0.35uV/-116dBm(20dB SINAD)

0.22uV/-120dBm(Type)

Digital Sensitivity

0.30uV/-117dBm(BER 5%)

0.70uV/-110dBm(BER 1%)

Adjacent Channel Selectivity TIA603C:65dB ETSI:60dB
Spurious Response TIA603C:75dB ETSI:70dB
Audio Response +1~-3dB
Rated Audio Distortion ≤3%(Type)
Audio Power ≥500mW



Package Includes:

  • HD1 GPS DMR Radio
  • Antenna
  • Type-C Charge Battery
  • Type-C Desktop Charger
  • Type-C Charging Cable



Important Notice:

DMR Radios require advanced Windows computer knowledge to program. Fleetwood Digital has a very basic tutorial HERE to help with programming. We do not have the resources to assist any further. Kindly allow lead times of 7-12 days prior to shipping please.



Afficher tous les détails

Description



The Retevis Ailunce HD1 IP67 Dual Band DMR Ham Radio is perfect for all you amateur radio lovers out there! With its tough exterior and dual band capabilities, this radio can withstand dusty and watery situations (take that, Mother Nature!). You'll have no problem hearing your fellow radio enthusiasts with its loud and clear sound, and its numerous features make it suitable for all types of ham radio activities. Plus, with its super strong 8W power, long-distance communication is a breeze! And let's not forget the 3200 mAh battery and type-c charging support - no more worrying about losing power while on the go. With 3000 channels and 200,000 contacts, this Retevis HD1 Ham Radio will have you covered for all your DMR needs.

General specifications
Frequency

FM: 76-107.95MHz (RX)

VHF: 144-148 MHz

UHF: 420-450 MHz

Channels 3000
Operating Temperature -30℃~+60℃
Operating Voltage 7.4V DC
Dimension 150 x 64x 40mm
Weight 360g (with battery)
Battery Type Li-ion
Battery Capacity 3200 mAh
Antenna Impedance 50 Ohm
Transmitter
Transmit current

Analog: 1.6A

Digital: 0.9A

Frequency Stability 1.0ppm
FM modulation mode

12.5KHz @ 11K0F3E

25KHz @ 16K0F3E

4FSK digital mode

12.5KHz(data only): 7K60FXD

12.5KHz(data and voice): 7K60FXW

Modulation distortion <5%
Vocoder AMBE+2TM
Adjacent channel power

60dBm@12.5KHz

65dBm@25KHz

Audio Response +1~-3dB
Digital Protocol ETSI-TS102 361-1,-2,-3
Receiver
Analog Sensitivity

0.35uV/-116dBm(20dB SINAD)

0.22uV/-120dBm(Type)

Digital Sensitivity

0.30uV/-117dBm(BER 5%)

0.70uV/-110dBm(BER 1%)

Adjacent Channel Selectivity TIA603C:65dB ETSI:60dB
Spurious Response TIA603C:75dB ETSI:70dB
Audio Response +1~-3dB
Rated Audio Distortion ≤3%(Type)
Audio Power ≥500mW



Package Includes:

  • HD1 GPS DMR Radio
  • Antenna
  • Type-C Charge Battery

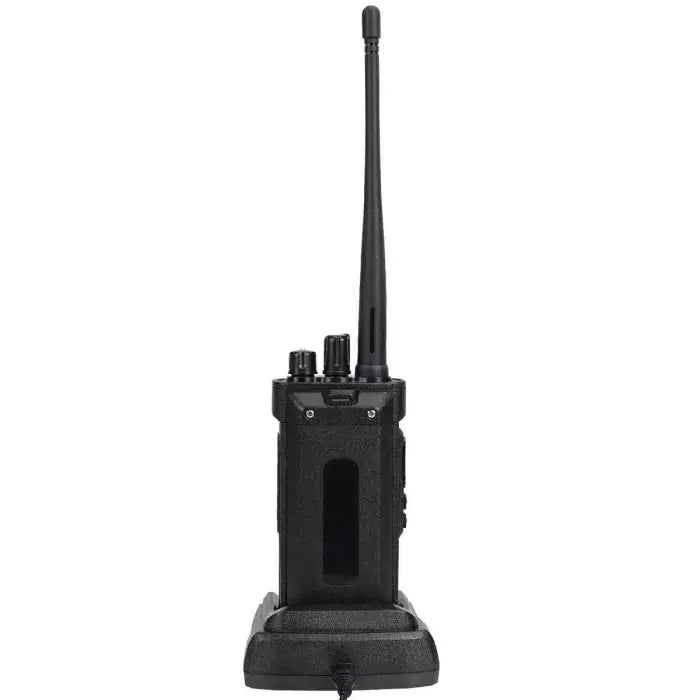

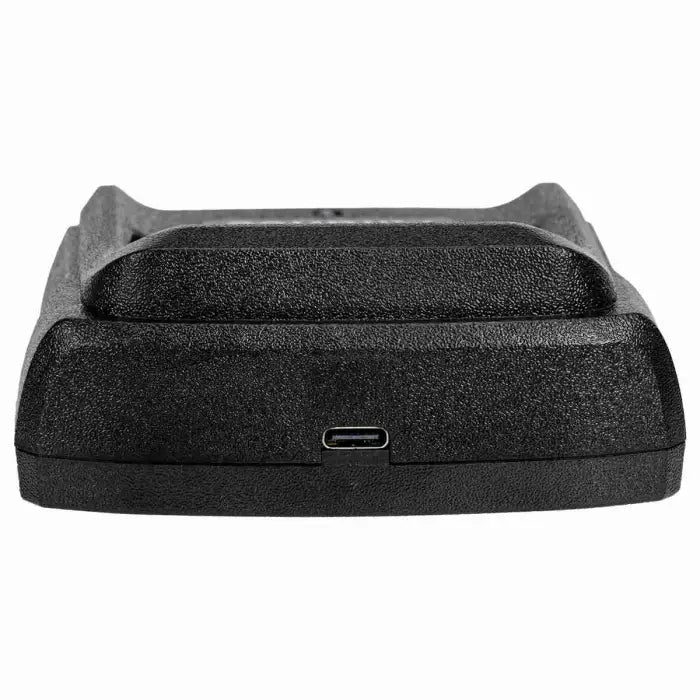

  • Type-C Desktop Charger
  • Type-C Charging Cable



Important Notice:

DMR Radios require advanced Windows computer knowledge to program. Fleetwood Digital has a very basic tutorial HERE to help with programming. We do not have the resources to assist any further. Kindly allow lead times of 7-12 days prior to shipping please.
