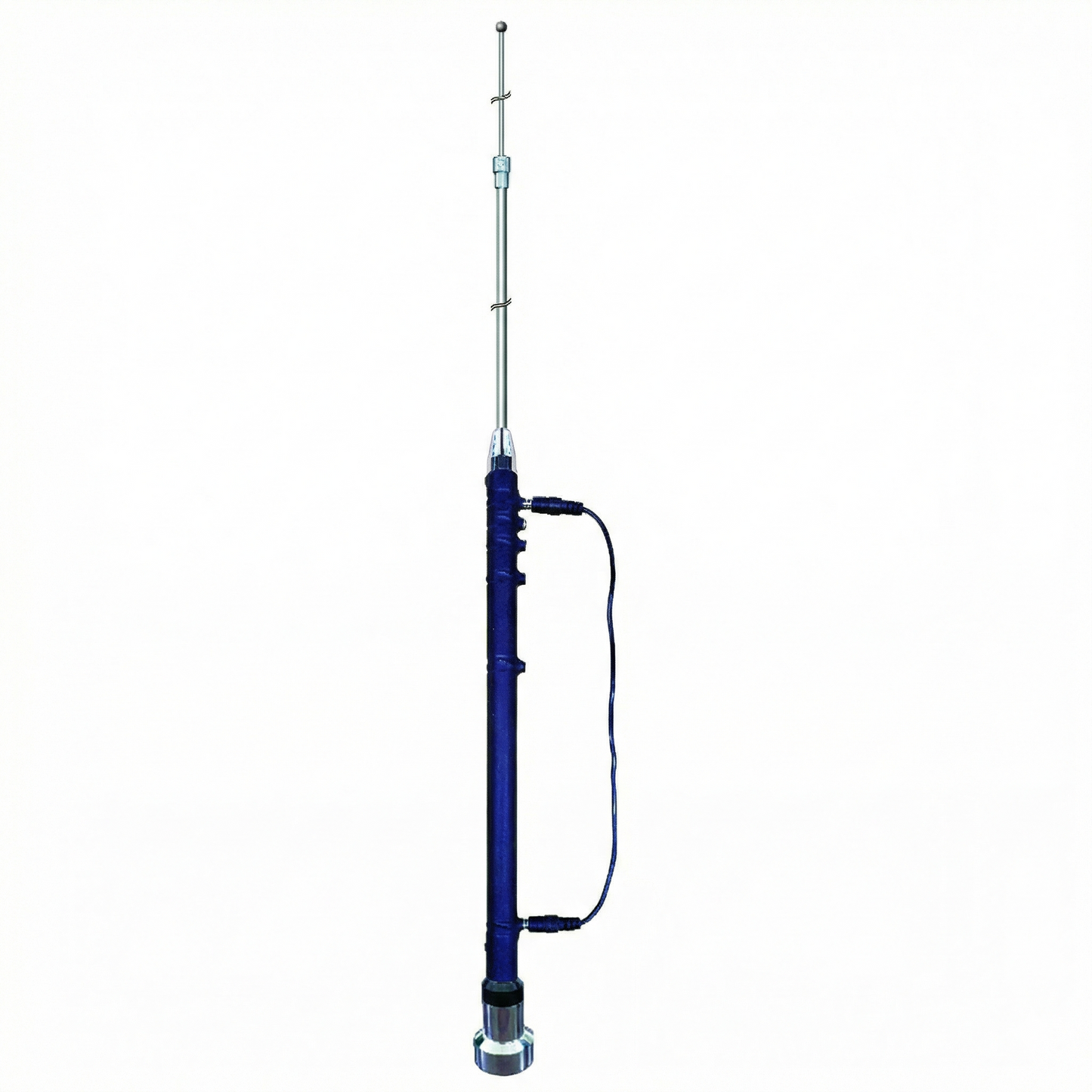

DistribuComm COMM2MHF Multi-Band Portable Antenna (HF/VHF/UHF)
DistribuComm COMM2MHF Multi-Band Portable Antenna (HF/VHF/UHF)
Couldn't load pickup availability
Why Buy?
Why Buy?
Not quite sure if this is right for you? Contact Us for expert advice!
Quick Specs
Quick Specs
Scoll down for more information about this item.
The DistribuComm COMM2MHF is the ultimate portable antenna solution for amateur radio operators who need to cover it all. Designed specifically for portable operations (POTA/SOTA) and space-constrained setups, this single antenna covers an impressive range from 3MHz HF bands all the way up to 450MHz UHF.
Using a clever system of an adjustable radiator element and a jumper lead, you can tune this antenna to resonance on almost any major amateur band, including 80M, 40M, 20M, 6M, 2M, and 70cm—plus Air Band and CB Radio frequencies. Built with high-quality components and made in Taiwan, it handles up to 150 Watts of power.
-
🌍
Massive Frequency Coverage: One antenna for HF (80M/40M/20M/15M), VHF (6M/2M/Air), UHF (70cm), and even 27MHz CB Radio.
-
⚙️
Adjustable Tuning System: Easily change bands by adjusting the telescopic element length and moving the included jumper lead (tuning chart included).
-
⚡️
High Power Handling: Rated for 150 Watts (SSB), making it suitable for most mobile transceivers and portable HF rigs like the FT-891 or IC-705.
-
📡
UHF Male (PL-259) Mount: Mounts directly to any standard SO-239 mag mount, lip mount, or tripod base (mount sold separately).
🔧 How It Works: The Jumper System
This antenna uses a "base load" coil with multiple tap points. To change bands, you simply plug the included jumper lead into the corresponding socket on the coil and adjust the top whip length according to the supplied chart. No antenna tuner is usually required if tuned correctly!
Technical Specifications
| Specification | Detail |
|---|---|
| Model | DistribuComm COMM2MHF |
| HF Bands | 80M (3.7MHz), 40M (7.5MHz), 20M (14.5MHz), 15M (21.5MHz) |
| VHF/UHF Bands | 6M (52MHz), 2M (136-174MHz), 70cm (420-450MHz) |
| Other Bands | CB Radio (27MHz), Air Band (118-136MHz) |
| Max Power | 150 Watts |
| Connector | UHF Male (PL-259) |
| VSWR | < 1.5:1 (most bands), < 2.0:1 (80M/40M) |
| Impedance | 50 Ohms |
| Configuration | 1/4 Wave (HF/6M), 5/8 Wave (2M/Air) |
| Origin | Made in Taiwan |
Description
The DistribuComm COMM2MHF is the ultimate portable antenna solution for amateur radio operators who need to cover it all. Designed specifically for portable operations (POTA/SOTA) and space-constrained setups, this single antenna covers an impressive range from 3MHz HF bands all the way up to 450MHz UHF.
Using a clever system of an adjustable radiator element and a jumper lead, you can tune this antenna to resonance on almost any major amateur band, including 80M, 40M, 20M, 6M, 2M, and 70cm—plus Air Band and CB Radio frequencies. Built with high-quality components and made in Taiwan, it handles up to 150 Watts of power.
-
🌍
Massive Frequency Coverage: One antenna for HF (80M/40M/20M/15M), VHF (6M/2M/Air), UHF (70cm), and even 27MHz CB Radio.
-
⚙️
Adjustable Tuning System: Easily change bands by adjusting the telescopic element length and moving the included jumper lead (tuning chart included).
-
⚡️
High Power Handling: Rated for 150 Watts (SSB), making it suitable for most mobile transceivers and portable HF rigs like the FT-891 or IC-705.
-
📡
UHF Male (PL-259) Mount: Mounts directly to any standard SO-239 mag mount, lip mount, or tripod base (mount sold separately).
🔧 How It Works: The Jumper System
This antenna uses a "base load" coil with multiple tap points. To change bands, you simply plug the included jumper lead into the corresponding socket on the coil and adjust the top whip length according to the supplied chart. No antenna tuner is usually required if tuned correctly!
Technical Specifications
| Specification | Detail |
|---|---|
| Model | DistribuComm COMM2MHF |
| HF Bands | 80M (3.7MHz), 40M (7.5MHz), 20M (14.5MHz), 15M (21.5MHz) |
| VHF/UHF Bands | 6M (52MHz), 2M (136-174MHz), 70cm (420-450MHz) |
| Other Bands | CB Radio (27MHz), Air Band (118-136MHz) |
| Max Power | 150 Watts |
| Connector | UHF Male (PL-259) |
| VSWR | < 1.5:1 (most bands), < 2.0:1 (80M/40M) |
| Impedance | 50 Ohms |
| Configuration | 1/4 Wave (HF/6M), 5/8 Wave (2M/Air) |
| Origin | Made in Taiwan |
