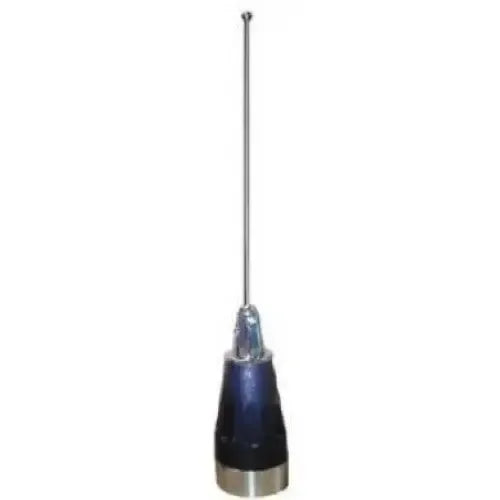

DistribuComm COMM848V Wide Band VHF NMO Antenna (No Ground Plane)
DistribuComm COMM848V Wide Band VHF NMO Antenna (No Ground Plane)
Couldn't load pickup availability
Why Buy?
Why Buy?
Not quite sure if this is right for you? Contact Us for expert advice!
Quick Specs
Quick Specs
Scoll down for more information about this item.
💰 Bundle & Save
Need a mount? Save $15 instantly on your order when you purchase this antenna alongside any DistribuComm NMO Mount (Magnet, Trunk Lip, or Hole Mount). Discount applied automatically at checkout.
Stop compromising between Ham Radio and Commercial channels. The DistribuComm COMM848V is a "Wide Band" VHF antenna designed to do it all. With an impressive 24 MHz bandwidth, this antenna bridges the gap, allowing users to operate effectively on both the 2-Meter Amateur Band and BC Forest Service / Resource Roads (RR) without constantly retuning or swapping antennas.
Even better, this is a true "No Ground Plane" (NGP) antenna. This means it performs perfectly on surfaces that lack a metal ground, such as fiberglass Jeeps, boats, UTVs, or tractor cabs. Built with a 17-7PH stainless steel tapered whip and a gold-plated push pin, it is rugged, reliable, and proudly distributed from Quebec, Canada.
-
📶
Massive 24MHz Bandwidth: Once cut to your center frequency, this antenna covers a huge 24MHz spread, easily handling both Ham (144MHz) and Commercial (150-170MHz) frequencies.
-
🚫
No Ground Plane Required: Perfect for installation on fiberglass roofs, headache racks, mirror bars, or any location where a traditional metal ground plane is missing.
-
⚡️
100 Watt Power Handling: Rated for high-power mobile transceivers, ensuring you get your signal out clear and strong.
-
🛠️
Premium Construction: Features a 1/2 wave design with a tapered stainless steel whip and gold-plated contact pin. Made in Taiwan.
✂️ Sample Cutting Chart
This antenna is cut-to-tune. Use the chart below to target your specific frequency range. (Measurements are approximate; always verify with an SWR meter).
| Frequency Range | Cut Length (mm) | Notes |
|---|---|---|
| 132 - 150 MHz | 1100 mm | Low VHF |
| 138 - 160 MHz | 1040 mm | Amateur + Commercial Mix |
| 142 - 170 MHz | 990 mm | ★ Most Popular (Ham + RR Roads) |
| 148 - 174 MHz | 947 mm | High VHF / Commercial Only |
⚠️ Oversized Item Shipping Notice
Please Read: This item is considered oversized. Shipping to rural addresses or PO Boxes may not be possible. Use a civic (physical) address to ensure the most accurate shipping quote at checkout.
Technical Specifications
| Specification | Detail |
|---|---|
| Model | DistribuComm COMM848V |
| Frequency Range | 136 - 174 MHz (Tunable) |
| Bandwidth | 24 MHz Wide Band |
| Antenna Type | 1/2 Wave, No Ground Plane |
| Gain | 2.5 dBi |
| Max Power | 100 Watts |
| Mounting | Standard NMO |
| Materials | 17-7ph Stainless Steel Whip, Gold Plated Pin |
| Origin | Made in Taiwan |
Description
💰 Bundle & Save
Need a mount? Save $15 instantly on your order when you purchase this antenna alongside any DistribuComm NMO Mount (Magnet, Trunk Lip, or Hole Mount). Discount applied automatically at checkout.
Stop compromising between Ham Radio and Commercial channels. The DistribuComm COMM848V is a "Wide Band" VHF antenna designed to do it all. With an impressive 24 MHz bandwidth, this antenna bridges the gap, allowing users to operate effectively on both the 2-Meter Amateur Band and BC Forest Service / Resource Roads (RR) without constantly retuning or swapping antennas.
Even better, this is a true "No Ground Plane" (NGP) antenna. This means it performs perfectly on surfaces that lack a metal ground, such as fiberglass Jeeps, boats, UTVs, or tractor cabs. Built with a 17-7PH stainless steel tapered whip and a gold-plated push pin, it is rugged, reliable, and proudly distributed from Quebec, Canada.
-
📶
Massive 24MHz Bandwidth: Once cut to your center frequency, this antenna covers a huge 24MHz spread, easily handling both Ham (144MHz) and Commercial (150-170MHz) frequencies.
-
🚫
No Ground Plane Required: Perfect for installation on fiberglass roofs, headache racks, mirror bars, or any location where a traditional metal ground plane is missing.
-
⚡️
100 Watt Power Handling: Rated for high-power mobile transceivers, ensuring you get your signal out clear and strong.
-
🛠️
Premium Construction: Features a 1/2 wave design with a tapered stainless steel whip and gold-plated contact pin. Made in Taiwan.
✂️ Sample Cutting Chart
This antenna is cut-to-tune. Use the chart below to target your specific frequency range. (Measurements are approximate; always verify with an SWR meter).
| Frequency Range | Cut Length (mm) | Notes |
|---|---|---|
| 132 - 150 MHz | 1100 mm | Low VHF |
| 138 - 160 MHz | 1040 mm | Amateur + Commercial Mix |
| 142 - 170 MHz | 990 mm | ★ Most Popular (Ham + RR Roads) |
| 148 - 174 MHz | 947 mm | High VHF / Commercial Only |
⚠️ Oversized Item Shipping Notice
Please Read: This item is considered oversized. Shipping to rural addresses or PO Boxes may not be possible. Use a civic (physical) address to ensure the most accurate shipping quote at checkout.
Technical Specifications
| Specification | Detail |
|---|---|
| Model | DistribuComm COMM848V |
| Frequency Range | 136 - 174 MHz (Tunable) |
| Bandwidth | 24 MHz Wide Band |
| Antenna Type | 1/2 Wave, No Ground Plane |
| Gain | 2.5 dBi |
| Max Power | 100 Watts |
| Mounting | Standard NMO |
| Materials | 17-7ph Stainless Steel Whip, Gold Plated Pin |
| Origin | Made in Taiwan |
