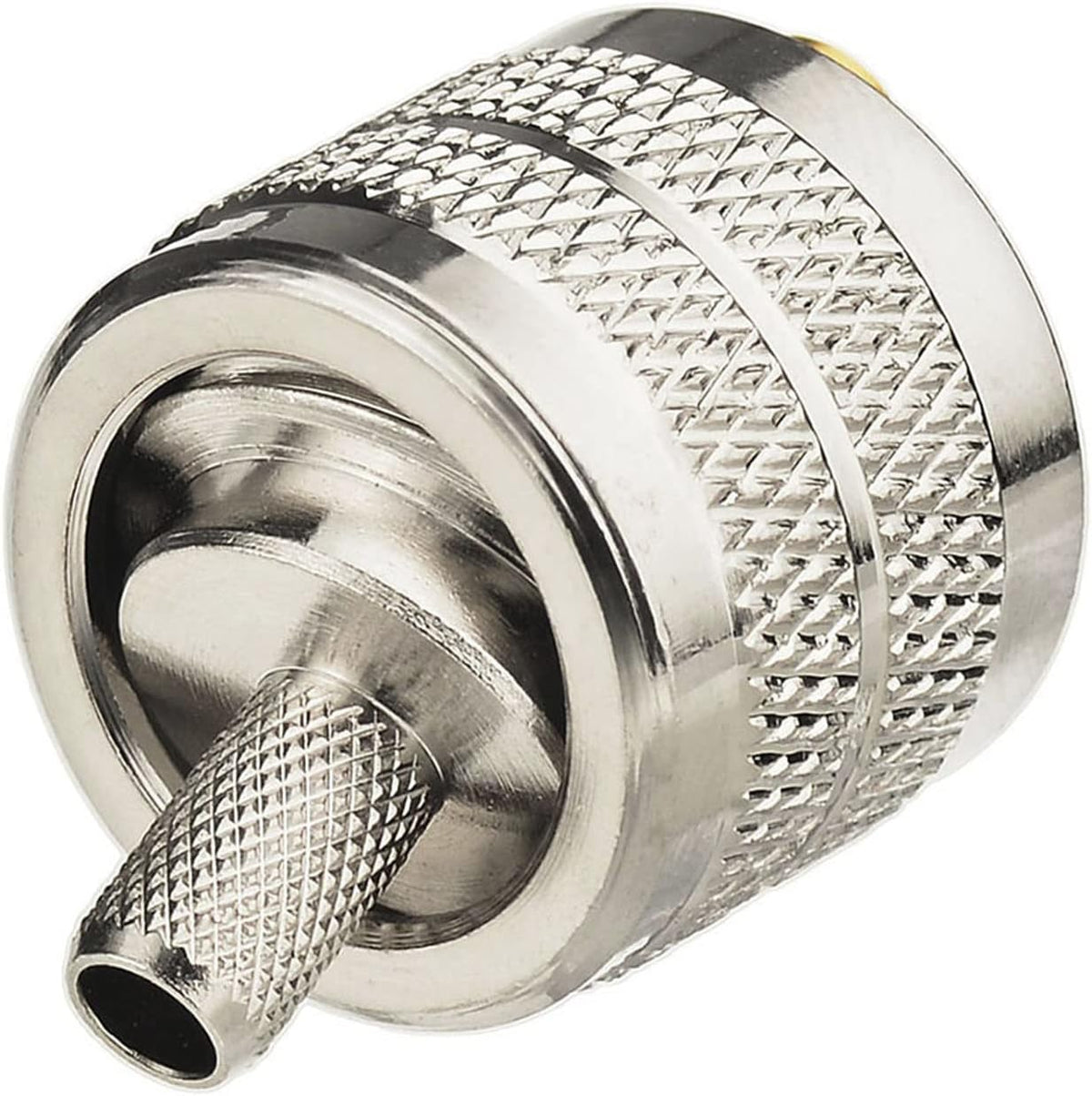

Fleetwood Digital PL-259 (UHF Male) Crimp Connector for RG-58 & LMR-195 Coax
Fleetwood Digital PL-259 (UHF Male) Crimp Connector for RG-58 & LMR-195 Coax
Couldn't load pickup availability
Why Buy?
Why Buy?
Not quite sure if this is right for you? Contact Us for expert advice!
Quick Specs
Quick Specs
Scoll down for more information about this item.
$5 Shipping or Local Pick-Up
This item qualifies for $5 Economy Shipping anywhere in Canada! Local to the Lower Mainland? You can also select Free Local Pick-Up in Surrey, BC at checkout.
Build, service, or shorten your mobile antenna feedlines with the professional-grade Fleetwood Digital PL-259 (UHF Male) Crimp Connector. Designed specifically for ~0.195" outer diameter coaxial cables including RG-58, RG-142, RG-400, and LMR-195, this connector delivers a solid mechanical crimp and dependable 50-Ohm RF performance across HF, VHF, and UHF frequencies.

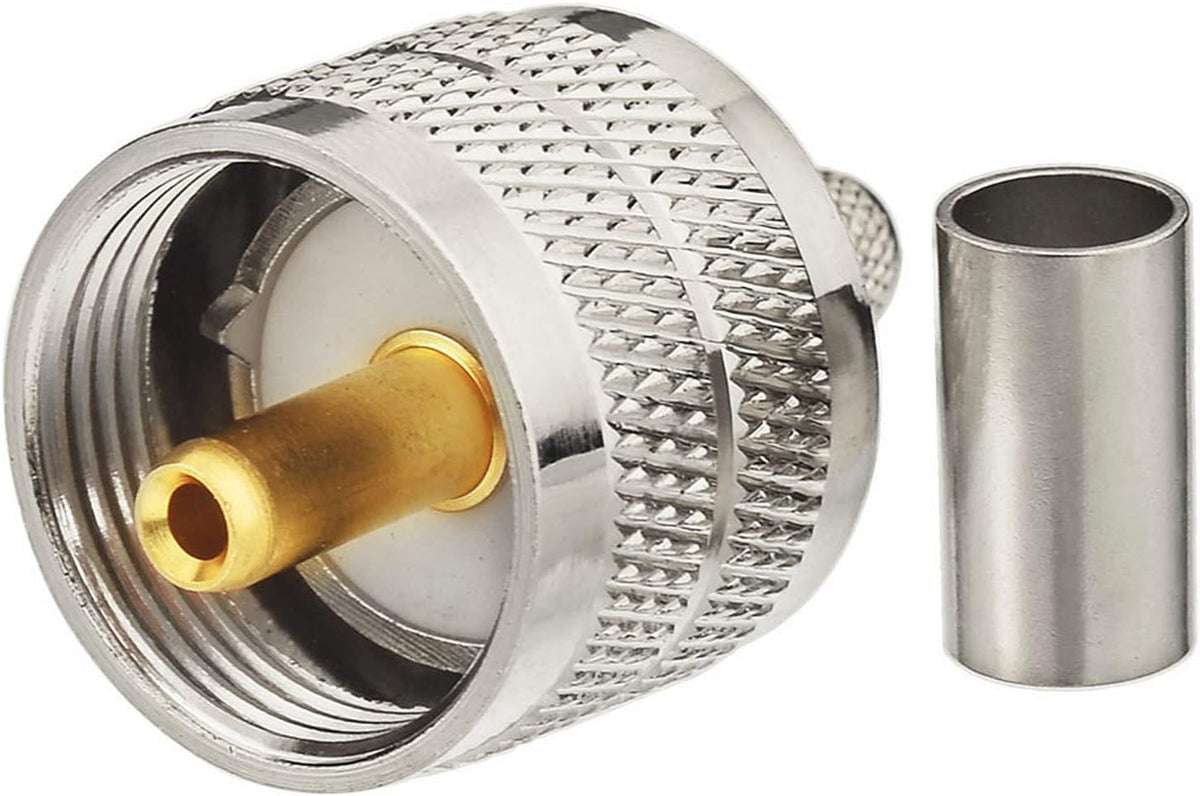

Constructed with a heavy-duty nickel-plated machined brass body, knurled coupling ring, and a gold-plated center contact pin, this connector ensures minimal Insertion Loss and high corrosion resistance. Sold individually so you can order the exact quantity needed for your bench repair or mobile install without buying bulk multi-packs.
🔧 Termination & Tooling Notice

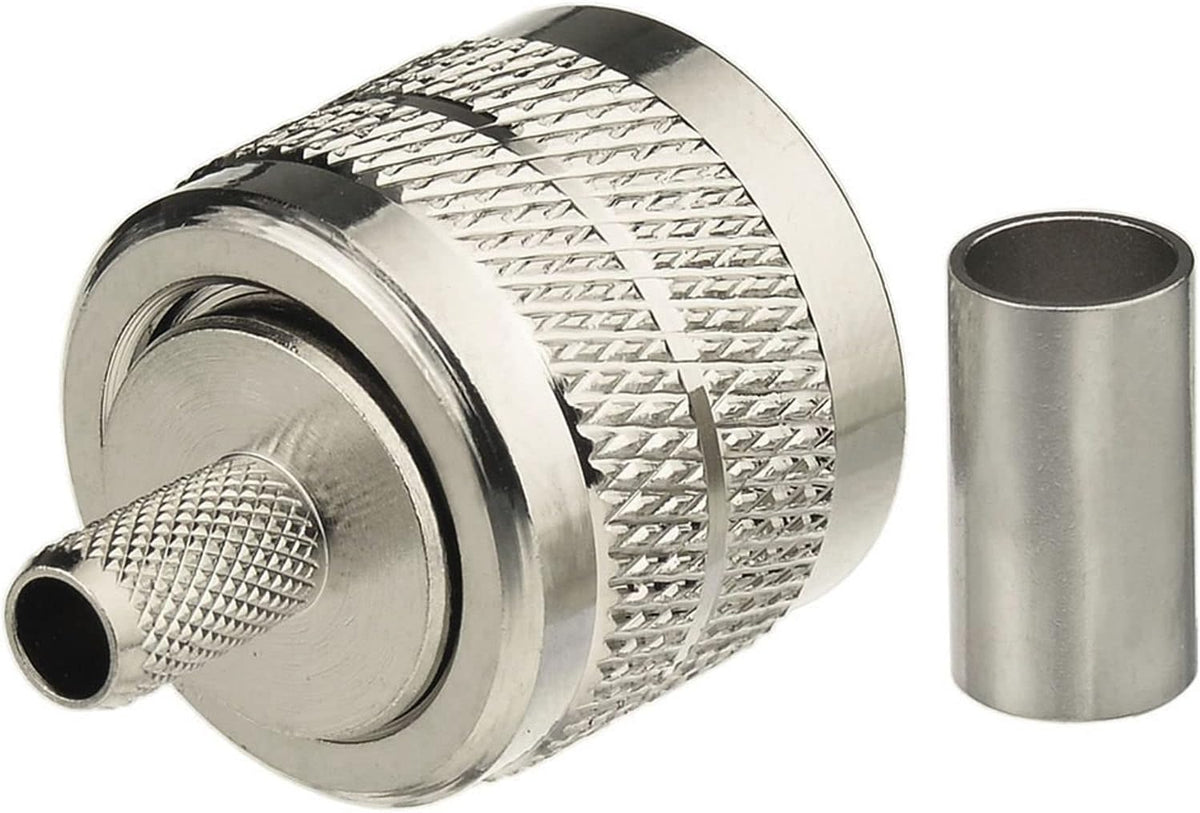

This connector utilizes a crimp-style outer ferrule and a dual-purpose center pin (can be crimped using a standard 0.068" hex die or soldered). For the outer ferrule, use a standard 0.213" (5.41mm) hex crimp die calibrated for RG-58 / LMR-195 cable.
Key Product Features
-
🔌
True 50-Ohm Matched Impedance: Engineered for clean RF signal transfer and low VSWR across 160m–70cm amateur radio, CB, and commercial LMR bands.
-
✨
Gold-Plated Center Contact Pin: Provides maximum conductivity, resists tarnishing over time, and accommodates either direct solder or precision crimp termination.
-
🛡️
Machined Nickel-Plated Brass Body: Built with clean, sharp 5/8"-24 threads and a heavy-duty knurled outer shell for effortless, non-slip hand tightening onto SO-239 sockets.
-
📡
Wide Coax Compatibility: Direct fit for 0.195" OD coaxial cables including RG-58, RG-58A/U, RG-142, RG-400, and low-loss LMR-195 lines.
-
📦
Sold as Singles: Order the exact number of connectors your build requires without paying for excess hardware you don't need.
Technical Specifications
| Specification | Detail |
|---|---|
| Electrical & RF Standards | |
| Connector Type | PL-259 (UHF Male Plug) |
| Nominal Impedance | 50 Ohms |
| Frequency Range | DC – 500 MHz (HF / VHF / UHF / CB) |
| Dielectric Material | High-Temperature Delrin / PTFE Insulator |
| Mechanical & Physical Parameters | |
| Brand | Fleetwood Digital |
| Body Material | Machined Solid Brass (Nickel-Plated) |
| Center Pin Material | Brass (Gold-Plated Contact) |
| Compatible Cable Types | RG-58, RG-58A/U, RG-142, RG-400, LMR-195 |
| Ferrule Crimp Hex Size | 0.213" (5.41 mm) |
| Center Pin Attachment | Crimp (0.068" hex) or Solder |
| Package Quantity | 1 Connector (Sold Individually as Singles) |
