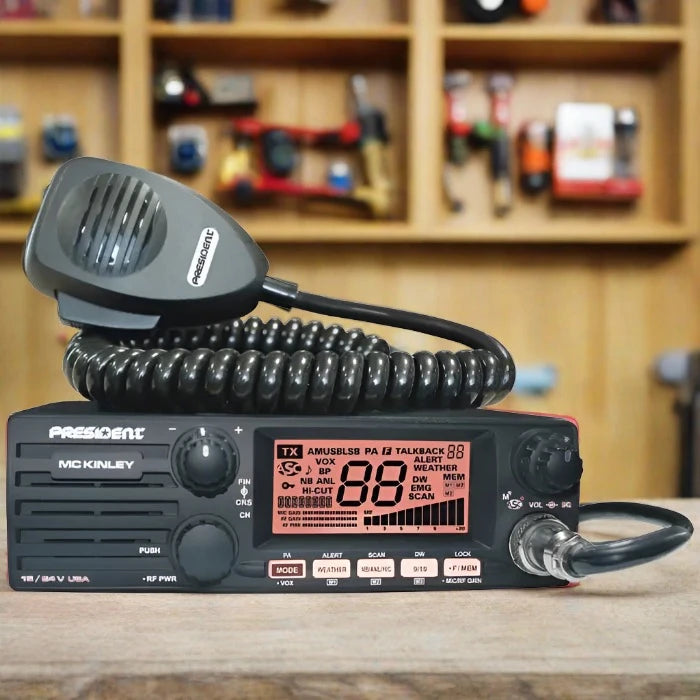

President McKinley USA AM/SSB CB Radio

President McKinley USA AM/SSB CB Radio

President

  • $259.99 CAD


Shopify secure badge Fleetwood Digital Reviews - SiteJabber Ask a Question





  • 40 channels AM / SSB
  • 12 / 24 V
  • Channel rotary switch
  • Volume adjustment and ON/OFF
  • Manual squelch and ASC
  • Multi-functions LCD display
  • S-meter
  • ANL filter , NB and HI-CUT
  • Channels and memories scan
  • 3 Memories
  • F function key
  • Beep Function
  • Dual watch
  • Preset 9/19
  • Talkback
  • Tone
  • Weather channel with Alert
  • Front microphone plug
  • External loudspeaker jack
  • Front loudspeaker
Number of channels : 40 Cx (100% FCC)
Number of weather channels : 7 Cx
Weather alert :
Modulation modes : AM / LSB / USB
Frequency ranges : from 26.965 MHz to 27.405 MHz
Weather channels : from 162.400 MHz to 162.550 MHz
Antenna impedance : 50 ohms
Power supply : 13.8 V / 27.6 V
Size (W x D x H) : 6.69 x 5.91 x 2.05 inches / 170 x 150 x 52 mm
DIN Size :
Weight : 2.20 lbs / 1 kg
Accessories supplied : Ultra light electret microphone with support, mounting cradle, screws



Frequency allowance : +/- 200 Hz
Carrier power : 4 W AM / 12 W SSB (PEP)
Transmission interference : inferior to -60 dBc
Audio response : 300 Hz to 3 KHz
Emitted power in the adj. channel : inferior to 20 μW
Microphone sensitivity : 3 mV
Drain : 2 A (with modulation)
Modulated signal distortion : 1.8 %



Maxi. sensitivity at 10 dB (S+N)/N : 0.6 μV - 111 dBm
Frequency response : 300 Hz to 3 kHz
Adjacent channel selectivity : > 60 dB
Maximum audio power : 2 W
Squelch sensitivity : minimum 0.2 µV - 120 dBm, maximum 1 mV - 47 dBm
Frequency image rejection rate : 60 dB
Intermediate frequency rej. rate : 70 dB
Drain : 300 mA nominal / 1000 mA maximum



2+3 years warranty      ASC      RoHS - Lead Free
