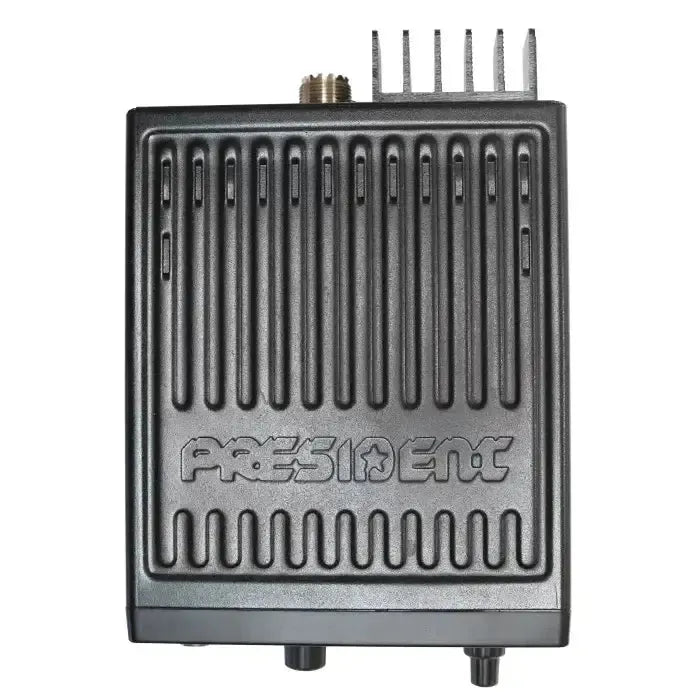

President Ronald 10M Mobile AM / FM Amateur Ham Radio
TXUS500Proceeds of the purchase of this President Ronald 10M Mobile AM / FM Amateur Ham Radio will go towards feeding a hungry ham and his family.
Rotary switch channel selector
- Volume adjustment and ON/OFF
- RF Power
- Manual squelch and ASC
- Multi-functions LCD display
- Frequencies display
- S-meter
- Public Address
- ANL filter, NB and HI-CUT
- RF Gain / Mike gain
- Scan
- Talkback
- F function key
- Beep Function
- Roger Beep
- Mode switch AM/FM
- Dual watch
- Span
- Mic type electret / dynamic
- Key locking
- SWR (Power Reading /SWR)
- Preset emergency (EMG 1/2)
- TOT (Time Out Timer) adjustable
- Front microphone plug
- External loudspeaker jack
Back light color:
| Supply | : | 13.8 V |
| AM | : | Y |
| FM | : | Y |
| Channel selector | : | rotary |
| VFO mode | : | Y |
| Volume | : | Volume adjustment and ON/OFF |
| RF Power | : | Y |
| Squelch | : | Manual squelch |
| ASC | : | Y |
| Display | : | LCD multifunction |
| Frequencies display | : | Y |
| S-meter | : | Digital |
| Public address | : | Y |
| Talkback | : | Y |
| Filter ANL | : | Y |
| Filter NB | : | Y |
| Filter HI-CUT | : | Y |
| RF-Gain | : | Y |
| Mike-Gain | : | Y |
| Scan | : | Y |
| F / Menu function key | : | Y |
| Beep Function | : | Y |
| Roger beep | : | Y |
| Dual watch | : | Y |
| SWR (Power Reading /SWR) | : | Y |
| Preset channel | : | EMG 1/2 |
| microphone plug | : | front (6 pins) |
| External loudspeaker jack | : | Y |
| Size (W x D x H) | : | 4.92 (W) x 6.89 (D) x 1.77 (H) inches / 125 (W) x 175 (D) x 45 (H) cm |
| Weight | : | 1.98 lbs / 0.9 kg |
General
| Modulation modes | : | AM / FM |
| Frequency ranges | : | continuous scanning of 28.000 Mhz to 29.700 Mhz |
| Antenna impedance | : | 50 ohms |
| Power supply | : | 13.8 V |
| Size (W x D x H) | : | 4.92 (W) x 6.89 (D) x 1.77 (H) inches / 125 (W) x 175 (D) x 45 (H) cm |
| Weight | : | 1.98 lbs / 0.9 kg |
| Accessories supplied | : | power cord with fuse, 1 mounting bracket with fixing screws, Ultra light electret microphone with support |
Transmission
| Frequency allowance | : | +/- 300 Hz |
| Carrier power | : | 13 W AM (50 W PEP)/ 35 W FM |
| Transmission interference | : | inferior to -50 dBm |
| Audio response | : | 300 Hz to 3 KHz in AM/FM |
| Emitted power in the adj. channel | : | inferior to 20 µW |
| Microphone sensitivity | : | 3.0 mV |
| Drain | : | 7 A max. (with modulation) |
| Modulated signal distortion | : | 2 % |
Reception
| Maxi. sensitivity at 20 dB sinad | : | 0,7 μV -110 dBm (AM) / 0,35 μV -116 dBm (FM) |
| Frequency response | : | 300 Hz to 3 kHz in AM/FM |
| Adjacent channel selectivity | : | 60 dB |
| Maximum audio power | : | 3 W |
| Squelch sensitivity | : | minimum 0.2 µV - 120 dBm, maximum 1 mV - 47 dBm |
| Frequency image rejection rate | : | 60 dB |
| Intermediate frequency rej. rate | : | 70 dB |
| Drain | : | 500 mA maximum |
