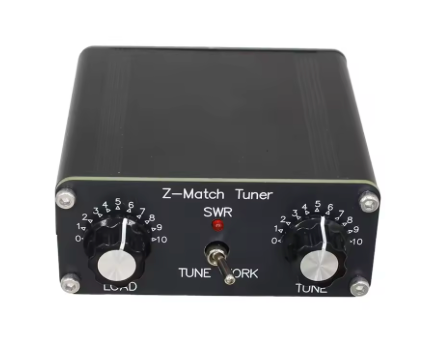

The QRP Z-Match Portable Manual Antenna Tuner is an ultra-compact, passive matching unit built into a rugged aluminum alloy chassis. Perfect for pairing with delicate QRP transceivers like the uSDX or ATS series, it utilizes an internal toroidal transformer and polyvaricon variable capacitors to match a massive range of unbalanced and balanced antennas without requiring any batteries or external power. It is fully supported by a 90-Day Canadian Warranty.
⚠️ Critical Hardware & Power Warnings
Strict 10W Maximum: The internal polyvaricon capacitors are strictly rated for 5W nominal continuous and 10W maximum intermittent power. Transmitting high power (e.g., from a 100W radio) will cause internal arcing and permanently destroy the capacitors and resistor bank.
TUNE vs. WORK Mode: The front-panel TUNE switch routes your transmitter's power into an internal dummy-load resistor bank for safe tuning. You must switch to WORK before beginning your actual QSO. Transmitting for extended periods in TUNE mode will severely overheat the internal resistors and kill your radiated signal.
Performance & Engineering Highlights
-

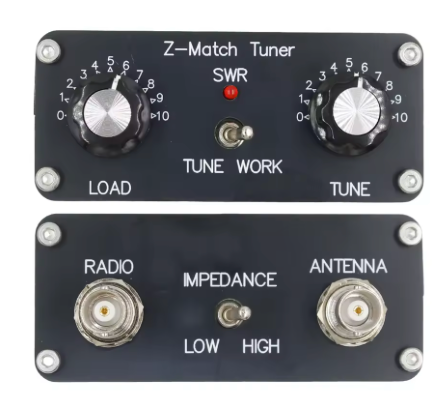

🔴Visual SWR Tuning Bridge Features a built-in resistive bridge circuit with a front-panel red LED. Simply transmit a low-power carrier and sweep the LOAD and TUNE dials until the LED goes completely dark, indicating a perfect 50-ohm match.
-

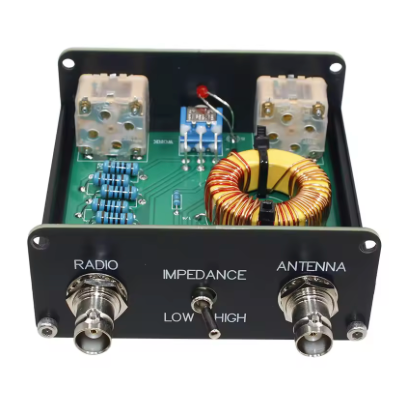

🎛️Wide Impedance Matching The rear-panel LOW/HIGH toggle switch taps different sections of the internal toroidal transformer, allowing you to match everything from low-impedance dipoles to high-impedance end-fed half wave (EFHW) wires (25 to 2500 Ohms).
-
🔋100% Passive Operation Requires absolutely zero batteries, charging cables, or external power supplies, making it the ultimate fail-safe tuner for deep off-grid and SOTA/POTA deployments.
-
🛡️Canadian Warranty Protection Unlike units shipped directly from overseas marketplaces, your tuner is inspected and backed locally by Fleetwood Digital's 90-Day Canadian Warranty.
Technical Specifications
| Product Model | QRP Z-Match Portable Manual Tuner |
|---|---|
| Frequency Range | 7 MHz to 28 MHz (Hardware tested down to 3 MHz) |
| Maximum RF Power | 5W Nominal Continuous / 10W Max Intermittent |
| Impedance Range | 25 Ohms to 2500 Ohms |
| Tuning Mechanism | Z-Match LC (Toroid & Dual Polyvaricon Dials) |
| SWR Measurement | Resistive Bridge with Red LED Indicator |
| RF Connectors | Dual BNC Female (Radio In / Antenna Out) |
| Dimensions & Weight | 88 x 83 x 39 mm / 261 grams |
| Warranty Protection | 90-Day Canadian Warranty |
Description
The QRP Z-Match Portable Manual Antenna Tuner is an ultra-compact, passive matching unit built into a rugged aluminum alloy chassis. Perfect for pairing with delicate QRP transceivers like the uSDX or ATS series, it utilizes an internal toroidal transformer and polyvaricon variable capacitors to match a massive range of unbalanced and balanced antennas without requiring any batteries or external power. It is fully supported by a 90-Day Canadian Warranty.
⚠️ Critical Hardware & Power Warnings
Strict 10W Maximum: The internal polyvaricon capacitors are strictly rated for 5W nominal continuous and 10W maximum intermittent power. Transmitting high power (e.g., from a 100W radio) will cause internal arcing and permanently destroy the capacitors and resistor bank.
TUNE vs. WORK Mode: The front-panel TUNE switch routes your transmitter's power into an internal dummy-load resistor bank for safe tuning. You must switch to WORK before beginning your actual QSO. Transmitting for extended periods in TUNE mode will severely overheat the internal resistors and kill your radiated signal.
Performance & Engineering Highlights
-
🔴Visual SWR Tuning Bridge Features a built-in resistive bridge circuit with a front-panel red LED. Simply transmit a low-power carrier and sweep the LOAD and TUNE dials until the LED goes completely dark, indicating a perfect 50-ohm match.
-
🎛️Wide Impedance Matching The rear-panel LOW/HIGH toggle switch taps different sections of the internal toroidal transformer, allowing you to match everything from low-impedance dipoles to high-impedance end-fed half wave (EFHW) wires (25 to 2500 Ohms).
-
🔋100% Passive Operation Requires absolutely zero batteries, charging cables, or external power supplies, making it the ultimate fail-safe tuner for deep off-grid and SOTA/POTA deployments.
-
🛡️Canadian Warranty Protection Unlike units shipped directly from overseas marketplaces, your tuner is inspected and backed locally by Fleetwood Digital's 90-Day Canadian Warranty.
Technical Specifications
| Product Model | QRP Z-Match Portable Manual Tuner |
|---|---|
| Frequency Range | 7 MHz to 28 MHz (Hardware tested down to 3 MHz) |
| Maximum RF Power | 5W Nominal Continuous / 10W Max Intermittent |
| Impedance Range | 25 Ohms to 2500 Ohms |
| Tuning Mechanism | Z-Match LC (Toroid & Dual Polyvaricon Dials) |
| SWR Measurement | Resistive Bridge with Red LED Indicator |
| RF Connectors | Dual BNC Female (Radio In / Antenna Out) |
| Dimensions & Weight | 88 x 83 x 39 mm / 261 grams |
| Warranty Protection | 90-Day Canadian Warranty |
