Rokland LoneWolf 12dBi Outdoor Antenna (915 MHz)
Rokland LoneWolf 12dBi Outdoor Antenna (915 MHz)
HURRY! Selling out fast! Only 3 left in stock!
Couldn't load pickup availability
Why Buy?
Why Buy?
Not quite sure if this is right for you? Contact Us for expert advice!
Quick Specs
Quick Specs
Scoll down for more information about this item.
- Antenna Connector: N Female
- Frequency Range: 915 MHz
- Gain: 12dBi
- Size: 1600mm

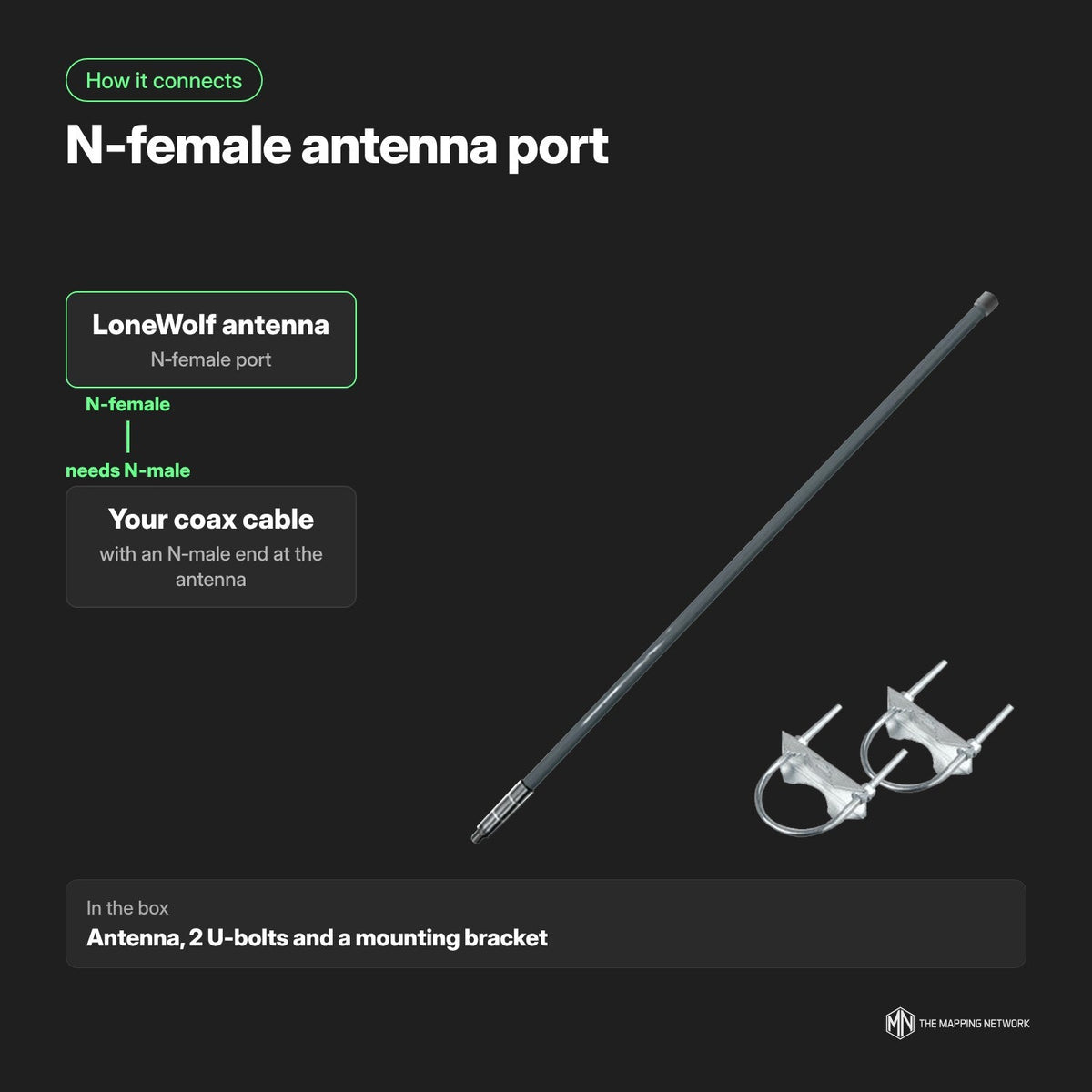

This antenna is compatible with any Helium Hotspot Miner. In most situation you will need RP-SMA to N Male cable to fit.
12 dBi gain N-Female 915 MHz band antenna for LoRa and HaLow long-distance low data transfer industrial application (this is NOT a 2.4 or 5 GHz WiFi antenna).
- 9 degree vertical beamwidth, 360 degrees horizontal, N-female connector. VSWR ≤ 1.5 with 12 dBi gain, 50-ohm impedance, max input power 50 W, made of Fiberglass, Copper, and Aluminum Alloy

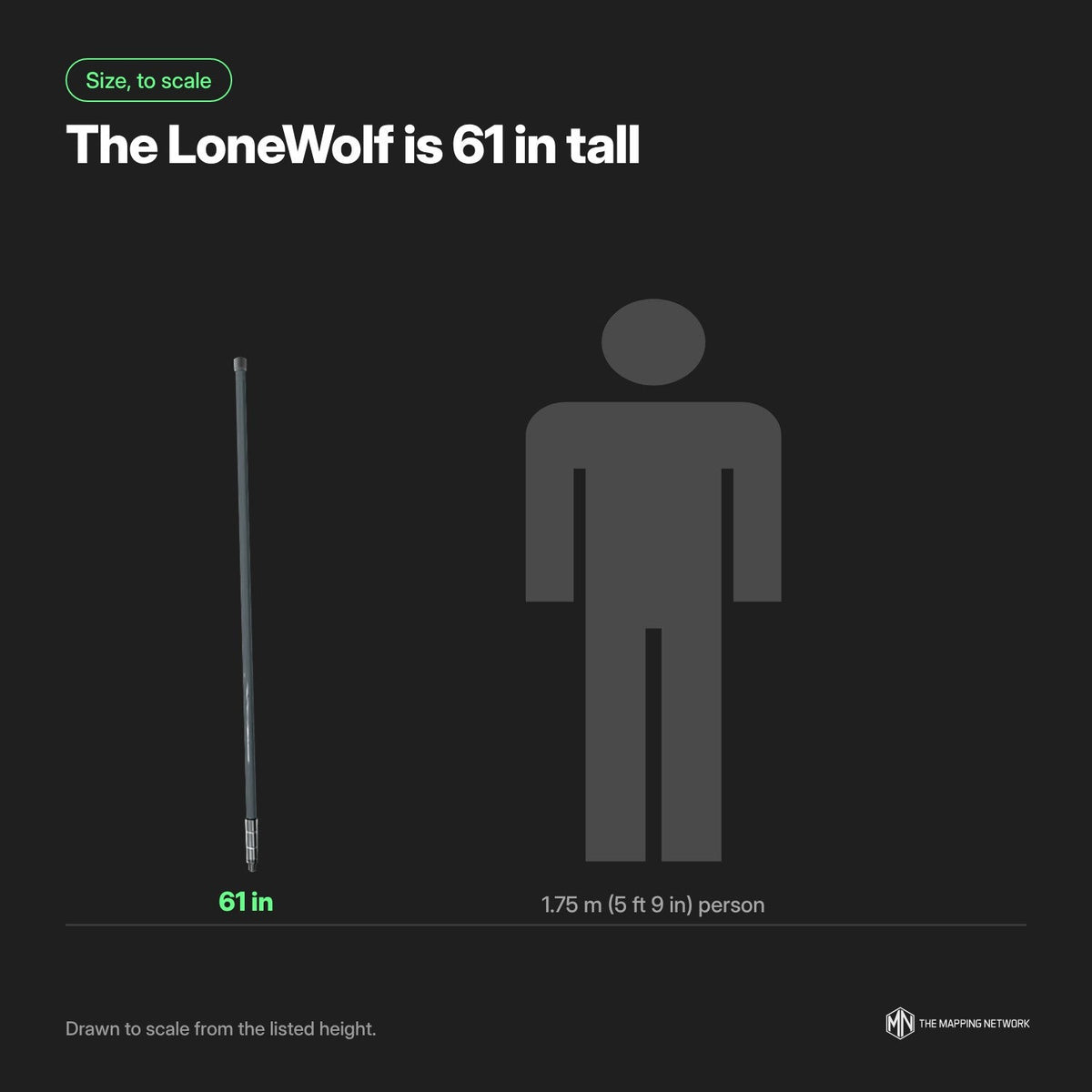

- Large profile: 61 inches in height- Learn more about antenna size and gain correlation

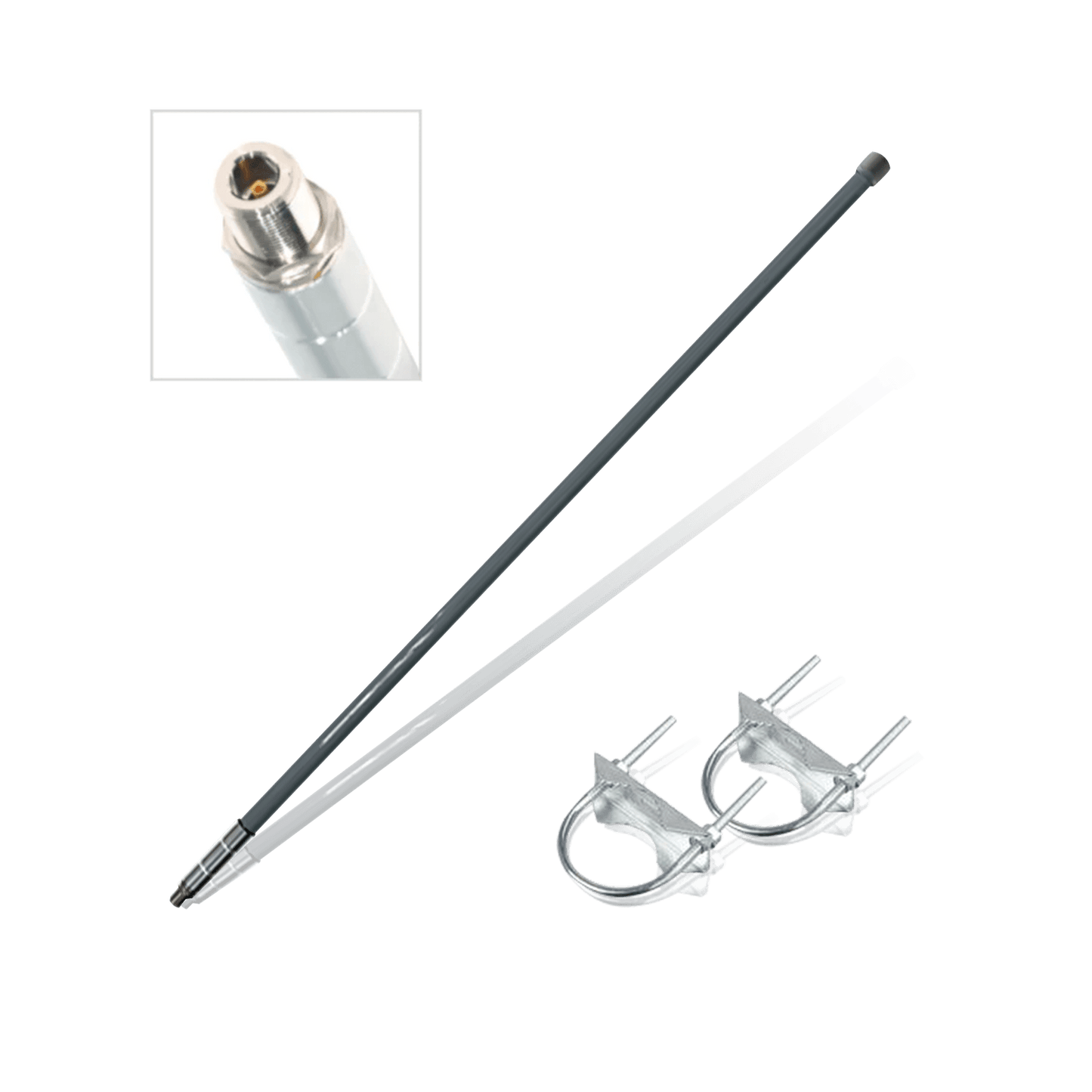

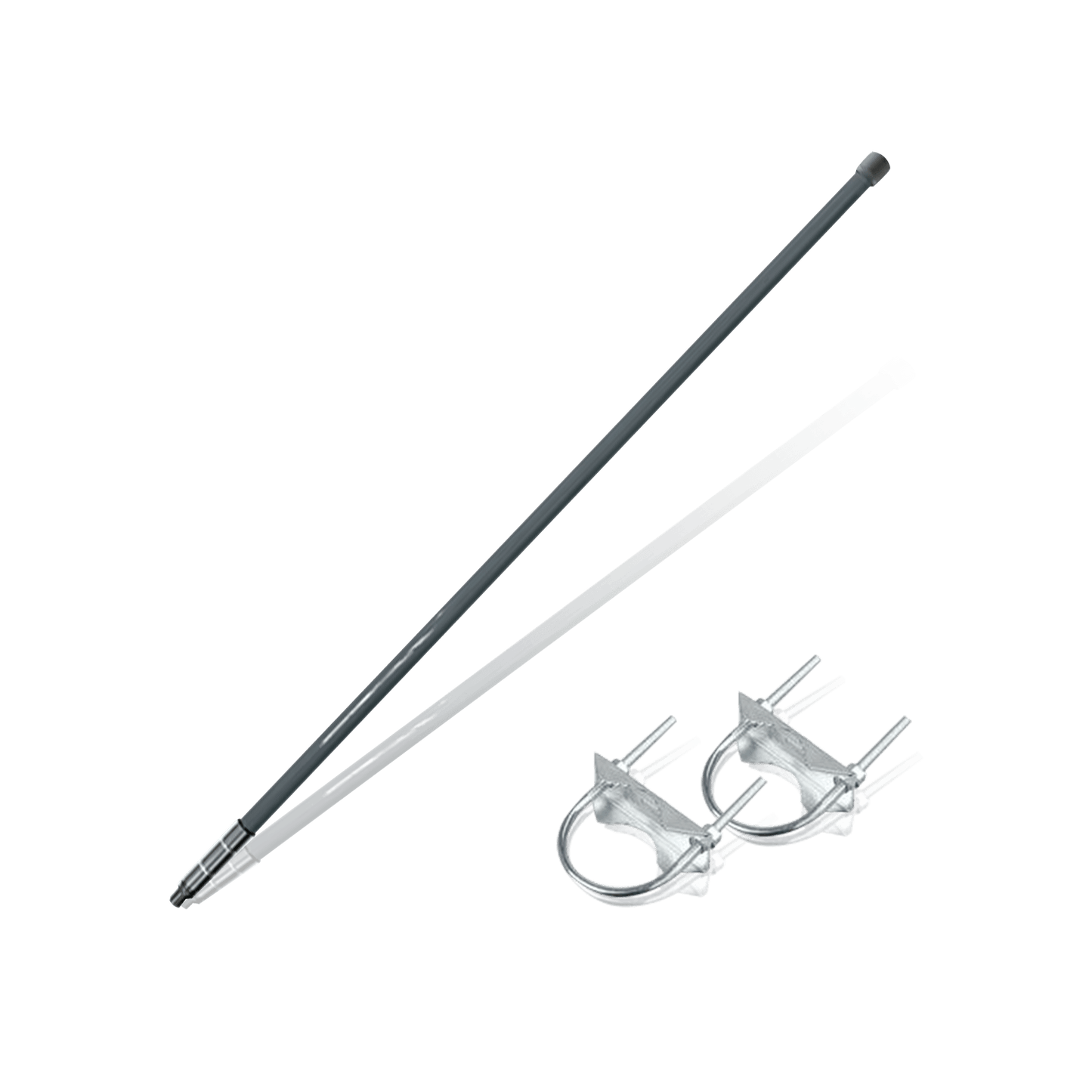

- Includes 2 U-bolts and mounting bracket as pictured, plus antenna.
- This is NOT a WiFi antenna or 4G cellular antenna, it is ONLY for 915 MHz sub 1 GHz HaLow or LoRa application, or other applications in this band.
- Questions about miners, antennas and cables? Visit this page to learn more.

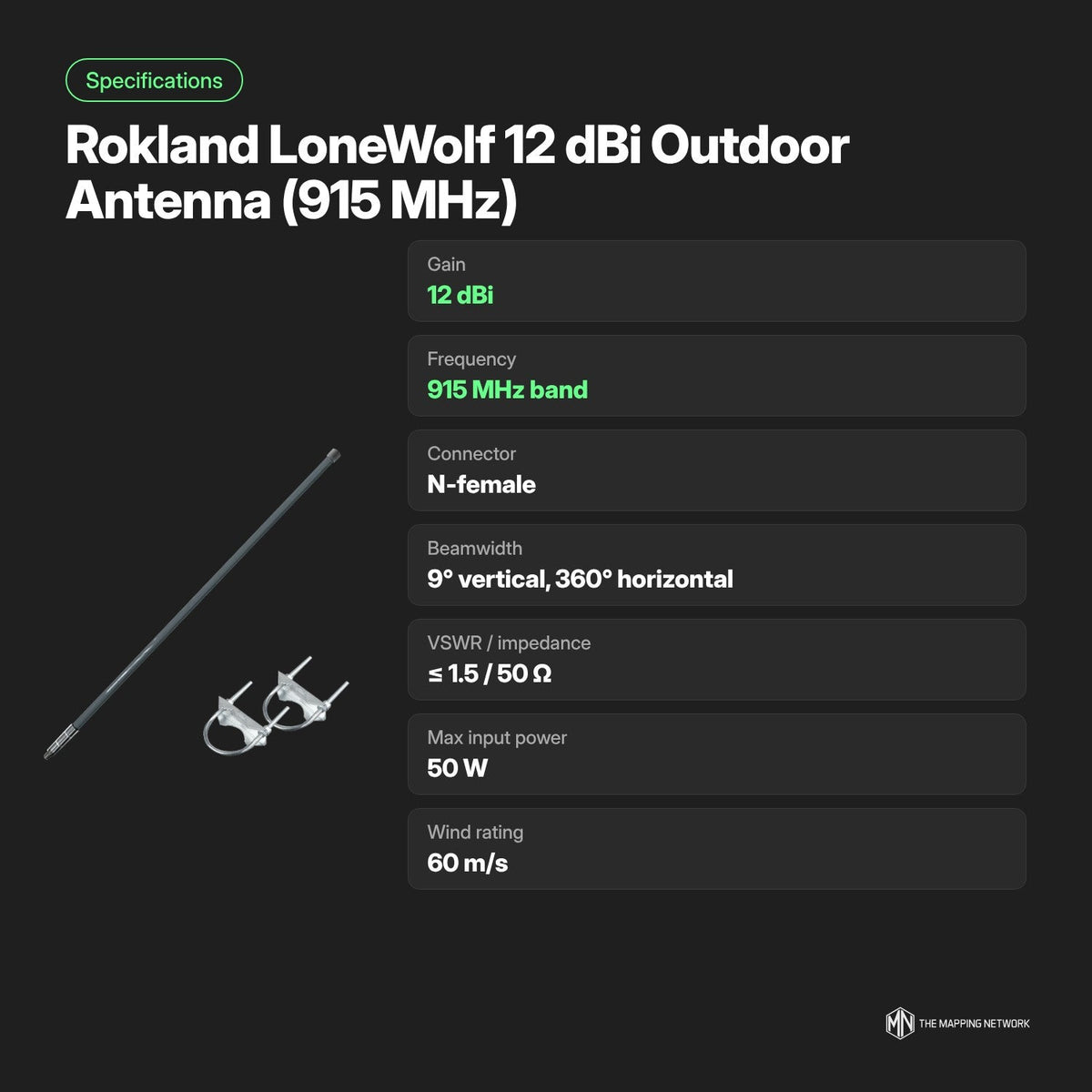

Specifications:
- 9 degree vertical beamwidth
- 360 degree horizontal beamwidth
- N-female connector
- VSWR: ≤ 1.5
- 12 dBi gain
- 50-ohm impedance
- Max input power: 50 W
- Wind Rating: 60 m/sec
- Operating Temperature: -58F to 176F
- Height: 61 inches (learn more about antenna height and gain correlation)
- Made of Fiberglass, Copper, and Aluminum Alloy
Description
- Antenna Connector: N Female
- Frequency Range: 915 MHz
- Gain: 12dBi
- Size: 1600mm
This antenna is compatible with any Helium Hotspot Miner. In most situation you will need RP-SMA to N Male cable to fit.
12 dBi gain N-Female 915 MHz band antenna for LoRa and HaLow long-distance low data transfer industrial application (this is NOT a 2.4 or 5 GHz WiFi antenna).
- 9 degree vertical beamwidth, 360 degrees horizontal, N-female connector. VSWR ≤ 1.5 with 12 dBi gain, 50-ohm impedance, max input power 50 W, made of Fiberglass, Copper, and Aluminum Alloy
- Large profile: 61 inches in height- Learn more about antenna size and gain correlation
- Includes 2 U-bolts and mounting bracket as pictured, plus antenna.
- This is NOT a WiFi antenna or 4G cellular antenna, it is ONLY for 915 MHz sub 1 GHz HaLow or LoRa application, or other applications in this band.
- Questions about miners, antennas and cables? Visit this page to learn more.
Specifications:
- 9 degree vertical beamwidth
- 360 degree horizontal beamwidth
- N-female connector
- VSWR: ≤ 1.5
- 12 dBi gain
- 50-ohm impedance
- Max input power: 50 W
- Wind Rating: 60 m/sec
- Operating Temperature: -58F to 176F
- Height: 61 inches (learn more about antenna height and gain correlation)
- Made of Fiberglass, Copper, and Aluminum Alloy
