Workman MOD 104 VHF/UHF SWR & Watt Meter Kit (Includes Jumper)
Workman MOD 104 VHF/UHF SWR & Watt Meter Kit (Includes Jumper)
HURRY! Selling out fast! Only 1 left in stock!
Couldn't load pickup availability
Why Buy?
Why Buy?
Not quite sure if this is right for you? Contact Us for expert advice!
Quick Specs
Quick Specs
Scoll down for more information about this item.

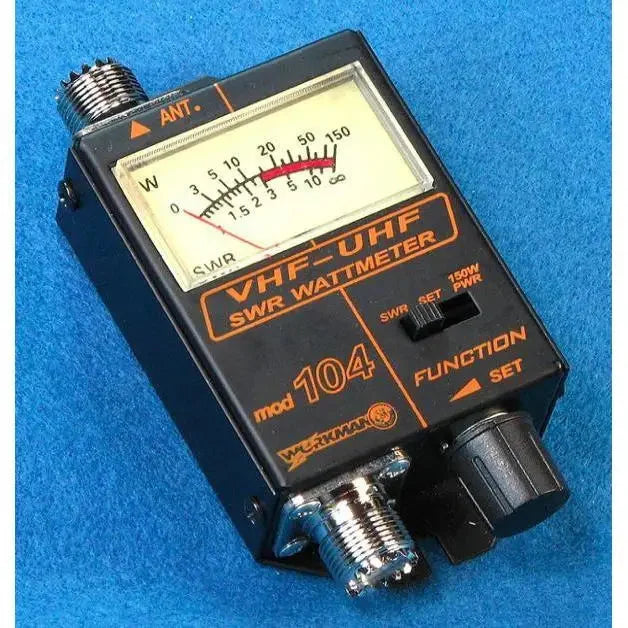

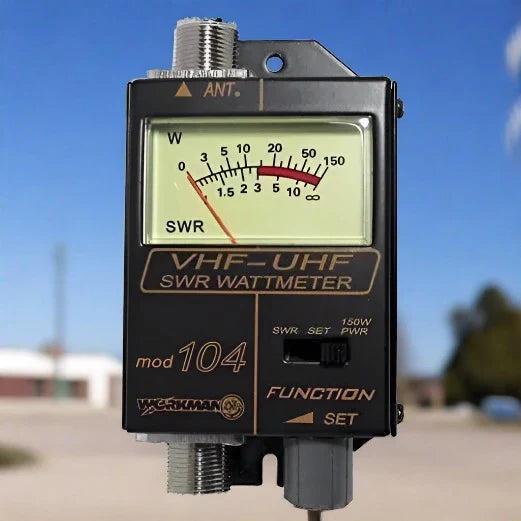

Don't guess with your antenna setup. The Workman MOD 104 is the essential tool for any VHF/UHF radio operator, and this is a kit that includes the all-important 3-foot jumper cable. This compact meter accurately measures SWR (Standing Wave Ratio) and RF power, ensuring your 2m/70cm mobile or base antenna is perfectly tuned for maximum performance.
This is the perfect entry-level meter for the price-conscious consumer who wants everything they need in one box.
💡 Why You Need a VHF/UHF SWR Meter
Standard CB/HF SWR meters are designed for 3-30 MHz and are not accurate at the high frequencies used by ham, GMRS, and commercial radios. This meter is specifically built to provide reliable readings from 120-500 MHz, making it the correct tool for tuning your 2m, 1.25m, and 70cm antennas.
Key Features
-
✅
Complete "Full Kit" Solution: Includes the 3-foot coaxial jumper cable so you can use it right out of the box. No extra parts needed!
-
📡
Wide VHF/UHF Range: Accurately measures frequencies from 120 MHz to 500 MHz, covering 2m, 1.25m, 70cm, GMRS, MURS, and more.
-
🎯
Measures SWR & RF Power: Gives you the two most important measurements to protect your radio and ensure your antenna is performing perfectly.
-
🔌

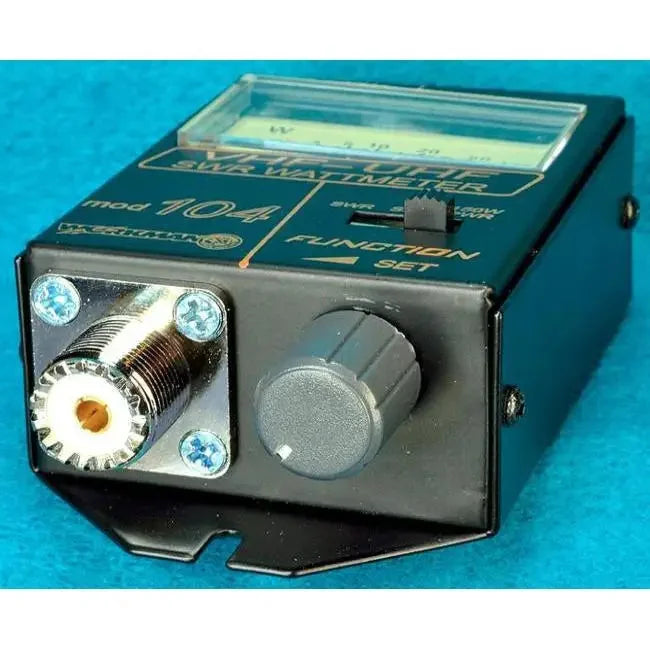

Standard SO-239 Connectors: Features standard SO-239 (UHF-Female) input/output jacks for use with common PL259 coax cables.
What's In The Box
-
📦

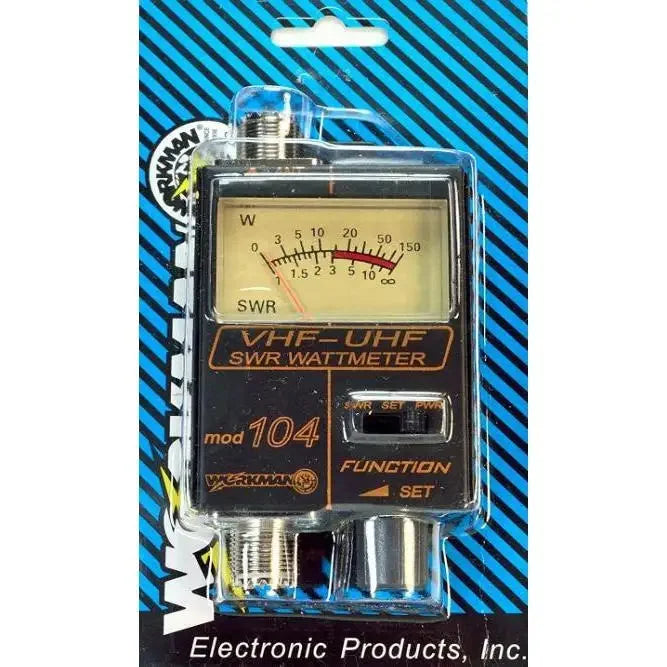

1x Workman MOD 104 SWR/Watt Meter
-
🔌

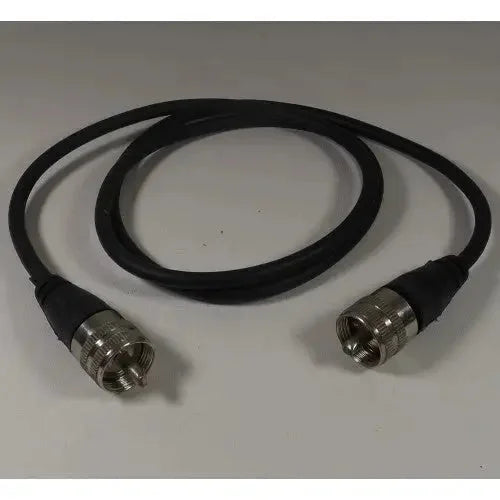

1x 3-Foot Coaxial Jumper Cable (PL259)
Technical Specifications
| Model | Workman MOD 104 |
|---|---|
| Measures | SWR / RF Power (Watts) |
| Frequency Range | 120 - 500 MHz |
| Bands Covered | 2m, 1.25m, 70cm (Ham), GMRS, MURS, Commercial VHF/UHF |
| Power Rating (SWR) | 150 Watts Max |
| Power Rating (RF Watt) | 50 Watts Max |
| Impedance | 50Ω |
| Connectors | SO-239 (UHF-Female) x2 (TX/ANT) |
Description
Don't guess with your antenna setup. The Workman MOD 104 is the essential tool for any VHF/UHF radio operator, and this is a kit that includes the all-important 3-foot jumper cable. This compact meter accurately measures SWR (Standing Wave Ratio) and RF power, ensuring your 2m/70cm mobile or base antenna is perfectly tuned for maximum performance.
This is the perfect entry-level meter for the price-conscious consumer who wants everything they need in one box.
💡 Why You Need a VHF/UHF SWR Meter
Standard CB/HF SWR meters are designed for 3-30 MHz and are not accurate at the high frequencies used by ham, GMRS, and commercial radios. This meter is specifically built to provide reliable readings from 120-500 MHz, making it the correct tool for tuning your 2m, 1.25m, and 70cm antennas.
Key Features
-
✅
Complete "Full Kit" Solution: Includes the 3-foot coaxial jumper cable so you can use it right out of the box. No extra parts needed!
-
📡
Wide VHF/UHF Range: Accurately measures frequencies from 120 MHz to 500 MHz, covering 2m, 1.25m, 70cm, GMRS, MURS, and more.
-
🎯
Measures SWR & RF Power: Gives you the two most important measurements to protect your radio and ensure your antenna is performing perfectly.
-
🔌
Standard SO-239 Connectors: Features standard SO-239 (UHF-Female) input/output jacks for use with common PL259 coax cables.
What's In The Box
-
📦
1x Workman MOD 104 SWR/Watt Meter
-
🔌
1x 3-Foot Coaxial Jumper Cable (PL259)
Technical Specifications
| Model | Workman MOD 104 |
|---|---|
| Measures | SWR / RF Power (Watts) |
| Frequency Range | 120 - 500 MHz |
| Bands Covered | 2m, 1.25m, 70cm (Ham), GMRS, MURS, Commercial VHF/UHF |
| Power Rating (SWR) | 150 Watts Max |
| Power Rating (RF Watt) | 50 Watts Max |
| Impedance | 50Ω |
| Connectors | SO-239 (UHF-Female) x2 (TX/ANT) |
Purchase With Confidence
Questions & Answers
Have a Question?
-
What is the minimum amount of power required to measure SWR ?
With this unit, based on our own personal expierience, about 5W.
