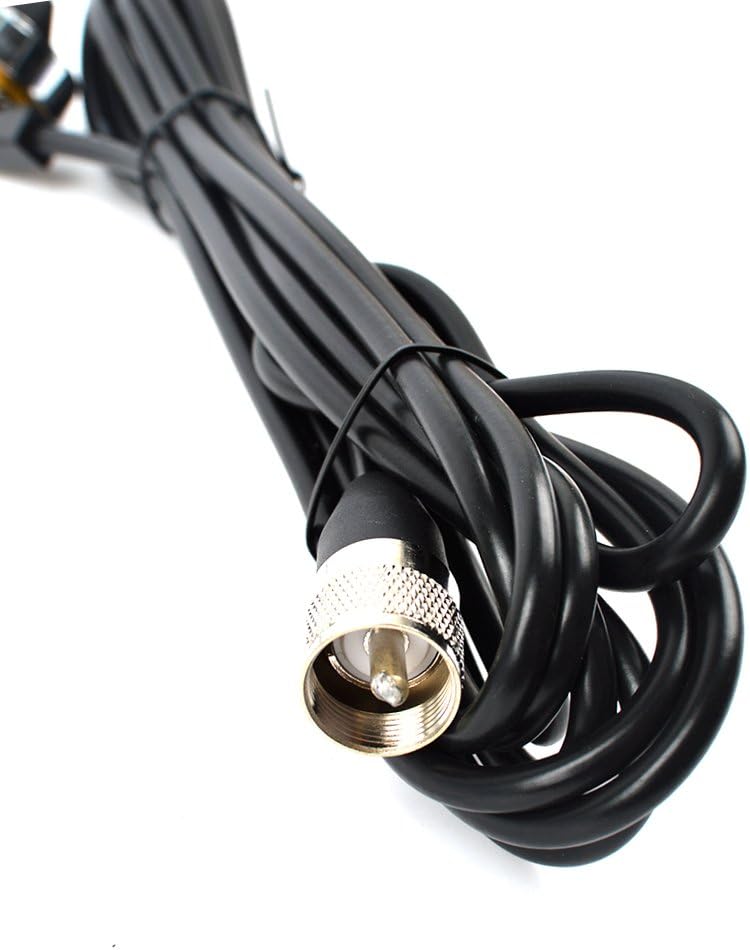

3/8" to 3/4" Hole NMO Cable Mount Assembly with 13ft RG-58 Coax & PL-259 Connector
3/8" to 3/4" Hole NMO Cable Mount Assembly with 13ft RG-58 Coax & PL-259 Connector
Verfügbarkeit für Abholungen konnte nicht geladen werden
Warum kaufen?
Warum kaufen?
Sie sind sich nicht ganz sicher, ob das das Richtige für Sie ist? Kontaktieren Sie uns für eine fachkundige Beratung!
Kurzübersicht
Kurzübersicht
} {
Scrollen Sie nach unten, um weitere Informationen zu diesem Artikel zu erhalten.
Connect your mobile NMO antenna directly to your VHF, UHF, GMRS, or CB radio transceiver with this heavy-duty Low-Profile NMO to PL-259 Cable Assembly. Designed for permanent drill-mount installations on vehicle roofs, trunk lids, or fender brackets, this assembly provides a weather-tight seal and reliable RF signal transfer.
Featuring a solid brass NMO base equipped with an aggressive serrated grounding washer, this mount bites directly into the vehicle's sheet metal chassis to establish a low-impedance ground plane. Pre-terminated with 13 feet (4 meters) of flexible RG-58 coax and a standard PL-259 (UHF Male) connector, this kit offers an easy plug-and-play connection for mobile radio transceivers.
🛠️ Hole Mount & Grounding Notice
This mount installs into pre-drilled vehicle holes ranging from 3/8" (9.5mm) to 3/4" (19mm). For proper operation and low SWR tuning, the integrated toothed grounding washer must make direct contact with bare chassis metal on the underside of the panel.
Key Product Features
-
🔌
Standard PL-259 Termination: Pre-installed UHF male connector with a knurled grip fits standard SO-239 antenna ports on ham, CB, and mobile radios.
-
🛠️
Universal 3/8" to 3/4" Hole Fitment: Versatile brass NMO mount installs cleanly through sheet metal holes from 3/8" up to standard 3/4" openings.
-
⚡
Aggressive Toothed Chassis Ground Ring: Integrated serrated lock ring pierces metal undersides for a solid, noise-free ground connection crucial for low SWR.
-
📡
13ft (4m) Premium RG-58 Coaxial Cable: Provides optimal length to route coax cleanly through roof pillars, floorboards, and dash consoles.
-
📻
Multi-Band Radio Compatibility: 50-Ohm matched impedance supports all VHF, UHF, GMRS, MURS, LMR, and 27 MHz CB mobile antenna systems.
Technical Specifications
| Specification | Detail |
|---|---|
| Cable & Connector Specifications | |
| Cable Type | RG-58 / U Coaxial Cable |
| Cable Length | 13 Feet (~4.0 Meters) |
| Radio Connector | PL-259 Male (UHF Male) |
| Antenna Base Mount | Brass NMO (New Motorola) Female Base |
| Impedance | 50 Ohms |
| Mounting & Installation Parameters | |
| Hole Size Compatibility | 3/8" to 3/4" (9.5mm to 19mm) Diameter Holes |
| Mount Style | Low-Profile Permanent Drill Hole Mount |
| Grounding Mechanism | Integrated Serrated/Toothed Brass Washer |
| Application | VHF, UHF, CB, GMRS, MURS & LMR Mobile Operations |
Description
Connect your mobile NMO antenna directly to your VHF, UHF, GMRS, or CB radio transceiver with this heavy-duty Low-Profile NMO to PL-259 Cable Assembly. Designed for permanent drill-mount installations on vehicle roofs, trunk lids, or fender brackets, this assembly provides a weather-tight seal and reliable RF signal transfer.
Featuring a solid brass NMO base equipped with an aggressive serrated grounding washer, this mount bites directly into the vehicle's sheet metal chassis to establish a low-impedance ground plane. Pre-terminated with 13 feet (4 meters) of flexible RG-58 coax and a standard PL-259 (UHF Male) connector, this kit offers an easy plug-and-play connection for mobile radio transceivers.
🛠️ Hole Mount & Grounding Notice
This mount installs into pre-drilled vehicle holes ranging from 3/8" (9.5mm) to 3/4" (19mm). For proper operation and low SWR tuning, the integrated toothed grounding washer must make direct contact with bare chassis metal on the underside of the panel.
Key Product Features
-
🔌
Standard PL-259 Termination: Pre-installed UHF male connector with a knurled grip fits standard SO-239 antenna ports on ham, CB, and mobile radios.
-
🛠️
Universal 3/8" to 3/4" Hole Fitment: Versatile brass NMO mount installs cleanly through sheet metal holes from 3/8" up to standard 3/4" openings.
-
⚡
Aggressive Toothed Chassis Ground Ring: Integrated serrated lock ring pierces metal undersides for a solid, noise-free ground connection crucial for low SWR.
-
📡
13ft (4m) Premium RG-58 Coaxial Cable: Provides optimal length to route coax cleanly through roof pillars, floorboards, and dash consoles.
-
📻
Multi-Band Radio Compatibility: 50-Ohm matched impedance supports all VHF, UHF, GMRS, MURS, LMR, and 27 MHz CB mobile antenna systems.
Technical Specifications
| Specification | Detail |
|---|---|
| Cable & Connector Specifications | |
| Cable Type | RG-58 / U Coaxial Cable |
| Cable Length | 13 Feet (~4.0 Meters) |
| Radio Connector | PL-259 Male (UHF Male) |
| Antenna Base Mount | Brass NMO (New Motorola) Female Base |
| Impedance | 50 Ohms |
| Mounting & Installation Parameters | |
| Hole Size Compatibility | 3/8" to 3/4" (9.5mm to 19mm) Diameter Holes |
| Mount Style | Low-Profile Permanent Drill Hole Mount |
| Grounding Mechanism | Integrated Serrated/Toothed Brass Washer |
| Application | VHF, UHF, CB, GMRS, MURS & LMR Mobile Operations |
