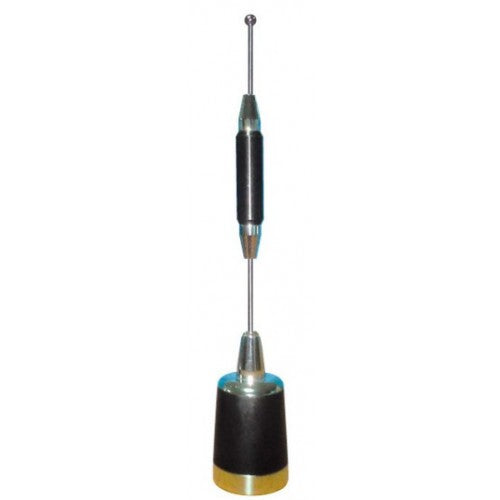

DistribuComm COMM45470 5dBd High-Gain UHF Antenna (450-470 MHz)
DistribuComm COMM45470 5dBd High-Gain UHF Antenna (450-470 MHz)
Verfügbarkeit für Abholungen konnte nicht geladen werden
Warum kaufen?
Warum kaufen?
Sie sind sich nicht ganz sicher, ob das das Richtige für Sie ist? Kontaktieren Sie uns für eine fachkundige Beratung!
Kurzübersicht
Kurzübersicht
} {
Scrollen Sie nach unten, um weitere Informationen zu diesem Artikel zu erhalten.
💰 Bundle & Save
Need a base for your new antenna? Save $15 instantly on your order when you purchase this antenna alongside any DistribuComm NMO Mount (Magnet, Trunk Lip, or Hole Mount). Discount applied automatically at checkout.
Maximize your range on GMRS and Commercial frequencies with the DistribuComm COMM45470. This high-performance mobile antenna features a center-loaded "phasing coil" design that effectively stacks two radiating elements, delivering a massive 5dBd gain (approx. 7.15 dBi).
Specifically designed for the 450 MHz to 470 MHz spectrum, this antenna is the ideal choice for GMRS (General Mobile Radio Service) users looking for "highway range" or Commercial Business Band fleets operating in flat terrain. The reliable NMO mount base ensures compatibility with the widest range of vehicle mounts on the market.
-
📶
High Gain (5dBd): The center-coil collinear design concentrates your signal at the horizon, providing a significant range boost over standard 1/4 wave antennas.
-
📻
Optimized for 450-470 MHz: Factory tuned for the Commercial and GMRS bands. (Note: This model is not designed for 70cm Amateur Radio use).
-
✂️
Tunable Whip: Includes a detailed cutting chart to tune the antenna to your exact operating frequency for the lowest possible SWR.
-
🔩
Heavy-Duty Build: Constructed with a 35-inch stainless steel whip and a gold-plated brass contact pin for long-lasting durability.
✂️ Sample Cutting Chart
Measure from the bottom of the center phasing coil to the bottom of the whip. (Use these values as a starting point).
| Frequency | Length (NO Spring) | Length (WITH Spring) |
|---|---|---|
| 450 MHz | 305 mm (12") | 266 mm (10 1/2") |
| 455 MHz | 293 mm (11 9/16") | 253 mm (9 15/16") |
| 460 MHz | 282 mm (11 1/8") | 242 mm (9 1/2") |
| 465 MHz (GMRS) | 276 mm (10 13/16") | 236 mm (9 1/4") |
| 470 MHz | 265 mm (10 7/16") | 224 mm (8 13/16") |
Note: Always cut slightly longer than specified and trim down while checking with an SWR meter.
Technical Specifications
| Specification | Detail |
|---|---|
| Model | DistribuComm COMM45470 |
| Frequency Range | 450 - 470 MHz |
| Gain | 5 dBd (approx 7.15 dBi) |
| Antenna Type | Center-Loaded Collinear |
| Total Height | 35 Inches (89 cm) |
| Mount Type | Standard NMO |
| Contact Material | Gold Plated Brass |
Description
💰 Bundle & Save
Need a base for your new antenna? Save $15 instantly on your order when you purchase this antenna alongside any DistribuComm NMO Mount (Magnet, Trunk Lip, or Hole Mount). Discount applied automatically at checkout.
Maximize your range on GMRS and Commercial frequencies with the DistribuComm COMM45470. This high-performance mobile antenna features a center-loaded "phasing coil" design that effectively stacks two radiating elements, delivering a massive 5dBd gain (approx. 7.15 dBi).
Specifically designed for the 450 MHz to 470 MHz spectrum, this antenna is the ideal choice for GMRS (General Mobile Radio Service) users looking for "highway range" or Commercial Business Band fleets operating in flat terrain. The reliable NMO mount base ensures compatibility with the widest range of vehicle mounts on the market.
-
📶
High Gain (5dBd): The center-coil collinear design concentrates your signal at the horizon, providing a significant range boost over standard 1/4 wave antennas.
-
📻
Optimized for 450-470 MHz: Factory tuned for the Commercial and GMRS bands. (Note: This model is not designed for 70cm Amateur Radio use).
-
✂️
Tunable Whip: Includes a detailed cutting chart to tune the antenna to your exact operating frequency for the lowest possible SWR.
-
🔩
Heavy-Duty Build: Constructed with a 35-inch stainless steel whip and a gold-plated brass contact pin for long-lasting durability.
✂️ Sample Cutting Chart
Measure from the bottom of the center phasing coil to the bottom of the whip. (Use these values as a starting point).
| Frequency | Length (NO Spring) | Length (WITH Spring) |
|---|---|---|
| 450 MHz | 305 mm (12") | 266 mm (10 1/2") |
| 455 MHz | 293 mm (11 9/16") | 253 mm (9 15/16") |
| 460 MHz | 282 mm (11 1/8") | 242 mm (9 1/2") |
| 465 MHz (GMRS) | 276 mm (10 13/16") | 236 mm (9 1/4") |
| 470 MHz | 265 mm (10 7/16") | 224 mm (8 13/16") |
Note: Always cut slightly longer than specified and trim down while checking with an SWR meter.
Technical Specifications
| Specification | Detail |
|---|---|
| Model | DistribuComm COMM45470 |
| Frequency Range | 450 - 470 MHz |
| Gain | 5 dBd (approx 7.15 dBi) |
| Antenna Type | Center-Loaded Collinear |
| Total Height | 35 Inches (89 cm) |
| Mount Type | Standard NMO |
| Contact Material | Gold Plated Brass |
