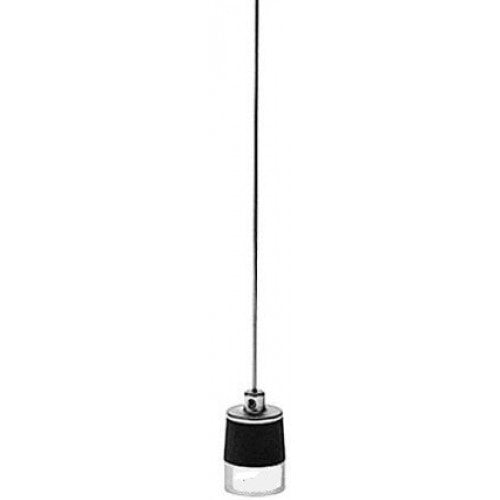

DistribuComm COMM58V 5/8 Wave Tuneable VHF Antenna (136-175 MHz)
DistribuComm COMM58V 5/8 Wave Tuneable VHF Antenna (136-175 MHz)
Verfügbarkeit für Abholungen konnte nicht geladen werden
Warum kaufen?
Warum kaufen?
Sie sind sich nicht ganz sicher, ob das das Richtige für Sie ist? Kontaktieren Sie uns für eine fachkundige Beratung!
Kurzübersicht
Kurzübersicht
} {
Scrollen Sie nach unten, um weitere Informationen zu diesem Artikel zu erhalten.
💰 Bundle & Save
Need a mount for your new antenna? Save $15 instantly on your order when you purchase this antenna alongside any DistribuComm NMO Mount (Magnet, Trunk Lip, or Hole Mount). Discount applied automatically at checkout.
The DistribuComm COMM58V is a commercial-grade mobile antenna designed for professional reliability across the entire VHF spectrum. Unlike hobbyist antennas tuned for a single slice of bandwidth, the COMM58V features a full-length 52" stainless steel whip that can be custom-tuned for Business Band, Marine, MURS, or Amateur Radio (2 Meter) use.
Engineered for performance, it utilizes a 5/8 Wave design to deliver a substantial 3dBi gain, significantly extending your communication range over standard 1/4 wave antennas. The base features a "Dio-Core" low-loss NMO mount with a gold-plated brass connector for superior conductivity and corrosion resistance.
-
✂️
Fully Tunable (136-175 MHz): Includes a detailed cutting chart to tune the antenna to your exact operating frequency, ensuring the lowest possible SWR.
-
📶
High Gain Performance: The 5/8 wave design provides 3dBi of gain, pulling in weak signals and extending your transmit reach on the horizon.
-
🔩
Robust Construction: Features a 52-inch heavy-duty stainless steel whip and a gold-plated brass irradiated connector to withstand harsh road conditions.
-
🚗
Standard NMO Mount: Compatible with all standard NMO mounts (magnet, permanent, or lip mount), making it easy to install on any vehicle.
📏 Precision Tuning Required
This antenna must be cut to length for your specific frequency. Use the chart below as a guide.
| Frequency | Cut Length (NO Spring) | Cut Length (WITH Spring) |
|---|---|---|
| 136 MHz | 53 1/8" (135.0 cm) | 50 5/8" (128.5 cm) |
| 144 MHz | 49" (124.5 cm) | 46 1/2" (118.0 cm) |
| 154 MHz | 44 3/4" (113.6 cm) | 42" (106.6 cm) |
| 174 MHz | 37 9/16" (95.4 cm) | 34 5/8" (87.8 cm) |
Note: Always cut slightly longer than specified and trim down while checking with an SWR meter.
Technical Specifications
| Specification | Detail |
|---|---|
| Model | DistribuComm COMM58V |
| Frequency Range | 136 - 175 MHz |
| Antenna Type | 5/8 Wave |
| Gain | 3 dBi |
| Whip Length | 52 Inches (uncut) |
| Mount Type | NMO (Dio-Core) |
| Connector Material | Gold Plated Irradiated Brass |
Description
💰 Bundle & Save
Need a mount for your new antenna? Save $15 instantly on your order when you purchase this antenna alongside any DistribuComm NMO Mount (Magnet, Trunk Lip, or Hole Mount). Discount applied automatically at checkout.
The DistribuComm COMM58V is a commercial-grade mobile antenna designed for professional reliability across the entire VHF spectrum. Unlike hobbyist antennas tuned for a single slice of bandwidth, the COMM58V features a full-length 52" stainless steel whip that can be custom-tuned for Business Band, Marine, MURS, or Amateur Radio (2 Meter) use.
Engineered for performance, it utilizes a 5/8 Wave design to deliver a substantial 3dBi gain, significantly extending your communication range over standard 1/4 wave antennas. The base features a "Dio-Core" low-loss NMO mount with a gold-plated brass connector for superior conductivity and corrosion resistance.
-
✂️
Fully Tunable (136-175 MHz): Includes a detailed cutting chart to tune the antenna to your exact operating frequency, ensuring the lowest possible SWR.
-
📶
High Gain Performance: The 5/8 wave design provides 3dBi of gain, pulling in weak signals and extending your transmit reach on the horizon.
-
🔩
Robust Construction: Features a 52-inch heavy-duty stainless steel whip and a gold-plated brass irradiated connector to withstand harsh road conditions.
-
🚗
Standard NMO Mount: Compatible with all standard NMO mounts (magnet, permanent, or lip mount), making it easy to install on any vehicle.
📏 Precision Tuning Required
This antenna must be cut to length for your specific frequency. Use the chart below as a guide.
| Frequency | Cut Length (NO Spring) | Cut Length (WITH Spring) |
|---|---|---|
| 136 MHz | 53 1/8" (135.0 cm) | 50 5/8" (128.5 cm) |
| 144 MHz | 49" (124.5 cm) | 46 1/2" (118.0 cm) |
| 154 MHz | 44 3/4" (113.6 cm) | 42" (106.6 cm) |
| 174 MHz | 37 9/16" (95.4 cm) | 34 5/8" (87.8 cm) |
Note: Always cut slightly longer than specified and trim down while checking with an SWR meter.
Technical Specifications
| Specification | Detail |
|---|---|
| Model | DistribuComm COMM58V |
| Frequency Range | 136 - 175 MHz |
| Antenna Type | 5/8 Wave |
| Gain | 3 dBi |
| Whip Length | 52 Inches (uncut) |
| Mount Type | NMO (Dio-Core) |
| Connector Material | Gold Plated Irradiated Brass |
