• Silver-colored coaxial lightning arrester with N-type connectors.
1 1

Mapping Network

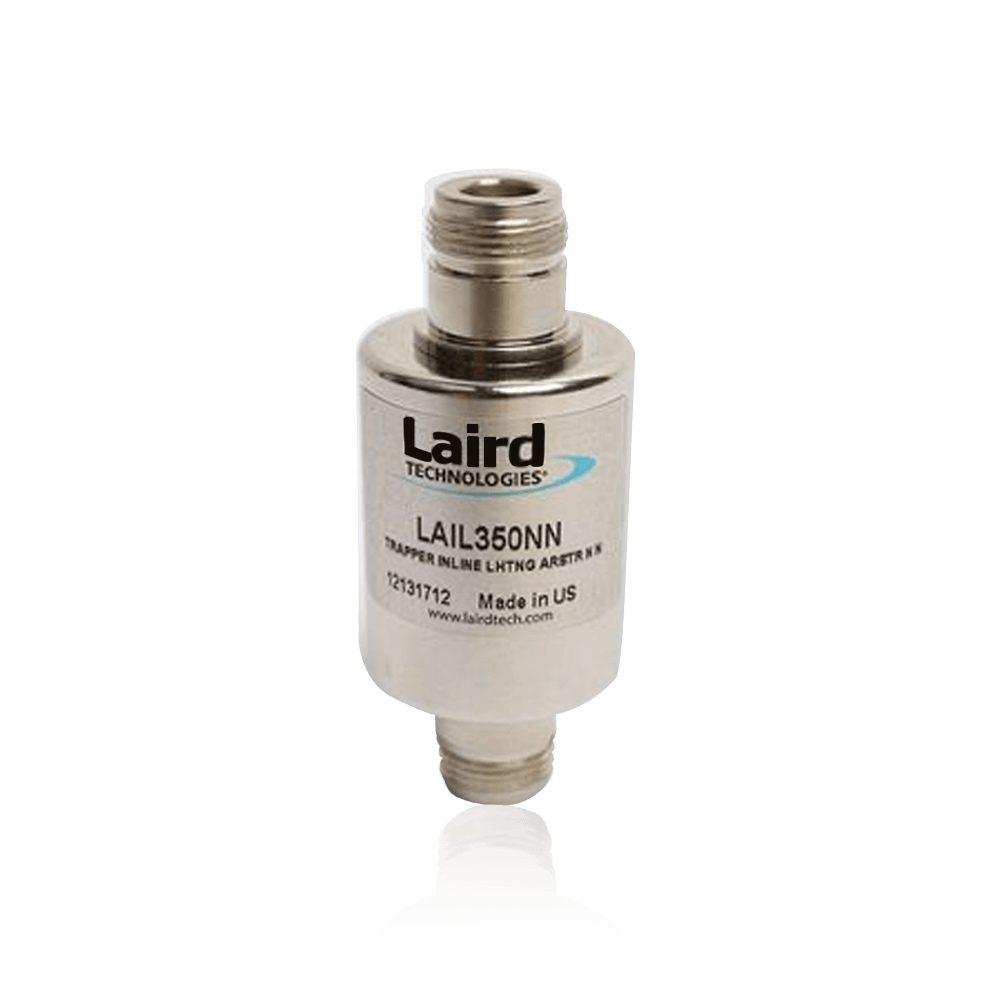

Laird Lightning Surge Arrestor

Laird Lightning Surge Arrestor

Thank you for choosing a family run Canadian small business!

🚚Shipping Quotes🚚are available in the cart.


$39.99 CAD
$89.99 CAD $39.99 CAD
Sale Ausverkauft
Versand wird beim Checkout berechnet
CO₂-neu­t­raler Versand für alle Bestellungen
Shopify secure badge

Warum kaufen?

Sie sind sich nicht ganz sicher, ob das das Richtige für Sie ist? Kontaktieren Sie uns für eine fachkundige Beratung!

Kurzübersicht

} {

Scrollen Sie nach unten, um weitere Informationen zu diesem Artikel zu erhalten.

Disclaimer: We don't offer any cabling that works with this lightning arrestor.

Laird surge protectors are an integral part of any antenna installation involving the protection of sensitive equipment from surges caused by lightning. The units have the ability to withstand multiple lightning strikes. The Laird surge protectors is designed for excellent durability and reliability and to resist corrosion.
  • Frequency range 0-1000 MHz
  • Maximum Power: 1000 watts - P.E.P
  • Breakdown Voltage: 350 Vac
  • Impedance: 50 ohms (nom.)
  • Insertion Loss: 27-500 MHz < 0.1 dB - 1000 MHz < 0.25 dB
  • VSWR 0-150 MHz < 1.1:1 - 150-1000 MHz <1.2:1
  • Protection: 5000 amps
  • Connector 1: N-Female
  • Connector 2: N-Female
  • SKU: LAIL350NN
Vollständige Details anzeigen

Description

Disclaimer: We don't offer any cabling that works with this lightning arrestor.

Laird surge protectors are an integral part of any antenna installation involving the protection of sensitive equipment from surges caused by lightning. The units have the ability to withstand multiple lightning strikes. The Laird surge protectors is designed for excellent durability and reliability and to resist corrosion.
  • Frequency range 0-1000 MHz
  • Maximum Power: 1000 watts - P.E.P
  • Breakdown Voltage: 350 Vac
  • Impedance: 50 ohms (nom.)
  • Insertion Loss: 27-500 MHz < 0.1 dB - 1000 MHz < 0.25 dB
  • VSWR 0-150 MHz < 1.1:1 - 150-1000 MHz <1.2:1
  • Protection: 5000 amps
  • Connector 1: N-Female
  • Connector 2: N-Female
  • SKU: LAIL350NN
