PL-259 (UHF Male) to SMA Female Antenna Adapter
PL-259 (UHF Male) to SMA Female Antenna Adapter
HURRY! Selling out fast! Only 2 left in stock!
Verfügbarkeit für Abholungen konnte nicht geladen werden
Warum kaufen?
Warum kaufen?
Sie sind sich nicht ganz sicher, ob das das Richtige für Sie ist? Kontaktieren Sie uns für eine fachkundige Beratung!
Kurzübersicht
Kurzübersicht
} {
Scrollen Sie nach unten, um weitere Informationen zu diesem Artikel zu erhalten.
The PL-259 (UHF Male) to SMA Female Antenna Adapter provides a reliable, low-loss connection for adapting portable and mobile radio equipment. This precision-machined connector allows you to quickly mate equipment with differing RF interfaces without needing to splice or solder custom coaxial cables.
📦 Single Unit Packaging

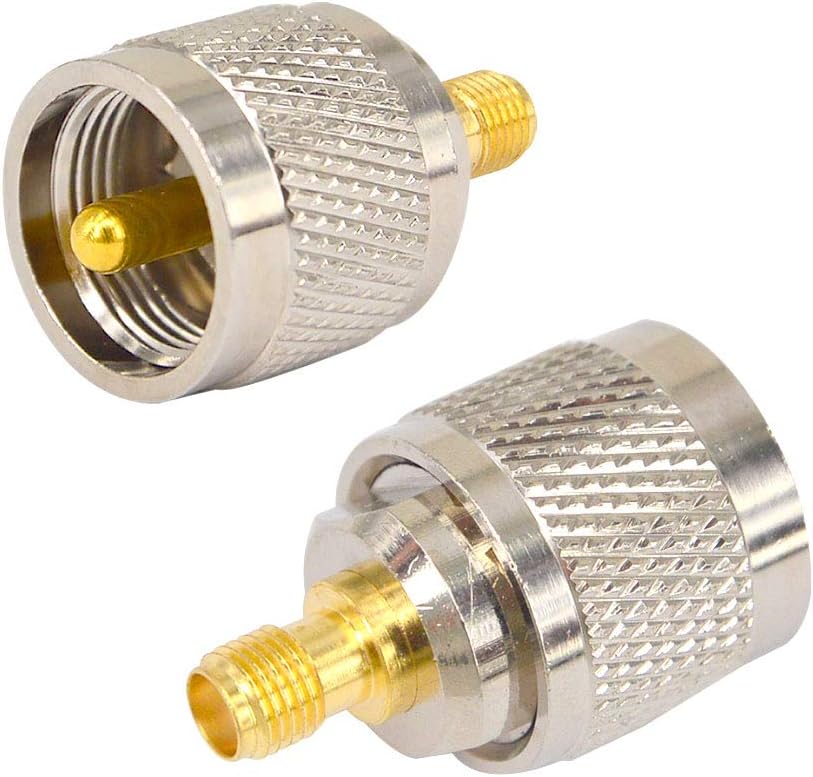

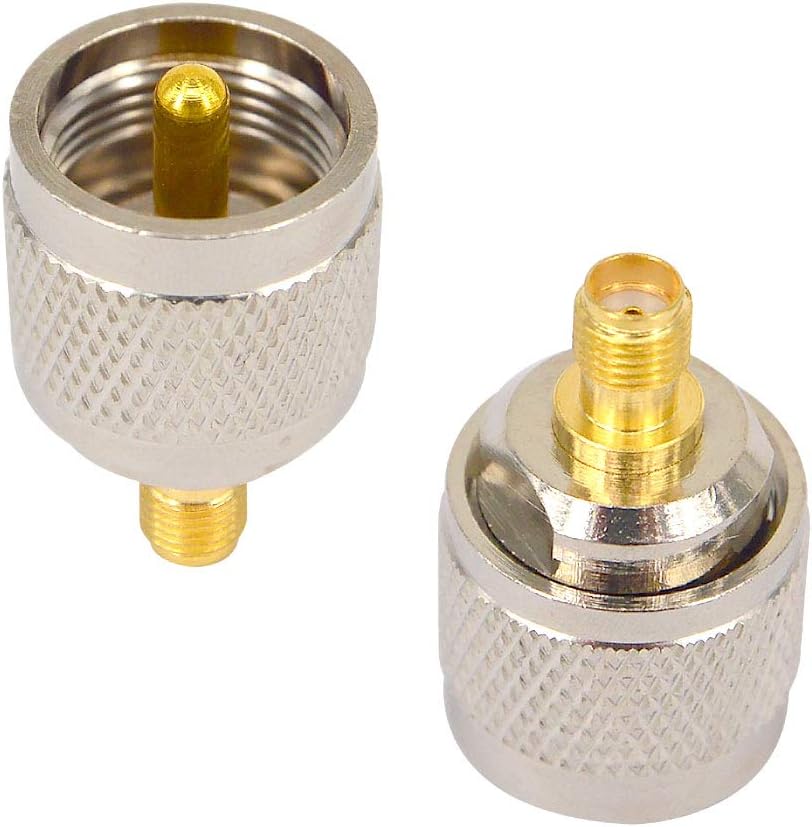

Please note that this adapter is sold as a single unit. Product imagery may display two adapters simultaneously to illustrate both the PL-259 and SMA Female connection ends.
Optimal Use Case & Installation
In typical radio setups, the PL-259 (UHF Male) end connects directly to the SO-239 chassis mount on a transceiver. The SMA Female end then accepts an antenna equipped with an SMA Male connector. This configuration is ideal for utilizing compact, high-performance SMA antennas on full-sized mobile or base station radio bodies without relying on odd male-to-female coaxial cable assemblies.
Performance & Design Highlights
-
🔗Seamless Conversion Converts a standard SO-239 (UHF Female) equipment port into an SMA Female interface.
-
🛡️Knurled Grip Housing Features a machined, knurled outer barrel for secure, tool-free hand tightening in tight spaces.
-
⚡Low-Loss Gold Contacts Equipped with a gold-plated center pin and SMA receptacle to ensure optimal signal transfer and protect against oxidation.
-
📻Durable Construction Built with a solid nickel-plated brass body designed to withstand vibration and repeated disconnects.
Technical Specifications
| Side A (Transceiver End) | PL-259 / UHF Male (Internally Threaded with Center Pin) |
|---|---|
| Side B (Antenna End) | SMA Female (Externally Threaded with Center Receptacle) |
| Body Material | Nickel-Plated Brass |
| Contact Material | Gold-Plated Center Pins |
| Impedance | 50 Ohms Nominal |
| Quantity Included | One (1) Adapter |
Description
The PL-259 (UHF Male) to SMA Female Antenna Adapter provides a reliable, low-loss connection for adapting portable and mobile radio equipment. This precision-machined connector allows you to quickly mate equipment with differing RF interfaces without needing to splice or solder custom coaxial cables.
📦 Single Unit Packaging
Please note that this adapter is sold as a single unit. Product imagery may display two adapters simultaneously to illustrate both the PL-259 and SMA Female connection ends.
Optimal Use Case & Installation
In typical radio setups, the PL-259 (UHF Male) end connects directly to the SO-239 chassis mount on a transceiver. The SMA Female end then accepts an antenna equipped with an SMA Male connector. This configuration is ideal for utilizing compact, high-performance SMA antennas on full-sized mobile or base station radio bodies without relying on odd male-to-female coaxial cable assemblies.
Performance & Design Highlights
-
🔗Seamless Conversion Converts a standard SO-239 (UHF Female) equipment port into an SMA Female interface.
-
🛡️Knurled Grip Housing Features a machined, knurled outer barrel for secure, tool-free hand tightening in tight spaces.
-
⚡Low-Loss Gold Contacts Equipped with a gold-plated center pin and SMA receptacle to ensure optimal signal transfer and protect against oxidation.
-
📻Durable Construction Built with a solid nickel-plated brass body designed to withstand vibration and repeated disconnects.
Technical Specifications
| Side A (Transceiver End) | PL-259 / UHF Male (Internally Threaded with Center Pin) |
|---|---|
| Side B (Antenna End) | SMA Female (Externally Threaded with Center Receptacle) |
| Body Material | Nickel-Plated Brass |
| Contact Material | Gold-Plated Center Pins |
| Impedance | 50 Ohms Nominal |
| Quantity Included | One (1) Adapter |
