RAKWireless Lightning Arrestor
RAKWireless Lightning Arrestor
Calculating delivery...
This is an estimate. Actual delivery times may vary.
Normaler Preis
$29.99 CAD
Normaler Preis
$59.99 CAD
Verkaufspreis
$29.99 CAD
Grundpreis
pro
Versand wird beim Checkout berechnet
Verfügbarkeit für Abholungen konnte nicht geladen werden
Warum kaufen?
Warum kaufen?
Sie sind sich nicht ganz sicher, ob das das Richtige für Sie ist? Kontaktieren Sie uns für eine fachkundige Beratung!
Kurzübersicht
Kurzübersicht
} {
Scrollen Sie nach unten, um weitere Informationen zu diesem Artikel zu erhalten.
This is a surge protective device for securing transceivers against over-voltage and surge current induced by bolts of lightning.
For the purpose of protecting the indoor equipment and circuitry connected to the LoRa gateway, you need to install an Ethernet Port Surge Protection Device (SPD).
RAKwireless recommends installing a lightning arrestor on all N-type antenna terminals including LoRa, LTE, and 2.4G Wi-Fi antennas. Please refer to the technical manual for wire type and gauge recommendations.
Vollständige Details anzeigen
For the purpose of protecting the indoor equipment and circuitry connected to the LoRa gateway, you need to install an Ethernet Port Surge Protection Device (SPD).
RAKwireless recommends installing a lightning arrestor on all N-type antenna terminals including LoRa, LTE, and 2.4G Wi-Fi antennas. Please refer to the technical manual for wire type and gauge recommendations.
- Connector Type: N-type male to N-type female
- Impedance: 50 Ω

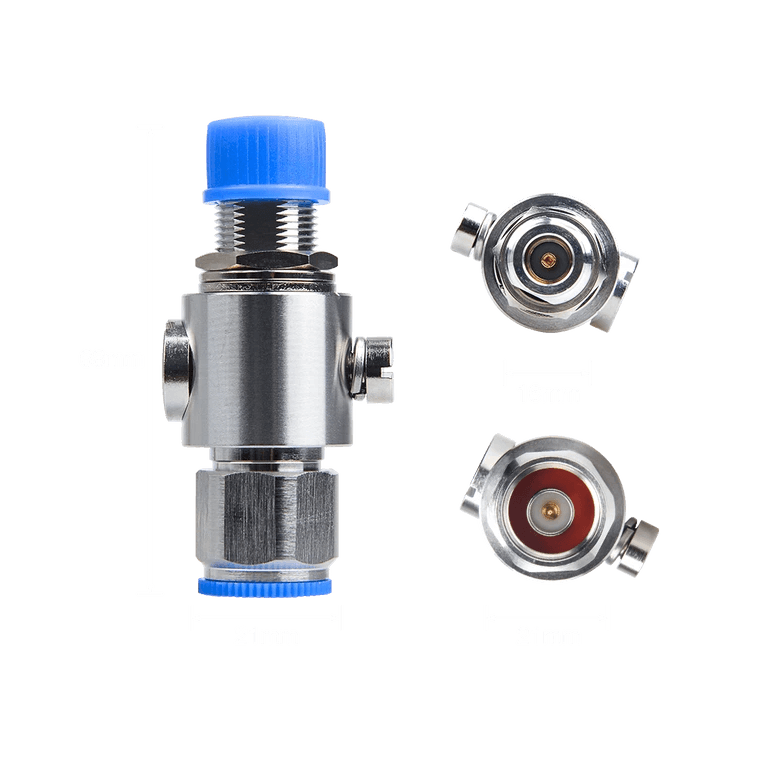

- Size: Height 68mm Width 21mm
- Frequency range: 0-2700 MHz
- Power loss 0-2000 MHz: ≤ 0.2 dB
- Ingress protection: IP67
- Nominal discharge current In: 10 kA
- Maximum discharge current Imax: 20 kA
- Voltage protection Level Up: ≤ 1200 V
- SKU: 910033
Description
This is a surge protective device for securing transceivers against over-voltage and surge current induced by bolts of lightning.
For the purpose of protecting the indoor equipment and circuitry connected to the LoRa gateway, you need to install an Ethernet Port Surge Protection Device (SPD).
RAKwireless recommends installing a lightning arrestor on all N-type antenna terminals including LoRa, LTE, and 2.4G Wi-Fi antennas. Please refer to the technical manual for wire type and gauge recommendations.
For the purpose of protecting the indoor equipment and circuitry connected to the LoRa gateway, you need to install an Ethernet Port Surge Protection Device (SPD).
RAKwireless recommends installing a lightning arrestor on all N-type antenna terminals including LoRa, LTE, and 2.4G Wi-Fi antennas. Please refer to the technical manual for wire type and gauge recommendations.
- Connector Type: N-type male to N-type female
- Impedance: 50 Ω
- Size: Height 68mm Width 21mm
- Frequency range: 0-2700 MHz
- Power loss 0-2000 MHz: ≤ 0.2 dB
- Ingress protection: IP67
- Nominal discharge current In: 10 kA
- Maximum discharge current Imax: 20 kA
- Voltage protection Level Up: ≤ 1200 V
- SKU: 910033
