Retevis RHD-701 Flexible Dual Band Replacement Antenna (SMA-Male)
Retevis RHD-701 Flexible Dual Band Replacement Antenna (SMA-Male)
HURRY! Selling out fast! Only 4 left in stock!
Verfügbarkeit für Abholungen konnte nicht geladen werden
Warum kaufen?
Warum kaufen?
Sie sind sich nicht ganz sicher, ob das das Richtige für Sie ist? Kontaktieren Sie uns für eine fachkundige Beratung!
Kurzübersicht
Kurzübersicht
} {
Scrollen Sie nach unten, um weitere Informationen zu diesem Artikel zu erhalten.
Upgrade or replace your antenna with the Retevis RHD-701 (SMA-Male). This flexible, durable whip is designed specifically for radios that use an SMA-Male antenna connector, such as Icom / Yaesu, Newer TYT / Wouxun, and select Retevis models.
Unlike rigid factory antennas that can snap under pressure, the RHD-701 is made from a soft, bendable material that handles daily abuse with ease. It is tuned for both the 2-Meter (VHF) and 70cm (UHF) amateur bands, ensuring you stay connected with clear audio and reliable range.
-
🔄
Perfect Replacement: A high-quality, cost-effective replacement for lost or broken stock antennas on Japanese and commercial-style radios.
-
💪
Flexible & Durable: The high-flex design absorbs impacts and resists snapping, making it perfect for belt-carry or tossing in a go-bag.
-
📡
Dual Band Optimized: Tuned for the 2-Meter (144MHz) and 70cm (430MHz) amateur bands for optimal SWR and performance.
-
🔗

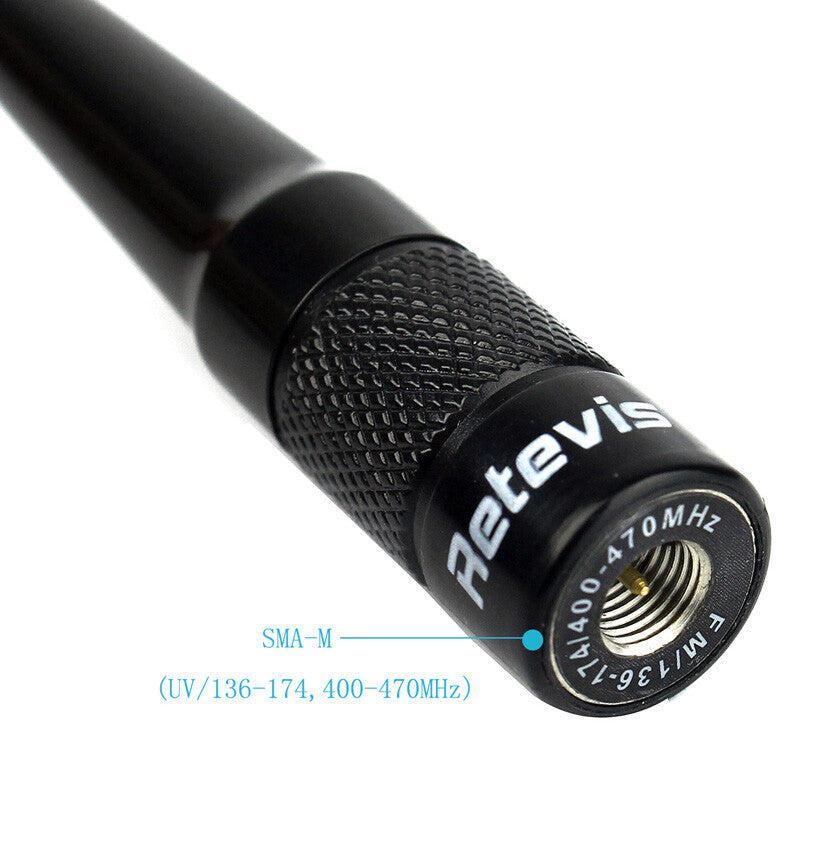

SMA-Male Connector: Features a center pin connector, designed to fit into the female port found on Yaesu, TYT, and Icom handhelds.
✅ Compatibility Check (SMA-Male)
This antenna has an SMA-Male connector (Pin in center). It is compatible with:
- Retevis: RT85, RA89, RT82, RT3S, RT90
- Yaesu: FT-60R, FT-70DR, VX-6R, FT-4XR
- TYT: MD-380, MD-390, UV-88, UV-98, TH-UV8000D
- Icom: ID-51, ID-52, IC-T70 (Most Amateur Handhelds)
- Kenwood: TH-D72, TH-D74 (Most Amateur Handhelds)
- Wouxun: KG-UV8D, KG-UV9D
⚠️ Does NOT Fit Baofeng UV-5R
This antenna will NOT fit the Baofeng UV-5R, UV-82, or BF-F8HP. Those radios require the SMA-Female version.
Technical Specifications
| Specification | Detail |
|---|---|
| Model | Retevis RHD-701 (Male) |
| Connector Type | SMA-Male (Center Pin) |
| Frequency Bands | VHF (144MHz) / UHF (430MHz) |
| Gain | 2.15 dBi (Standard Replacement) |
| Max Power | 20 Watts |
| VSWR | Less than 1.5 |
| Impedance | 50 Ohm |
| Length | Approx. 20cm (8 inches) |
| Weight | 30g |
Description
Upgrade or replace your antenna with the Retevis RHD-701 (SMA-Male). This flexible, durable whip is designed specifically for radios that use an SMA-Male antenna connector, such as Icom / Yaesu, Newer TYT / Wouxun, and select Retevis models.
Unlike rigid factory antennas that can snap under pressure, the RHD-701 is made from a soft, bendable material that handles daily abuse with ease. It is tuned for both the 2-Meter (VHF) and 70cm (UHF) amateur bands, ensuring you stay connected with clear audio and reliable range.
-
🔄
Perfect Replacement: A high-quality, cost-effective replacement for lost or broken stock antennas on Japanese and commercial-style radios.
-
💪
Flexible & Durable: The high-flex design absorbs impacts and resists snapping, making it perfect for belt-carry or tossing in a go-bag.
-
📡
Dual Band Optimized: Tuned for the 2-Meter (144MHz) and 70cm (430MHz) amateur bands for optimal SWR and performance.
-
🔗
SMA-Male Connector: Features a center pin connector, designed to fit into the female port found on Yaesu, TYT, and Icom handhelds.
✅ Compatibility Check (SMA-Male)
This antenna has an SMA-Male connector (Pin in center). It is compatible with:
- Retevis: RT85, RA89, RT82, RT3S, RT90
- Yaesu: FT-60R, FT-70DR, VX-6R, FT-4XR
- TYT: MD-380, MD-390, UV-88, UV-98, TH-UV8000D
- Icom: ID-51, ID-52, IC-T70 (Most Amateur Handhelds)
- Kenwood: TH-D72, TH-D74 (Most Amateur Handhelds)
- Wouxun: KG-UV8D, KG-UV9D
⚠️ Does NOT Fit Baofeng UV-5R
This antenna will NOT fit the Baofeng UV-5R, UV-82, or BF-F8HP. Those radios require the SMA-Female version.
Technical Specifications
| Specification | Detail |
|---|---|
| Model | Retevis RHD-701 (Male) |
| Connector Type | SMA-Male (Center Pin) |
| Frequency Bands | VHF (144MHz) / UHF (430MHz) |
| Gain | 2.15 dBi (Standard Replacement) |
| Max Power | 20 Watts |
| VSWR | Less than 1.5 |
| Impedance | 50 Ohm |
| Length | Approx. 20cm (8 inches) |
| Weight | 30g |
