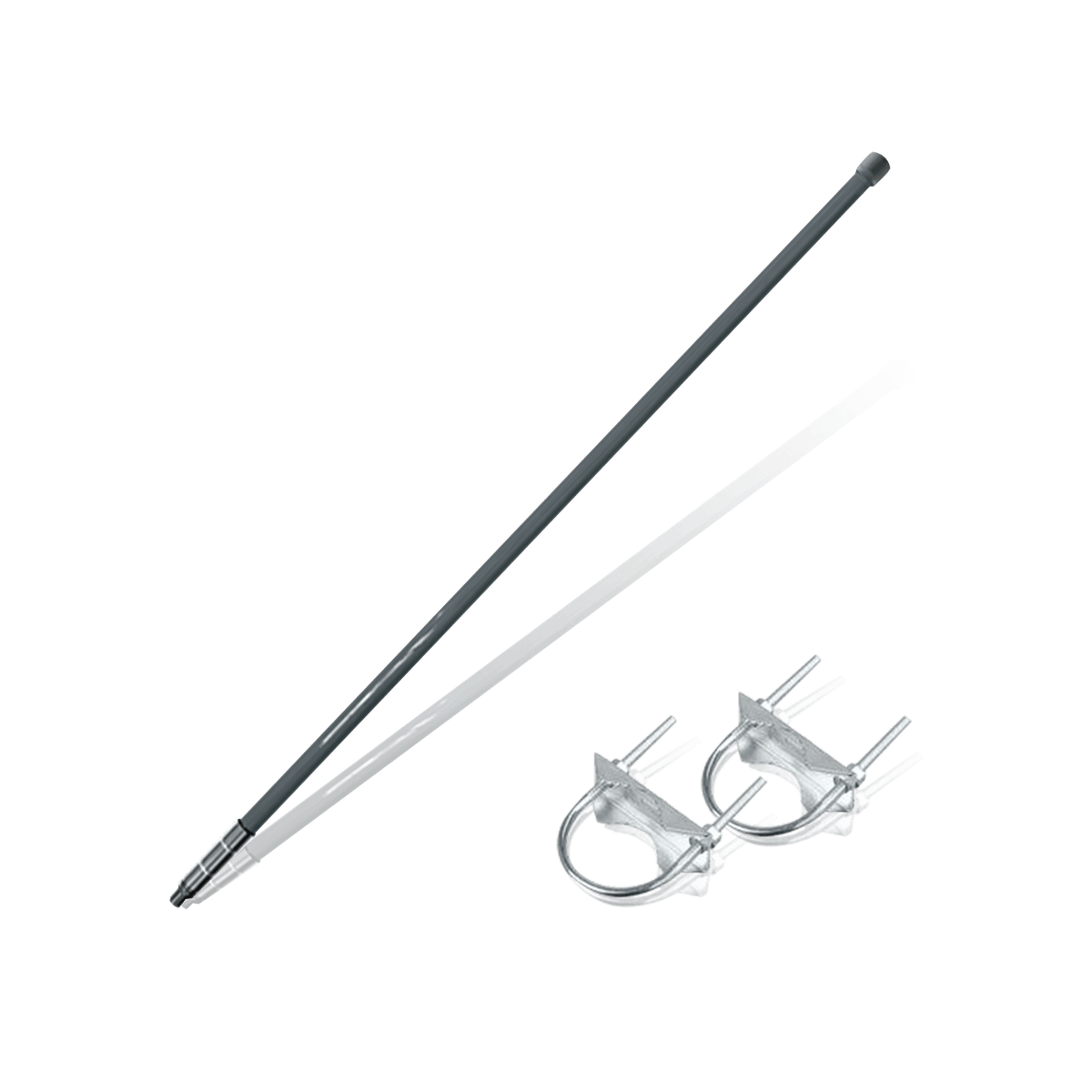

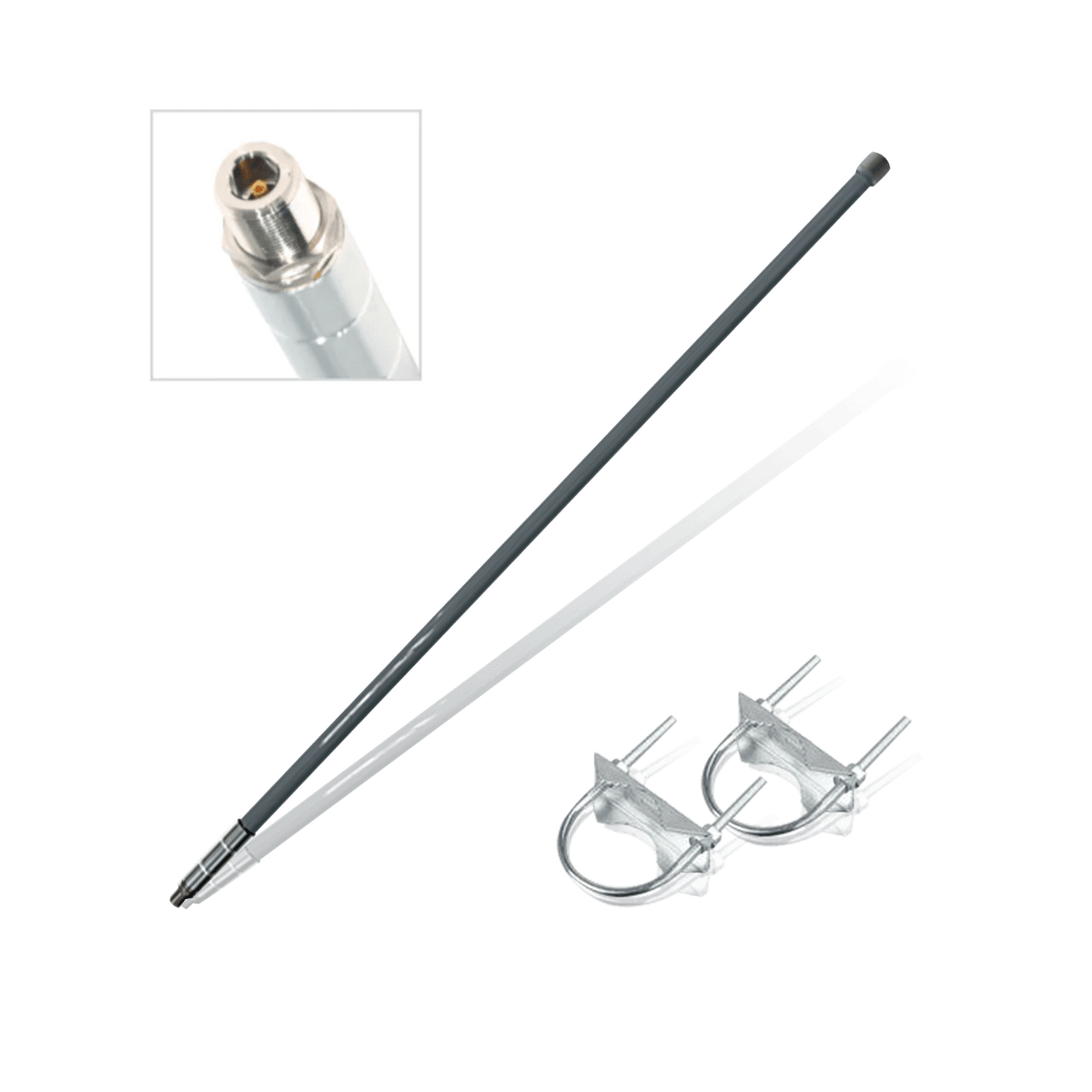

Rokland LoneWolf 12dBi Outdoor Antenna (915 MHz)
Rokland LoneWolf 12dBi Outdoor Antenna (915 MHz)
HURRY! Selling out fast! Only 3 left in stock!
Verfügbarkeit für Abholungen konnte nicht geladen werden
Warum kaufen?
Warum kaufen?
Sie sind sich nicht ganz sicher, ob das das Richtige für Sie ist? Kontaktieren Sie uns für eine fachkundige Beratung!
Kurzübersicht
Kurzübersicht
} {
Scrollen Sie nach unten, um weitere Informationen zu diesem Artikel zu erhalten.
- Antenna Connector: N Female
- Frequency Range: 915 MHz
- Gain: 12dBi
- Size: 1600mm
This antenna is compatible with any Helium Hotspot Miner. In most situation you will need RP-SMA to N Male cable to fit.
12 dBi gain N-Female 915 MHz band antenna for LoRa and HaLow long-distance low data transfer industrial application (this is NOT a 2.4 or 5 GHz WiFi antenna).
- 9 degree vertical beamwidth, 360 degrees horizontal, N-female connector. VSWR ≤ 1.5 with 12 dBi gain, 50-ohm impedance, max input power 50 W, made of Fiberglass, Copper, and Aluminum Alloy
- Large profile: 61 inches in height- Learn more about antenna size and gain correlation
- Includes 2 U-bolts and mounting bracket as pictured, plus antenna.
- This is NOT a WiFi antenna or 4G cellular antenna, it is ONLY for 915 MHz sub 1 GHz HaLow or LoRa application, or other applications in this band.
- Questions about miners, antennas and cables? Visit this page to learn more.
Specifications:
- 9 degree vertical beamwidth
- 360 degree horizontal beamwidth
- N-female connector
- VSWR: ≤ 1.5
- 12 dBi gain
- 50-ohm impedance
- Max input power: 50 W
- Wind Rating: 60 m/sec
- Operating Temperature: -58F to 176F
- Height: 61 inches (learn more about antenna height and gain correlation)
- Made of Fiberglass, Copper, and Aluminum Alloy
Description
- Antenna Connector: N Female
- Frequency Range: 915 MHz
- Gain: 12dBi
- Size: 1600mm
This antenna is compatible with any Helium Hotspot Miner. In most situation you will need RP-SMA to N Male cable to fit.
12 dBi gain N-Female 915 MHz band antenna for LoRa and HaLow long-distance low data transfer industrial application (this is NOT a 2.4 or 5 GHz WiFi antenna).
- 9 degree vertical beamwidth, 360 degrees horizontal, N-female connector. VSWR ≤ 1.5 with 12 dBi gain, 50-ohm impedance, max input power 50 W, made of Fiberglass, Copper, and Aluminum Alloy
- Large profile: 61 inches in height- Learn more about antenna size and gain correlation
- Includes 2 U-bolts and mounting bracket as pictured, plus antenna.
- This is NOT a WiFi antenna or 4G cellular antenna, it is ONLY for 915 MHz sub 1 GHz HaLow or LoRa application, or other applications in this band.
- Questions about miners, antennas and cables? Visit this page to learn more.
Specifications:
- 9 degree vertical beamwidth
- 360 degree horizontal beamwidth
- N-female connector
- VSWR: ≤ 1.5
- 12 dBi gain
- 50-ohm impedance
- Max input power: 50 W
- Wind Rating: 60 m/sec
- Operating Temperature: -58F to 176F
- Height: 61 inches (learn more about antenna height and gain correlation)
- Made of Fiberglass, Copper, and Aluminum Alloy
