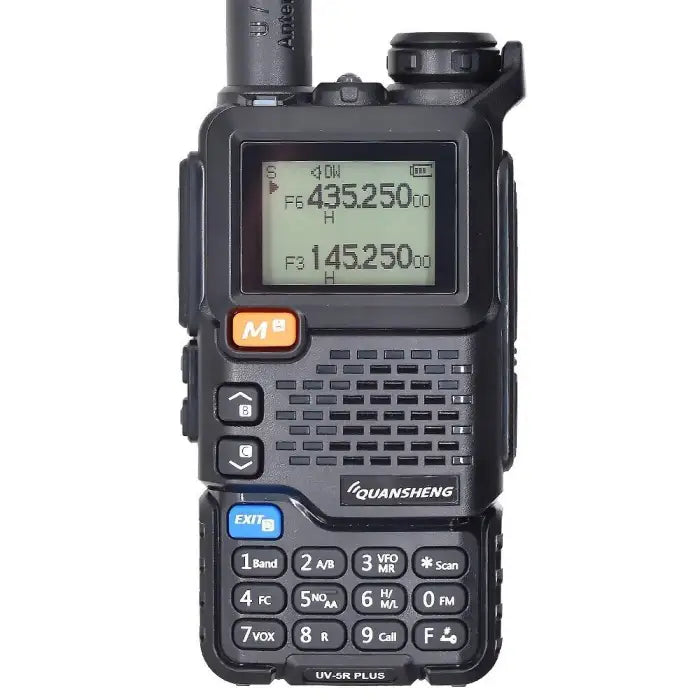

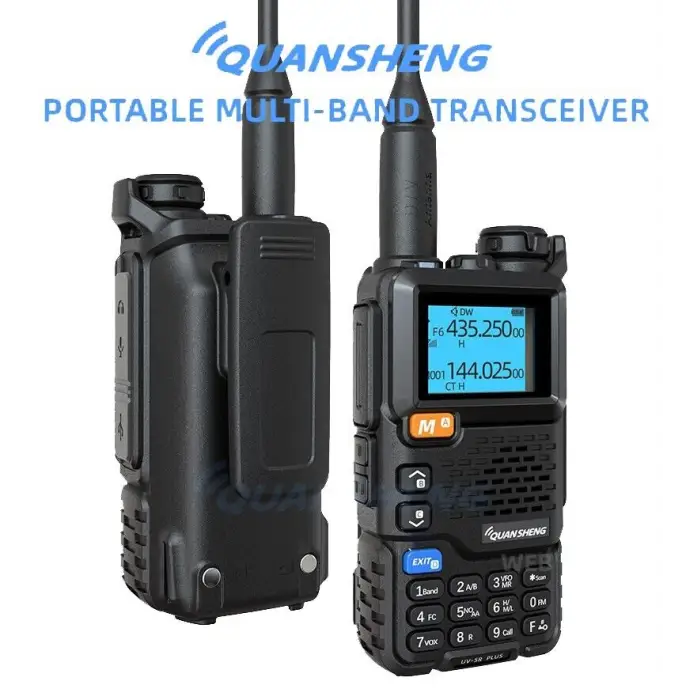

Quansheng UV-5R Plus Multiband Amateur Ham Radio Transceiver Scanner Frequency Counter
Quansheng UV-5R Plus Multiband Amateur Ham Radio Transceiver Scanner Frequency Counter
Promotions
Promotions
Login to your account or create one, to see what QSO Rewards are waiting for you!
Couldn't load pickup availability
Quick Specs
Quick Specs
K Plug
5W
Scoll down for more information about this item.
For when all you need is a basic dual band radio the Quansheng UV-5R Plus is ready when you are. This radio features 200 memory channels, a large 2,000 mAh battery, and a full 5W of RF power. A modern screen makes things easy to read, and Chirp compatibility means it's easy to program. With all the features the average ham needs like repeater tones, offsets, and DTMF this basic radio is perfect for everyday use. Did we mention its also easy on the pocket book!
You may ask though, what's the "Plus" include? We're glad you asked!
-
NOAA Weather Radio
-
Frequency Counter With CTCSS Sniffing
-
50MHz - 600MHz Scanning including AM Air Band
IC / ISED: 30518-UVK5
| GENERAL SPECIFICATIONS | |
| Number of channels |
200 |
| Number of FM Presets |
16 |
| Frequency stability |
±1ppm |
| Size |
115mmX60mmX37.5mm |
| Weight |
234g |
| Working temperature |
-20℃+60℃ |
| Antenna impedance |
50Ω |
| Modulation mode |
FM:11KOF3E(12.5KHz),16K0F3E(25KHz) |
| Number of NOAA channels |
10 |
| Battery capacity |
2000mAh |
| RECEIVE | |
| Reference Sensitivity |
FM(12dB SINAD) F1(50∽76) -121dBm F2(108∽135.9975) -121dBm F3(136∽173.9975) -123dBm F4(174∽349.9975) -123dBm F5(350∽399.9975) -123dBm F6(400∽469.9975) -123dBm F7(470∽599.9975) -121dBm WFM(20dB SINAD) WFM(76∽108) -110dBm AM(10dB S/N) F2(108∽135.9975) -113dBm |
| Audio Power |
≥0.5W |
| Audio Distortion |
≤10% |
|
Transmit |
|
| Frequency Band |
144∽148MHz 430∽450MHz |
| Transmitting Power |
≤5W |
| Emission Current |
≤1.5A |
| Maximum Frequency Deviation |
≤5KHz(25KHz), ≤2.5KHz(12.5KHz) |
| Modulation Distortion |
≤5% |
| Stray Power |
≤7.5uW |
| Adjacent Channel Power |
70dB(25KHz), 60dB(12.5KHz) |
| Residual Modulation |
40dB |
Box Contents:
-
UV-5R Plus Radio
-
Dual Band FM antenna
-
Battery
-
110V AC Charger (Fixed Cord)
-
Belt Clip
-
Wrist Strap
PLEASE NOTE: This radio does not have Cross Band Repeater capabilities. The translation to Cross Band Intercomm indicates if a signal comes in on Band A and you are on Band B, the radio will switch to Band A for your next transmission.
QUESTIONS & ANSWERS
Ask a Question-
Trying to program with CHIRP but get "bad response header" msg. How do I fix this?
Hello,
Using CHIRP next-20230725 and the Quansheng UV-K5 driver we can succesfuly read and write to the radio.
The Quansheng UV-K5 is a realativly new driver for Chirp, and may only be included in the newest version of Chirp, Chirp Next.
73s
Fleetwood Digital -
What is the meaning of presets vs channel storage?
Number of channels
200 - This is for the "Ham" radio portion
Number of FM Presets
16 - This is for the FM Broadcast radio stations.
73s
Fleetwood Digital -
Does this radio have DTMF.
DTMF is listed as a feature of the radio.
73s
