PRE ORDER: Retevis RA25 Dual Band Mini Mobile Amateur Ham Radio With Cigarette Lighter Plug
PRE ORDER: Retevis RA25 Dual Band Mini Mobile Amateur Ham Radio With Cigarette Lighter Plug
Promotions
Promotions
Login to your account or create one, to see what QSO Rewards are waiting for you!
Couldn't load pickup availability
Quick Specs
Quick Specs
RJ-45
20W
Scoll down for more information about this item.

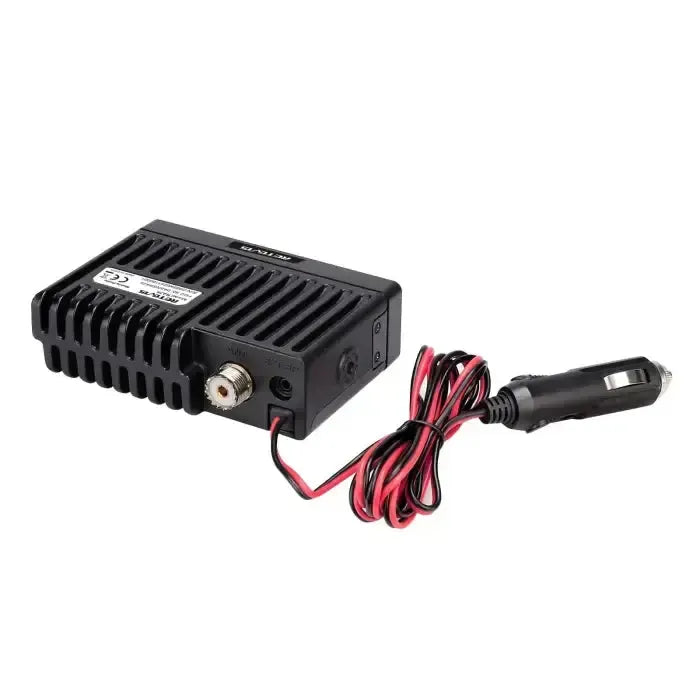

The Retevis RA25 is perfect for those who want a semi permanent install where a cigarette lighter plug is used. When combined with the MR100 Magnet Mount antenna this radio truly becomes a plug and play, easy to install, dual band mobile radio. With its compact design this radio is great for vehicles where space is at a premium. Featuring an ample 20W power output this radio is great for working local repeaters and short distance simplex.
Specifications
| Frequency |
VHF: 144-148 UHF: 430-450 |
||
| Number of Channels | 30 channels | ||
| Channel Spacing | 25K (Wide Band) 12.5K (Narrow band) | ||
| Phase-locked Step | 2.5KHz,5KHz,6.25KHz,10KHz,12.5KHz,15KHz,20KHz,25KHz,30KHz,50KHz | ||
| Operating Voltage | DC 13.8V±15% (Standard version)DC 12V (Optional version) | ||
| Squelch | Carrier/CTCSS/DCS/5Tone/2Tone/DTMF | ||
| Frequency Stability | ±2.5ppm | ||
| Operating Temperature | -20℃~+60℃ | ||
| Dimensions(mm) | 124x101x36mm | ||
| Weight | 0.45kg (mian unit) | ||
| RECEIVER | |||
| Wide band | Narrow band≤0.25μV | ||
| Sensitivity (12dB Sinad) | ≤0.25µV | ≤0.35μV | |
| Adjacent Channel Selectivity | ≥70dB | ≥60dB | |
| Audio Response | +1~-3dB(0.3~3KHz) | +1~-3dB(0.3~2.55KHz) | |
| Hum & Noise | ≥45dB | ≥40dB | |
| Audio distortion | <3% | ||
| Audio power output | > 2W@10% | ||
| TRANSMITTER | |||
| Wide band | Narrow band | ||
| Power Output | ≤20W | ||
| Modulation | 16KΦF3E | 11KΦF3E | |
| Adjacent Channel Power | ≥70dB | ≥60dB | |
| Hum & Noise | ≥40dB | ≥36dB | |
| Spurious Emission | ≥60dB | ≥60dB | |
| Audio Response | +1~-3dB(0.3~3KHz) | +1~-3dB(0.3~2.55KHz) | |
| Audio Distortion | ≤5% | ||
Description
The Retevis RA25 is perfect for those who want a semi permanent install where a cigarette lighter plug is used. When combined with the MR100 Magnet Mount antenna this radio truly becomes a plug and play, easy to install, dual band mobile radio. With its compact design this radio is great for vehicles where space is at a premium. Featuring an ample 20W power output this radio is great for working local repeaters and short distance simplex.
Specifications
| Frequency |
VHF: 144-148 UHF: 430-450 |
||
| Number of Channels | 30 channels | ||
| Channel Spacing | 25K (Wide Band) 12.5K (Narrow band) | ||
| Phase-locked Step | 2.5KHz,5KHz,6.25KHz,10KHz,12.5KHz,15KHz,20KHz,25KHz,30KHz,50KHz | ||
| Operating Voltage | DC 13.8V±15% (Standard version)DC 12V (Optional version) | ||
| Squelch | Carrier/CTCSS/DCS/5Tone/2Tone/DTMF | ||
| Frequency Stability | ±2.5ppm | ||
| Operating Temperature | -20℃~+60℃ | ||
| Dimensions(mm) | 124x101x36mm | ||
| Weight | 0.45kg (mian unit) | ||
| RECEIVER | |||
| Wide band | Narrow band≤0.25μV | ||
| Sensitivity (12dB Sinad) | ≤0.25µV | ≤0.35μV | |
| Adjacent Channel Selectivity | ≥70dB | ≥60dB | |
| Audio Response | +1~-3dB(0.3~3KHz) | +1~-3dB(0.3~2.55KHz) | |
| Hum & Noise | ≥45dB | ≥40dB | |
| Audio distortion | <3% | ||
| Audio power output | > 2W@10% | ||
| TRANSMITTER | |||
| Wide band | Narrow band | ||
| Power Output | ≤20W | ||
| Modulation | 16KΦF3E | 11KΦF3E | |
| Adjacent Channel Power | ≥70dB | ≥60dB | |
| Hum & Noise | ≥40dB | ≥36dB | |
| Spurious Emission | ≥60dB | ≥60dB | |
| Audio Response | +1~-3dB(0.3~3KHz) | +1~-3dB(0.3~2.55KHz) | |
| Audio Distortion | ≤5% | ||
