Retevis RT95 FCC Dual Band Mobile Amateur Ham Radio
Retevis RT95 FCC Dual Band Mobile Amateur Ham Radio
HURRY! Selling out fast! Only 1 left in stock!
Couldn't load pickup availability
Why Buy?
Why Buy?
Not quite sure if this is right for you? Contact Us for expert advice!
Quick Specs
Quick Specs
RJ-45
25W
Scoll down for more information about this item.

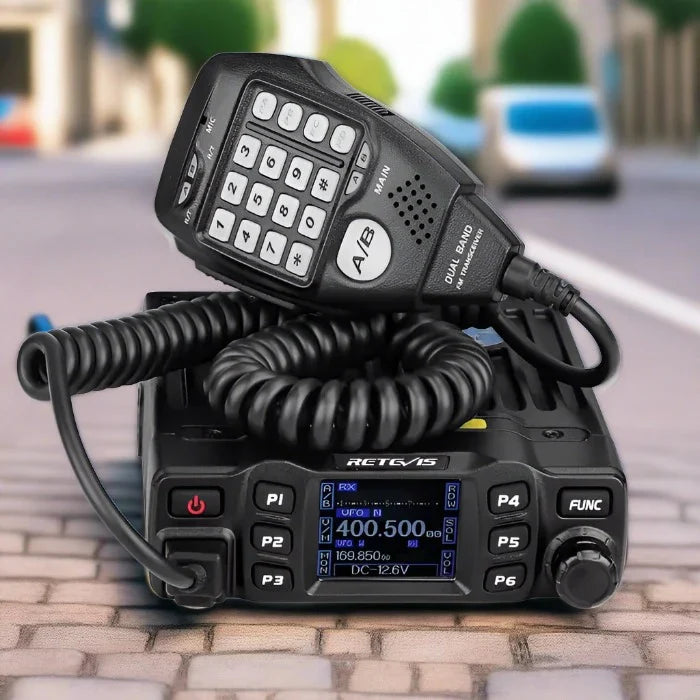

The Retevis RT95 FCC Dual Band Mobile Amateur Ham Radio is perfect for drivers, with its innovative design and practical features. This mobile radio operates on both 2m and 70cm bands, and offers 200 channels with 52 CTCSS and 1024 DCS repeater tones. Its robust design, smart menu control, and 7 programmable keys make it easy to use. Plus, it supports CHIPR programming for even more customization options. (Programming cable sold separately)
- FCC ID：2ASNSRT95
- IC/ISED: 27919-RT95
Specifications:
| Frequency Range |
VHF: 144-148MHz UHF: 420~450MHz |
||
| Number of Channels | 200 channels | ||
| Channel Spacing | 25K (Wide Band) 20K(Middle Band) 12.5K (Narrow band) | ||
| Phase-locked Step | 2.5KHz, 5KHz, 6.25KHz, 10KHz, 12.5KHz, 20KHz, 25KHz, 30KHz, 50KHz | ||
| Operating Voltage | 13.8V DC ±15% | ||
| Squelch | Carrier/CTCSS/DCS | ||
| Frequency Stability | ±2.5 ppm | ||
| Operating Temperature | -20℃~+60℃ | ||
| Dimensions(mm) | 124 (W) x 163(D) x 39 (H) | ||
| Weight | ~0.64Kg | ||
| RECEIVER | |||
| Wide band | Narrow band | ||
| Sensitivity (12dB Sinad) | ≤0.25μV | ≤0.35μV | |
| AdjacentChannelSelectivity | ≥60dB | ≥60dB | |
| Audio Response | +1~-3dB(0.3~3KHz) | +1~-3dB(0.3~2.55KHz) | |
| Hum & Noise | ≥45dB | ≥40dB | |
| Audio distortion | ≤5% | ||
| Audio power output | >2W@8 | ||
| TRANSMITTER | |||
| Wide band | Narrow band | ||
| Power Output | 25W / 15W / 5W | ||
| Modulation | 16KΦF3E | 11KΦF3E | |
| Adjacent Channel Power | ≥70dB | ≥60dB | |
| Hum & Noise | ≥40dB | ≥36dB | |
| Spurious Emission | ≥60dB | ≥60dB | |
| Audio Response | +1~-3dB(0.3~3KHz) | +1~- dB(0.3~2.55KHz) | |
| Audio Distortion | ≤5% | ||
What’s in the Box？

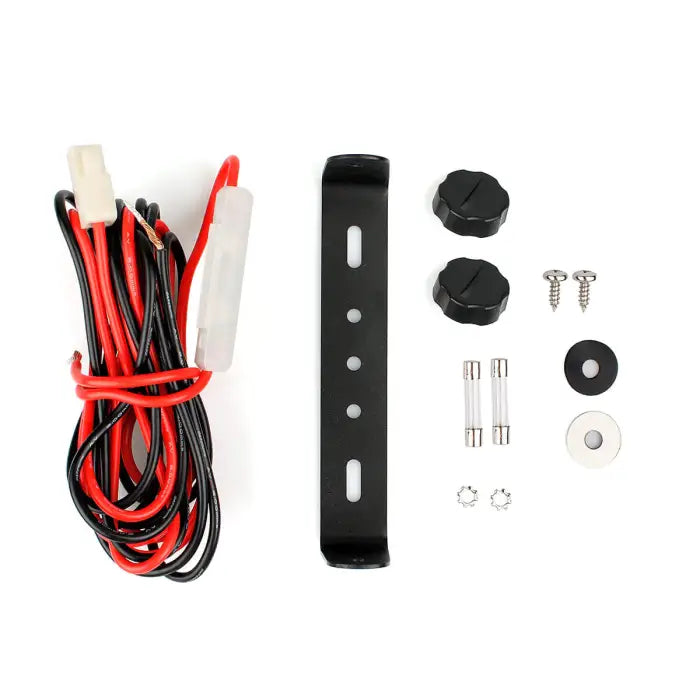

- 1 x Mobile radio
- 1 x Power cable

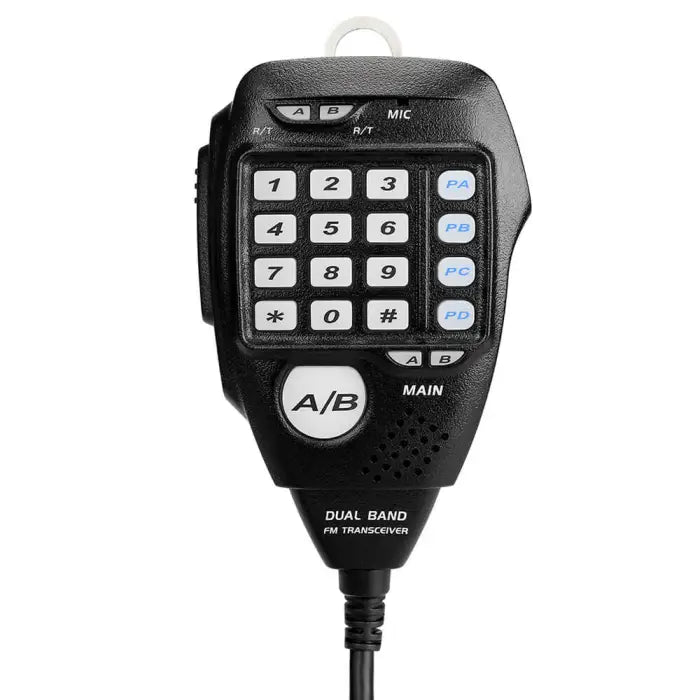

- 1 x Handheld mic
- 1 x Mounting hardware
- 1 x User’s manual
Description
The Retevis RT95 FCC Dual Band Mobile Amateur Ham Radio is perfect for drivers, with its innovative design and practical features. This mobile radio operates on both 2m and 70cm bands, and offers 200 channels with 52 CTCSS and 1024 DCS repeater tones. Its robust design, smart menu control, and 7 programmable keys make it easy to use. Plus, it supports CHIPR programming for even more customization options. (Programming cable sold separately)
- FCC ID：2ASNSRT95
- IC/ISED: 27919-RT95
Specifications:
| Frequency Range |
VHF: 144-148MHz UHF: 420~450MHz |
||
| Number of Channels | 200 channels | ||
| Channel Spacing | 25K (Wide Band) 20K(Middle Band) 12.5K (Narrow band) | ||
| Phase-locked Step | 2.5KHz, 5KHz, 6.25KHz, 10KHz, 12.5KHz, 20KHz, 25KHz, 30KHz, 50KHz | ||
| Operating Voltage | 13.8V DC ±15% | ||
| Squelch | Carrier/CTCSS/DCS | ||
| Frequency Stability | ±2.5 ppm | ||
| Operating Temperature | -20℃~+60℃ | ||
| Dimensions(mm) | 124 (W) x 163(D) x 39 (H) | ||
| Weight | ~0.64Kg | ||
| RECEIVER | |||
| Wide band | Narrow band | ||
| Sensitivity (12dB Sinad) | ≤0.25μV | ≤0.35μV | |
| AdjacentChannelSelectivity | ≥60dB | ≥60dB | |
| Audio Response | +1~-3dB(0.3~3KHz) | +1~-3dB(0.3~2.55KHz) | |
| Hum & Noise | ≥45dB | ≥40dB | |
| Audio distortion | ≤5% | ||
| Audio power output | >2W@8 | ||
| TRANSMITTER | |||
| Wide band | Narrow band | ||
| Power Output | 25W / 15W / 5W | ||
| Modulation | 16KΦF3E | 11KΦF3E | |
| Adjacent Channel Power | ≥70dB | ≥60dB | |
| Hum & Noise | ≥40dB | ≥36dB | |
| Spurious Emission | ≥60dB | ≥60dB | |
| Audio Response | +1~-3dB(0.3~3KHz) | +1~- dB(0.3~2.55KHz) | |
| Audio Distortion | ≤5% | ||
What’s in the Box？
- 1 x Mobile radio
- 1 x Power cable
- 1 x Handheld mic
- 1 x Mounting hardware
- 1 x User’s manual
