uSDR uSDX+ Plus V2 8-Band HF QRP SDR Transceiver (4000mAh Battery Included)
uSDR uSDX+ Plus V2 8-Band HF QRP SDR Transceiver (4000mAh Battery Included)
Couldn't load pickup availability
Why Buy?
Why Buy?
Not quite sure if this is right for you? Contact Us for expert advice!
Quick Specs
Quick Specs
K Plug
5W
Scoll down for more information about this item.

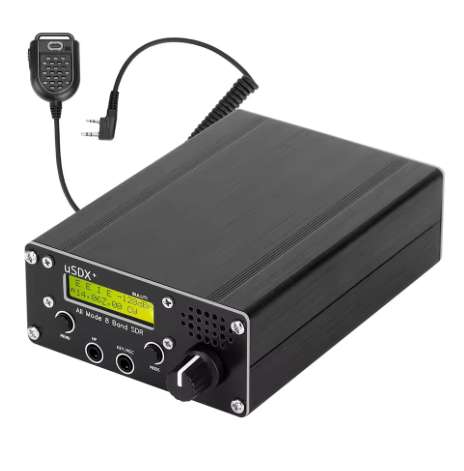

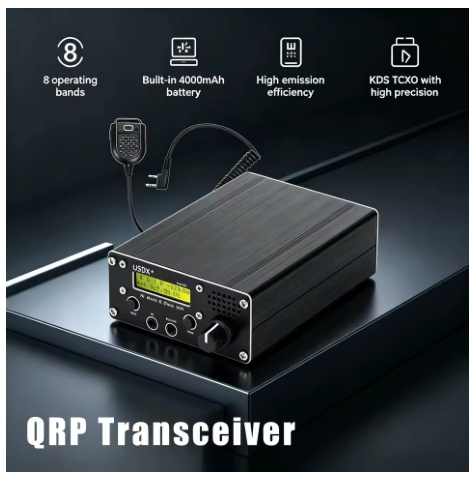

The uSDR uSDX+ Plus V2 is an ultra-compact, 8-band all-mode QRP Software Defined Radio (SDR) transceiver engineered for the dedicated amateur radio experimenter. Providing maximum field capability out of the box, this unit sets itself apart by including a built-in 4000mAh lithium-ion battery pack and is fully backed by a 90-Day Canadian Warranty for added peace of mind.
💡 A Note for New Operators: This is a Hobbyist SDR
This radio is a powerful, high-performance SDR. It is not a "turnkey" appliance like a Yaesu or Icom. It is designed for the ham radio enthusiast who is comfortable with technology, updating firmware, and technical operation.
We test each unit before it ships, but support is community-based. This radio is for the true hobbyist who wants maximum features and performance for the price. For this reason Fleetwood Digital is unable to provide much in the way of technical support for this item as there are no schematics or service manuals available.
What does Fleetwood Digital provide? A safe and secure ordering and payment processor. The option to purchase extended warranty and shipping insurance. Fleetwood Digital also offers financing for larger purchases. We hope these value added propositions will earn your trust.
⚠️ Critical Hardware Warning: SWR & Transmitting
The Class-E RF output stage utilizes delicate BS170 MOSFET transistors. Never press PTT without a resonant 50-ohm antenna or 50-ohm dummy load connected to the rear BNC jack. Operating into a high SWR (above 2.0:1) will destroy the final transistors almost instantly. Always verify your antenna match before transmitting.
Performance & Engineering Highlights
-
🔋

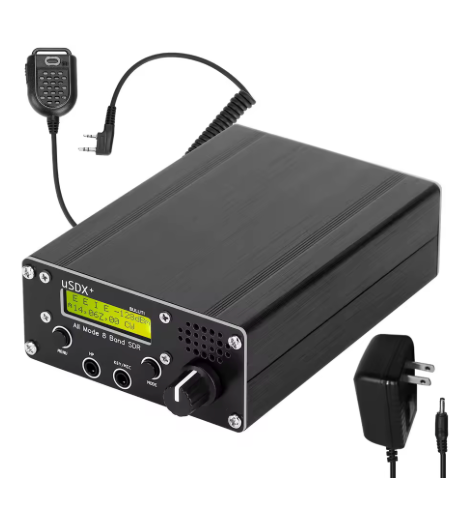

Internal 4000mAh Battery & Canadian Warranty Forget sourcing external power for portable ops. This unit includes a built-in 4000mAh (11.1V–12.6V) battery pack and the required 12.6V AC/DC wall charger, fully supported by a 90-Day Canadian Warranty.
-
📻
8-Band Coverage & All-Mode Output Operates on 80m, 60m, 40m, 30m, 20m, 17m, 15m, and 10m in USB, LSB, CW, AM, and FM modes. Delivers 3-5W on internal power, and up to 8W on external 13.8V.
-
💻
Advanced DSP Capabilities Features adjustable digital passband filters (50 Hz to Full), Automatic Gain Control (AGC), Digital Noise Reduction (NR), and built-in text decoding for Morse Code.
-
🔌

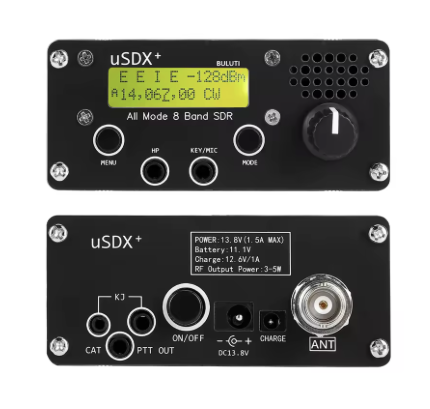

Standard K1 Audio Interface The rear panel features a standard 2-pin K1 socket, allowing seamless integration with hand mics, Digirig interfaces, or AIOC cables for FT8 digital mode operation.
Technical Specifications
| Product Model | uSDR uSDX+ Plus V2 |
|---|---|
| Supported Bands | 80m, 60m, 40m, 30m, 20m, 17m, 15m, 10m |
| Operating Modes | USB, LSB, CW, AM, FM |
| RF Power Output | 3W – 5W (Internal Battery) / 4W – 8W (13.8V External) |
| Final Amplifier Stage | BS170 MOSFETs (Push-Pull Class-E) |
| Antenna Connector | BNC Female (50 Ohms Unbalanced) |
| Included Power | Built-in 4000mAh Li-ion Battery & 12.6V Charger |
| Warranty Protection | 90-Day Canadian Warranty |
Description
The uSDR uSDX+ Plus V2 is an ultra-compact, 8-band all-mode QRP Software Defined Radio (SDR) transceiver engineered for the dedicated amateur radio experimenter. Providing maximum field capability out of the box, this unit sets itself apart by including a built-in 4000mAh lithium-ion battery pack and is fully backed by a 90-Day Canadian Warranty for added peace of mind.
💡 A Note for New Operators: This is a Hobbyist SDR
This radio is a powerful, high-performance SDR. It is not a "turnkey" appliance like a Yaesu or Icom. It is designed for the ham radio enthusiast who is comfortable with technology, updating firmware, and technical operation.
We test each unit before it ships, but support is community-based. This radio is for the true hobbyist who wants maximum features and performance for the price. For this reason Fleetwood Digital is unable to provide much in the way of technical support for this item as there are no schematics or service manuals available.
What does Fleetwood Digital provide? A safe and secure ordering and payment processor. The option to purchase extended warranty and shipping insurance. Fleetwood Digital also offers financing for larger purchases. We hope these value added propositions will earn your trust.
⚠️ Critical Hardware Warning: SWR & Transmitting
The Class-E RF output stage utilizes delicate BS170 MOSFET transistors. Never press PTT without a resonant 50-ohm antenna or 50-ohm dummy load connected to the rear BNC jack. Operating into a high SWR (above 2.0:1) will destroy the final transistors almost instantly. Always verify your antenna match before transmitting.
Performance & Engineering Highlights
-
🔋
Internal 4000mAh Battery & Canadian Warranty Forget sourcing external power for portable ops. This unit includes a built-in 4000mAh (11.1V–12.6V) battery pack and the required 12.6V AC/DC wall charger, fully supported by a 90-Day Canadian Warranty.
-
📻
8-Band Coverage & All-Mode Output Operates on 80m, 60m, 40m, 30m, 20m, 17m, 15m, and 10m in USB, LSB, CW, AM, and FM modes. Delivers 3-5W on internal power, and up to 8W on external 13.8V.
-
💻
Advanced DSP Capabilities Features adjustable digital passband filters (50 Hz to Full), Automatic Gain Control (AGC), Digital Noise Reduction (NR), and built-in text decoding for Morse Code.
-
🔌
Standard K1 Audio Interface The rear panel features a standard 2-pin K1 socket, allowing seamless integration with hand mics, Digirig interfaces, or AIOC cables for FT8 digital mode operation.
Technical Specifications
| Product Model | uSDR uSDX+ Plus V2 |
|---|---|
| Supported Bands | 80m, 60m, 40m, 30m, 20m, 17m, 15m, 10m |
| Operating Modes | USB, LSB, CW, AM, FM |
| RF Power Output | 3W – 5W (Internal Battery) / 4W – 8W (13.8V External) |
| Final Amplifier Stage | BS170 MOSFETs (Push-Pull Class-E) |
| Antenna Connector | BNC Female (50 Ohms Unbalanced) |
| Included Power | Built-in 4000mAh Li-ion Battery & 12.6V Charger |
| Warranty Protection | 90-Day Canadian Warranty |
