OPEN BOX: Retevis RT3S Dual Band DMR GPS Amateur Ham Radio
OPEN BOX: Retevis RT3S Dual Band DMR GPS Amateur Ham Radio
HURRY! Selling out fast! Only 1 left in stock!
Promotions
Promotions
Login to your account or create one, to see what QSO Rewards are waiting for you!
Couldn't load pickup availability
Quick Specs
Quick Specs
K Plug
5W
Scoll down for more information about this item.
PLEASE NOTE - THIS ITEM IS OPEN BOX
COMPLETE WITH ALL ORIGINAL ACCESSORIES AND BOX

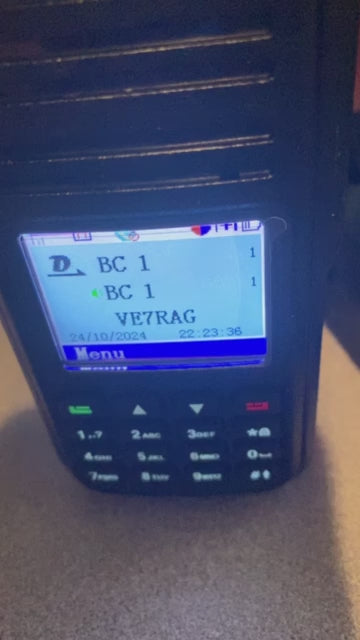

NOTE THE CHANNEL KNOB DOES NOT ADVANCE CHANNELS SMOOTHLY AND OFTEN SKIPS OR REPEATS. SOLD AS/IS - SEE VIDEO

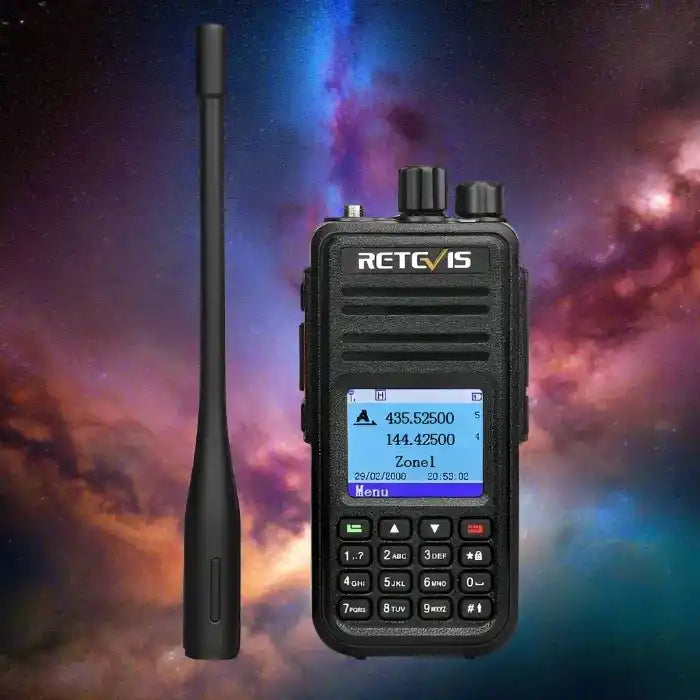

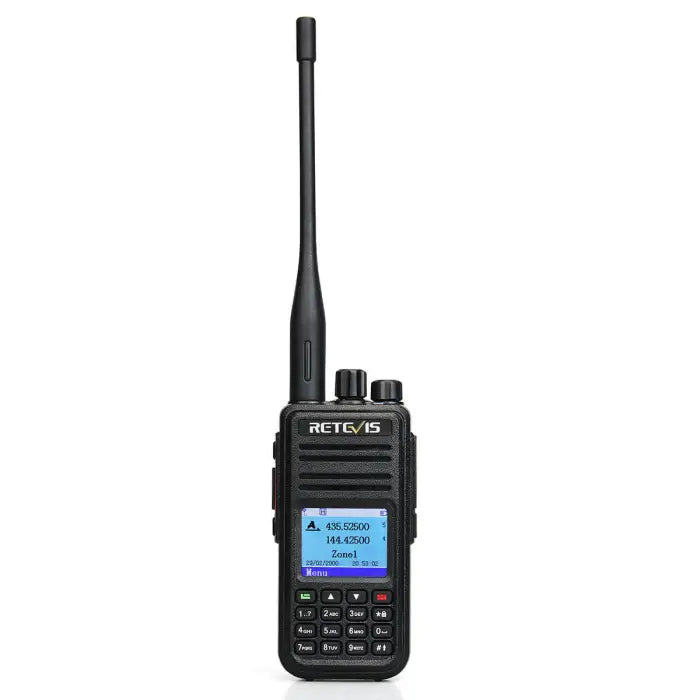

The Retevis RT3S Dual Band DMR GPS Amateur Ham Radio is compact and versatile, with two frequency bands to choose from depending on your location and needs. It supports both digital and analog modes, and comes with the powerful Digital Mobile Radio (DMR) Tier 2 Standard protocol. Plus, it's compatible with the popular MOTO TRBO series Tier I and II and has standard encryption capabilities. You can even use it with existing analog two-way radios for a smooth transition to digital technology.
With up to 3000 channels and the ability to import contact information, this radio offers advanced communication capabilities. And don't worry about battery life, as the 2000mAh rechargeable battery provides up to 16 hours of use and 48 hours of standby. And with GPS included, you can easily navigate your way in the great outdoors or share your location with others.
| General specifications | |
| Frequency |
VHF: 144-148 UHF: 420-450 |
| Channels | 3000 |
| Frequency Stability | 1ppm |
| Operating Temperature | -30℃~+60℃ |
| Operating Voltage | 7.4V DC |
| Dimension | 131 x 61 x 36mm |
| Weight | 258g (with battery) |
| Battery Type | Li-ion |
| Battery Capacity | 2000mAh |
| Antenna Impedance | 50 Ohm |
| Audio Impedance | 1W@16 Ohm |
| Channel Spacing | 12.5KHz |
| Vocoder | AMBE+2 |
| Transmitter | |
| Power | High~5W / Low~1W |
| Frequency Stability | 1.0ppm |
| Adjacent Channel Power | -60dB |
| Free Time Slot Power | TDMA: 57dBm |
| Hum and noise | -40dB@12.5KHz |
| Spurious radiation |
Antenna:9KHz-1GHz -36dBm 1GHz-12.75GHz -30dBm |
| FM modulation mode | 11K0F3E@12.5KHz |
| 4FSK digital mode |
12.5KHz(data only): 7K60FXD 12.5KHz(data and voice): 7K60FXW |
| Modulation maximum deviation | 2.5KHz@12.5KHz |
| Nonactive slot power | -57dBm |
| Digital Protocol | ETSI-TS102 361-1,-2,-3 |
| Audio Response | +1~-3dB |
| Modulation BER(bit error rate) | 5% |
| Receiver | |
| Analog Sensibility | 0.2uV @ 12dB SINAD |
| Digital Sensibility | 0.25uV (BER:5%) |
| Adjacent Channel Selectivity | -60dB @ 12.5KHz |
| Intermodulation | 60dB |
| Spurious Response | 70dB |
| Audio Response | +1~-3dB |
| Rated Audio Distortion | ＜5% |
| Rated Audio Power | 1W |
| Modulation |
45dB @ 25KHz 40dB @ 12.5KHz |
- GPS
- Use time-division multiple-Access
- (TDMA)digital function
- Dual time slot for repeater
- Dual time slot for point to point
- Firmware upgradeable
- Lone worker
- Encryption function
- Compatible with Mototrbo TierⅠ&Ⅱ
- Single call,group call and all call
- Analog and digital combiend
- Remote kill /stun and activate
- Up to 3000 channels
- Transmit interruption
- Group call match(promiscuous)
- Private call match(promiscuous)
- Record
- Emergency Alarm
- VOX
- TOT
What's In The Box
- RT3S GPS two way radio
- Battery
- Antenna
- Adapter
- Charger
- Users manual
- Belt clip
- Wrist Strap
Important Notice:
DMR Radios require advanced Windows computer knowledge to program. Fleetwood Digital has a very basic tutorial HERE to help with programming. We do not have the resources to assist any further.
Description
PLEASE NOTE - THIS ITEM IS OPEN BOX
COMPLETE WITH ALL ORIGINAL ACCESSORIES AND BOX
NOTE THE CHANNEL KNOB DOES NOT ADVANCE CHANNELS SMOOTHLY AND OFTEN SKIPS OR REPEATS. SOLD AS/IS - SEE VIDEO
The Retevis RT3S Dual Band DMR GPS Amateur Ham Radio is compact and versatile, with two frequency bands to choose from depending on your location and needs. It supports both digital and analog modes, and comes with the powerful Digital Mobile Radio (DMR) Tier 2 Standard protocol. Plus, it's compatible with the popular MOTO TRBO series Tier I and II and has standard encryption capabilities. You can even use it with existing analog two-way radios for a smooth transition to digital technology.
With up to 3000 channels and the ability to import contact information, this radio offers advanced communication capabilities. And don't worry about battery life, as the 2000mAh rechargeable battery provides up to 16 hours of use and 48 hours of standby. And with GPS included, you can easily navigate your way in the great outdoors or share your location with others.
| General specifications | |
| Frequency |
VHF: 144-148 UHF: 420-450 |
| Channels | 3000 |
| Frequency Stability | 1ppm |
| Operating Temperature | -30℃~+60℃ |
| Operating Voltage | 7.4V DC |
| Dimension | 131 x 61 x 36mm |
| Weight | 258g (with battery) |
| Battery Type | Li-ion |
| Battery Capacity | 2000mAh |
| Antenna Impedance | 50 Ohm |
| Audio Impedance | 1W@16 Ohm |
| Channel Spacing | 12.5KHz |
| Vocoder | AMBE+2 |
| Transmitter | |
| Power | High~5W / Low~1W |
| Frequency Stability | 1.0ppm |
| Adjacent Channel Power | -60dB |
| Free Time Slot Power | TDMA: 57dBm |
| Hum and noise | -40dB@12.5KHz |
| Spurious radiation |
Antenna:9KHz-1GHz -36dBm 1GHz-12.75GHz -30dBm |
| FM modulation mode | 11K0F3E@12.5KHz |
| 4FSK digital mode |
12.5KHz(data only): 7K60FXD 12.5KHz(data and voice): 7K60FXW |
| Modulation maximum deviation | 2.5KHz@12.5KHz |
| Nonactive slot power | -57dBm |
| Digital Protocol | ETSI-TS102 361-1,-2,-3 |
| Audio Response | +1~-3dB |
| Modulation BER(bit error rate) | 5% |
| Receiver | |
| Analog Sensibility | 0.2uV @ 12dB SINAD |
| Digital Sensibility | 0.25uV (BER:5%) |
| Adjacent Channel Selectivity | -60dB @ 12.5KHz |
| Intermodulation | 60dB |
| Spurious Response | 70dB |
| Audio Response | +1~-3dB |
| Rated Audio Distortion | ＜5% |
| Rated Audio Power | 1W |
| Modulation |
45dB @ 25KHz 40dB @ 12.5KHz |
- GPS
- Use time-division multiple-Access
- (TDMA)digital function
- Dual time slot for repeater
- Dual time slot for point to point
- Firmware upgradeable
- Lone worker
- Encryption function
- Compatible with Mototrbo TierⅠ&Ⅱ
- Single call,group call and all call
- Analog and digital combiend
- Remote kill /stun and activate
- Up to 3000 channels
- Transmit interruption
- Group call match(promiscuous)
- Private call match(promiscuous)
- Record
- Emergency Alarm
- VOX
- TOT
What's In The Box
- RT3S GPS two way radio
- Battery
- Antenna
- Adapter
- Charger
- Users manual
- Belt clip
- Wrist Strap
Important Notice:
DMR Radios require advanced Windows computer knowledge to program. Fleetwood Digital has a very basic tutorial HERE to help with programming. We do not have the resources to assist any further.
