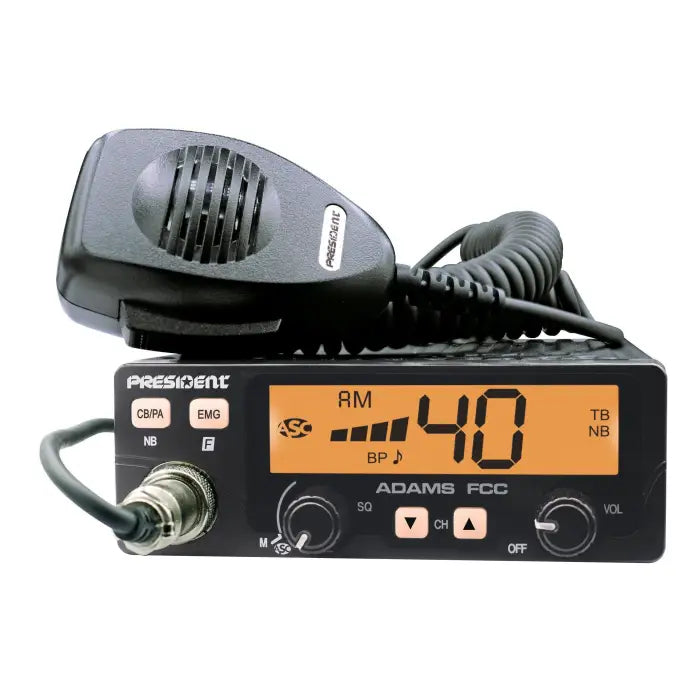

President Adams FCC 40 Channel AM CB Radio
President Adams FCC 40 Channel AM CB Radio
Promotions
Promotions
Login to your account or create one, to see what QSO Rewards are waiting for you!
Couldn't load pickup availability
Quick Specs
Quick Specs
4W
Scoll down for more information about this item.
- 40 channels AM
- Up/down channel selector
- Volume adjustment and ON/OFF
- Manual squelch and ASC
- Multi-functions LCD display
- S-meter
- ANL filter , NB
- F function key
- Beep Function
- Roger Beep
- EMG programmable
- Talkback
- Public Address
- Microphone Dynamic / Electret
- Front microphone plug
- External loudspeaker jack
Backlight color:
| Supply | : | 13.8 V |
| Number of channels | : | 40 |
| AM | : | Y |
| Channel selector | : | up / down |
| Volume | : | Volume adjustment and ON/OFF |
| Squelch | : | Manual squelch |
| ASC | : | Y |
| Display | : | LCD multifunction |
| S-meter | : | Digital |
| Public address | : | Y |
| Talkback | : | Y |
| Filter ANL | : | Y |
| Filter NB | : | Y |
| Beep Function | : | Y |
| Roger beep | : | Y |
| Preset channel | : | EMG |
| microphone plug | : | Front (4 pins) |
| External loudspeaker jack | : | Y |
| Size (W x D x H) | : | 4.92 (W) x 5.94 (D) x 1.77 (H) inches / 125 (W) x 151 (D) x 45 (H) mm |
| Weight | : | ~ 1.98 lbs / 0.9 kg |
| Number of channels | : | 40 |
| Modulation modes | : | AM |
| Frequency ranges | : | from 26.965 MHz to 27.405 MHz |
| Antenna impedance | : | 50 ohms |
| Power supply | : | 13.8 V |
| Size (W x D x H) | : | 4.92 (W) x 5.94 (D) x 1.77 (H) inches / 125 (W) x 151 (D) x 45 (H) mm |
| Weight | : | ~ 1.98 lbs / 0.9 kg |
| Accessories supplied | : | Ultra light electret microphone with support, mounting cradle, screws |
| Filter | : | ANL (Automatic Noise Limiter) built-in |
| Frequency allowance | : | +/- 200 Hz |
| Carrier power | : | 4 W RMS |
| Transmission interference | : | inferior to -60 dBc |
| Audio response | : | 300 Hz to 3 KHz |
| Emitted power in the adj. channel | : | inferior to 20 μW |
| Microphone sensitivity | : | 3 mV |
| Drain | : | 2 A |
| Modulated signal distortion | : | 1.8 % |
| Maxi. sensitivity at 20 dB sinad | : | 0.6 μV - 111 dBm |
| Frequency response | : | 300 Hz to 3 kHz |
| Adjacent channel selectivity | : | > 60 dB |
| Maximum audio power | : | 3 W |
| Squelch sensitivity | : | minimum 0.2 µV - 120 dBm, maximum 1 mV - 47 dBm |
| Frequency image rejection rate | : | 60 dB |
| Intermediate frequency rej. rate | : | 70 dB |
| Drain | : | 160 ~ 500 mA (13.8 V) |
Description
- 40 channels AM
- Up/down channel selector
- Volume adjustment and ON/OFF
- Manual squelch and ASC
- Multi-functions LCD display
- S-meter
- ANL filter , NB
- F function key
- Beep Function
- Roger Beep
- EMG programmable
- Talkback
- Public Address
- Microphone Dynamic / Electret
- Front microphone plug
- External loudspeaker jack
Backlight color:
| Supply | : | 13.8 V |
| Number of channels | : | 40 |
| AM | : | Y |
| Channel selector | : | up / down |
| Volume | : | Volume adjustment and ON/OFF |
| Squelch | : | Manual squelch |
| ASC | : | Y |
| Display | : | LCD multifunction |
| S-meter | : | Digital |
| Public address | : | Y |
| Talkback | : | Y |
| Filter ANL | : | Y |
| Filter NB | : | Y |
| Beep Function | : | Y |
| Roger beep | : | Y |
| Preset channel | : | EMG |
| microphone plug | : | Front (4 pins) |
| External loudspeaker jack | : | Y |
| Size (W x D x H) | : | 4.92 (W) x 5.94 (D) x 1.77 (H) inches / 125 (W) x 151 (D) x 45 (H) mm |
| Weight | : | ~ 1.98 lbs / 0.9 kg |
| Number of channels | : | 40 |
| Modulation modes | : | AM |
| Frequency ranges | : | from 26.965 MHz to 27.405 MHz |
| Antenna impedance | : | 50 ohms |
| Power supply | : | 13.8 V |
| Size (W x D x H) | : | 4.92 (W) x 5.94 (D) x 1.77 (H) inches / 125 (W) x 151 (D) x 45 (H) mm |
| Weight | : | ~ 1.98 lbs / 0.9 kg |
| Accessories supplied | : | Ultra light electret microphone with support, mounting cradle, screws |
| Filter | : | ANL (Automatic Noise Limiter) built-in |
| Frequency allowance | : | +/- 200 Hz |
| Carrier power | : | 4 W RMS |
| Transmission interference | : | inferior to -60 dBc |
| Audio response | : | 300 Hz to 3 KHz |
| Emitted power in the adj. channel | : | inferior to 20 μW |
| Microphone sensitivity | : | 3 mV |
| Drain | : | 2 A |
| Modulated signal distortion | : | 1.8 % |
| Maxi. sensitivity at 20 dB sinad | : | 0.6 μV - 111 dBm |
| Frequency response | : | 300 Hz to 3 kHz |
| Adjacent channel selectivity | : | > 60 dB |
| Maximum audio power | : | 3 W |
| Squelch sensitivity | : | minimum 0.2 µV - 120 dBm, maximum 1 mV - 47 dBm |
| Frequency image rejection rate | : | 60 dB |
| Intermediate frequency rej. rate | : | 70 dB |
| Drain | : | 160 ~ 500 mA (13.8 V) |
Purchase With Confidence
Questions & Answers
Have a Question?
-
is this all i need to use the cb from my home?
In addition to the radio an antenna system and power supply would also be required. Below is an example, other options due exist and you can browse our catalog to see them all.
Antenna: https://www.fleetwooddp.com/products/antron-a99-18-cb-base-antenna?_pos=1&_psq=a-99&_ss=e&_v=1.0
Coax: https://www.fleetwooddp.com/products/highway-man-50-rg58-pl259-coax-cable?_pos=11&_sid=ef90b642c&_ss=r&variant=14739366790
Power Supply: https://www.fleetwooddp.com/collections/power-supplies/products/pyramid-ps12kx-linear-regulated-12v-10a-dc-power-supply
Thanks
Bill -
Is this radio needs to be programmed to bc logging roads
CB Radios are pre-programmed to the 40 channels authorized for use on CB. While CH. 19 is a common frequency for commercial truck drivers, CB radio is not the standard use on BC Logging Roads. CB Radios are not programable to other channels, and therefor I do not recommend for use on BC Logging Roads. Please consider this radio here, it is far more appropriate:
https://www.fleetwooddp.com/products/tecnet-tm-8102-50w-vhf-fixed-mount-land-mobile-radio?_pos=1&_psq=tm-8102&_ss=e&_v=1.0
Thanks
Bill
