Pyramid PS9KX 5A / 7A Peak Linear Power Supply w/ Lighter Port
Pyramid PS9KX 5A / 7A Peak Linear Power Supply w/ Lighter Port
Couldn't load pickup availability
Why Buy?
Why Buy?
Not quite sure if this is right for you? Contact Us for expert advice!
Quick Specs
Quick Specs
Scoll down for more information about this item.

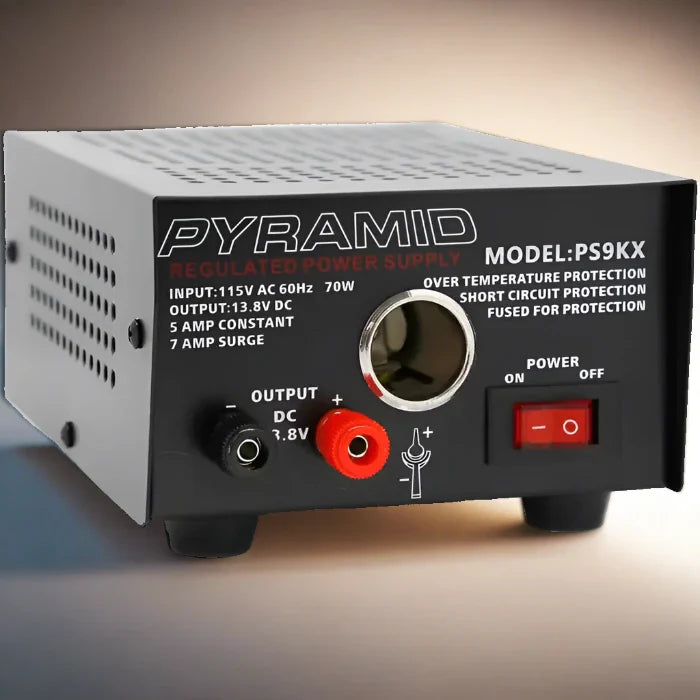

For the operator who needs clean, quiet power for low-current devices, the Pyramid PS9KX is a rock-solid, affordable solution. This is a Linear power supply, meaning it uses a heavy-duty transformer to convert 110V AC to 13.8V DC. While heavier than modern "switching" supplies, this design is virtually noise-free and will not introduce radio frequency (RF) interference into your signal.
With 5 amps of continuous power (7A peak), it's the perfect choice for powering CB radios, scanners, and other low-power 12V accessories on your desk. The convenient front-panel cigarette lighter port makes it easy to plug in all your mobile gear indoors.
⚠️ Critical: Power Limitations
This is a low-amperage power supply. It is designed for equipment that draws 5 amps or less (e.g., CBs, scanners, handheld radio chargers).
It is NOT suitable for any mobile radio (GMRS, Ham, or Business) as they all draw more than 5A when transmitting. Using this supply with a mobile radio will cause the radio to shut down when you key the microphone.
-
📻
RF-Quiet Linear Design: Provides extremely clean and stable 13.8V DC power, ideal for sensitive radio receivers like CBs and scanners.
-
⚡️
5 Amp Continuous Power: Delivers 5A continuous and 7A peak (surge) current, perfect for powering most CB radios and scanners.
-
🔌

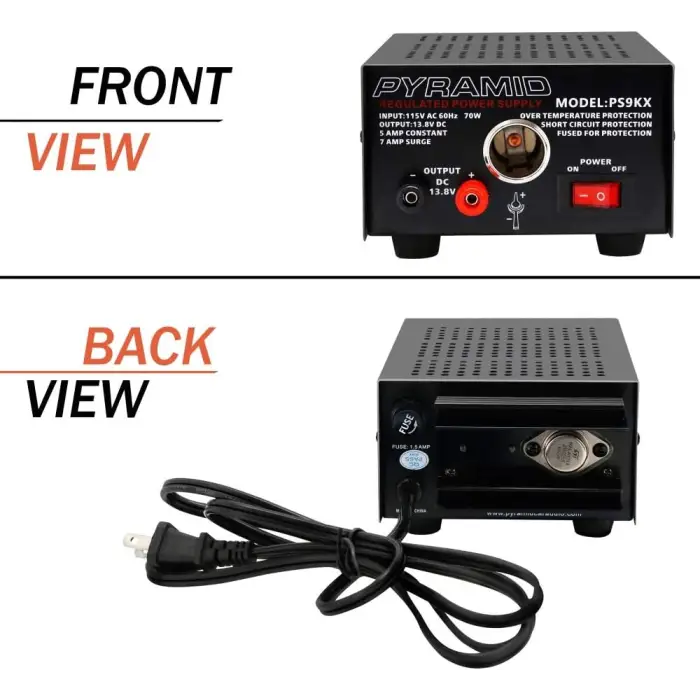

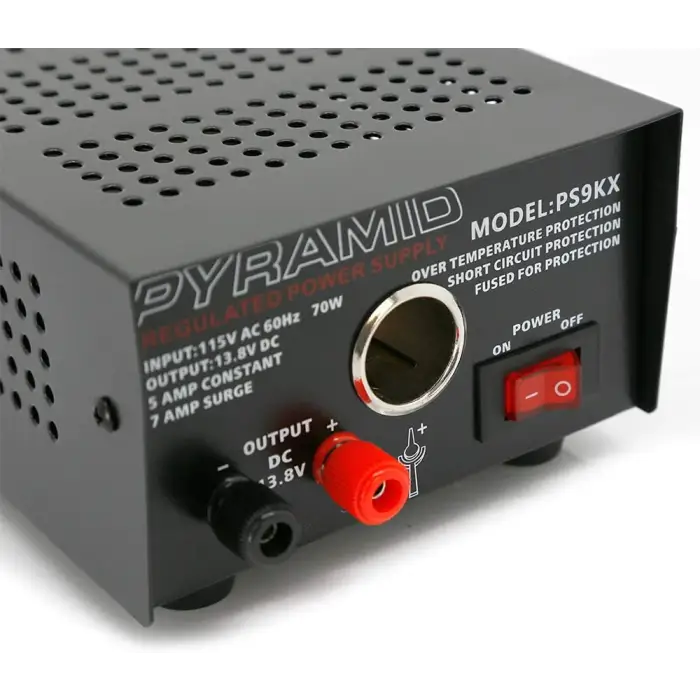

Dual Output Ports: Features a front-panel cigarette lighter port for easy access and standard rear-panel binding posts for a permanent connection.
-
🛡️
Fully Protected: Built-in thermal and short-circuit protection safeguards your connected equipment. Features an illuminated front-panel power switch.
Technical Specifications
| Specification | Detail |
|---|---|
| PS9KX | |
| Linear, Regulated | |
| 110-120 VAC, 60 Hz | |
| 13.8 VDC (Fixed) | |
| 5 Amps | |
| 7 Amps | |
| Rear Binding Posts, Front Cigarette Lighter Port | |
| Short Circuit, Thermal | |
| ~3.8 kg (8.4 lbs) | |
| 19.1 x 17.8 x 10.7 cm (7.5" x 7" x 4.2") |
Description
For the operator who needs clean, quiet power for low-current devices, the Pyramid PS9KX is a rock-solid, affordable solution. This is a Linear power supply, meaning it uses a heavy-duty transformer to convert 110V AC to 13.8V DC. While heavier than modern "switching" supplies, this design is virtually noise-free and will not introduce radio frequency (RF) interference into your signal.
With 5 amps of continuous power (7A peak), it's the perfect choice for powering CB radios, scanners, and other low-power 12V accessories on your desk. The convenient front-panel cigarette lighter port makes it easy to plug in all your mobile gear indoors.
⚠️ Critical: Power Limitations
This is a low-amperage power supply. It is designed for equipment that draws 5 amps or less (e.g., CBs, scanners, handheld radio chargers).
It is NOT suitable for any mobile radio (GMRS, Ham, or Business) as they all draw more than 5A when transmitting. Using this supply with a mobile radio will cause the radio to shut down when you key the microphone.
-
📻
RF-Quiet Linear Design: Provides extremely clean and stable 13.8V DC power, ideal for sensitive radio receivers like CBs and scanners.
-
⚡️
5 Amp Continuous Power: Delivers 5A continuous and 7A peak (surge) current, perfect for powering most CB radios and scanners.
-
🔌
Dual Output Ports: Features a front-panel cigarette lighter port for easy access and standard rear-panel binding posts for a permanent connection.
-
🛡️
Fully Protected: Built-in thermal and short-circuit protection safeguards your connected equipment. Features an illuminated front-panel power switch.
Technical Specifications
| Specification | Detail |
|---|---|
| PS9KX | |
| Linear, Regulated | |
| 110-120 VAC, 60 Hz | |
| 13.8 VDC (Fixed) | |
| 5 Amps | |
| 7 Amps | |
| Rear Binding Posts, Front Cigarette Lighter Port | |
| Short Circuit, Thermal | |
| ~3.8 kg (8.4 lbs) | |
| 19.1 x 17.8 x 10.7 cm (7.5" x 7" x 4.2") |
