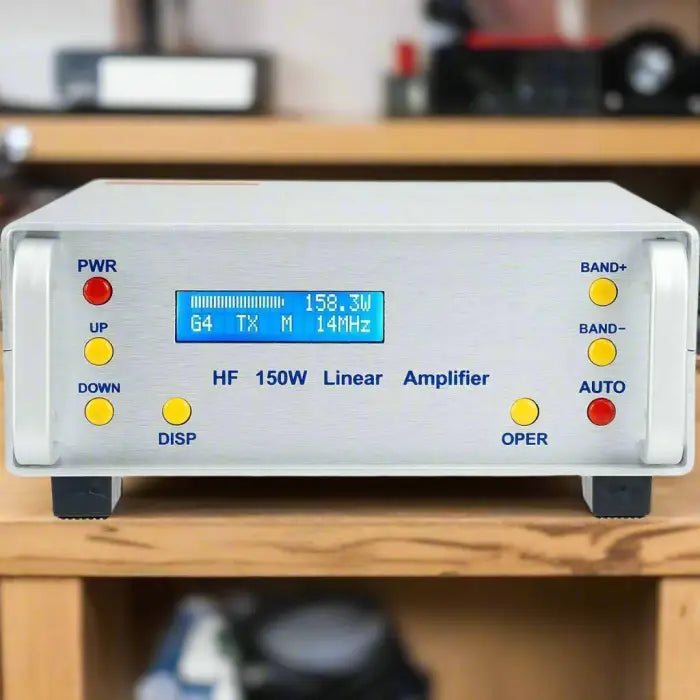

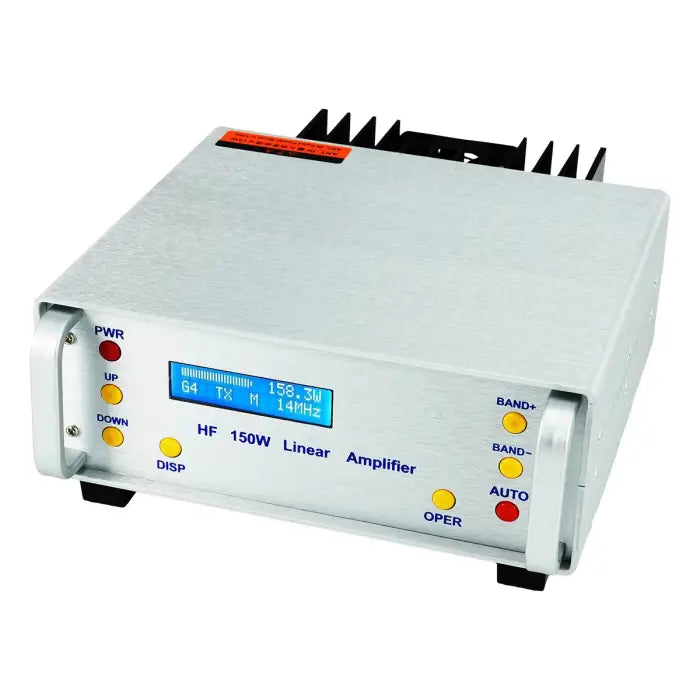

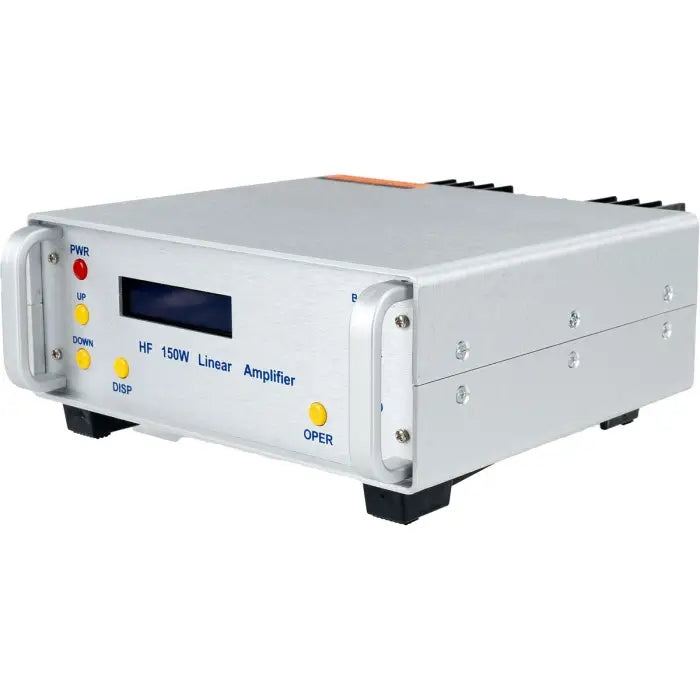

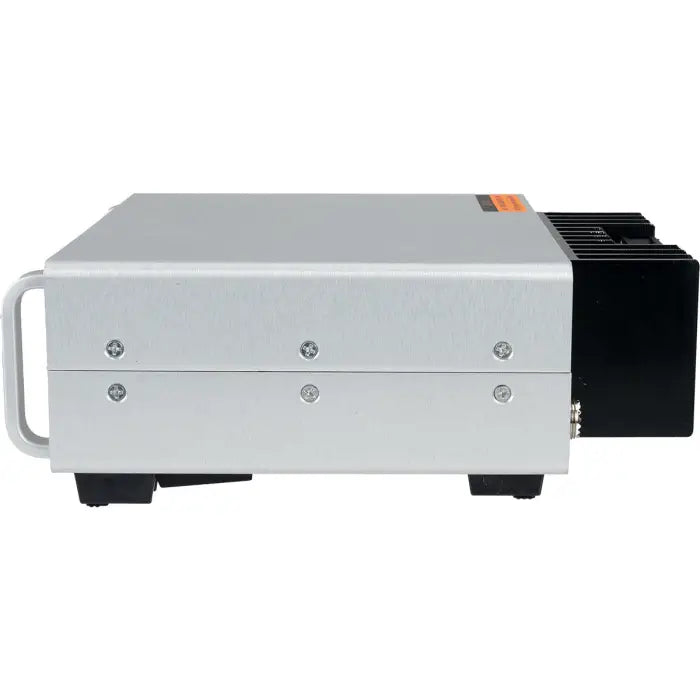

Retevis Ailunce LPA1 150W HF 1.8 - 30MHz SSB Linear Power Amplifier
Retevis Ailunce LPA1 150W HF 1.8 - 30MHz SSB Linear Power Amplifier
Promotions
Promotions
Login to your account or create one, to see what QSO Rewards are waiting for you!
Couldn't load pickup availability
Quick Specs
Quick Specs
Scoll down for more information about this item.
Boost your HF radio signal with the Retevis Ailunce LPA1 150W HF Linear Power Amplifier! With a maximum output of 150W and optimized 6-band low-pass filter, it ensures efficient and reliable performance. The high voltage and SWR protection, along with automatic band synchronization and temperature control, make it a top choice for Amateur Ham Radio use.
Alarm Protection
Multiple alarm protections are available. After an alarm is triggered, should wait for the alarm conditions to be resolved and restored to normal before pressing [PWR] key to exit the alarm state.
Overvoltage Alarm
The default threshold for overvoltage alarm is 14.8V. If exceeding the threshold, the overvoltage alarm will be triggered, and "BATT" flash displays, then "Hi_V" continues to flash and sound an alarm until the voltage returns to normal before pressing [PWR] key to exit the alarm state.
Undervoltage Alarm
The default threshold for undervoltage alarm is 11.0V. If below the threshold, the undervoltage alarm will be triggered, and "BATT" flash displays, then "Lo_V" continues to flash and sound an alarm until the voltage returns to normal before pressing [PWR] key to exit the alarm state.
Overcurrent Alarm
The default threshold for overcurrent alarm is 24.0A. If exceeding the threshold, the overcurrent alarm will be triggered, and "CURR" flash displays, stop transmitting.
Overheating Alarm
When the overheating alarm is triggered, "TEMP"flash displays, sound an alarm and stop transmitting until the temperature returns to normal before pressing [PWR] key to exit the alarm state.
Abnormal SWR Alarm
When the abnormal SWR alarm is triggered, "SWR" flash displays, sound an alarm and stop transmitting.
Features:
- Full digital power, standing wave display
- Perfect protection: High voltage, low voltage, high standing wave and high temperature
- Built-in low-pass filter
- RF detection automatic band switching

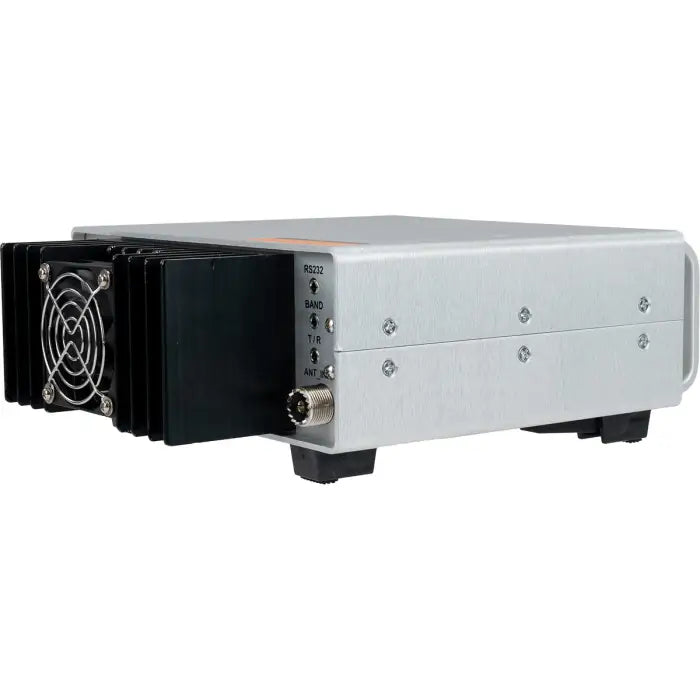

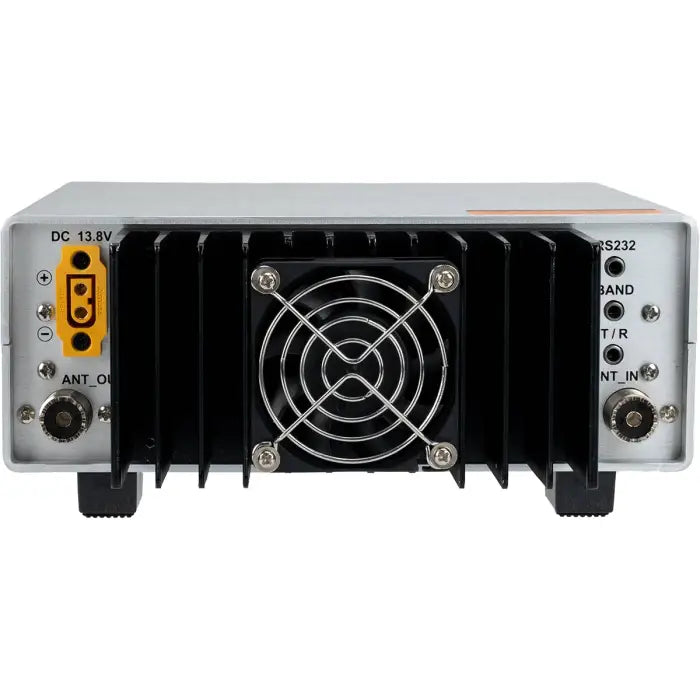

- Automatic temperature control for heat dissipation
General Specifications:

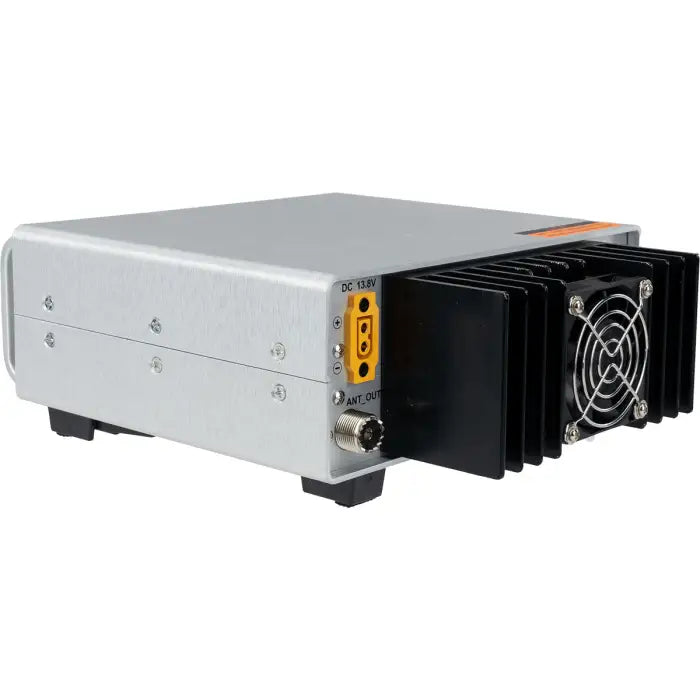

Power Supply: 13.8V ± 15%
Maximum Current: ≤25A
Maximum Output Power: 150W ± 10% NOMINAL 75W
Maximum Input Power: ≤15W
Dimensions (WxHxD): 182 x 60 x 164mm / 7.2 x 2.4 x 6..5"
Weight: 2+ Kg / 2.6lb
Modulation Mode: FM / AM / SSB / CW / FT8

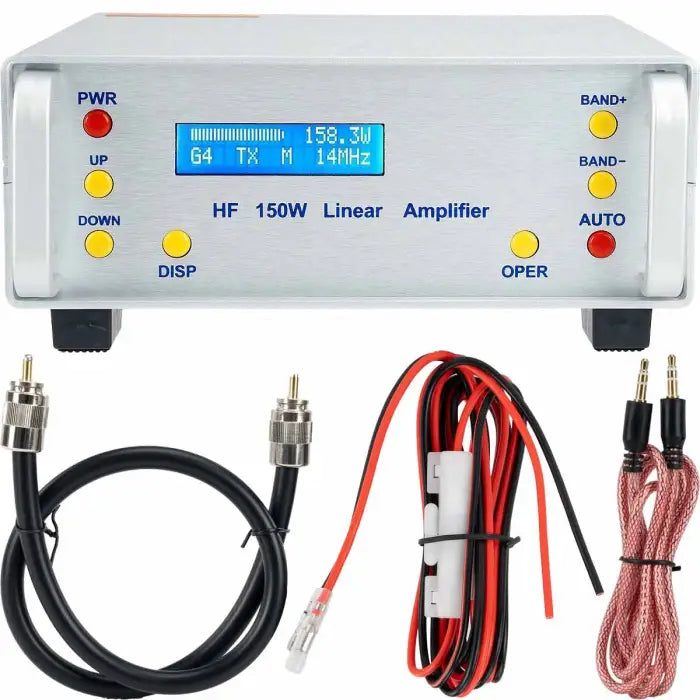

Package Included:
1 x HF amplifier
1 x Power cable
1 x Connection cable
Description
Boost your HF radio signal with the Retevis Ailunce LPA1 150W HF Linear Power Amplifier! With a maximum output of 150W and optimized 6-band low-pass filter, it ensures efficient and reliable performance. The high voltage and SWR protection, along with automatic band synchronization and temperature control, make it a top choice for Amateur Ham Radio use.
Alarm Protection
Multiple alarm protections are available. After an alarm is triggered, should wait for the alarm conditions to be resolved and restored to normal before pressing [PWR] key to exit the alarm state.
Overvoltage Alarm
The default threshold for overvoltage alarm is 14.8V. If exceeding the threshold, the overvoltage alarm will be triggered, and "BATT" flash displays, then "Hi_V" continues to flash and sound an alarm until the voltage returns to normal before pressing [PWR] key to exit the alarm state.
Undervoltage Alarm
The default threshold for undervoltage alarm is 11.0V. If below the threshold, the undervoltage alarm will be triggered, and "BATT" flash displays, then "Lo_V" continues to flash and sound an alarm until the voltage returns to normal before pressing [PWR] key to exit the alarm state.
Overcurrent Alarm
The default threshold for overcurrent alarm is 24.0A. If exceeding the threshold, the overcurrent alarm will be triggered, and "CURR" flash displays, stop transmitting.
Overheating Alarm
When the overheating alarm is triggered, "TEMP"flash displays, sound an alarm and stop transmitting until the temperature returns to normal before pressing [PWR] key to exit the alarm state.
Abnormal SWR Alarm
When the abnormal SWR alarm is triggered, "SWR" flash displays, sound an alarm and stop transmitting.
Features:
- Full digital power, standing wave display
- Perfect protection: High voltage, low voltage, high standing wave and high temperature
- Built-in low-pass filter
- RF detection automatic band switching
- Automatic temperature control for heat dissipation
General Specifications:
Power Supply: 13.8V ± 15%
Maximum Current: ≤25A
Maximum Output Power: 150W ± 10% NOMINAL 75W
Maximum Input Power: ≤15W
Dimensions (WxHxD): 182 x 60 x 164mm / 7.2 x 2.4 x 6..5"
Weight: 2+ Kg / 2.6lb
Modulation Mode: FM / AM / SSB / CW / FT8
Package Included:
1 x HF amplifier
1 x Power cable
1 x Connection cable
