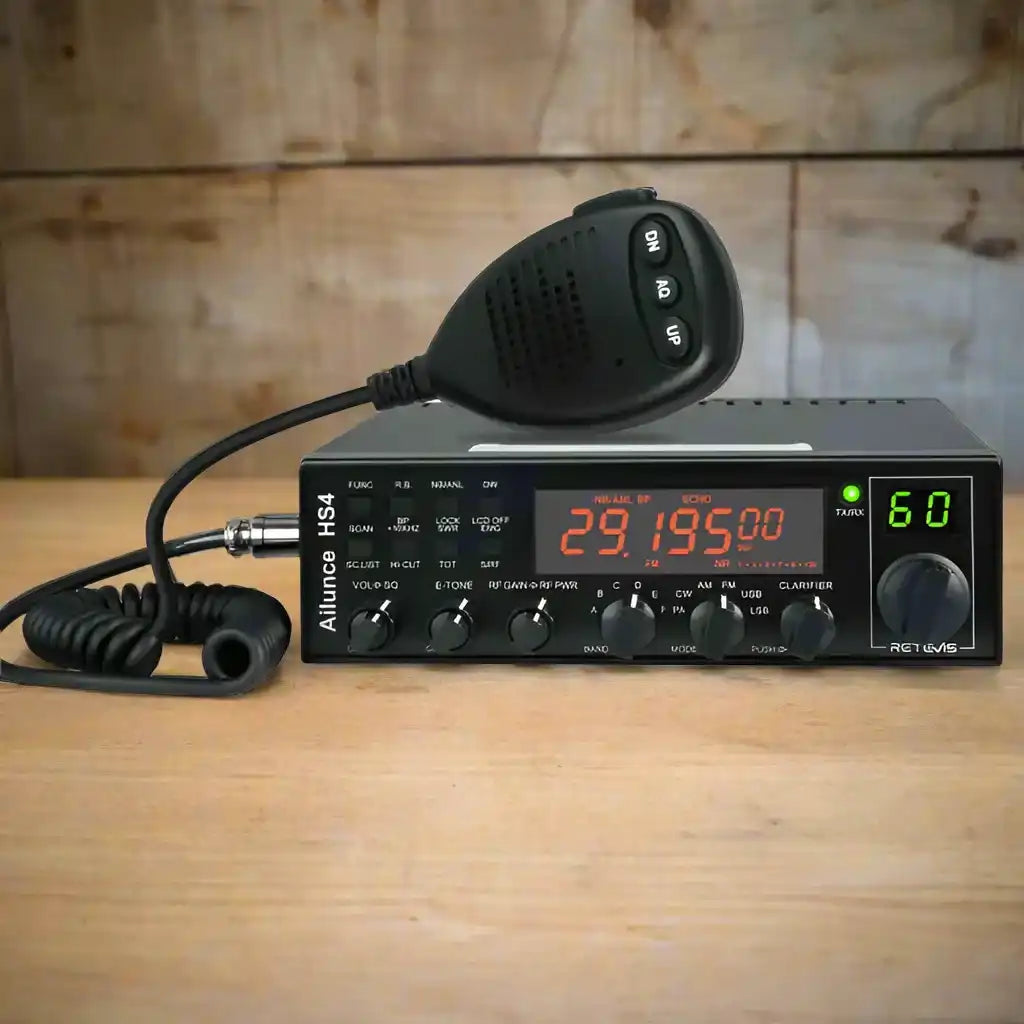

Retevis HS4 (Quad 5 AT-5555) 10+ Meter Mobile CB Style Amateur Ham Radio - 2024 Version With CTCSS/DCS
Retevis HS4 (Quad 5 AT-5555) 10+ Meter Mobile CB Style Amateur Ham Radio - 2024 Version With CTCSS/DCS
Promotions
Promotions
Login to your account or create one, to see what QSO Rewards are waiting for you!
Couldn't load pickup availability
Quick Specs
Quick Specs
4 Pin
40W
Scoll down for more information about this item.

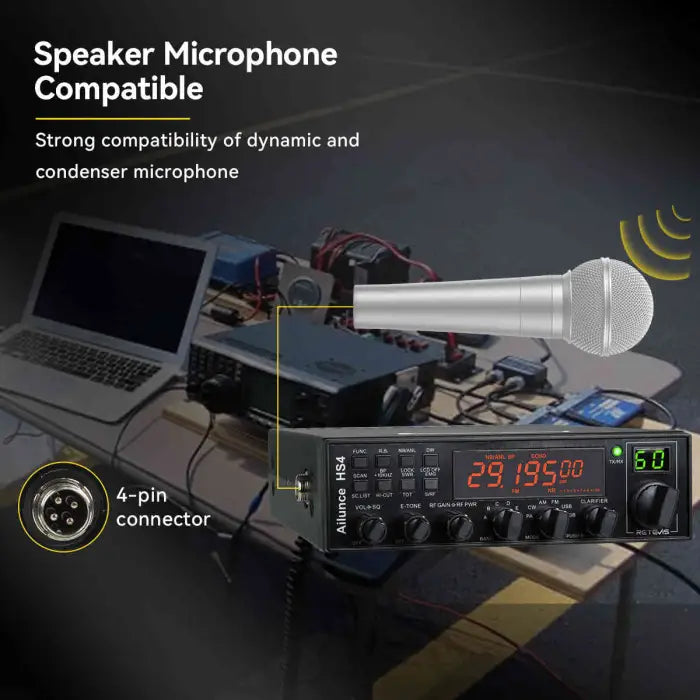

Updated for 2024 This popular 10M Mobile CB Style Amateur Ham Radio now includes CTCSS/DSC tones, and the ability to attach both Electret and Dyna style mics to its standard 4 pin microphone connector. PRE ORDER now and receive a free USB Windows Programming cable with your order.
Retevis Ailunce HS4 10-12 Meter SSB Ham Radio AM/FM/PA/USB/LSB/CW Mobile Transceiver

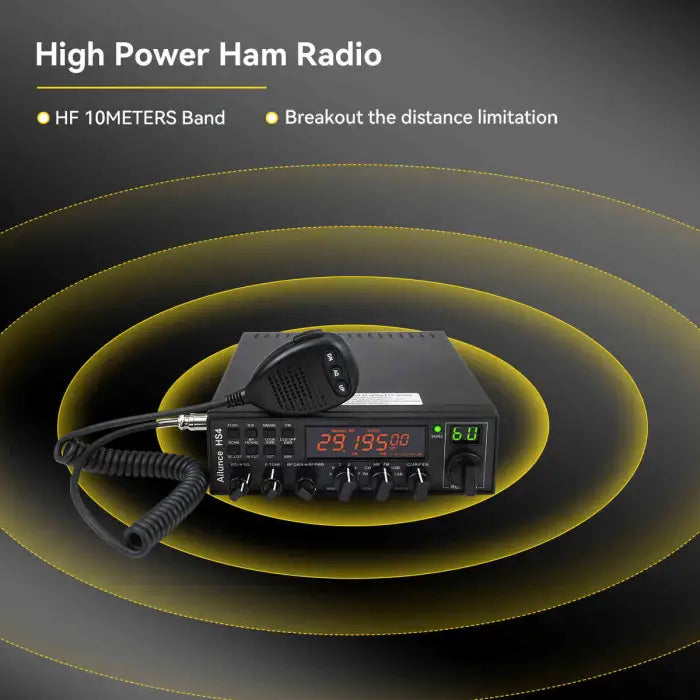

Long range mobile radio
6 optional modes
10 meter radio increases the flexibility of use through the PA/AM/FM/USB/LSB/CW modes; meanwhile; CW mode makes it secure to communicate by connecting the external Moss devices to communicate6 frequency bands

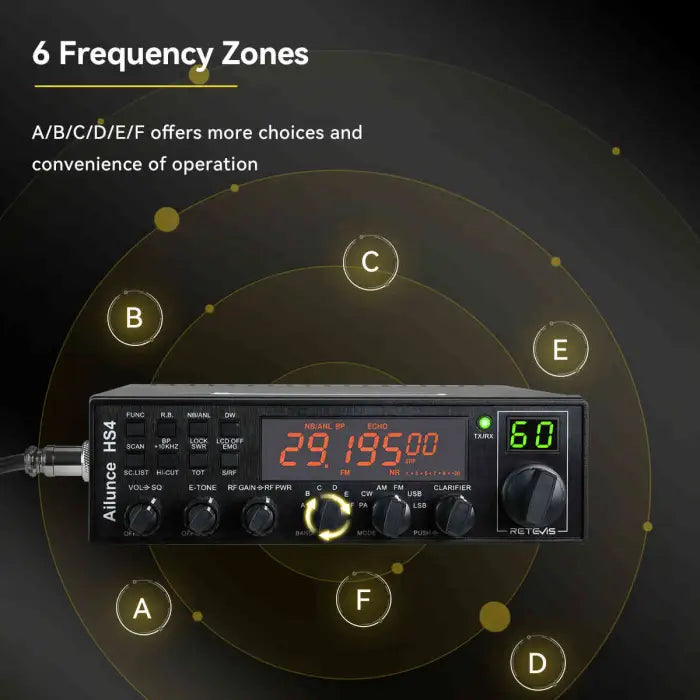

ssb ham radio supports A/B/C/D/E/F frequency bands. The mobile transceiver provides operators with flexible communication options. No matter where you are,choose the proper one to achieve communication flexibly.

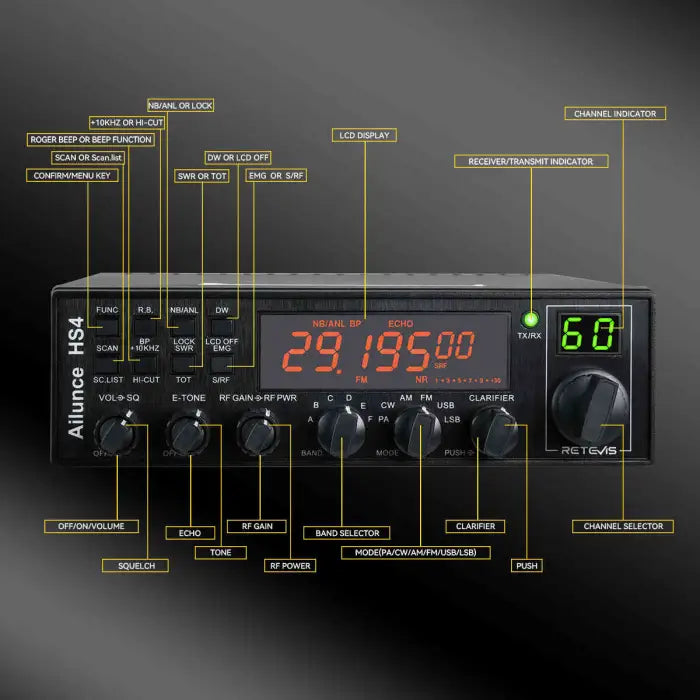

Large LCD display
ham radio base station displays the complete frequencies and function operations on the LCD. Displays the channel numbers on the LED, whenever and wherever; operators easily check the radio information

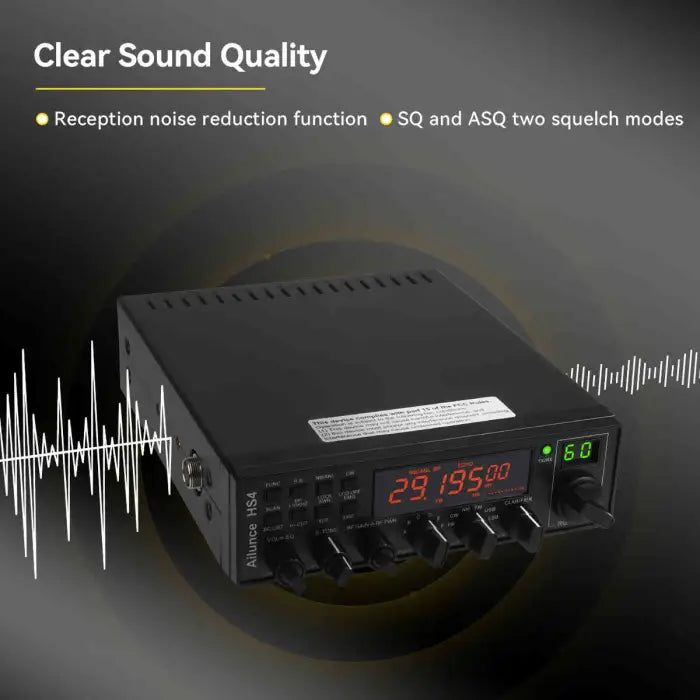

Clear sound quality
long range mobile radio not only supports squelch function but also supports noise reduction function. when the transmitter is in a noisy environment,operators receive clearly.
104 CTCSS/DCS
ssb ham radio increases the security of communication by blocking out other conversations on the same frequency; improving communication efficiency

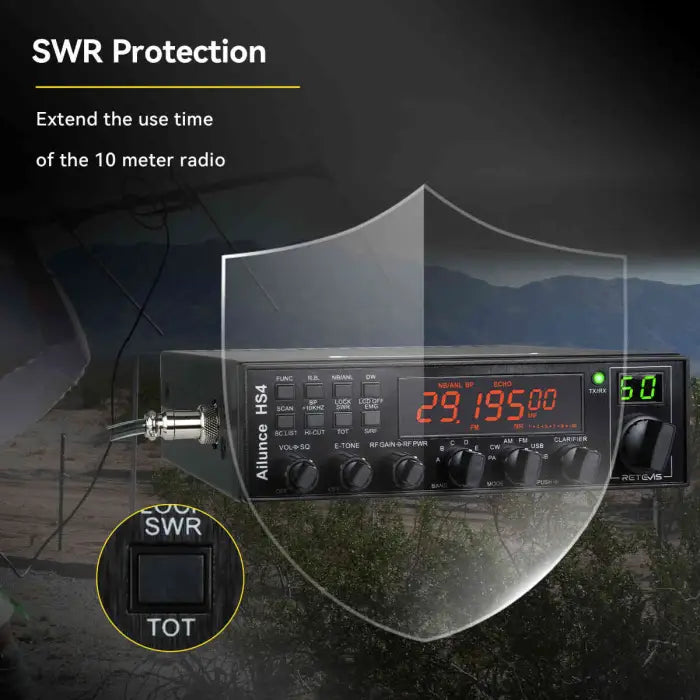

SWR protection
effectively protect 10 meter ham radio from damage when the SWR is too high; extending the use time of ham radio base station

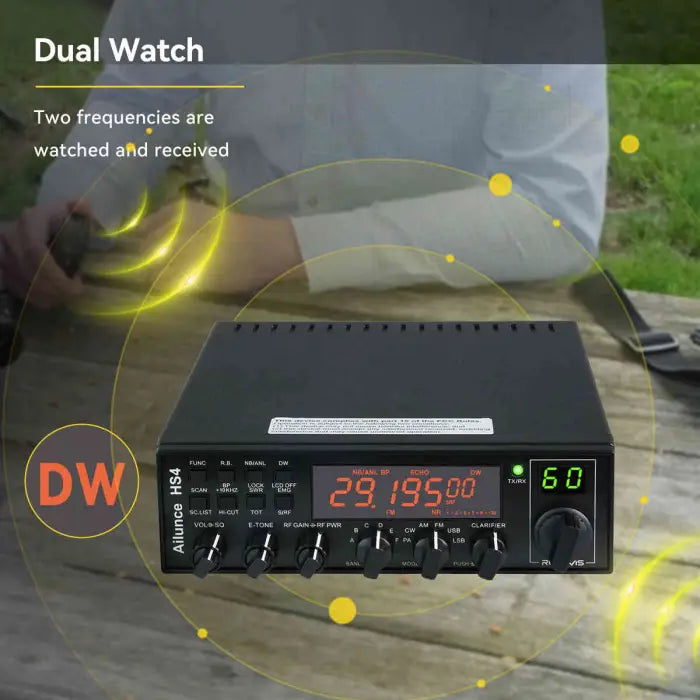

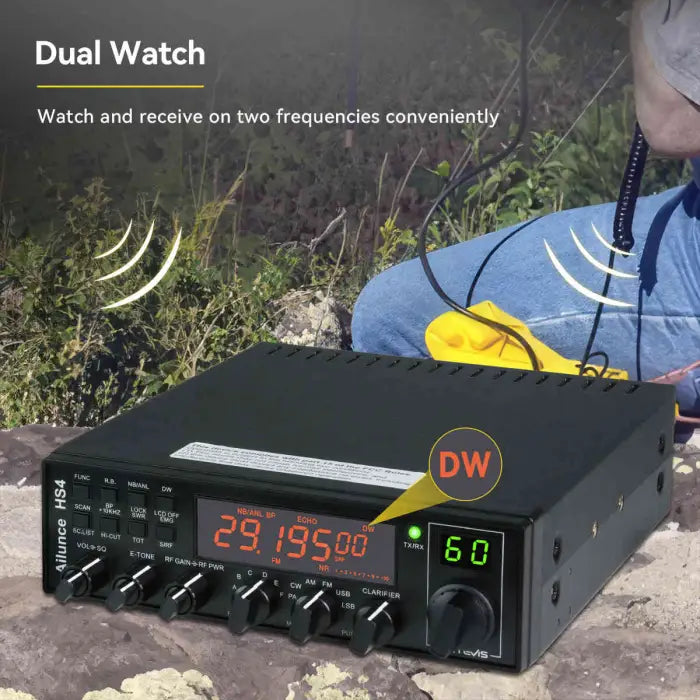

Dual watch function
mobile transceiver can watch and receive on two frequencies alternatively and automatically, operators won't miss important calls
Keypad lock
comes with a lock key, mobile ham radio prevents changing frequencies or setting from mis operations; especially during busy periods

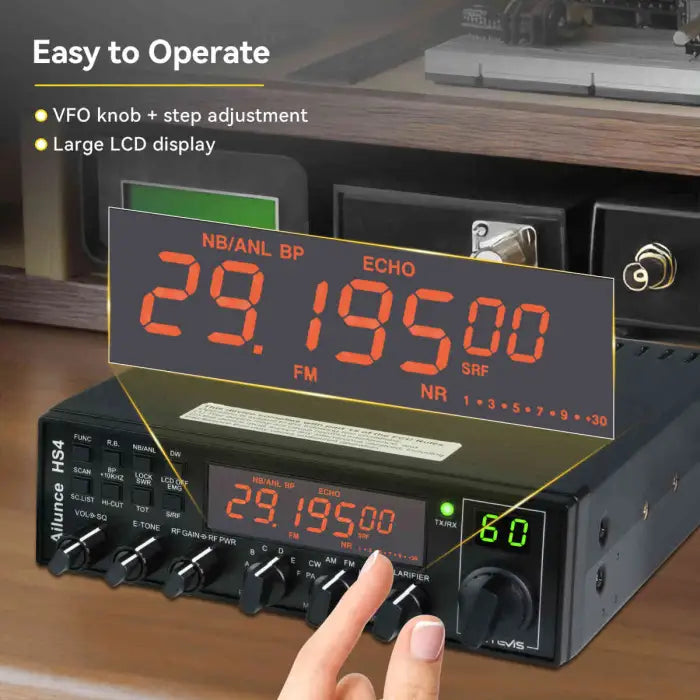

VFO knob
amateur mobile transceiver supports adjusting the frequencies by rotating the VFO knob based on the optional step values; making operations more convenient.
SPECIFICATIONS
| General | |
| Frequency Range | 28.000MHz-29.700MHz |
| Frequency Band |
A/B/C/D/E/F |
| Channel | 60 channels(programmable) |
| Frequency Control | Phase-Locked-Loop Synthesizer |
| Frequency Step | 10Hz 100Hz 1KHz 10KHz |
| Frequency Tolerance | 0.005% |
| Frequency Stability | 0.001% |
| Temperature Range | -30℃to +50℃ |
| Microphone | Plug-in dynamic:with push-to-talk/UP/DN/ASQ switch and coiled cord |
| Input Voltage |

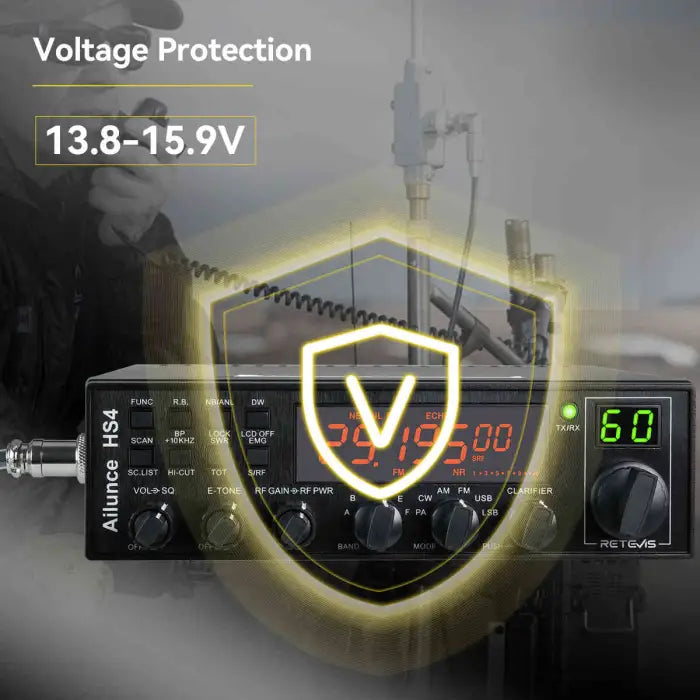

DC 13.8V normal,15.9Vmax;11.7V min Transmit:AM full mod 6A Receiver: Squelched 0.8A SSB 30W PEP output 9A |

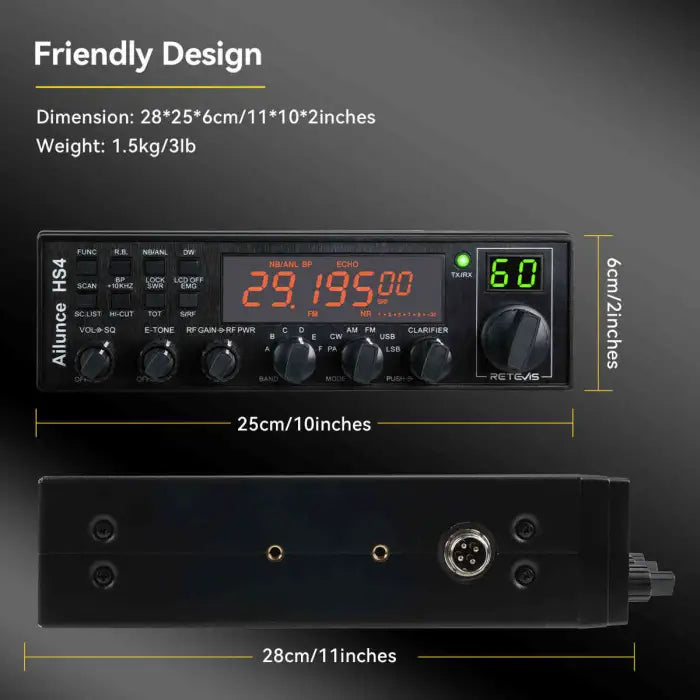

| Size | 28*25*6CM |
| Weight | 1.5KG |
| Antenna Connector | UHF,SO239 |
| TRANSMITTER | |
| PowerOutput |
AM/CW:1-12W(adjustable) FM:1-40W(adjustable) USB/LSB:1-35W(adjustable) |
| Modulation |
AM FM |
| Inter-modulation Distortion | SSB:3rd order,more than -25dB;5th order,more than -35dB |
| SSB Carrier Suppression | 55dB |
| Unwanted Sideband | 50dB |
| Frequency Response | AM and FM:450 to 2500Hz |
| Output impedance | 50ohms,unbalanced |
| Sensitivity |
SSB:0.25μV for 10dB(S+N)/N at greater than 1/2-watt of audio output. AM:1.0μV for 10 dB(S+N)/N at greater than 1/2watt of audio output. FM:1.0μV for 20 dB (S+N)/N at greater than 1/2 watt of audio output. |
| Selectivity |
AM/FM:6dB@3KHz,50dB @9KHz SSB:6dB@2.1KHz,60dB @3.3KHz |
| Image Rejection | More than 65dB |
| IF Frequency |
AM/FM:10.695 MHz 1st IF,455 kHz 2nd IF SSB:10.695 MHz |
| Adjacent-Channel | 60dB AM/FM &70 dB SSB |
| RECEIVER | |
| RF Gain Control | 45 dB adjustable foroptimum signal reception |
| Automatic Gain Control (AGC) | Less than 10 dB change in audio output for inputs from 10 to 100,000 microvolt |
| Squelch |
Adjustable;threshold less than 0.5μV. Automatic Squelch Control(onlyAM/FM)0.5μV |
| ANL | Switchable |
| Noise Blanker | RF type,effective on AM/FM and SSB |
| Audio Output Power | 3 watts into 8 ohms |
| Frequency Response | 300 to 2800 Hz |
| Built-in Speaker | 8 ohms,round. |
| External Speaker (Not Supplied) |
8 ohms;disables internalspeaker when connected. |
Description
Updated for 2024 This popular 10M Mobile CB Style Amateur Ham Radio now includes CTCSS/DSC tones, and the ability to attach both Electret and Dyna style mics to its standard 4 pin microphone connector. PRE ORDER now and receive a free USB Windows Programming cable with your order.
Retevis Ailunce HS4 10-12 Meter SSB Ham Radio AM/FM/PA/USB/LSB/CW Mobile Transceiver
Long range mobile radio
6 optional modes
10 meter radio increases the flexibility of use through the PA/AM/FM/USB/LSB/CW modes; meanwhile; CW mode makes it secure to communicate by connecting the external Moss devices to communicate6 frequency bands
ssb ham radio supports A/B/C/D/E/F frequency bands. The mobile transceiver provides operators with flexible communication options. No matter where you are,choose the proper one to achieve communication flexibly.
Large LCD display
ham radio base station displays the complete frequencies and function operations on the LCD. Displays the channel numbers on the LED, whenever and wherever; operators easily check the radio information
Clear sound quality
long range mobile radio not only supports squelch function but also supports noise reduction function. when the transmitter is in a noisy environment,operators receive clearly.
104 CTCSS/DCS
ssb ham radio increases the security of communication by blocking out other conversations on the same frequency; improving communication efficiency
SWR protection
effectively protect 10 meter ham radio from damage when the SWR is too high; extending the use time of ham radio base station
Dual watch function
mobile transceiver can watch and receive on two frequencies alternatively and automatically, operators won't miss important calls
Keypad lock
comes with a lock key, mobile ham radio prevents changing frequencies or setting from mis operations; especially during busy periods
VFO knob
amateur mobile transceiver supports adjusting the frequencies by rotating the VFO knob based on the optional step values; making operations more convenient.
SPECIFICATIONS
| General | |
| Frequency Range | 28.000MHz-29.700MHz |
| Frequency Band |
A/B/C/D/E/F |
| Channel | 60 channels(programmable) |
| Frequency Control | Phase-Locked-Loop Synthesizer |
| Frequency Step | 10Hz 100Hz 1KHz 10KHz |
| Frequency Tolerance | 0.005% |
| Frequency Stability | 0.001% |
| Temperature Range | -30℃to +50℃ |
| Microphone | Plug-in dynamic:with push-to-talk/UP/DN/ASQ switch and coiled cord |
| Input Voltage |
DC 13.8V normal,15.9Vmax;11.7V min Transmit:AM full mod 6A Receiver: Squelched 0.8A SSB 30W PEP output 9A |
| Size | 28*25*6CM |
| Weight | 1.5KG |
| Antenna Connector | UHF,SO239 |
| TRANSMITTER | |
| PowerOutput |
AM/CW:1-12W(adjustable) FM:1-40W(adjustable) USB/LSB:1-35W(adjustable) |
| Modulation |
AM FM |
| Inter-modulation Distortion | SSB:3rd order,more than -25dB;5th order,more than -35dB |
| SSB Carrier Suppression | 55dB |
| Unwanted Sideband | 50dB |
| Frequency Response | AM and FM:450 to 2500Hz |
| Output impedance | 50ohms,unbalanced |
| Sensitivity |
SSB:0.25μV for 10dB(S+N)/N at greater than 1/2-watt of audio output. AM:1.0μV for 10 dB(S+N)/N at greater than 1/2watt of audio output. FM:1.0μV for 20 dB (S+N)/N at greater than 1/2 watt of audio output. |
| Selectivity |
AM/FM:6dB@3KHz,50dB @9KHz SSB:6dB@2.1KHz,60dB @3.3KHz |
| Image Rejection | More than 65dB |
| IF Frequency |
AM/FM:10.695 MHz 1st IF,455 kHz 2nd IF SSB:10.695 MHz |
| Adjacent-Channel | 60dB AM/FM &70 dB SSB |
| RECEIVER | |
| RF Gain Control | 45 dB adjustable foroptimum signal reception |
| Automatic Gain Control (AGC) | Less than 10 dB change in audio output for inputs from 10 to 100,000 microvolt |
| Squelch |
Adjustable;threshold less than 0.5μV. Automatic Squelch Control(onlyAM/FM)0.5μV |
| ANL | Switchable |
| Noise Blanker | RF type,effective on AM/FM and SSB |
| Audio Output Power | 3 watts into 8 ohms |
| Frequency Response | 300 to 2800 Hz |
| Built-in Speaker | 8 ohms,round. |
| External Speaker (Not Supplied) |
8 ohms;disables internalspeaker when connected. |
