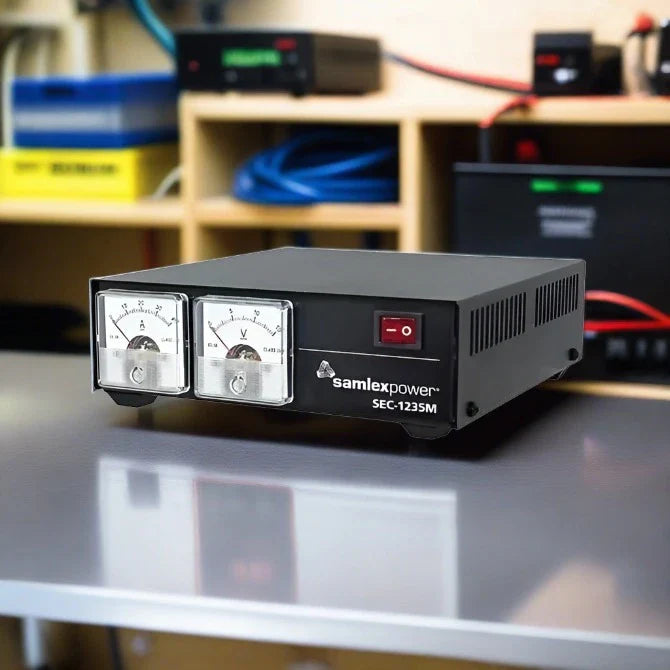

• Samlex power supply unit with two analog meters and a power switch on the front panel.
1 1

Samlex America

SamlexAmerica SEC-1235M 30A Desktop Switching Power Supply With Volt/Amp Meters

SamlexAmerica SEC-1235M 30A Desktop Switching Power Supply With Volt/Amp Meters

This product is elligible for Ship to Fleetwood Digital for pick-up, or Canada wide shipping! Proudly processed by our Quebec warehouse.
CHF 198.00
CHF 198.00
Sale Sold out
Shipping calculated at checkout.
Carbon-neutral shipping with Shopify Planet
Carbon-neutral shipping on all orders
Shopify secure badge

Why Buy?

DC Power Supplies allow one to power devices that commonly run on 12V DC such as two way radios, amplifiers, car/marine stereos, etc... in your home or shack to use the radio as a base station. Be sure to choose a model with sufficient amperage to run your devices. 3-6A for a standard AM CB Radio. 12-18A for a Stereo or SSB / 10M Mobile radio. 12+A for use with Amplifiers. Refer to your devices owners manual or look up specifications if unsure.

Not quite sure if this is right for you? Contact Us for expert advice!

Quick Specs

Scoll down for more information about this item.


This high efficiency UL-60950-1 approved AC-DC power converter provides a highly regulated output DC voltage of 13.8 Volts at 30 Amps with an AC input of 120 Volts, 60 Hz (230 Volts, 50 Hz possible models also available). These advanced switch-mode DC power supplies were designed specifically for land mobile radio applications. The power supplies produce clean reliable power and are highly filtered to suppress RFI. The unit comes with front panel ammeter and voltmeter and a detachable power supply cord with NEMA 5-15P plug. Features include over-current, short-circuit, and over-temperature protection. The AC-DC power supply conforms to FCC Part 15(B), class B digital device.

  • Advanced switch-mode technology
  • Reliable power with minimum weight and size
  • Circuit innovations minimize output voltage ripple and RFI
  • Input voltage can be set at 120VAC or 240VAC
  • UL listed to both USA & Canadian safety standards
Specifications:
  • Input 100-130 VAC
  • Output 13.8 VDC
  • Amps 30 Amps
  • Fuse 8 Amps
  • Weight 4.5 (lbs)
  • Weight 2.04 (kg)
  • Dimensions 8.35 x 7.28 x 2.4 (in)
  • Dimensions 21.2 x 18.5 x 6.1 (cm)
  • Safety UL/cUL
  • Warranty 3 Years
View full details

Description


This high efficiency UL-60950-1 approved AC-DC power converter provides a highly regulated output DC voltage of 13.8 Volts at 30 Amps with an AC input of 120 Volts, 60 Hz (230 Volts, 50 Hz possible models also available). These advanced switch-mode DC power supplies were designed specifically for land mobile radio applications. The power supplies produce clean reliable power and are highly filtered to suppress RFI. The unit comes with front panel ammeter and voltmeter and a detachable power supply cord with NEMA 5-15P plug. Features include over-current, short-circuit, and over-temperature protection. The AC-DC power supply conforms to FCC Part 15(B), class B digital device.

  • Advanced switch-mode technology
  • Reliable power with minimum weight and size
  • Circuit innovations minimize output voltage ripple and RFI
  • Input voltage can be set at 120VAC or 240VAC
  • UL listed to both USA & Canadian safety standards
Specifications:
  • Input 100-130 VAC
  • Output 13.8 VDC
  • Amps 30 Amps
  • Fuse 8 Amps
  • Weight 4.5 (lbs)
  • Weight 2.04 (kg)
  • Dimensions 8.35 x 7.28 x 2.4 (in)
  • Dimensions 21.2 x 18.5 x 6.1 (cm)
  • Safety UL/cUL
  • Warranty 3 Years
