SMA-Female to BNC-Female Coax Adapter for Handheld Radios
SMA-Female to BNC-Female Coax Adapter for Handheld Radios
HURRY! Selling out fast! Only 2 left in stock!
Couldn't load pickup availability
Why Buy?
Why Buy?
Not quite sure if this is right for you? Contact Us for expert advice!
Quick Specs
Quick Specs
Scoll down for more information about this item.
This high-quality adapter lets you connect a BNC-style antenna or cable to your Baofeng, Quansheng, or other handheld radio that uses an SMA-Male antenna port. It's the perfect solution for using a scanner antenna with your ham radio or connecting your HT to test equipment.
💡 Please Note: Sold as a Single Adapter

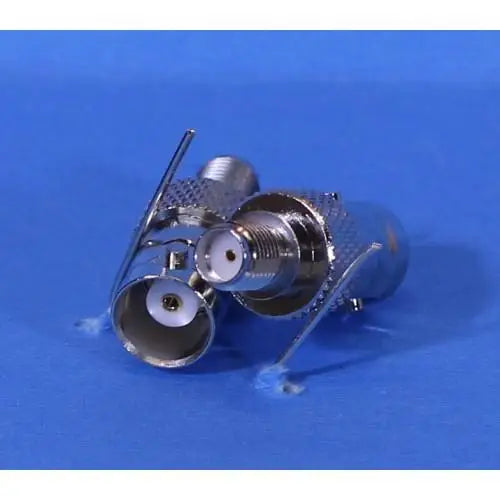

The main product image shows two adapters from different angles so you can see both connectors. This item is sold as a single (1) adapter.
-
🔌
Connector 1: SMA-Female: Features a center hole and threads on the *outside*. Designed to screw onto radios with a center pin.
-
📡
Connector 2: BNC-Female: The standard "twist-lock" connector found on most scanners. Accepts any BNC-Male plug.
-
🛰️
Connect to Scanner Antennas: Easily connect your Baofeng UV-5R or Quansheng UV-K5 to a high-gain BNC discone or scanner antenna.
✅ Fits Radios with a CENTER PIN (SMA-Male Port)
This adapter fits handheld radios that have an SMA-Male antenna port (a port with a center pin that is **flush** with the radio body).
Compatible Models Include:
- Baofeng: UV-5R, UV-82, BF-F8HP
- Quansheng: UV-K5, UV-K5(8)
- Retevis: RT5R, RT1, RT2, RT8, RT81
- Yaesu: FT-65R, FT-4XR
⚠️ Does NOT Fit Most Yaesu, Icom, or RT85
This adapter does NOT fit radios that have an SMA-Female port (a center hole that protrudes from the body). This includes most Yaesu (FT-60R), Icom, and some Retevis (RT85, RA89) models.
Technical Specifications
| Specification | Detail |
|---|---|
| Connector 1 (Radio Side) | SMA-Female (Center hole, threads outside) |
| Connector 2 (Antenna Side) | BNC-Female (Center hole, twist-lock) |
| Impedance | 50 Ohm |
| Material | Nickel-plated brass |
Description
This high-quality adapter lets you connect a BNC-style antenna or cable to your Baofeng, Quansheng, or other handheld radio that uses an SMA-Male antenna port. It's the perfect solution for using a scanner antenna with your ham radio or connecting your HT to test equipment.
💡 Please Note: Sold as a Single Adapter
The main product image shows two adapters from different angles so you can see both connectors. This item is sold as a single (1) adapter.
-
🔌
Connector 1: SMA-Female: Features a center hole and threads on the *outside*. Designed to screw onto radios with a center pin.
-
📡
Connector 2: BNC-Female: The standard "twist-lock" connector found on most scanners. Accepts any BNC-Male plug.
-
🛰️
Connect to Scanner Antennas: Easily connect your Baofeng UV-5R or Quansheng UV-K5 to a high-gain BNC discone or scanner antenna.
✅ Fits Radios with a CENTER PIN (SMA-Male Port)
This adapter fits handheld radios that have an SMA-Male antenna port (a port with a center pin that is **flush** with the radio body).
Compatible Models Include:
- Baofeng: UV-5R, UV-82, BF-F8HP
- Quansheng: UV-K5, UV-K5(8)
- Retevis: RT5R, RT1, RT2, RT8, RT81
- Yaesu: FT-65R, FT-4XR
⚠️ Does NOT Fit Most Yaesu, Icom, or RT85
This adapter does NOT fit radios that have an SMA-Female port (a center hole that protrudes from the body). This includes most Yaesu (FT-60R), Icom, and some Retevis (RT85, RA89) models.
Technical Specifications
| Specification | Detail |
|---|---|
| Connector 1 (Radio Side) | SMA-Female (Center hole, threads outside) |
| Connector 2 (Antenna Side) | BNC-Female (Center hole, twist-lock) |
| Impedance | 50 Ohm |
| Material | Nickel-plated brass |
